Description:

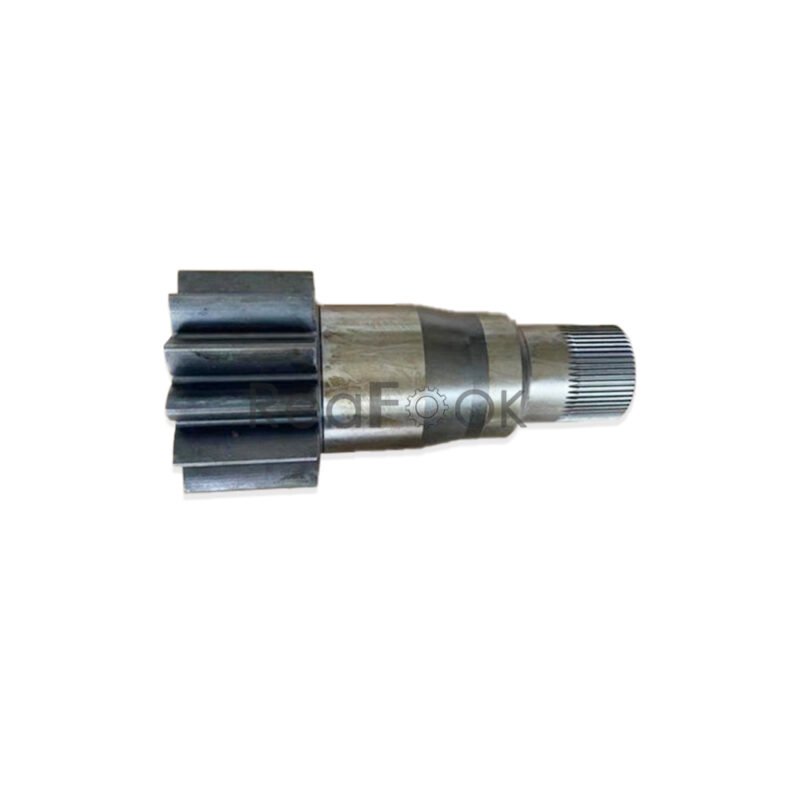

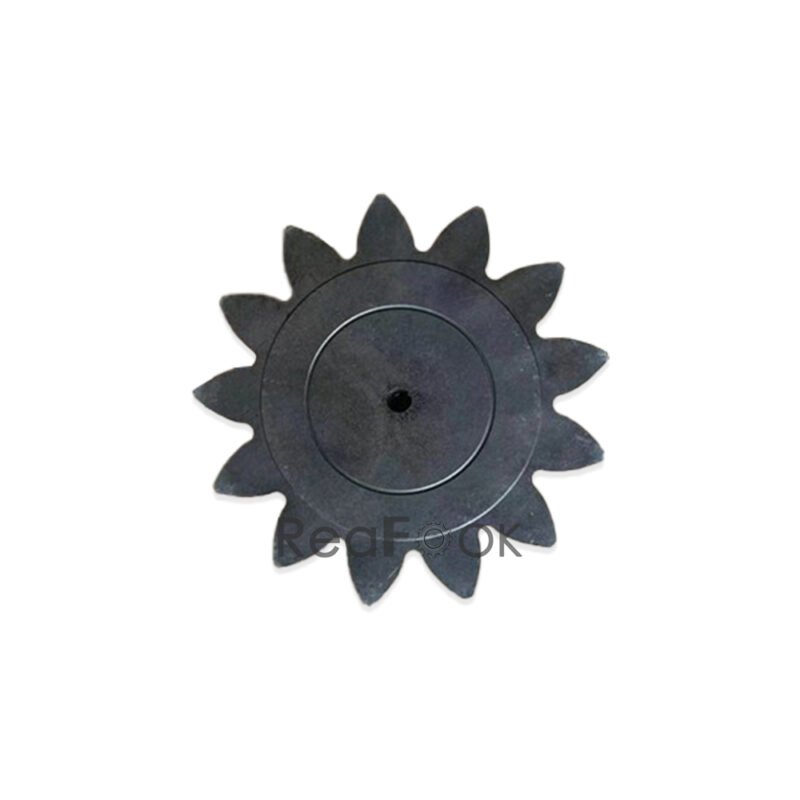

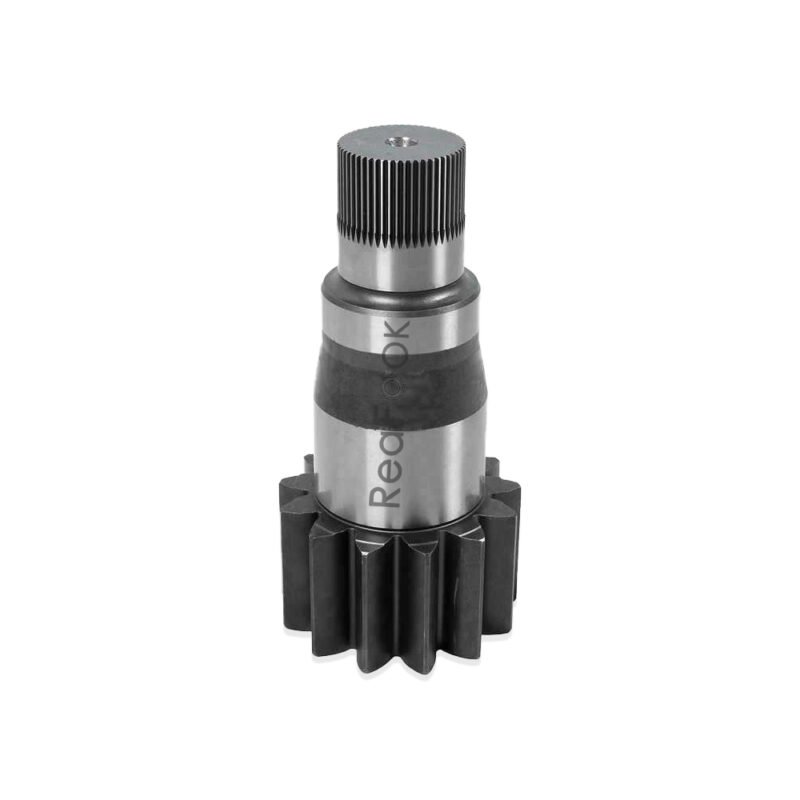

The Swing Pinion Shaft for transmitting power from the swing motor to the swing gear which enables the rotation of the upper structure. It is used to rotate your equipment about the undercarriage by orbiting around the much larger bearing and ring gear.
Pos. Part No Qty Parts name Comments
1. 206-26-71490 [1] CASE 105.42 kg.
2. 07029-00000 [1] VALVE 0.09 kg.
3. 20Y-26-22330 [1] BEARING 3.28 kg.
4. 206-26-71240 [1] BEARING 12.83 kg.
5. 206-26-71460 [1] SHAFT
6. 07012-00115 [1] SEAL 0.127 kg.
7. 206-26-71310 [1] SPACER 0.81 kg.
8. 07000-15310 [1] O-RING 0.035 kg.
9. 206-26-71480 [1] CARRIER 10.88 kg.
10. 206-26-71440 [4] GEAR 1.91 kg.
11. 22U-26-21320 [8] BEARING 1.1 kg.
11. 22U-26-21330 [8] BEARING
12. 206-26-71520 [8] THRUST WASHER 0.1 kg.
13. 206-26-71510 [4] PIN 0.97 kg.
14. 20Y-26-21330 [4] PIN 0.1 kg.
15. 20Y-26-21240 [1] PLATE 5.1 kg.
16. 112-32-11211 [1] BOLT 0.09 kg.
17. 206-26-71452 [1] GEAR 28.79 kg.
17. 206-26-71450 [1] GEAR 28.79 kg.
18. 20K-22-11190 [1] O-RING 0.02 kg.
19. 01010-81440 [22] BOLT 0.073 kg.
20. 01643-31445 [22] WASHER 0.019 kg.
21. 206-26-71430 [1] GEAR 2.33 kg.
22. 04260-01270 [1] BALL
23. 206-26-71470 [1] CARRIER 3.9 kg.
24. 206-26-71420 [3] GEAR 0.83 kg.
25. 20Y-27-22210 [3] BEARING 0.12 kg.
26. 22U-26-21230 [6] WASHER,THRUST 1 kg.
27. 206-26-71210 [3] PIN 0.42 kg.
28. 04064-03515 [6] RING 0.005 kg.
29. 206-26-71350 [1] HOLDER 0.21 kg.
30. 206-26-71410 [1] GEAR 0.83 kg.
31. 206-26-71341 [1] PLATE
31. 206-26-71340 [1] PLATE 0.09 kg.
32. 20Y-26-31510 [1] COVER 7.3 kg.
33. 01010-81035 [6] BOLT 0.033 kg.
34. 01643-51032 [6] WASHER 0.17 kg.
35. 07042-30617 [1] PLUG
36.07042-30108 [1] PLUG Komatsu
37. 07042-30415 [1] PLUG
Weight
33 kg
