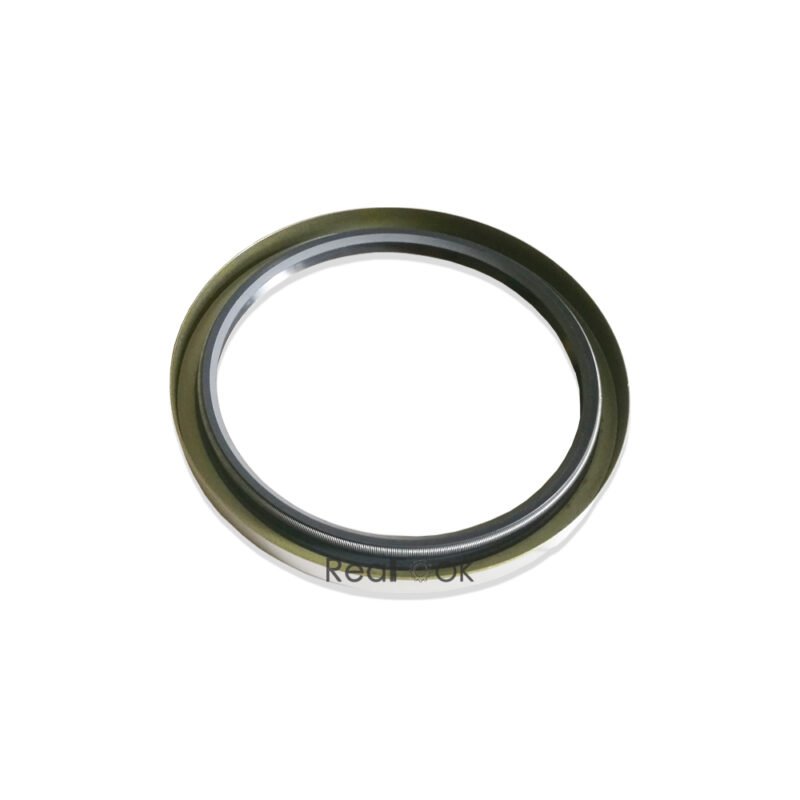

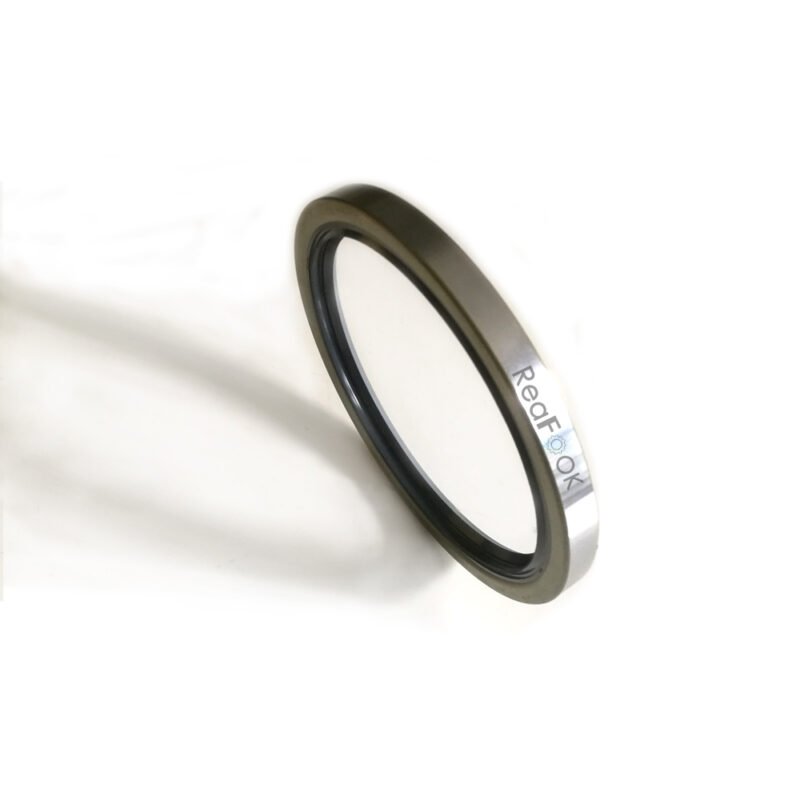

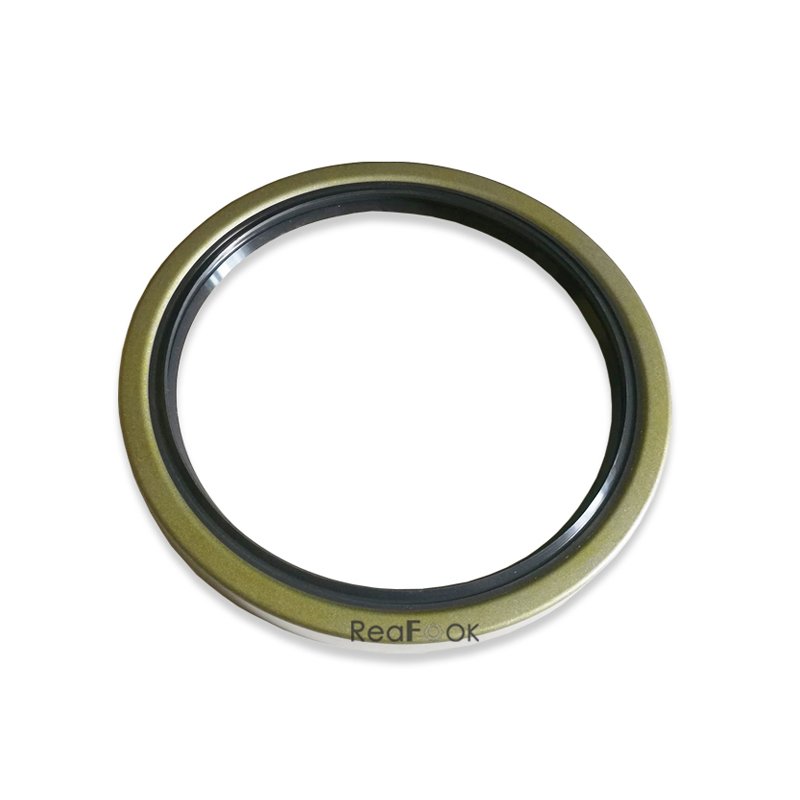

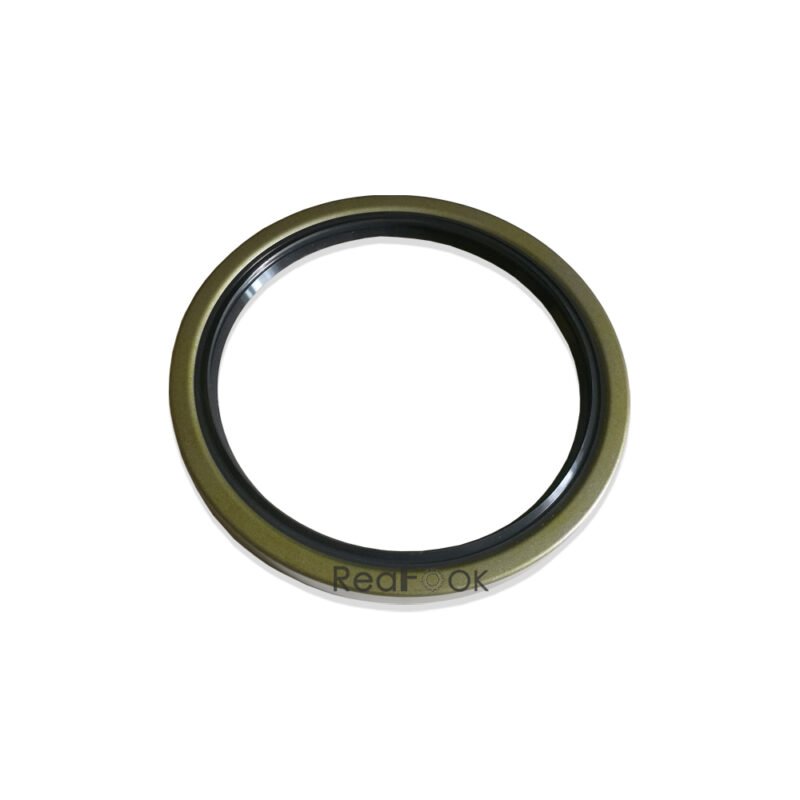

Swing Reduction Oil Seal 07012-00145 Fit Excavator Komatsu PC100-6 PC120-6 PC130-8 PC130US-8 PC128UU PC128US
US$79.00
Oil Seal 07012-00145;
Inner Diameter 145mm;
It is used for the Swing Drive Shaft;
Free Shipping and High Quality Standards!!
| Quantity | Discount (%) | Price |
|---|---|---|
| 1 | — | US$79.00 |
| 2 - 3 | 25.32 % | US$59.00 |
| 4 - 9 | 50.63 % | US$39.00 |
| 10+ | 63.29 % | US$29.00 |
Product Name: Oil Seal
Reference Part Number: 07012-00145
Compatible Machine: Excavator Komatsu PC100-6 PC120-6 PC130-8 PC130US-8 PC128UU PC128US…
Description:
An Oil Seal is used to provide a leakproof seal for the pinion of the swing drive. It is made from an elastic material such as rubber, which is used to prevent leakage of fluids, contaminants, or lubricants and maintain proper operation and performance.

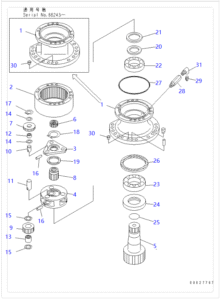

Pos. Part No Qty Parts name Comments
203-26-00150 [1] SWING MACHINERY A.
203-26-00121 [1] SWINGMACHINERY A.
203-26-00120 [1] SWING MACHINERY A.
2. 203-26-61110 [1] GEAR
3. 203-26-61120 [1] CARRIER
4. 203-26-61130 [1] CARRIER
5. 203-26-61220 [1] SHAFT Komatsu 12.81 kg.
6. 203-26-61150 [1] GEAR Komatsu 0.2 kg.
7. 203-26-61160 [3] GEAR Komatsu 0.4 kg.
8. 203-26-61170 [1] GEAR Komatsu 0.9 kg.
9. 203-26-61180 [3] GEAR
10. 201-26-62240 [3] SHAFT
11. 203-26-61250 [3] SHAFT
12. 201-26-62270 [3] BEARING
13. 203-26-61270 [3] BEARING
14. 20S-26-71160 [6] WASHER
15. 09233-12920 [6] WASHER,THRUST
16. 20S-26-71250 [6] PIN
17. 20S-26-71190 [3] RING,SNAP
18. 04064-05520 [1] RING,SNAP
19. 203-26-61280 [1] SPACER
20. 203-26-61391 [2] SPACER
21. 203-26-61310 [1] COLLAR
22. 201-26-62330 [1] BEARING
23. 203-26-61320 [1] BEARING
24. 203-26-61340 [1] COLLAR
25. 07000-02080 [1] O-RING
26. 07012-00145 [1] SEAL,OIL
27. 203-26-61360 [1] O-RING
28. 203-26-61370 [1] NIPPLE
29. 07042-30415 [1] PLUG 0.056 kg.
30. 07049-01620 [2] PLUG 0.002 kg.
31. 07323-30400 [1] ELBOW
