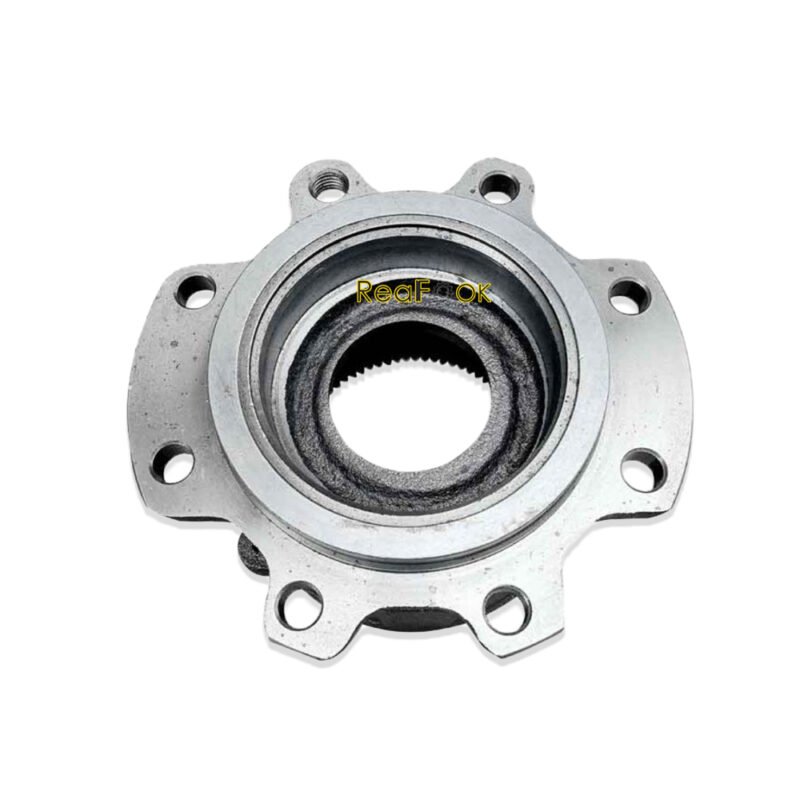

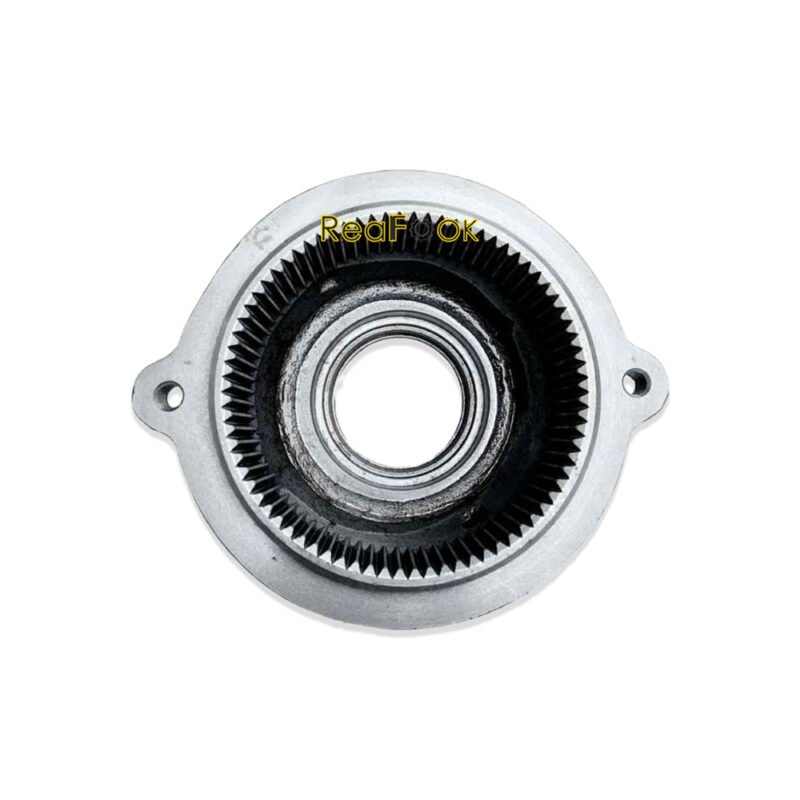

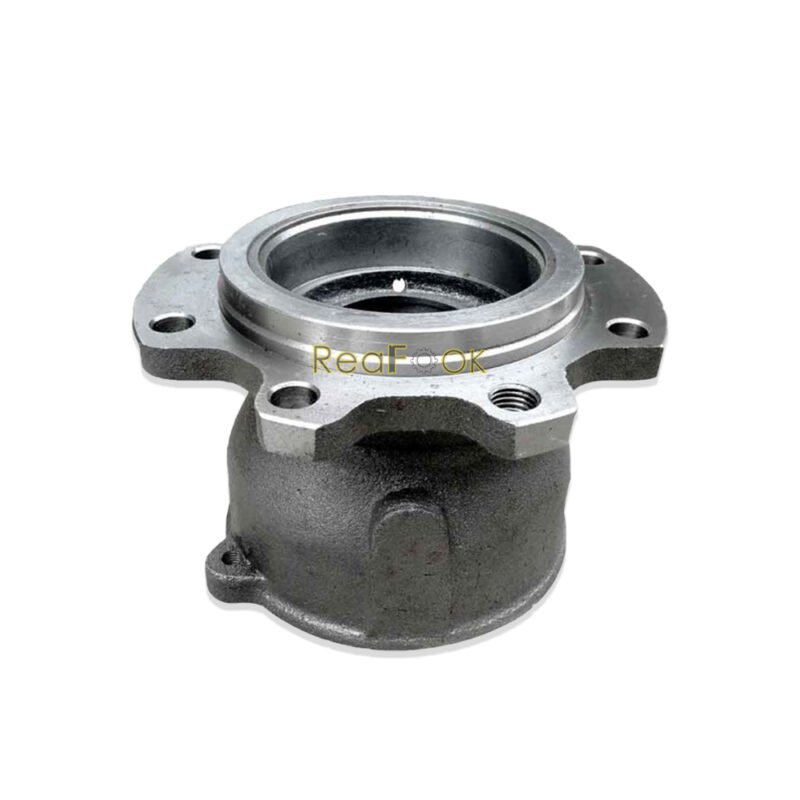

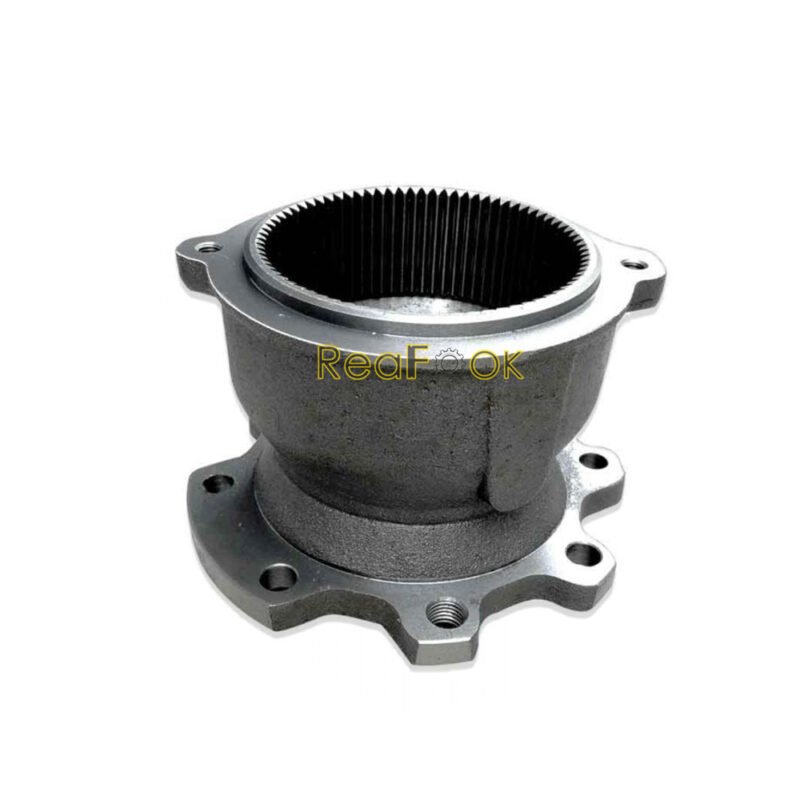

Swing Reduction Gear Case RD411-17110 Fit Excavator Kubota KX161-3 KX161-3S U45-3 U45-3S

Product Name: Gear Case, Housing
Reference Part Number: RD411-17110
Fits and Compatible Machines: Excavator Kubota KX161-3 KX161-3S KX161-3ST KX161-3SCA U45-3 U45-3S…

Description:
Swing Drive Housing provides structural support and protection for the internal components of a swing drive system, ensuring stability, accurate movement, and a a housing for the pinion shaft to engage the planetary carrier in the swing drive system.

Pos. Part No Qty Parts name Comments
005. RD411-17100 [1] ASSY GEAR CASE
010. RD411-17110 [1] CASE,GEAR
020. RD411-17120 [1] BEARING,TAPER ROLLER
030. RD411-17380 [1] PLATE,SEAL
040. RD411-17370 [1] PLATE
050. RD411-17360 [1] PLATE
060. RD411-17130 [1] SHAFT,PINION
070. RD411-17390 [1] SEAL,OIL
080. RD411-17150 [1] BEARING,TAPER ROLLER
090. RD411-17310 [2] SPACER
090. RD411-17320 [2] SPACER
090. RD411-17330 [2] SPACER
090. RD411-17340 [2] SPACER
090. RD411-17350 [2] SPACER
100. RD411-17140 [1] HOLDER
110. RD411- 17170 [4] COLLAR
120. 08823-23727 [4] BEARING,NEEDLE
130. RD411-17190 [4] GEAR,PLANETARY
140. RD411-17160 [4] PLATE
150. 04612-00280 [4] CIR CLIP,EXTERNAL
160. RD411-17200 [1] GEAR
170. 04612-00420 [1] CIRCLIP,EXTERNAL
180. RD411-17210 [1] HOLDER
190. RD411-17220 [3] COLLAR
200. 08822-53114 [3] BEARING,NEEDLE
210. RD411-17240 [3] GEAR,PLANETARY
220. RD411-17270 [1] PLATE
220. RD411-17280 [1] PLATE
220. RD411-17290 [1] PLATE
220. RD411-17300 [1] PLATE
230. RD411-17260 [1] GEAR,DRIVE
