Swing Pinion Shaft 148-4636 Prop Shaft Fit Caterpillar Excavator E318C 318E 319C 319D 320C 320D 320D2
Original price was: US$585.00.US$535.00Current price is: US$535.00.

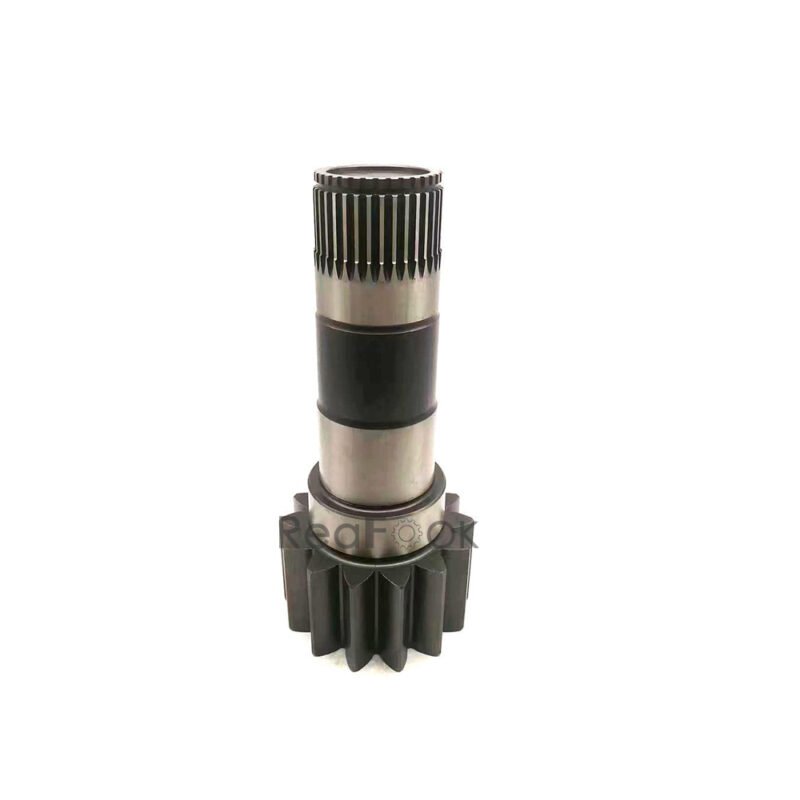

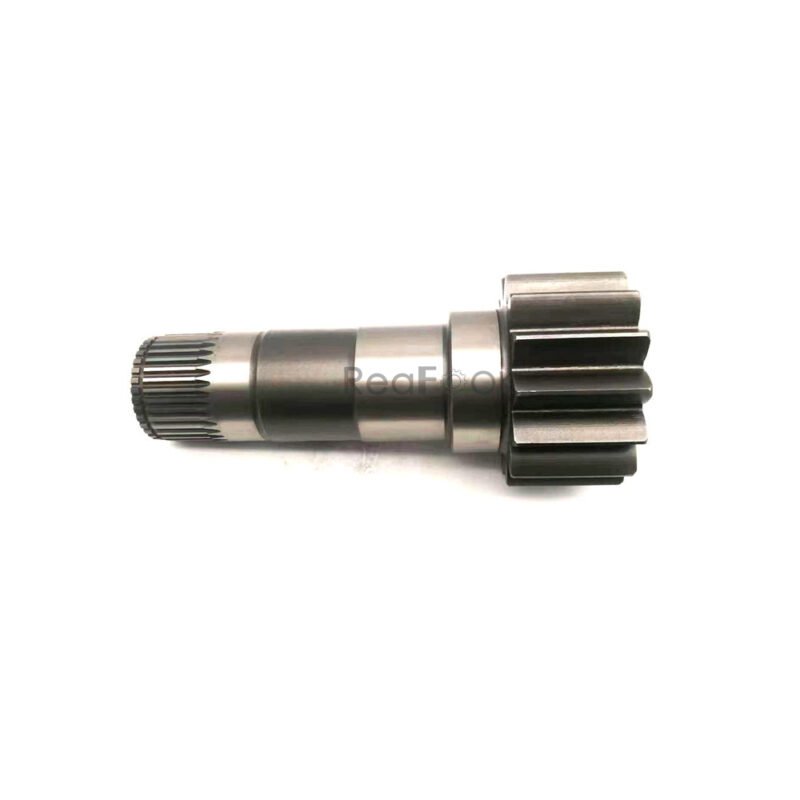

Pinion Shaft 148-4636
14T, 34 External Splines, Overall Length 375.7mm;
Hardended Steel Pinion Shaft;
The Shaft is for use in Swing Reduction Gearbox;
High Quality Standards!!
Product Name: Swing Pinion Shaft
Reference Part Number: 148-4636
Compatible Machine: Caterpillar Excavator E318C 318E 319C 319D 320C 320D 320D2…
Description:
The Swing Pinion Shaft for transmitting power from the swing motor to the swing gear which enables the rotation of the upper structure. It is used to rotate your equipment about the undercarriage by orbiting around the much larger bearing and ring gear.
Parts Lists:
1. 094-0584 [6] WASHER (40.3X72X1-MM THK)
2. 094-1509 [3] SHAFT-PLANETARY
3. 148-4733 [3] GEAR-PLANETARY (26-TEETH)
4. 114-1581 [1] SPACER (57.5X74X6-MM THK)
5. 148-4732 [1] GEAR-SUN (20-TEETH)
6. 093-1729 [2] RING-RETAINING
7. 148-4632 [1] GEAR-SUN (23-TEETH)
8. 191-2578 [1] CARRIER-PLANETARY
9. 7Y-1434 [1] SPACER (40X69.5X6-MM THK)
10. 148-4637 [1] CARRIER-PLANETARY
11. 148-4640 [1] RING-RETAINING
12. 148-4643 [1] BEARING
13. 095-1022 [1] BEARING-ROLLER
14. 148-4642 [1] SEAL-O-RING
15. 227-6228 [1] CAGE
16. 453-3447 M [6] BOLT (M12X1.75X40-MM)
17. 451-2182 [6] WASHER-HARD (13.5X25.5X3-MM THK)
18. 199-4561 [2] SEAL-LIP TYPE
19. 148-4636 [1] SHAFT-PINION
20. 148-4638 [1] HOUSING
21. 3K-0360 [1] SEAL-O-RING
22. 6V-7238 [1] VALVE-SHUTOFF (SWING DRIVE)
23. 148-4634 [3] SHAFT-PLANETARY
24. 095-0891 [3] PIN-SPRING
25. 148-4635 [1] GEAR-RING (73-TEETH)
26. 148-4633 [3] GEAR-PLANETARY (25-TEETH)
27. 7Y-0252 [6] BEARING AS-ROLLER
28. 094-0611 [6] WASHER (47.3X76X1-MM THK)
29. 095-0886 [3] PIN-SPRING
30. 094-1516 [3] BEARING-ROLLER
31. 171-9383 [1] SPACER
| Weight | 27.5 kg |
|---|
