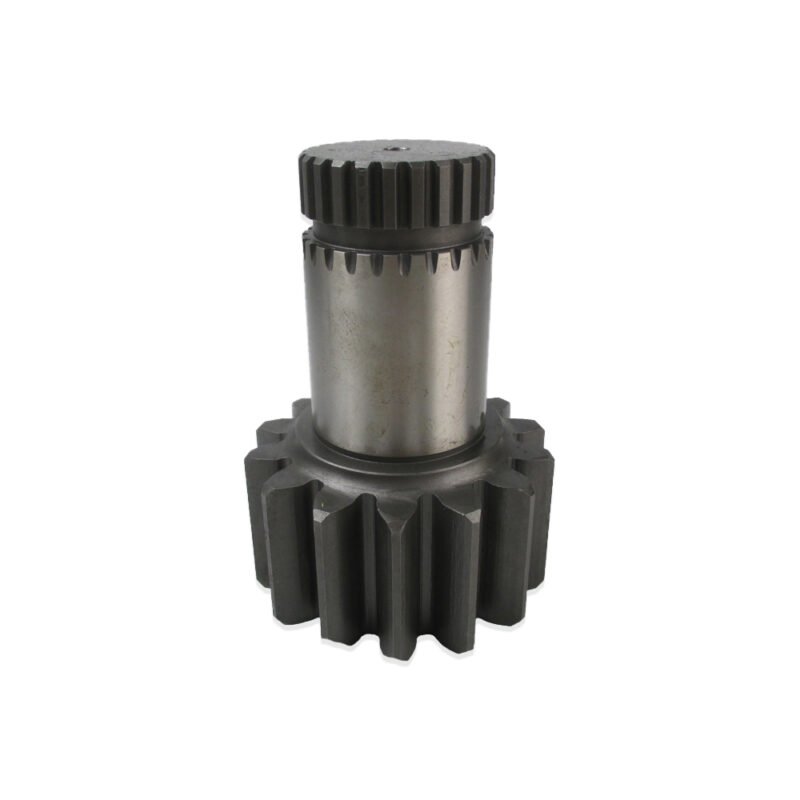

Swing Pinion Shaft 130712-01903 Fit Doosan Excavator DX60R DX57W-5 E57W

Product Name: Swing Pinion Shaft
Reference Part Number: 130712-01903
Compatible Machine: Doosan Excavator DX60R DX57W-5 E57W…

Description:
The Swing Drive Planetary Carrier is responsible for controlling the rotational movement of the machinery’s swing system.
It is a mechanical assembly designed to control and facilitate the rotational movement of the upper structure of heavy machinery, particularly in construction and excavation equipment. This component is a vital part of the swing drive system, which is responsible for the pivotal swing or rotation of the upper structure, including the cab, boom, and other attachments. The primary function of a swing drive planetary carrier is to distribute and transmit power from the swing motor to the machine’s upper structure. This rotation allows the operator to position the heavy equipment accurately, enabling tasks such as digging, lifting, and maneuvering. The planetary carrier contains a set of gears that distribute the torque evenly, ensuring smooth and efficient rotation.

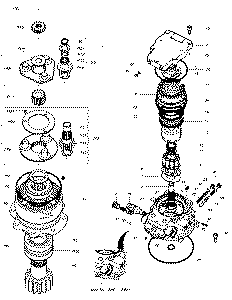

Pos. Part No Qty Parts name Comments

-. K1043595 [1] MOTOR;SWING 170303-00034

-. 170303-00034E [1]

-. 170303-00034A [1] 170303-00034B

-. 170303-00034B [1] 170303-00034C

-. 170303-00034C [1] 170303-00034E

-. 170303-00034 [1] 170303-00034A

1. K9006205 [1] CASING 110913-00198
2. 110913-00271 [1]
3. 110913-00198 [1]
4. 130426-00031 [1] 130426-00031A
5. 130426-00031A [1]
6. K9006226 [1] BUSH;SPHERICAL 131002-00544
7. 131002-00544 [1]
8. K9006185 [9] SPRING;CYLINDER
9. K9006198 [1] BLOCK;CYLINDER 910902-00073
10. 910902-00073 [1] BLOCK;CYLINDER
11. 400406-00681 [1] FILTER
12. K9006199 [2] PLATE;FRICTION
13. K9006200 [1] PLATE;SEPARATION
14. K9006208 [1] PISTON;BRAKE 130602-01111
15. 130602-01111 [1] PISTON,BRAKE
16. K9006209 [16] SPRING;BRAKE
17. K9006201 [1] PLATE;VALVE 250201-02620Pos. Part No Qty Parts name Comments
18. 250201-02620 [1] PLATE,VALVE
19. K9006202 [2] PLUNGER 410205-00082
20. 410205-00082 [2] PLUNGER
21. K9006206 [1] CASING;VALVE 110913-00199
22. 110913-00199A [1] 110913-00199B
23. 110913-00199B [1] CASE,VALVE
24. 110913-00199 [1] 110913-00199A
25. K9006203 [2] SPRING;CHECK
26. 100502-00233 [1] CARRIER ASSY;NO 1
27. 100502-00234 [1] CARRIER ASSY;NO 2
28. K9006180 [2] PLUG
29. S5740720 [1] PIN;SPRING
30. 2180-1217D134 [1] O-RING
31. 2180-1217D140 [1] O-RING
32. 2180-1217D141 [1] O-RING
33. 2180-1217D153 [1] O-RING
34. S8000161 [4] O-RING
35. S8000111 [2] O-RING
36. S8000081 [2] O-RING
37. K9006207 [1] SHAFT;DRIVE
38. K9006210 [1] SPOOL
39. K9006214 [1] SPRING
40. K9006948 [1] PLUNGER ASS’Y
41. K9006227 [1] SPRINGPos. Part No Qty Parts name Comments
42. 2181-1890D2 [2] PLUG
43. 2181-1890D4 [3] PLUG
44. K9006220 [1] BEARING;ROLLER
45. 181-00318 [3] BOLT;SOCKER
46. K9006184 [1] ORIFICE
47. S6500250 [1] RING;RETAINING
48. S2215271 [7] BOLT;SOCKET
49. K9006693 [2] VALVE;RELIEF K9006693A
50. 410127-00191 [2] 410127-00170
51. 410127-00170 [2]
52. K9006693A [2] 410127-00191
53. S5700911 [2] PIN,PARALLEL
54. 1.109-00032 [1] BEARING;BALL
55. K9006224 [1] PLATE;SHOE
56. 250201-02619 [1] PLATE,SHOE
57. K9006225 [1] PLATE;RETAINER
58. K9006222 [1] PISTON ASS’Y 130602-01110
59. 130602-01110 [1] PISTON ASSY

R1. K9006211 [1] CASING(D);GEAR K9006211A

R1. K9006211B [1] CASE,GEAR

R1. K9006211A [1] K9006211B

R10. K9006204 [3] WASHER(NO.3);THRUST

R11. K9006191 [3] RING(NO.2);INNER

R12. K9006190 [3] RING(NO.1);INNERPos. Part No Qty Parts name Comments

R13. K9006218 [3] BEARING;NEEDLE

R14. K9006219 [3] BEARING;NEEDLE

R15. K9006193 [3] GEAR(NO.2);PLANET

R16. K9006192 [3] GEAR(NO.1);PLANET

R17. K9006195 [1] GEAR(NO.2);SUN

R18. K9006194 [1] GEAR,SUN;NO.1

R19. K9006196 [1] WASHER(NO.1);THRUST

R2. 130712-01903 [1] SHAFT,PINION

R2. K9006212 [1] SHAFT(D);PINION K9006212A

R2. K9006212A [1]

R20. K9006197 [1] PLATE;THRUST

R21. K9006402 [6] WASHER;THRUST

R22. K9006403 [3] SCREW

R3. K9006694 [1] BEARING;TAPER ROLLER

R30. 401101-00036 [1] PLATE,SEAL

R4. K9006695 [1] BEARING;TAPER ROLLER

R5. K9006217 [1] SEAL;OIL

R6. K9006186 [1] COVER;BEARING

R7. K9006187 [2] COLLAR;HALF

R8. 100502-00261 [1] CARRIER(NO.1)

R8. K9006189 [1] CARRIER(NO.2)

R9. 100502-00101A [1] CARRIER(NO.1)

R9. K9006188 [1] CARRIER(NO.1)
