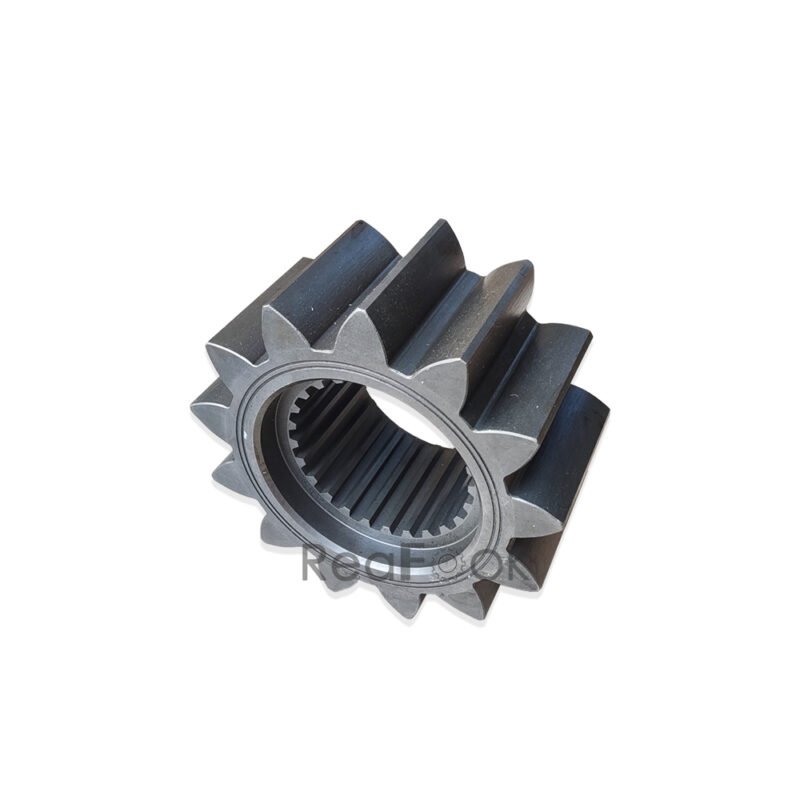

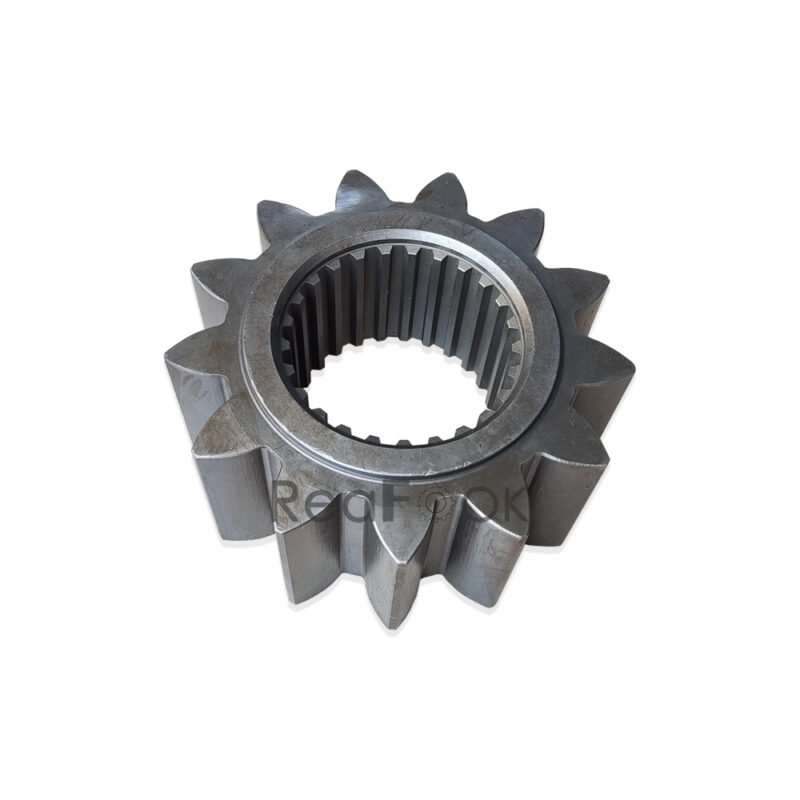

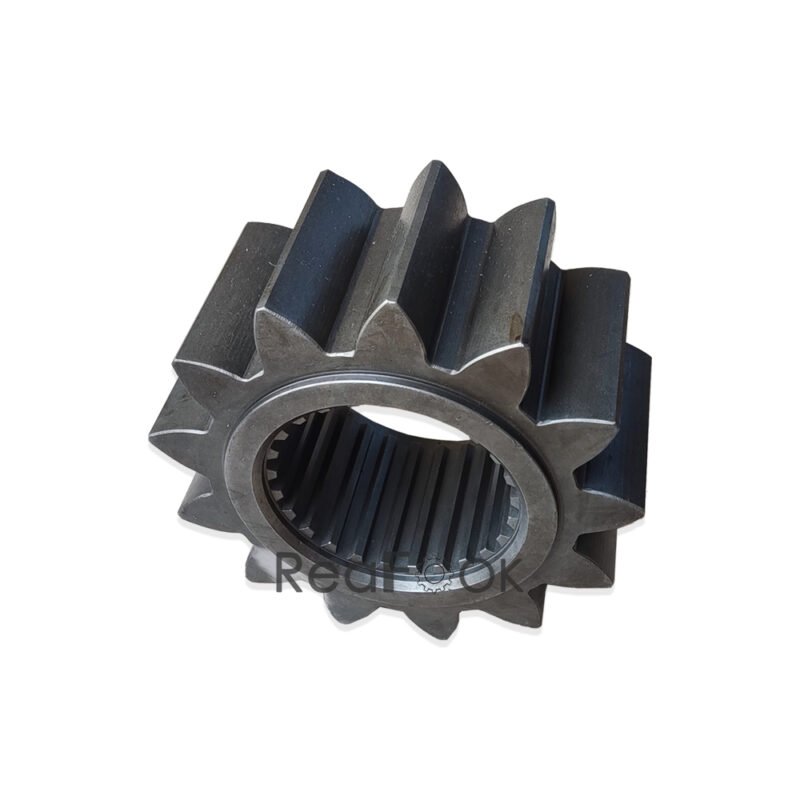

Swing Pinion Gear XKAQ-00014 Fit Excavator Hyundai R160LC-7 R170W-7A R200W-7 R210LC-7 R210NLC-7

Product Name: Pinion Gear
Reference Part Number: XKAQ-00014
Compatible Machine: Excavator Hyundai R160LC-7 R170W-7A R180LC-7A R200W-7 R210LC-7 R210NLC-7

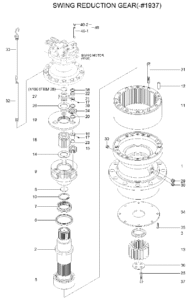

Parts on group SWING REDUCTION GEAR(-#1937):
Pos. Part No Qty Parts name Comments
*-2. 31N6-10150 [1] REDUCTION GEAR
1. XKAQ-00002 [1] CASING ASSY
2. XKAQ-00005 [1] SHAFT-DRIVE
3. XKAQ-00018 [1] SPACER
5. XKAQ-00026 [1] BEARING-ROLLER
6. XKAQ-00032 [1] SEAL-OIL
7. XKAQ-00029 [1] BEARING-ROLLER
8. XKAQ-00076 [1] PLATE-THRUST
9. XKAQ-00075 [1] CARRIER 2
10. XKAQ-00074 [1] RING-STOP
11. XKAQ-00073 [1] GEAR-RING
12. XKAQ-00072 [4] PIN-KNOCK
13. XKAQ-00014 [1] GEAR-PINION
14. XKAQ-00071 [6] WASHER-THRUST
15. XKAQ-00023 [3] GEAR-PLANET 2
16. XKAQ-00070 [3] PIN 2 INCL 23
17. XKAQ-00048 [6] PIN-SPRING
18. XKAQ-00011 [1] GEAR-SUN 2
19. XKAQ-00015 [1] CARRIER 1
20. XKAQ-00057 [3] PLATE-SIDE 1
21. XKAQ-00019 [3] PIN 1
22. XKAQ-00030 [3] CAGE-NEEDLE
N23. [3] BUSHING 2
24. XKAQ-00025 [3] GEAR-PLANET 1
25. XKAQ-00044 [2] WASHER-LOCK
26. XKAQ-00068 [1] PLATE-SIDE 3
27. XKAQ-00067 [1] GEAR-SUN 1
29. XKAQ-00049 [1] PLUG
30. XKAQ-00066 [2] PLUG
31. XKAQ-00065 [2] BOLT-SOCKET
32. XKAQ-00035 [1] PIPE-GAUGE
33. XKAQ-00034 [1] BAR-GAUGE
34. XKAQ-00031 [1] PLATE-COVER
35. XKAQ-00064 [8] BOLT-HEX
36. XKAQ-00043 [1] PLATE-LOCK
37. XKAQ-00042 [4] BOLT-HEX
38. XKAQ-00041 [3] RING-STOP
39. XKAQ-00040 [3] PLATE-SIDE 2
40. XKAQ-00143 [1] POST-AIR BREATHER
40- 1. [1] POST
40-2.HHI22-WP41 [1] CAP-BREATHER
