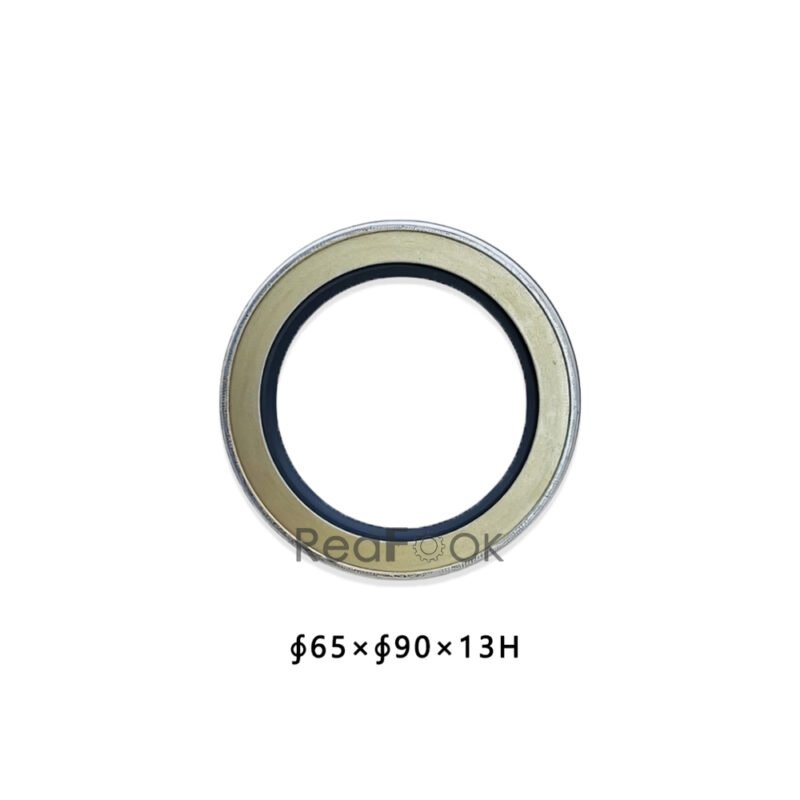

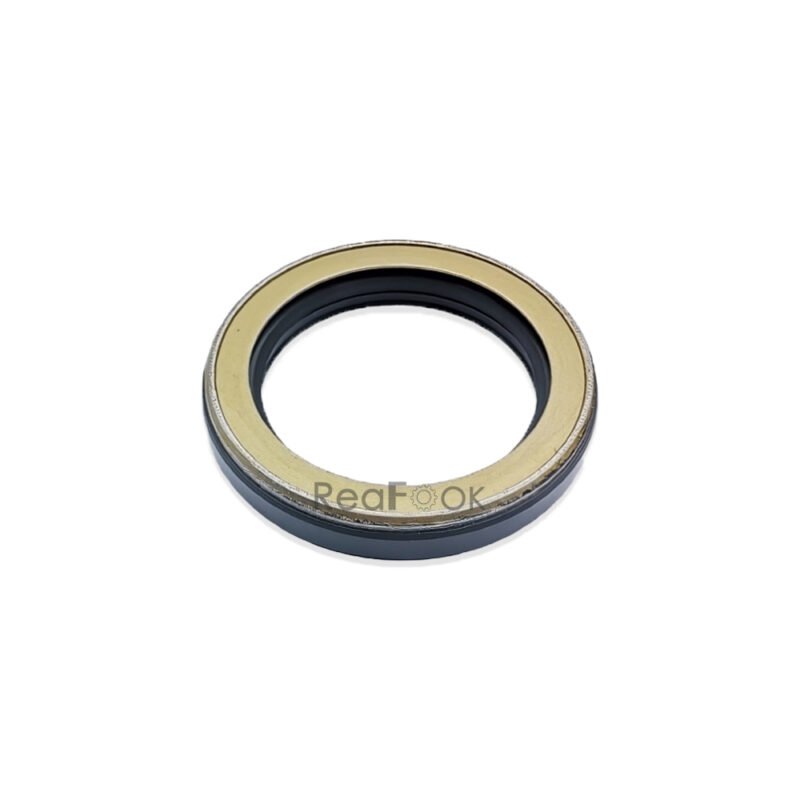

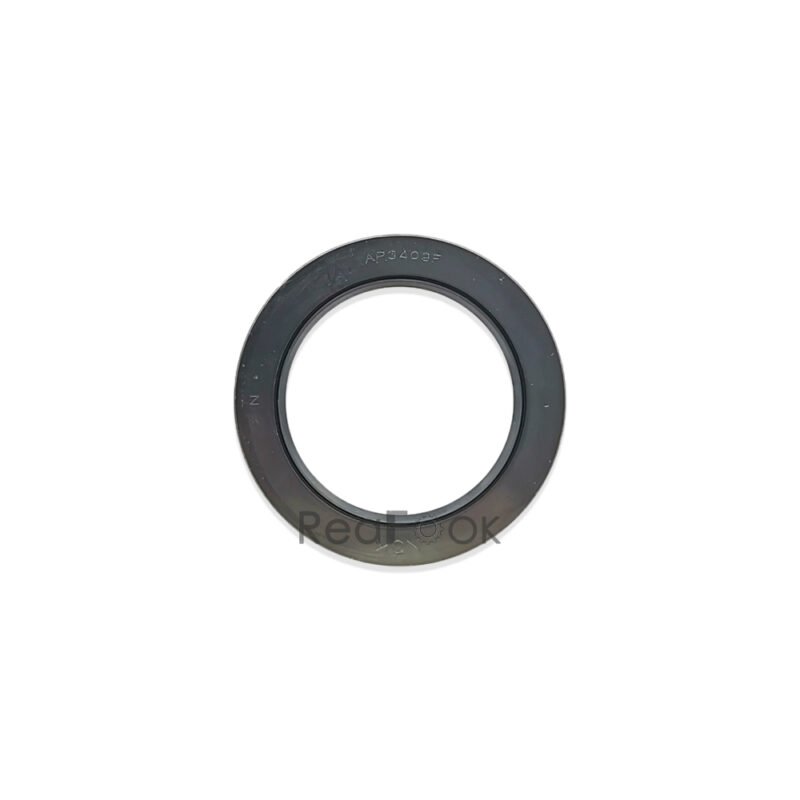

Swing Reduction Oil Seal 07012-00065 Fit Excavator Komatsu PC60-7 PC70-7 PC75UD-2 PC75UU-2 PC75UU-3 PC78US-5

Product Name: Oil Seal
Reference Part Number: 07012-00065
Compatible Machine: Excavator Komatsu PC60-7 PC70-7 PC75R-2 PC75UD-2 PC75UU-2 PC75UU-3 PC78US-5 PW75R-2…

Description:
An Oil Seal is used to provide a leakproof seal for the pinion of the swing drive. It is made from an elastic material such as rubber, which is used to prevent leakage of fluids, contaminants, or lubricants and maintain proper operation and performance.

Attributes:
• Prevent the entry of external elements between the components
• Absorb the vibration and stresses generated during the operation

Applications:
An Oil Seal is used to reduce the friction and heat generation between the pinion during operation and maintain constant contact with the rotating shaft, forming a dynamic seal that adapts to the shaft’s movement.

Pos. Part No Qty Parts name Comments
21W-26-00021 [1] SWING MACHINERY A.
1. 201-26-71111 [1] CASE
2. 201-26-71140 [1] SHAFT 6.18 kg.
3. 201-26-71260 [1] PLATE analogs: [“2012671261”]
4. 201-26-71210 [1] BEARING
5. 07012-00065 [1] SEAL,OIL
6. 201-26-62320 [1] BEARING
7. 201-26-71250 [1] SPACER analogs: [“890001449”]
8. 07145-00125 [1] SEAL,OIL
9. 07020-00900 [1] FITTING,GREASE analogs: [“0700000900”, “M012443000109”, “R0702000900”]
10. 201-26-62420 [1] PIPE
11. 07042-30312 [1] PLUG analogs: “890001453”, “0704220312”]
12. 07029-00000 [1] VALVE
13. 07042-00415 [1] PLUG
14. 201-26-71130 [1] CARRIER 1.61 kg.
15. 201-26-71230 [3] SHAFT
16. 20S-26-71250 [3] PIN
17. 201-26-71180 [3] GEAR 0.54 kg.
18. 201-26-71290 [3] BEARING 0.1 kg.
19. 201-26-71270 [6] WASHER,THRUST
20. 04064-02512 [3] RING,SNAP
21. 201-26-71240 [1] WASHER,THRUST
22. 201-26-71120 [1] CARRIER
23. 201-26-71220 [3] SHAFT 0.12 kg. [“SN: 7928-UP”]
25. 201-26-71160 [3] GEAR 0.15 kg. [“SN: 7928-UP”]
26. 424-15-12580 [3] BEARING analogs: [“890001468”]
30. 201-26-71150 [1] GEAR 0.19 kg.
31. 201-26-71170 [1] GEAR 0.45 kg. analogs: [“2012671171”]
32. 201-26-71190 [1] GEAR,RING
33. 07049-01620 [2] PLUG 0.002 kg.
34. 07049-02025 [2] PLUG
