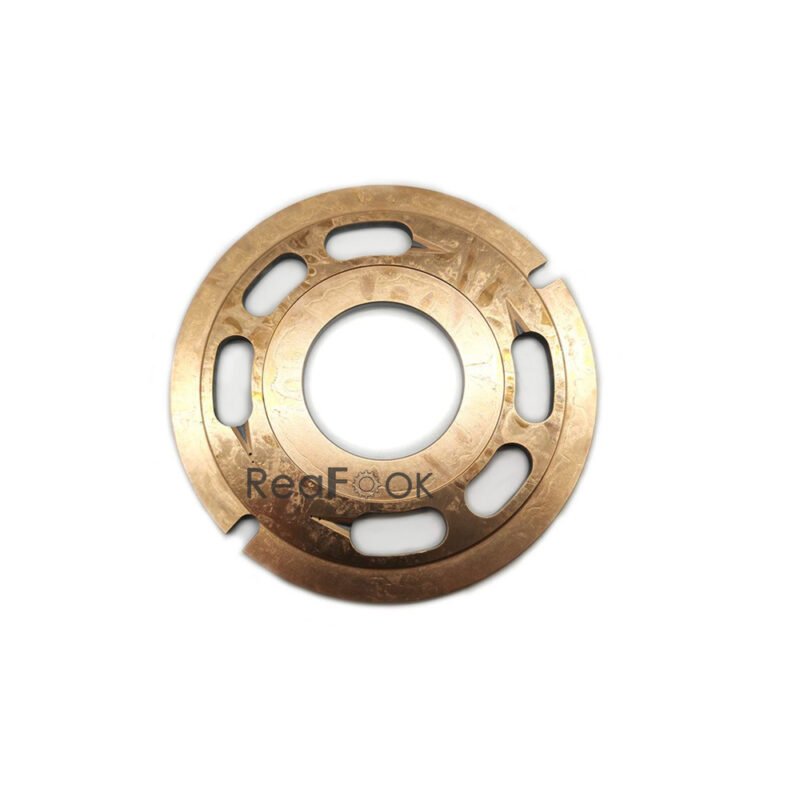

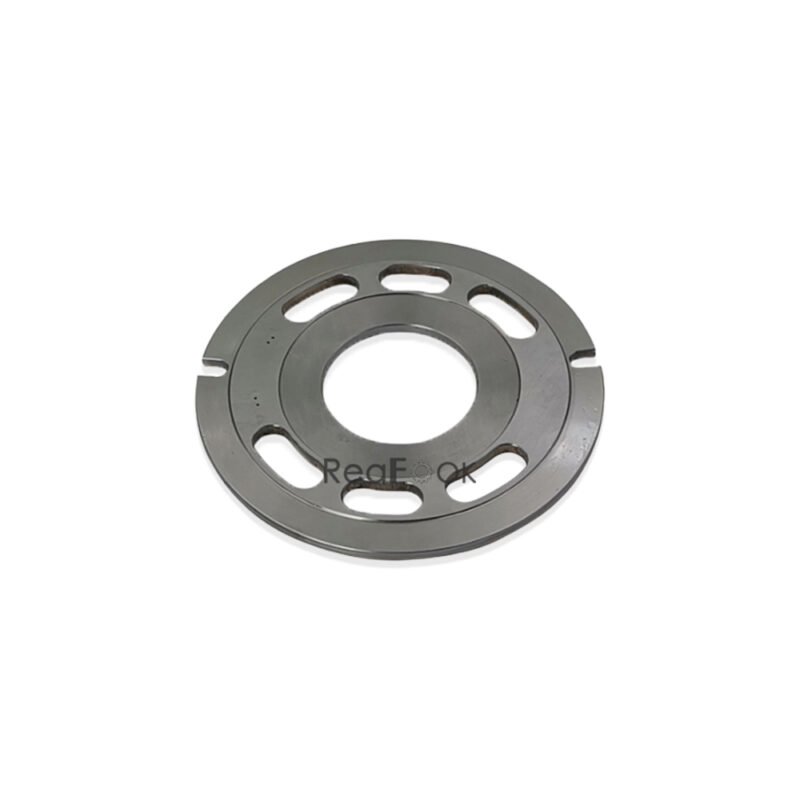

Swing Motor Valve Plate 0788809 Fit Excavator Hitachi ZX200 ZX210 ZX230 ZX240 ZX250 ZX470 ZX500LC

Product Name: Valve Plate
Reference Part Number: 0788809
Compatible Machine: Excavator Hitachi ZX180LC ZX200 ZX200-3 ZX200-5 ZX210H ZX210-3 ZX210-5 ZX225US ZX225US-3 ZX230 ZX240-3 ZX240-5G ZX250 ZX260 ZX470 ZX500LC…

Description:
Swing Motor Valve Plate to control hydraulic flow in a swing motor system, facilitating precise motion and operation.

Parts on group MOTOR;OIL (SWING):
Pos. Part No Qty Parts name Comments
4398514 [1] MOTOR;OIL 0788800
010. 0788801 [9] PISTON ASS’Y
010A. +++++++ [1] PISTON
010B. +++++++ [1] SHOE
020. 0788802 [1] CASING ASS’Y
020A. +++++++ [1] CASING
020B. +++++++ [2] PIN;SPRING
051. 4451628 [2] VALVE;RELIEF
051A. A811030 [2] O-RING
080. 0788803 [1] PLUNGER
101. 0788804 [1] SHAFT
111. 0788805 [1] CYLINDER
114. 0788806 [1] SPRING;PLATE
123. 0788807 [1] RETAINER
124. 0788808 [1] PLATE
131. 0788809 [1] PLATE;VALVE
301. 0788810 [1] CASING
351. 0409215 [2] PLUNGER
355. 0409216 [2] SPRING
390. +++++++ [1] NAME-PLATE
391. 0625509 [2] PIN
401. 0365318 [4] BOLT;SOCKET
443. 0788811 [1] BRG.;ROL.
444. 0788812 [1] BRG.;ROL.
467. 0629404 [2] PLUG
469. 0692708 [2] PLUG
472. 0425115 [1] O-RING
487. 957366 [2] O-RING
488. 4506428 [2] O-RING
491. 0788813 [1] SEAL;OIL
702. 0788814 [1] PISTON
706. 0353321 [1] O-RING
707. 0425117 [1] O-RING
712. 0788815 [24] SPRING;BRAKE
742. 0788816 [3] PLATE;FRICTION
743. 0788817 [4] PLATE
807. 0788818 [1] SPRING
808. 0221509 [1] BALL;STEEL
809. 4506407 [1] O-RING
813. 0263019 [2] PLUG
982. 0628705 [2] PLUG
984. 0694825 [1] PLUG
985. 0788819 [1] PLUG
