Swing Motor Relief Valve YN22V00030F1 Fit Excavator Kobelco SK200LC-6ES SK200SR SK210LC-6E

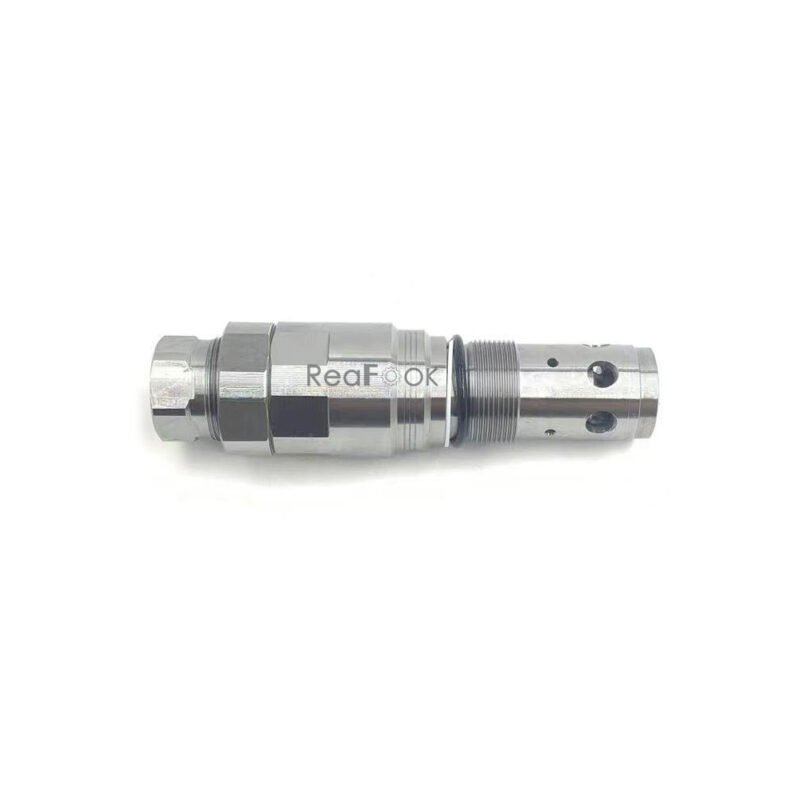

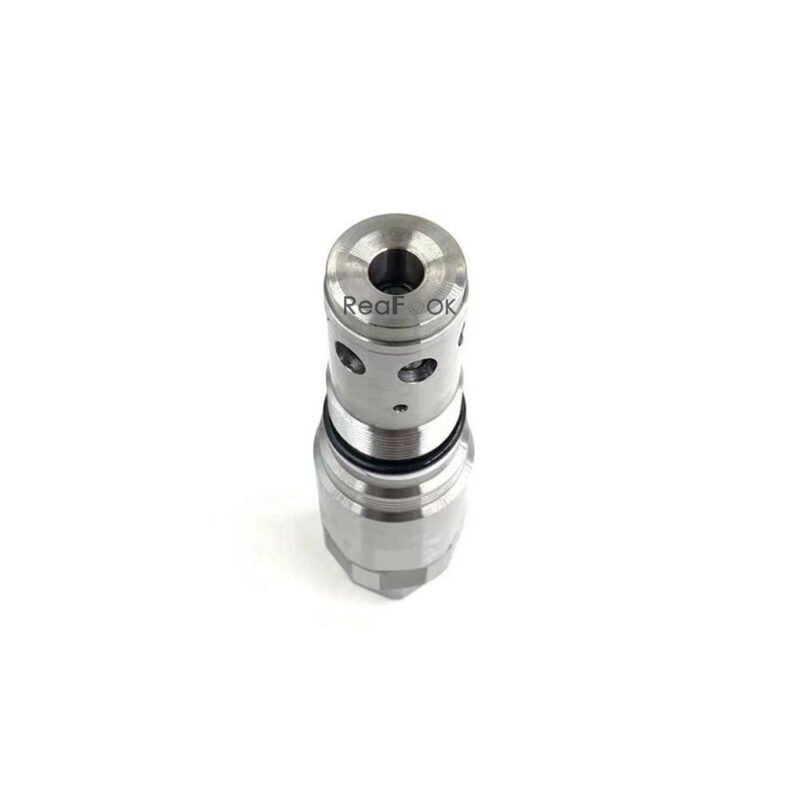

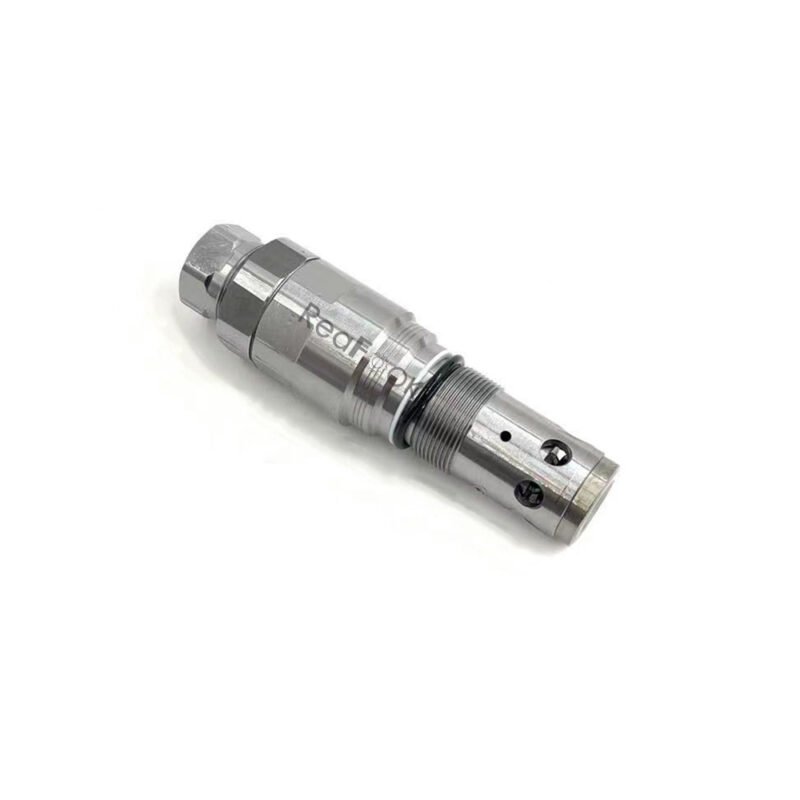

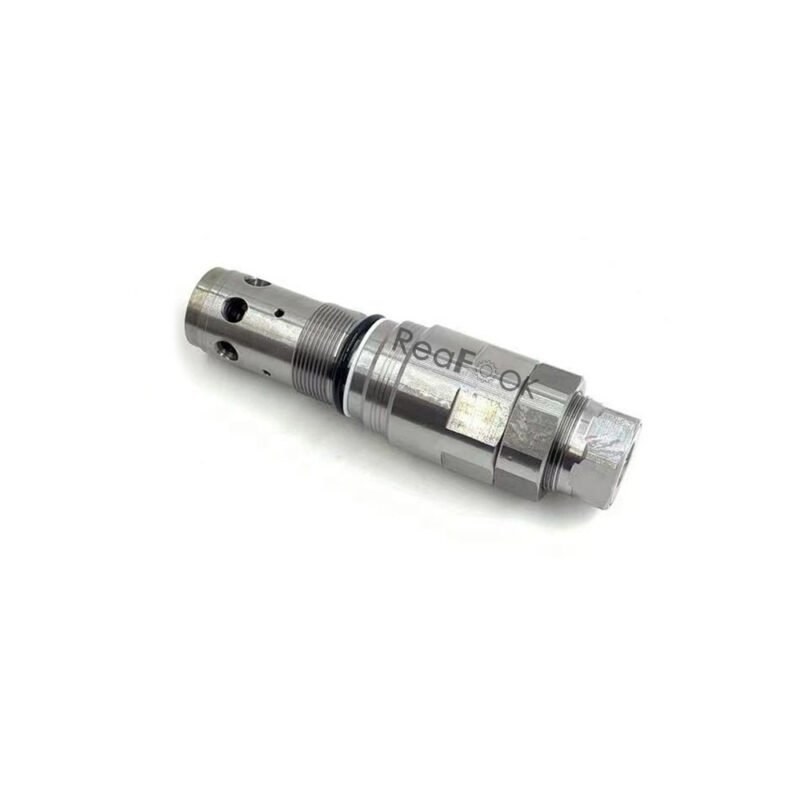

Product Name: Relief Valve
Reference Part Number: YN22V00030F1
Compatible Machine: Excavator Kobelco SK200SRLC-1S SK200SR SK200LC-6ES SK210LC-6E SK200SR-1S SK200SRLC SK200-6ES…

Description:
The relief valve groups prevent excessive pressure buildup by releasing fluid when the safety threshold has been reached.

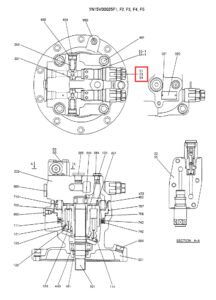

Pos. Part No Qty Parts name Comments
. . YN15V00025F1 [1] HYDRAULIC MOTOR KOB Superseded by part number: YN15V00025F4
. . YN15V00025F2 [1] MOTOR ASSY (SWING)
. . YN15V00025F3 [1] MOTOR KOB Superseded by part number: YN15V00025F5
. . YN15V00025F5R [1] REMAN-HYD MOTOR KOB SK200LC-6ES BTW YQ10-05501 – YQ10-05981, SK200-6ES BTW YN10-38001 – YN10-41732, Reman for new PN YN15V00025F3
. . YN15V00025F5C [1] CORE-MOTOR HYDRAULIC KOB Return Number
. . YN15V00025F4 [1] HYDRAULIC MOTOR,121.6CC KOB ASSY (SWING)
. . YN15V00025F5 [1] MOTOR KOB ASSY (SWING)
51. YN22V00014F1 [2] VALVE KOB ASSY, RELIEF (F1, F4 ONLY)
52. YN20V00004F1 [1] VALVE KOB ASSY, SWING-REACTIONLESS (F1, F3 ONLY)
53. YN22V00028F1 [2] VALVE ASSY, RELIEF (F2 ONLY)
53-1. ZD12G03000 [1] O-RING,29.40mm ID x 35.60mm OD x 3.10mm KOB ID 29.4 ± 0.29 x OD 35mm (F2 Only)
54. YN22V00030F1 [2] VALVE KOB ASSY, RELIEF (F3, F5 ONLY)
54-1. ZD12G03000 [1] O-RING,29.40mm ID x 35.60mm OD x 3.10mm KOB ID 29.4 ± 0.29 x OD 35mm (F3, F5 Only)
55. YN20V00004F4 [2] CONTROL VALVE KOB ASSY, SWING-REACTIONLESS (F2, F4, F5 ONLY)
101. YN15V00025S101 [1] SHAFT KOB
111. YN15V00025S111 [1] CYLINDER KOB
114. YN15V00025S114 [1] SPRING KOB
121. NSS [9] NOT SOLD SEPARAT CON PISTON
122. NSS [9] NOT SOLD SEPARAT CON SHOE
123. YN15V00025S123 [1] PLATE KOB SET
124. YN15V00025S124 [1] PLATE KOB SHOE
131. YN15V00025S131 [1] PLATE KOB VALVE
301. YN15V00025S301 [1] CASE KOB
303. NSS [1] NOT SOLD SEPARAT CON CASE
351. YN15V00002S351 [2] HYDRAULIC VALVE KOB PLUNGER Superseded by part number: YN15V00025S351
355. YN15V00002S355 [2] SPRING KOB
390. 2437U407S981 [1] LABEL KOB NAME PLATE
391. 2437U407S983 [2] RIVET KOB PIN
401. ZS23C20045 [4] CAP,Hex Socket Head, M20 x 45mm KOB Screw, M20 x 2.5 x 45mm
443. YN15V00002S011 [1] ROLLER BEARING KOB ROLLER
444. LQ15V00008S010 [1] ROLLER BEARING KOB ROLLER
451. NSS [2] NOT SOLD SEPARAT CON PIN
469. YN15V00002S012 [2] PLUG KOB
472. 2441U564S735 [1] O-RING,3.5mm Thk x 173mm ID,
75 Duro KOB (F1, F2, F3 ONLY) Superseded by part number: YN15V00025S489
488. ZD12P02800 [2] O-RING KOB ID 27.70 ± 0.27 x OD 34mm
489. YN15V00025S489 [1] O-RING,3.5mm Thk x 173mm ID,
75 Duro KOB (F4, F5 ONLY)
491. 2441U509S491 [1] OIL SEAL KOB
702. YN15V00002S014 [1] PISTON KOB BRAKE
706. 2441U736S706 [1] O-RING KOB
707. 2415U188S707 [1] O-RING KOB
712. YN15V00025S712 [16] SPRING,ID1.1mm : OD1.8mm : W=3.7mm (this is spring) KOB BRAKE
742. YN15V00025S742 [3] PLATE,ID14mm : OD15.5mm : W=1.7mm KOB FRICTION
743. YN15V00025S743 [4] PLATE,ID14mm : OD15.5mm : W=2mm KOB SEPARATOR
980. LQ15V00001S982 [1] PLUG KOB
984. YN15V00002S984 [1] PLUG KOB
985. LQ15V00001S983 [3] PLUG KOB
Pos. Part No Qty Parts name Comments
993. ZE82T08000 [1] PLUG KOB 1/2″ PT
994. ZE82T12000 [1] PLUG KOB 3/4″ PT
. . YN15V00025R100 [1] REPAIR KIT KOB CONSISTS OF REF. 121(9), 122(9)
. . YN15V00025R200 [1] REPAIR KIT KOB CONSISTS OF REF. 303(1), 451(2)
. . YN15V00025R300 [1] SEAL ASSY. KOB REPAIR KIT, CONSISTS OF REF. 472(1), 488(2), 491(1), 706(1), 707(1) (F1, F2, F3 ONLY)
. . YN15V00025R400 [1] REPAIR KIT KOB CONSISTS OF REF. 488(2), 489(1), 491(1), 706(1), 707(1) (F4, F5 ONLY)
