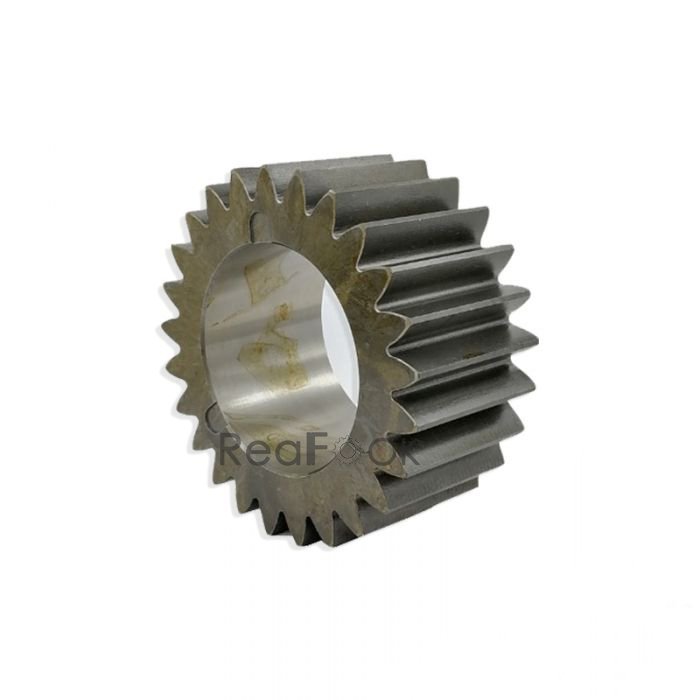

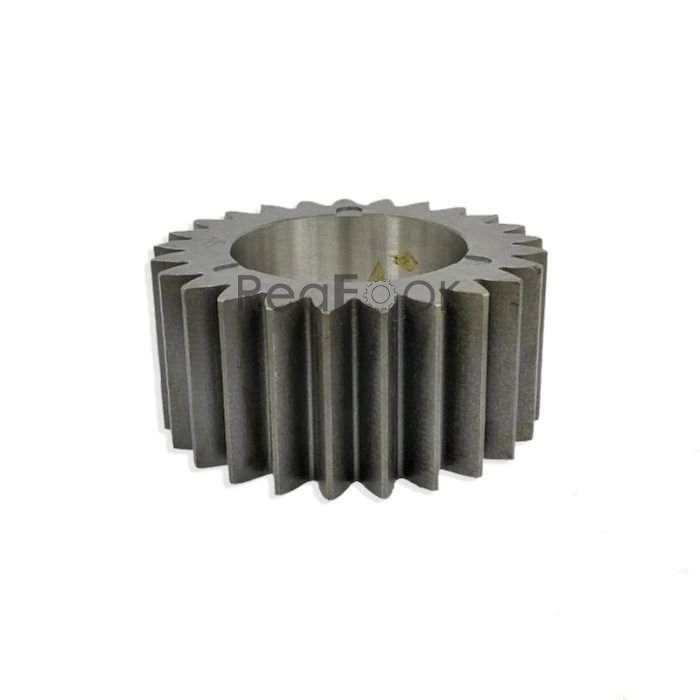

Swing Drive Planetary Gear 148-4633 Fit Caterpillar Excavator E318C 318E 319C 319D 320C 320D 320D2

Product Name: Planet Gear, Swing Drive
Reference Part Number: 148-4633
Compatible Machine: Caterpillar Excavator E318C 318E 319C 319D 320C 320D 320D2…

Description:
A Swing Drive Planetary Planet Gear is responsible for transferring power from the engine to the transmission. It consists of a set of gears arranged around a central sun gear. It is mounted on a carrier, allowing it to rotate independently and mesh with both the sun gear and an outer ring gear. As the engine drives the input shaft connected to the sun gear, the planet gears transmit torque to the ring gear, which is connected to the transmission input shaft.

Parts Lists:
1. 094-0584 [6] WASHER (40.3X72X1-MM THK)
2. 094-1509 [3] SHAFT-PLANETARY
3. 148-4733 [3] GEAR-PLANETARY (26-TEETH)
4. 114-1581 [1] SPACER (57.5X74X6-MM THK)
5. 148-4732 [1] GEAR-SUN (20-TEETH)
6. 093-1729 [2] RING-RETAINING
7. 148-4632 [1] GEAR-SUN (23-TEETH)
8. 191-2578 [1] CARRIER-PLANETARY
9. 7Y-1434 [1] SPACER (40X69.5X6-MM THK)
10. 148-4637 [1] CARRIER-PLANETARY
11. 148-4640 [1] RING-RETAINING
12. 148-4643 [1] BEARING
13. 095-1022 [1] BEARING-ROLLER
14. 148-4642 [1] SEAL-O-RING
15. 227-6228 [1] CAGE
16. 453-3447 M [6] BOLT (M12X1.75X40-MM)
17. 451-2182 [6] WASHER-HARD (13.5X25.5X3-MM THK)
18. 199-4561 [2] SEAL-LIP TYPE
19. 148-4636 [1] SHAFT-PINION
20. 148-4638 [1] HOUSING
21. 3K-0360 [1] SEAL-O-RING
22. 6V-7238 [1] VALVE-SHUTOFF (SWING DRIVE)
23. 148-4634 [3] SHAFT-PLANETARY
24. 095-0891 [3] PIN-SPRING
25. 148-4635 [1] GEAR-RING (73-TEETH)
26. 148-4633 [3] GEAR-PLANETARY (25-TEETH)
27. 7Y-0252 [6] BEARING AS-ROLLER
28. 094-0611 [6] WASHER (47.3X76X1-MM THK)
29. 095-0886 [3] PIN-SPRING
30. 094-1516 [3] BEARING-ROLLER
31. 171-9383 [1] SPACER
