Final Drive Sun Gear Prop Shaft 2028213 Fit Hitachi Excavator EX200-2 EX200K-2
Original price was: $159.00.$129.00Current price is: $129.00.

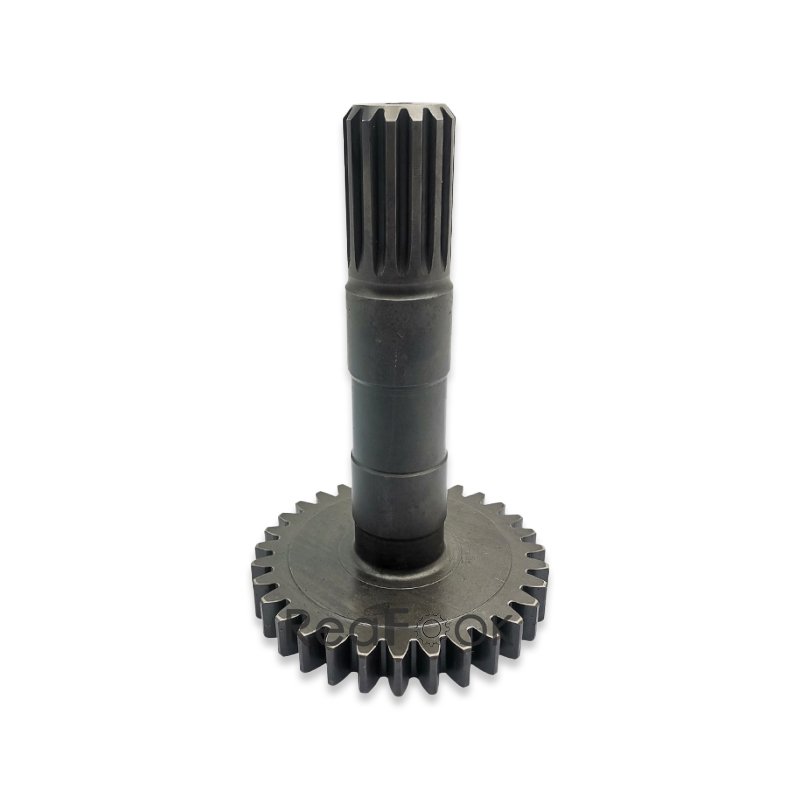

Sun Gear Prop Shaft 2028213 No.1
31 Teeth, 14 Splines, Overall Length 206mm;
Used in Travel Reduction Gearbox;
Free Shipping and High Quality Standards!!
Product Name: Sun Gear, Shaft Prop No.1
Reference Part Number: 2028213
Compatible Machine: Hitachi Excavator EX200-2 EX200K-2, CX350DR, CX500DR, CX550 CX700..
Description:
A Sun Gear acts as a central Gear that meshes with the planetary Gears to transfer power and control the speed and torque output.
Parts on group TRAVEL DEVICE:
Pos. Part No Qty Parts name Comments
01-47. 9116393 [2] TRAVEL DEVICE ASS’Y
01. 9116390 [1] MOTOR;OIL
02. 4114753 [1] SEAL;GROUP
03. 4246793 [2] BRG.;ROL.
04. 1013983 [1] DRUM
05. 1010203 [1] SPROCKET
06. J932055 [16] BOLT
07. 3047448 [1] HUB
09. 4246783 [1] PIN;KNOCK
10. A590920 [16] WASHER;SPRING
11. 1013981 [1] GEAR;RING
12. J931660 [20] BOLT
13. 4246792 [1] O-RING
14. 1013980 [1] CARRIER
15. 3047444 [3] GEAR;PLANETARY
16. 4210850 [6] BRG.;NEEDLE
17. 4246790 [3] PIN
18. 4116309 [3] PIN;SPRING
19. 3047443 [1] GEAR;SUN
20. 4269295 [12] PLATE;THRUST
21. 1013979 [1] CARRIER
22. 4246785 [2] SPACER
23. 3047446 [3] GEAR;PLANETARY
24. 4246786 [3] BRG.;NEEDLE
25. 4246789 [3] PIN
26. 4246358 [3] PIN;SPRING
27. 3047442 [1] GEAR;SUN
29. 1013982 [1] CARRIER
30. 3047447 [3] GEAR;PLANETARY
31. 4246787 [3] BRG.;NEEDLE
32. 4246788 [3] PIN
33. 4192020 [3] PIN;SPRING
34. 2028213 [1] SHAFT;PROP.
36. 2028212 [1] COVER
38. J011230 [16] BOLT;SEMS
40. 4245797 [3] PLUG
42. M492564 [2] SCREW;DRIVE
43. 3053559 [1] NAME-PLATE
45. 3057125 [1] NUT
46. 4192983 [6] PLATE;THRUST
47. 4285323 [1] PIN;STOPPER
132. 4248607 [28] BOLT
133. 4018545 [28] WASHER
| Weight | 3.5 kg |
|---|
