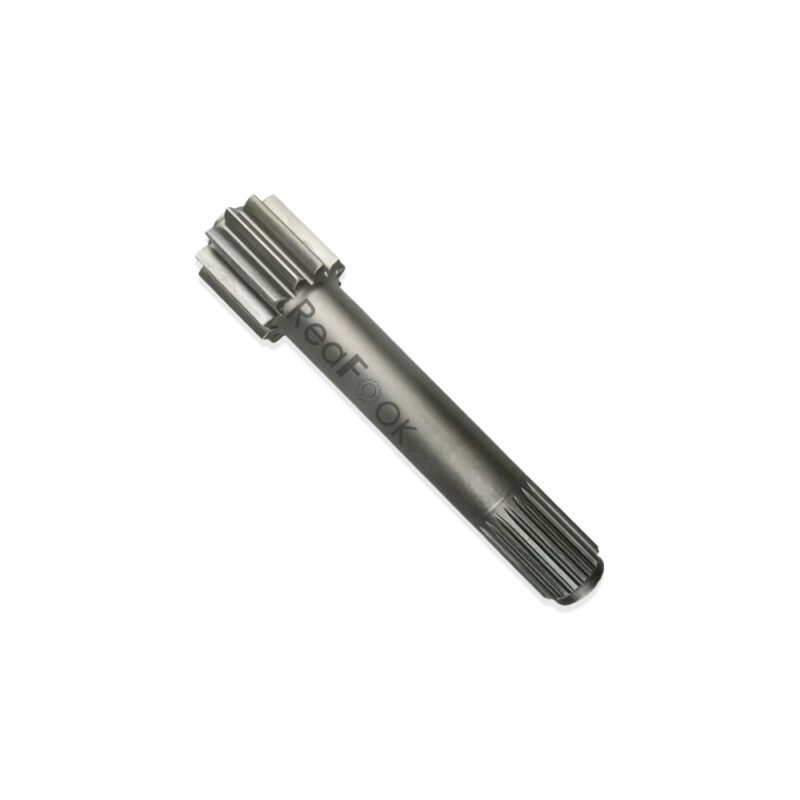

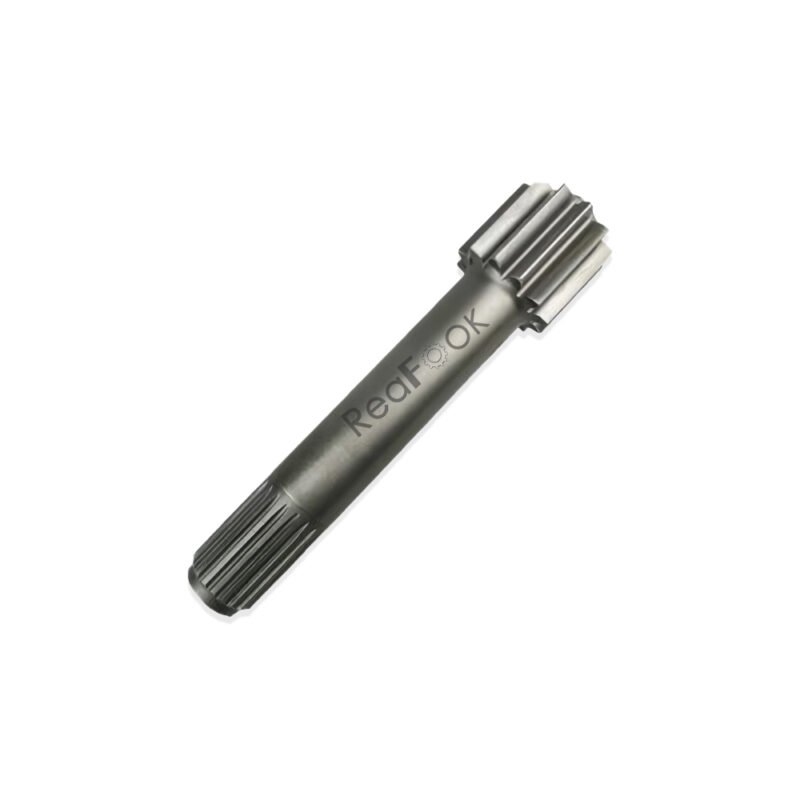

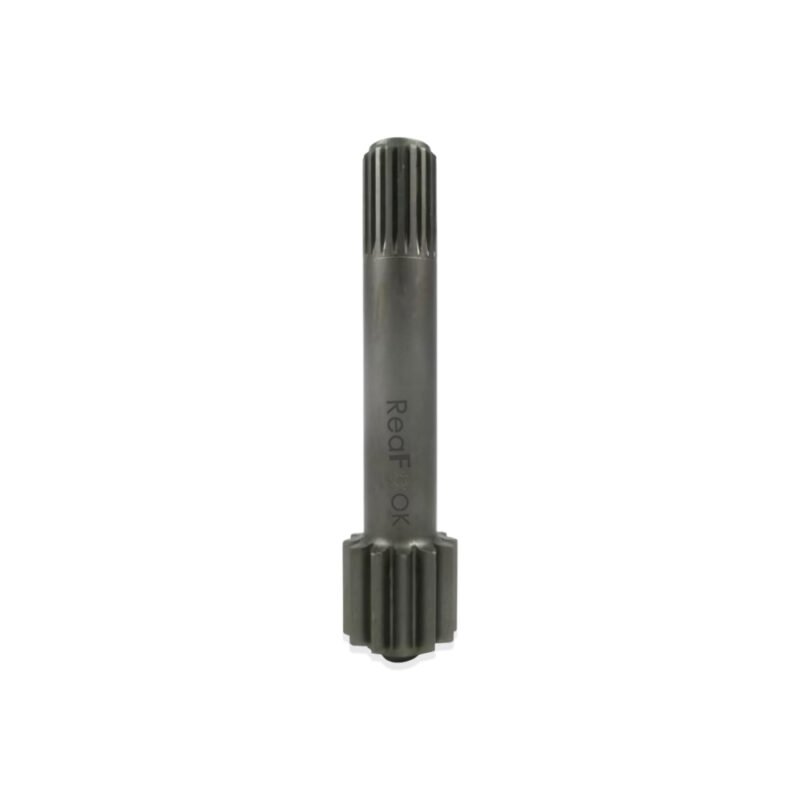

Travel Gearbox Sun Gear LQ15V00007S099 Fit Excavator Kobelco SK235SR SK250LC SK250LC-6E

Product Name: Sun Gear Shaft
Reference Part Number: LQ15V00007S099
Compatible Machine: Excavator Kobelco SK210LC-6E SK235SR SK235SR-1E SK235SR-ES SK235SRLC SK235SRLC-1E SK235SRNLC-1E SK250LC SK250LC-6E…

Description:
A Sun Gear acts as a central Gear that meshes with the planetary Gears to transfer power and control the speed and torque output.

Pos. Part No Qty Parts name Comments
55. LQ15V00007S055 [1] BALL BEARING KOB
56. LQ15V00007S056 [1] BALL BEARING KOB
57. 2441U563S117 [1] PIN KOB
58. ZS23C14035 [10] SCREW,Hex Socket Head, M14 x 35mm KOB M14x2.0x35mm
59. 2441U983S121 [1] OIL SEAL KOB Superseded by part number: 24100U84S25
60. LQ15V00007S060 [3] PLATE KOB DISC
61. 2441U983S126 [2] PLATE KOB PLATE, FRICTION
62. LQ15V00007S062 [1] KIT KOB PISTON, BRAKE
63. 2441U984S42 [1] O-RING KOB
64. 2441U983S130 [1] O-RING KOB O-RING
65. 2441U792S130 [8] SPRING KOB
66. YN15V00005S128 [4] PIN KOB PIN
67. YN15V00005S139 [2] SPRING KOB
68. YN15V00005S105 [1] PLATE KOB VALVE
69. ZD12P01000 [4] O-RING KOB ID 09.80 ± 0.17 x OD 13mm
70. 2441U802S67 [1] O-RING KOB
71. NSS [1] NOT SOLD SEPARAT CON NAME PLATE
72. NSS [2] NOT SOLD SEPARAT CON RIVET
73. NSS [2] NOT SOLD SEPARAT CON PLUG
74. NSS [1] NOT SOLD SEPARAT CON PLUG
75. NSS [1] NOT SOLD SEPARAT CON PLUG
76. LQ15V00007S076 [1] SEAL KOB FLOATING
77. LQ15V00007S077 [2] BEARING KOB ANGULAR
78. LQ15V00007S078 [1] REPAIR KIT KOB HOUSING
79. NSS [1] NOT SOLD SEPARAT CON SHIM
80. LQ15V00007S080 [1] HOLDER KOB Superseded by part number: LQ15V00019S074
81. LQ15V00007S081 [8] FRICTION WASHER KOB
82. LQ15V00007S082 [8] SCREW KOB BOLT
83. LQ15V00007S083 [4] PLATE KOB THRUST
84. LQ15V00007S084 [4] RACE KOB INNER
85. LQ15V00007S085 [4] BEARING ASSY KOB NEEDLE
86. LQ15V00007S086 [4] DRIVEN GEAR KOB
87. LQ15V00007S087 [4] PLATE KOB THRUST
88. LQ15V00007S088 [4] SCREW KOB BOLT
89. LQ15V00007S089 [1] SUN GEAR KOB
90. LQ15V00007S090 [1] RING KOB SNAP
91. LQ15V00007S091 [1] HOLDER KOB
92. LQ15V00007S092 [1] PLATE KOB THRUST
93. LQ15V00007S093 [3] RACE KOB INNER
94. LQ15V00007S094 [3] BEARING KOB NEEDLE
95. LQ15V00007S095 [3] GEAR KOB GEAR
96. LQ15V00007S096 [3] PLATE KOB THRUST
97. LQ15V00007S097 [1] PLATE KOB THRUST
98. LQ15V00007S098 [3] SCREW KOB
99. LQ15V00007S099 [1] DRIVEN GEAR KOB
100. NSS [1] NOT SOLD SEPARAT CON PLATE, THRUST
101. LQ15V00007S101 [1] COVER KOB
102. LQ15V00007S102 [16] SCREW,Hex Socket Head, M10 x 16mm KOB BOLT Superseded by part number: ZS28C10016
103. LQ15V00007S103 [3] PLUG KOB
104. ZD12P02400 [3] O-RING KOB ID 23.70 ± 0.24 x OD 30mm
105. LQ15V00007S105 [4] PIN KOB
