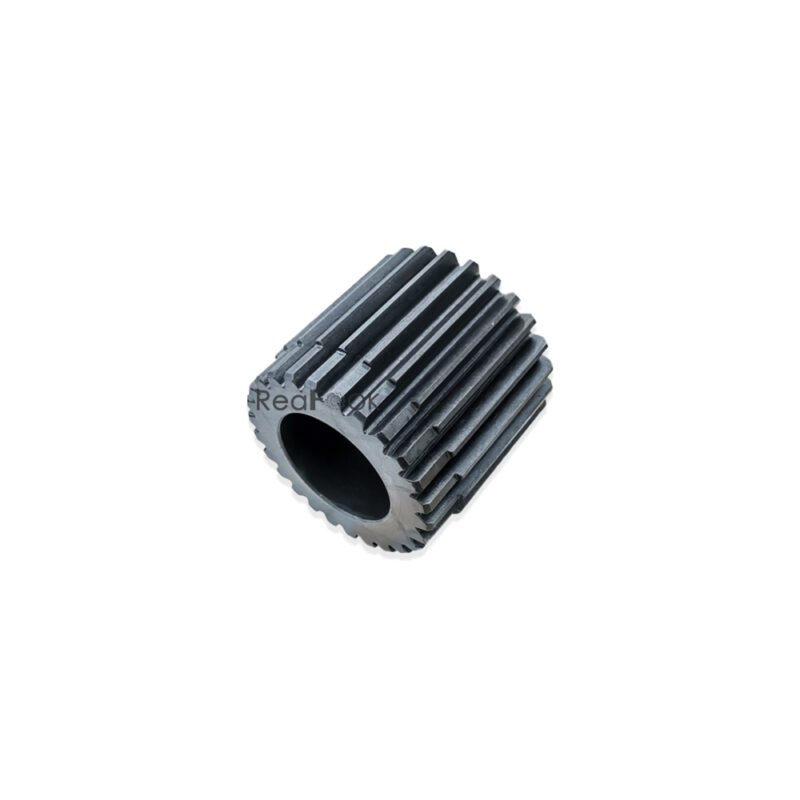

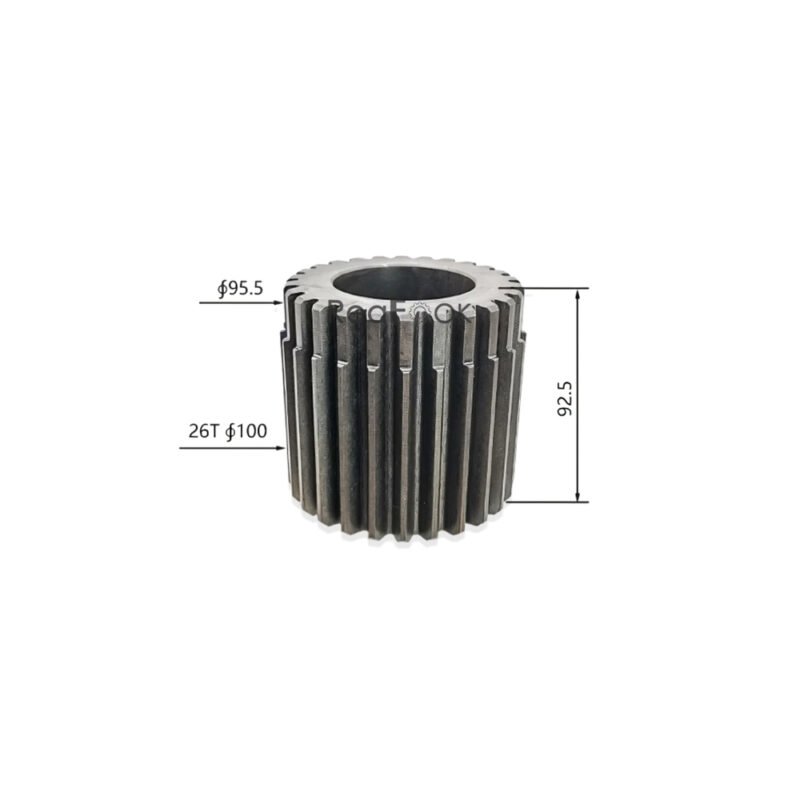

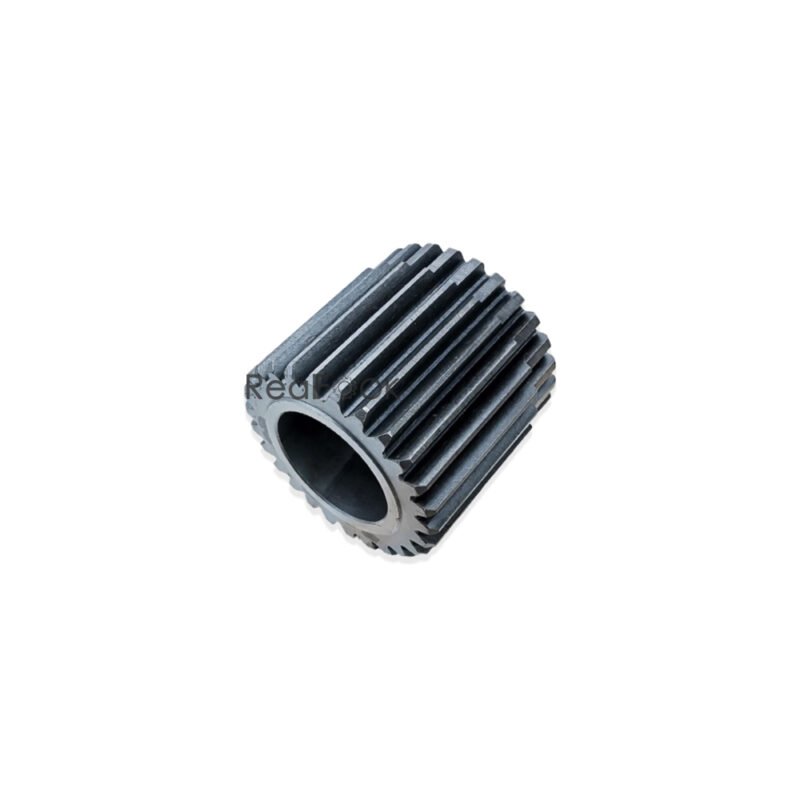

Swing Reduction Sun Gear 3080912 Fit Excavator Hitachi ZX160 ZX200 ZX200-3G ZX210H ZX225US ZX500 ZX520LC-3

Product Name: Sun Gear No.2
Reference Part Number: 3080912
Compatible Machine: Excavator Hitachi IZX200 ZX160 ZX180LC ZX200 ZX200-3 ZX200-3G ZX210H ZX210-3 ZX225US ZX240 ZX450 ZX470 ZX500LC ZX520…

Description:
A Sun Gear acts as a central Gear that meshes with the planetary Gears to transfer power and control the speed and torque output.

Parts on group SWING DEVICE:
Pos. Part No Qty Parts name Comments
01. 2044634 [1] SHAFT;PROP.
02. 3083742 [1] SLEEVE
03. A811120 [1] O-RING
04. 4402481 [1] BRG.;ROL.
05. 1027617 [1] HOUSING Y 1032876
05. 1032876 [1] HOUSING
06. 4411535 [1] SEAL;OIL
07. 4402637 [1] BRG.;ROL.
08. 3086064 [1] NUT
09. 4411122 [1] PLATE;LOCK
10. J901020 [2] BOLT
11. 1026662 [1] CARRIER
12. 4187590 [1] PLATE;THRUST
13. 3084729 [3] GEAR;PLANETARY
14. 4336929 [6] PLATE;THRUST
15. 4336925 [3] PIN I 4488904
15. 4488904 [3] PIN
16. 4027427 [3] PIN;SPRING
17. 4427630 [6] BRG.;NEEDLE I 4461644
17. 4461644 [6] BRG.;NEEDLE
17. 4631475 [6] BRG.;NEEDLE I 4461644
18. 3080912 [1] GEAR;SUN
20. 1025957 [1] GEAR;RING
21. M341645 [12] BOLT;SOCKET
23. 1025912 [1] CARRIER
24. 4403371 [1] PLATE;THRUST
25. 3082517 [3] GEAR;PLANETARY
26. 4404506 [3] BRG.;NEEDLE
27. 4403082 [3] PLATE;THRUST
28. 4336923 [3] PIN
29. 4051262 [3] PIN;SPRING
30. 3084056 [1] GEAR;SUN
33. 3089362 [1] PIPE
35. 4445352 [2] PLUG
36. 94-2012 [1] PLUG
61. 3090308 [1] COVER (for transportation)
62. J011230 [4] BOLT;SEMS
62. J271230 [4] BOLT;SEMS T J901230 J222012 (for transportation)
63. 3053093 [1] NAME-PLATE (for transportation)
64. M492564 [2] SCREW;DRIVE (for transportation)
100. 4398514 [1] MOTOR;OIL
101. 991342 [1] RING;RETAINING
103. M341228 [8] BOLT;SOCKET I 4614096
103. 4614096 [8] BOLT;SOCKET
104. 4264452 [1] PIPE
105. 3074223 [1] GAUGE;LEVEL
106. 4332658 [1] PIPE
107. 4343365 [1] CAP
109. 3053093 [1] NAME-PLATE
110. M492564 [2] SCREW;DRIVE
200. 9196963 [1] SWING DEVICE (WITHOUT MOTOR)
