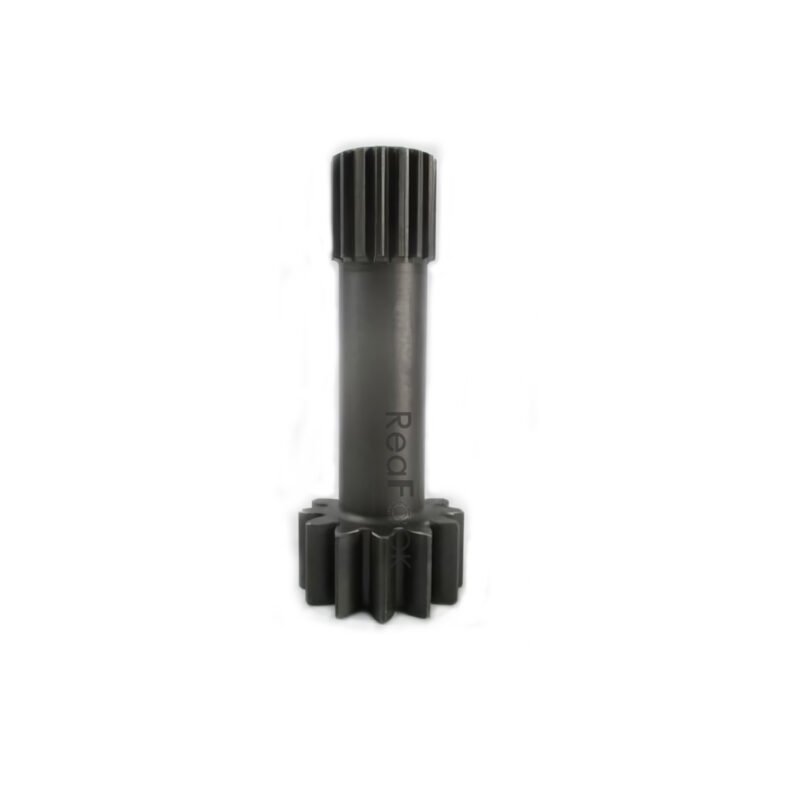

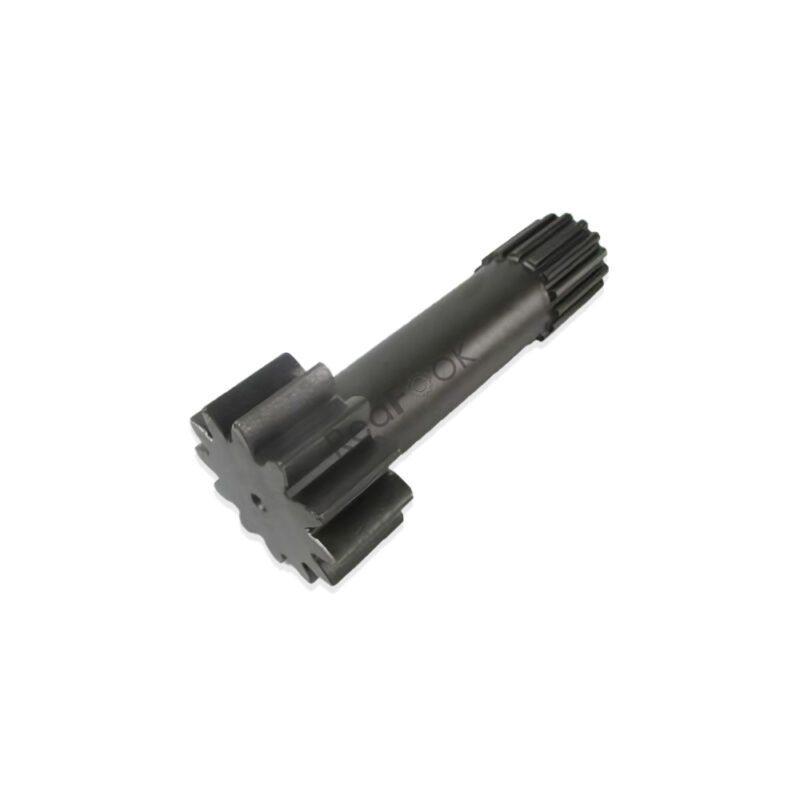

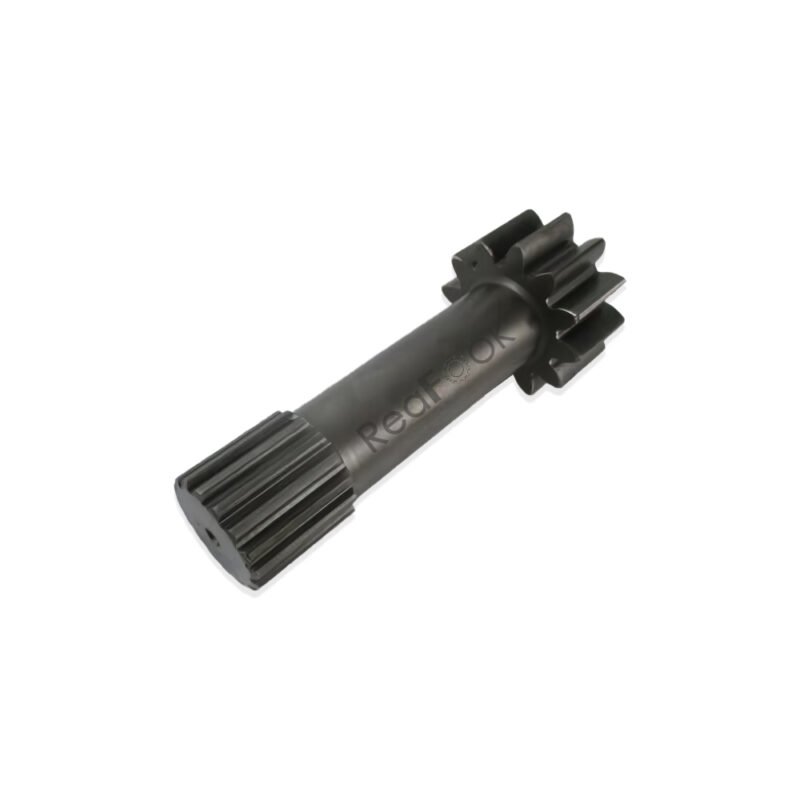

Travel Sun Gear 2401P634 Fit Kobelco Excavator K907 K907LC MD200BLC

Product Name: Sun Gear
Reference Part Number: 2401P634
Compatible Machine: Excavator Kobelco K907 K907LC MARK II MD200BLC

Description:
The Planetary Carrier is responsible for holding the planet gear in place and allowing it to rotate around the sun gear. It is made of ductile iron and withstands the high torque and impact loads that are generated in the final drive. It is bolted to the final drive housing and has a splined bore that allows it to be driven by the sun gear.

Attributes:
• Reduces speed and increases torque
• Provides a mounting point for the ring gear and supports the planetary gears

Applications:
The Planetary Carrier is used to transmit torque to the output shaft of the final drive through a series of gears.

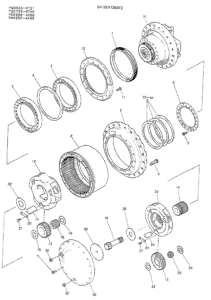

Pos. Part No Qty Parts name Comments
. . 24100X1366F2 [1] GEAR REDUCTION UNIT KOB REDUCTION UNIT Superseded by part number: 24100X1366F3
1. ZD57F30040 [1] SEAL KOB Superseded by part number: ZD58F30040
2. 2418J259 [1] HUB KOB
3. 2425R211 [2] BALL BEARING KOB
4. 2418T17382 [1] SPACER KOB
6. 2418P12136 [1] RETAINER KOB
7. ZS23C10030 [38] SCREW,Hex Socket Head, M10 x30mm KOB M10x1.50x30mm Superseded by part number: ZS28C10030
8. 2401N435 [1] RING GEAR KOB
9. ZS23C16085 [16] SCREW,Hex Socket Head, M16 x 85mm KOB M16x2.0x85mm
10. 2418P12137 [1] RETAINER KOB
11. ZS23C10025 [16] SCREW,Hex Socket Head, M10 x 25mm KOB M10x1.50x25mm Superseded by part number: ZS28C10025
12. 2413J353 [1] AIR COMPRESSOR AIR COMPRESSOR
13. 2401P637 [3] PINION KOB
14. 2401P636 [1] SUN GEAR KOB
15. 2401P635 [3] PINION KOB
16. 2401P634 [1] SUN GEAR KOB
17. 2410T327 [3] SHAFT KOB
18. 2425Z511 [3] NEEDLE BEARING KOB
19. 2418T17386 [5] THRUST WASHER KOB
20. 2418T13572 [6] LOCKING PLATE KOB
21. ZS13C08016 [6] SCREW KOB M08x1.25x16mm Superseded by part number: ZS18C08016
22. 2418T17384 [1] SPACER KOB
23. 2413J352 [1] SPIDER KOB
24. 2410T326 [3] SHAFT KOB
25. 2425Z510 [3] NEEDLE BEARING KOB
26. 2418T17385 [6] THRUST WASHER KOB
27. ZS13C08014 [6] SCREW KOB M08x1.25x14mm Superseded by part number: ZS18C08014
28. 2418T17385 [1] THRUST WASHER KOB
29. 2418P12135 [1] SPACER SPACER
30. 2414N1970 [1] COVER KOB
31. 2441U739F2 [1] ENGINE KOB MOTOR ASSY,SEE(C.P.M) Superseded by part number: 2441U739F3
32. ZE82T12000 [2] PLUG KOB 3/4″ PT
33. 2420P1518D1 [1] SHIM KOB
34. 2420P1518D2 [1] SHIM KOB
35. 2420P1518D3 [1] SHIM KOB
36. 2420P1518D4 [1] SHIM KOB
37. 2420P1518D5 [1] SHIM KOB
38. 2420P1518D6 [1] SHIM KOB
39. 2420P1518D7 [1] SHIM KOB
40. 2420P1518D8 [1] SHIM KOB
41. 2420P1518D9 [1] SHIM KOB
42. 2420P1518D10 [1] SHIM KOB
43. 2420P1518D11 [1] SHIM KOB
44. 2420P1518D12 [1] SHIM KOB
45. 2420P1518D13 [1] SHIM KOB
46. 2420P1518D14 [1] SHIM KOB
47. 2420P1518D15 [1] SHIM KOB
43. 2420P1518D16 [1] SHIM KOB
49. 2420P1518D17 [1] SHIM KOB
50. 2420P1518D18 [1] SHIM KOB
51. 2420P1518D19 [1] SHIM KOB
52. 2420P1518D20 [1] SHIM KOB
53. 2420P1518D21 [1] SHIM KOB
54. 2420P1518D22 [1] SHIM
