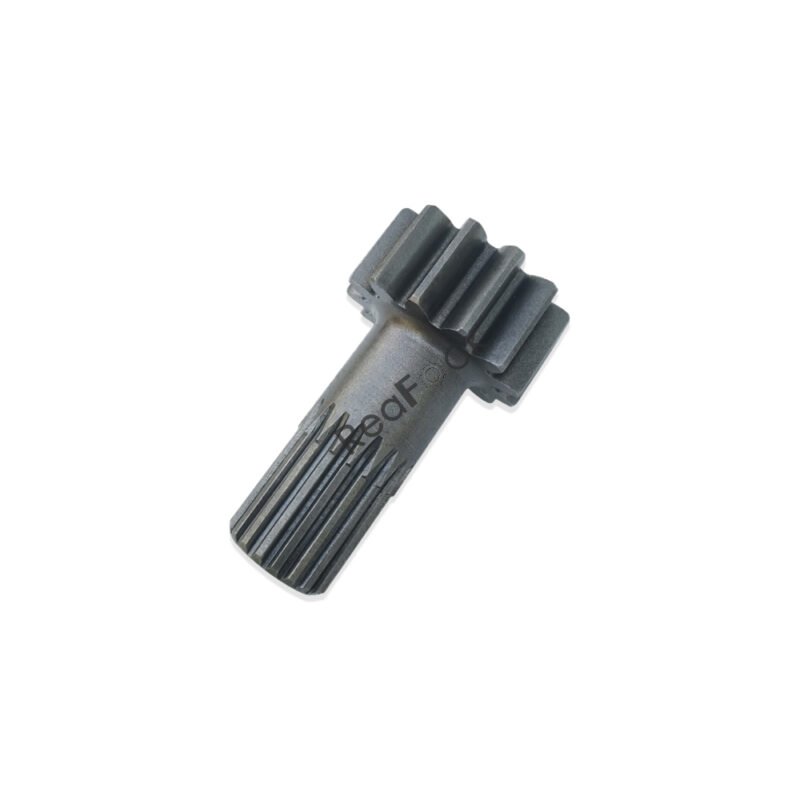

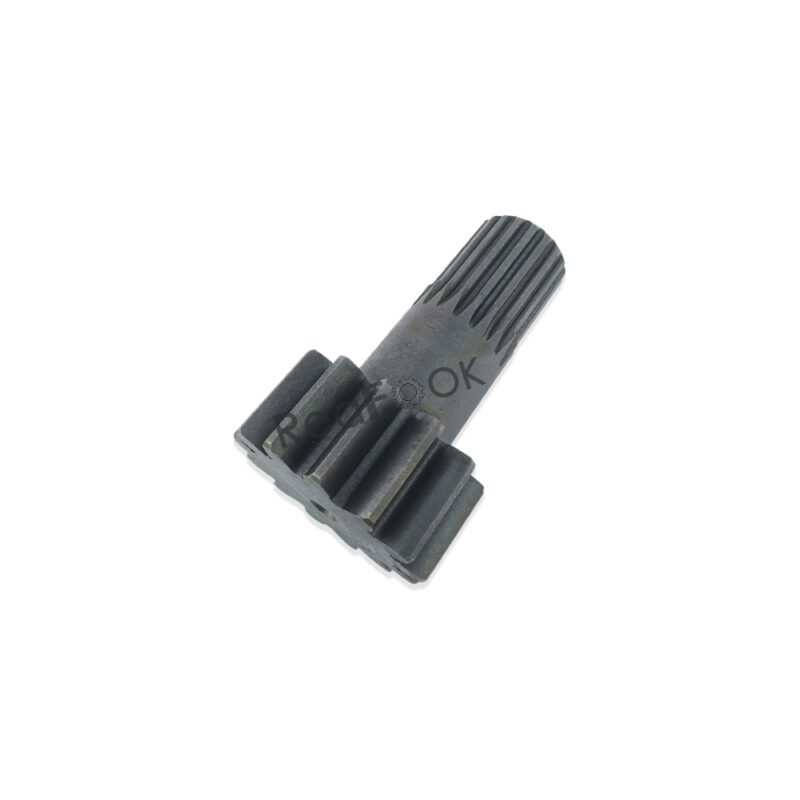

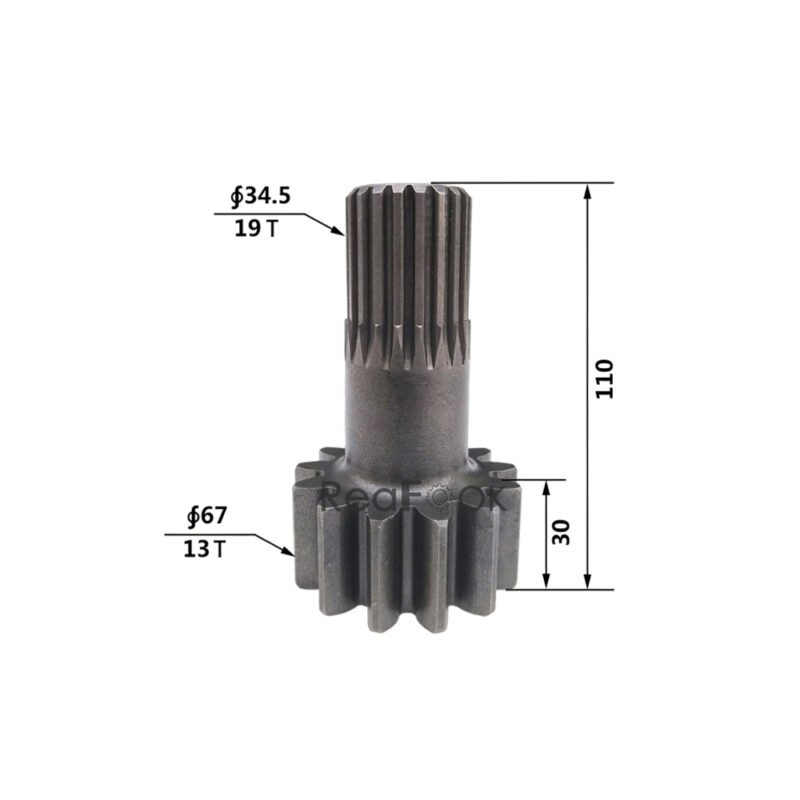

Travel Sun Gear 205-27-71550 Fit Excavator Komatsu PC200-3 PC200-5C PC200-5Z

Product Name: Sun Gear
Reference Part Number: 205-27-71550
Compatible Machine: Excavator Komatsu PC200-3 PC200-5C PC200-5Z PC200-6Z PC200LC-6Z…

Description:
A Sun Gear acts as a central Gear that meshes with the planetary Gears to transfer power and control the speed and torque output.

Pos. Part No Qty Parts name Comments
1. 01010-51670 [36] BOLT 0.142 kg. :[“0101061670”, “0101031670”, “0101081670”]
2. 01643-31645 [36] WASHER 0.072 kg.[“802170005”, “0164301645”]
205-27-00081 [2] FINAL DRIVE ASS’Y 633 kg. [05-27-00082, 05-27-00083, 05-27-00084, 05-27-00085, 05-27-00086, 05-27-00087]
205-27-00080 [2] FINAL Drive Assy 633 kg..
3. 205-27-71481 [1] SHAFT 41 kg.
3. 205-27-71480 [1] SHAFT
[1] (205-27-71481, 205- 27-71471)
150-27-00027 [1] FLOATING SEAL ASS’Y 2.4 kg. [“1502724130”, “1502700026”, “1502700025”, “1502700028”]
4. 150-27-00262 [1] SEAL RING ASS’Y 2.2 kg.
5. 150-27-00270 [1] O-RING ASS’Y 0.29 kg.
6. 205-27-71430 [2] BEARING 5.2 kg.
7. 205-27-71471 [1] HUB 92.05 kg.
7. 205-27-71470 [1] HUB
8. 07044-12412 [1] PLUG 0.09 kg. ][“0704402412”, “R0704412412”]
9. 07002-02434 [1] O-RING 0.01 kg.:[“0700212434”, “0700213434”]
10. 205-27-71281 [1] SPROCKET 38.6 kg.
11. 205-27-71670 [20] BOLT .1 kg.
11. 01010-51640 [20] BOLT 0.264 kg. :[“0101061640”, “801015186”, “0101031640”, “0101081640”]
12. 20Y-27-11310 [1] SPACER, 4.85MM
12. 205-27-00060 [1] SHIM ASS’Y 0.01 kg. :[“2052771660”, “2052771650”]
13. 205-27-71531 [1] GEAR 14.625 kg.
13. 205-27-71530 [1] GEAR 14.625 kg.:[“2052771531”]
14. 205-27-71610 [6] PLATE
15. 01010-50820 [12] BOL 0.013 kg. :[“0101080820”, “801014067”, “801015086”]
16. 01643-50823 [12] WASHER 0.01 kg.
17. 205-27-71630 [1] GEAR 10.8 kg.
18. 04020-01842 [2] PIN,DOWEL0.09 kg.
19. 205-27-71680 [18] BOLT
20. 205-27-71550 [1] GEAR 1.2 kg.
21. 205-27-71510 [1] CARRIER 30 kg.
22. 205-27-00070 [1] PLANETARY GEAR A. 19.5 kg. [“2052771540”]
23. 205-27-71560 [3] BEARING 2.373 kg.
24. 205-27-71582 [3] PIN
24. 205-27-71580 [3] PIN
25. 205-27-71592 [3] COLLAR 0.22 kg.
25. 205-27-71591 [3] COLLAR [“2052771590”]
26. 04020-00616 [3] PIN,DOWEL 0.004 kg.
26. 01658-03618 [3] WASHER 0.017 kg. [“0165823618”]
27. 01010-51465 [3] BOLT 0.103 kg. [“0101031465”, “0101081465”, “0101061465”]
27. 01530-03610 [3] NUT,LOCK 0.083 kg. [“SN: 20001-21521”]
28. 205-27-71570 [2] SPACER 0.044 kg. [“20Y2711250”]
29. 205-27-71520 [1] GEAR 15 kg.
30. 205-27-71360 [1] BUTTON 0.125 kg.
31. 205-27-71492 [1] COVER 36.2 kg.
31. 205-27-71491 [1] COVER
31A. 07043-70312 [1] PLUG 0.016 kg.
32. 07040-12414 [1] PLUG 0.092 kg.: [“0704002412”, “0704012412”]
32. 07040-13618 [1] PLUG 0.245 kg. :[“0704113612”]
33. 07002-03634 [1] O-RING: [“0700213634”]
34. 01010-51685 [24] BOLT 0.165 kg.
36. 205-27-71131 [2] COUPLING 0.665 kg.
37. 07000-05190 [2] O-RING 0.022 kg.
12. 20Y-27-11320 [2] SPACER, 4.90MM
12. 20Y-27-11330 [2] SPACER, 4.95MM
12. 20Y-27-11340 [2] SPACER, 5.00MM 0.42 kg.
12. 20Y-27-11350 [2] SPACER, 5.05MM
12. 20Y-27-11360 [2] SPACER, 5.10MM
