Swing Planet Carrier Spider 2413N460 Assembly Fit Excavator Kobelco SK60 SK60-3 SK60 Mark III Mark IV
US$335.00

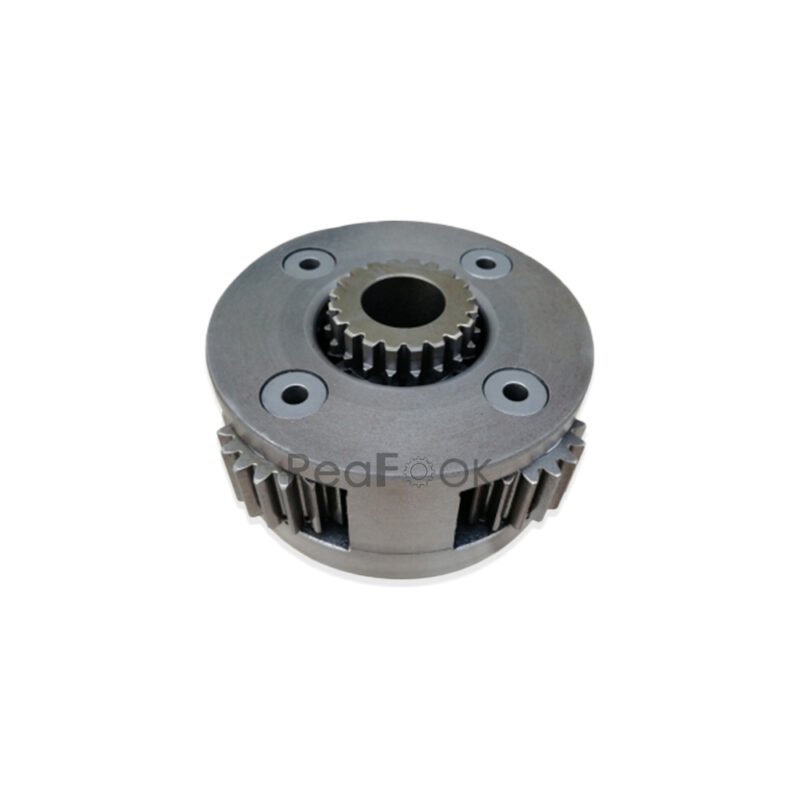

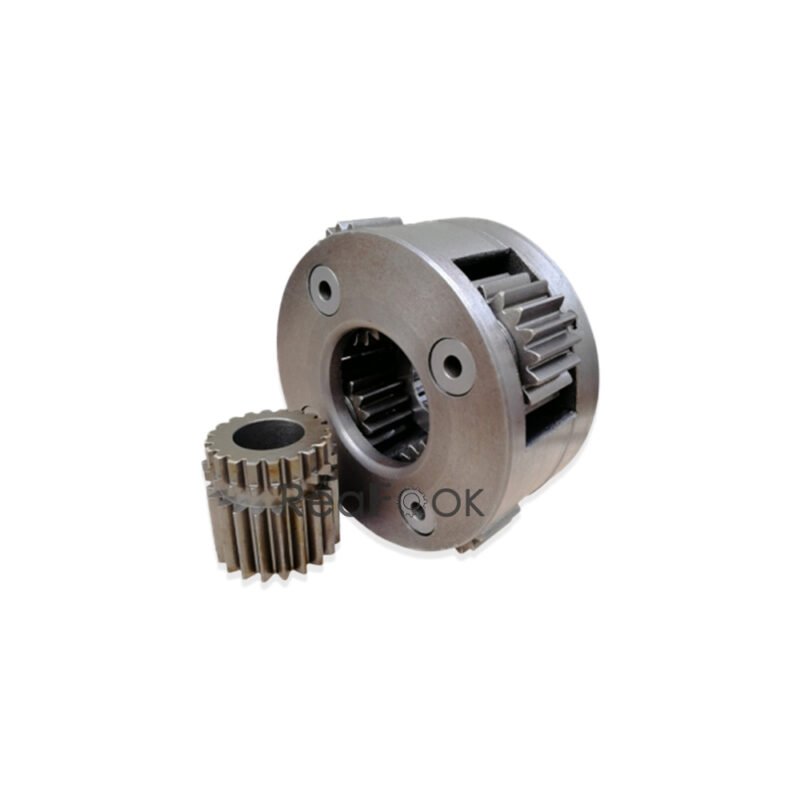

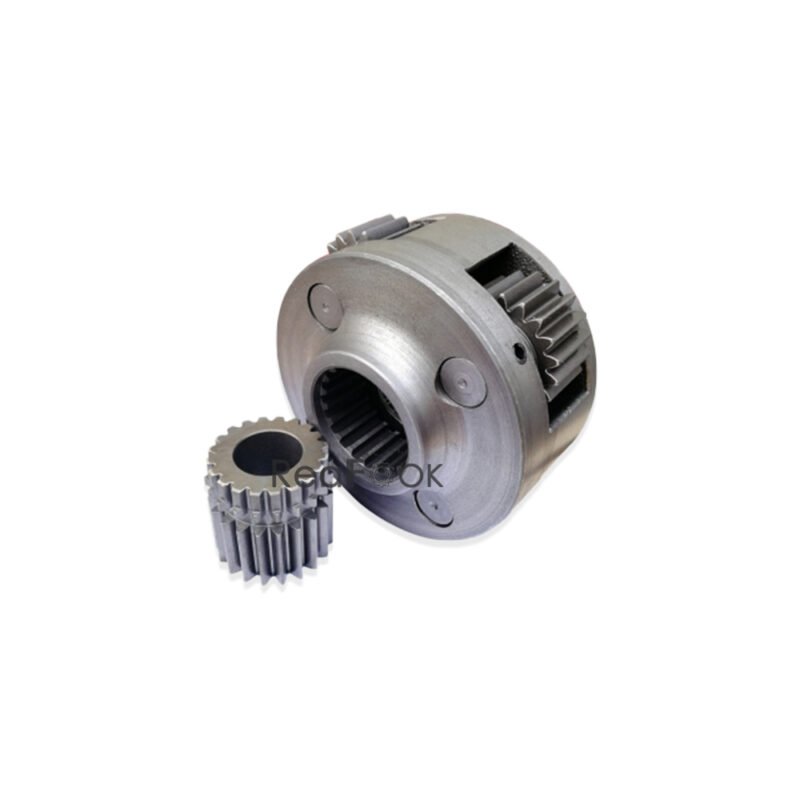

SK60-3 Spider 2413N460, Assembly with Sun Gear
Carrier: 20 Teeth, Height 84mm;
Planet Gear: 19 Teeth, OD 55.5mm, Thickness 30mm;
Sun Gear: 20 Teeth, Height 57.2mm;
Used in Swing Reduction Gearbox Device;
Free Shipping and High Quality Standards!!
Product Name: Spider Assembly with Sun Gear
Reference Part Number: 2413N460
Compatible Machine: Excavator Kobelco SK60 SK60-3 SK60 Mark III Mark IV
Description:
The Planetary Carrier is responsible for holding the planet gear in place and allowing it to rotate around the sun gear. It is made of ductile iron and withstands the high torque and impact loads that are generated in the final drive. It is bolted to the final drive housing and has a splined bore that allows it to be driven by the sun gear.
Attributes:
• Reduces speed and increases torque
• Provides a mounting point for the ring gear and supports the planetary gears
Applications:
The Planetary Carrier is used to transmit torque to the output shaft of the final drive through a series of gears.

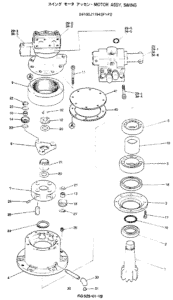

Pos. Part No Qty Parts name Comments
. . 24100J11943F1 [1] HYDRAULIC MOTOR KOB Superseded by part number: 24100J11943F2
. . 24100J11943F2 [1] MOTOR KOB SWING
1. 2401N559 [1] FINGER ASSY. KOB
3. 2418N1914 [1] RETAINER KOB
2. 2418T8471 [1] SLEEVE KOB
4. 2414J1304 [1] HOUSING KOB
5. R25P0046D1 [1] ROLLER BEARING KOB
6. 25Z627D9 [1] BEARING KOB
7. 2413N460 [1] DIFF. SPIDER KOB
8. 2413N459F1 [1] SPIDER KOB
9. 2401N476 [1] RING GEAR KOB
10. 2425Z543 [3] NEEDLE BEARING KOB
11. ZS23C10110 [8] SCREW,Hex Socket Head, M10 x 110mm KOB M10x1.50x110mm
12. 2401P1319 [1] SUN GEAR KOB
13. 2425Z544 [4] NEEDLE BEARING KOB
14. 2401P1320 [3] PINION KOB
15. 2401P1322 [4] PINION KOB
16. ZD11G07000 [1] O-RING,69.40mm ID x 75.60mm OD x 3.10mm KOB ID 69.40 ± 0.61 x OD 75mm
17. ZS23C08025 [8] SCREW,Hex Socket Head, M8 x 25mm KOB M08x1.25x25mm
18. ZD21T10500 [1] OIL SEAL KOB Superseded by part number: 2418R7D6
19. 2418T8472 [1] SPACER KOB
20. 2418T8473 [2] SPACER KOB
21. 2401P1321 [1] SUN GEAR KOB
22. 2418T20860 [3] LOCKING RING KOB
23. 2418T20857 [6] THRUST WASHER KOB
24. ZR16X05500 [1] RING KOB
25. ZP26D08016 [4] ROLL PIN KOB
26. ZS83C16018 [2] SCREW KOB M16x2.0x18mm
27. 2418T20856 [8] THRUST WASHER KOB
28. 2410T359 [4] SHAFT KOB
29. 2441U834F1 [1] MOTOR ASSY, SWING MOTOR, APPLICABLE: LE14101-15264, Remarks: (34) MOTOR ASSY, SWING MOTOR
29-1. 2436U1431F1 [1] CONTROL VALVE KOB VALVE, CONTROL, Remarks: SEE(C.P.M)
29-2. 2441U814F1 [1] HYDRAULIC MOTOR KOB MOTOR, Remarks: SEE(C.P.M)
29-3. 2436U1283F1 [1] VALVE PRESSURE RELIE KOB REDUCTION VALVE, Remarks: SEE(C.P.M)
29-4. ZS23C12135 [6] SCREW,Hex Socket Head, M12 x 135mm KOB M12x1.75x135mm
29-5. ZD12G03500 [2] O-RING,34.40mm ID x 40.60mm OD x 3.10mm KOB ID 34.40 ± 0.33 x OD 40mm
30. 2420T6698D6 [1] PIPE KOB
31. ZE82T12000 [1] PLUG KOB 3/4″ PT
32. ZR16X03000 [1] SNAP RING KOB
33. ZG31U12000 [1] ELBOW KOB
34. 2441U834F2 [1] MOTOR, APPLICABLE: LE15265-
34-2. 2441U814F1 [1] HYDRAULIC MOTOR KOB SEE(C.P.M)
34-3. 2436U1283F1 [1] VALVE PRESSURE RELIE KOB SEE(C.P.M)
34-4. ZS23C12135 [6] SCREW,Hex Socket Head, M12 x 135mm KOB M12x1.75x135mm
34-5. ZD12G03500 [2] O-RING,34.40mm ID x 40.60mm OD x 3.10mm KOB ID 34.40 ± 0.33 x OD 40mm
34-6. 2436U1431F2 [1] VALVE, CONTROL SEE(C.P.M) VALVE, CONTROL SEE(C.P.M)
. . 24010P3F16 [1] KIT, SHAFT CONSISTS OF ITEM 28 KIT, SHAFT CONSISTS OF ITEM 28
. . 24100J14170F1 [1] HYDRAULIC MOTOR KOB CONSISTS OF ITEM 1~28, 31, 40, & 41
40. 2418T23617 [1] SPACER
41. 2414T5113 [1] COVER
