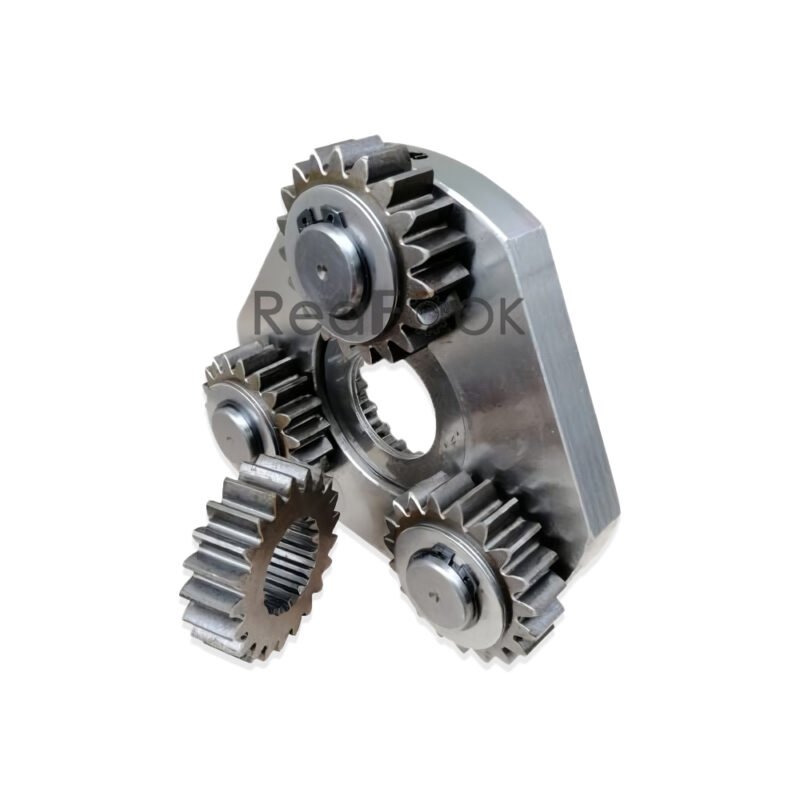

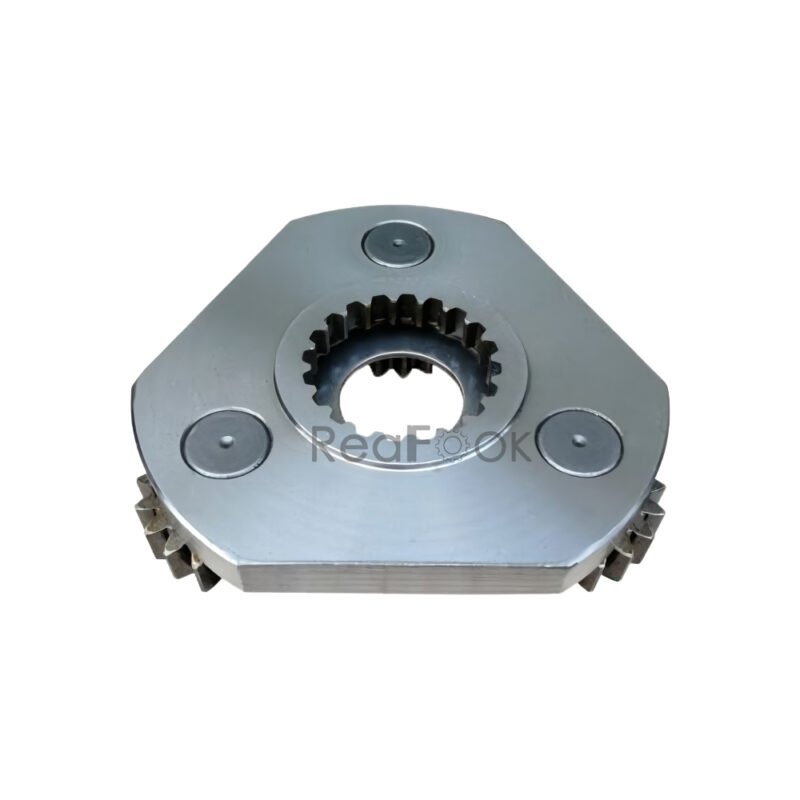

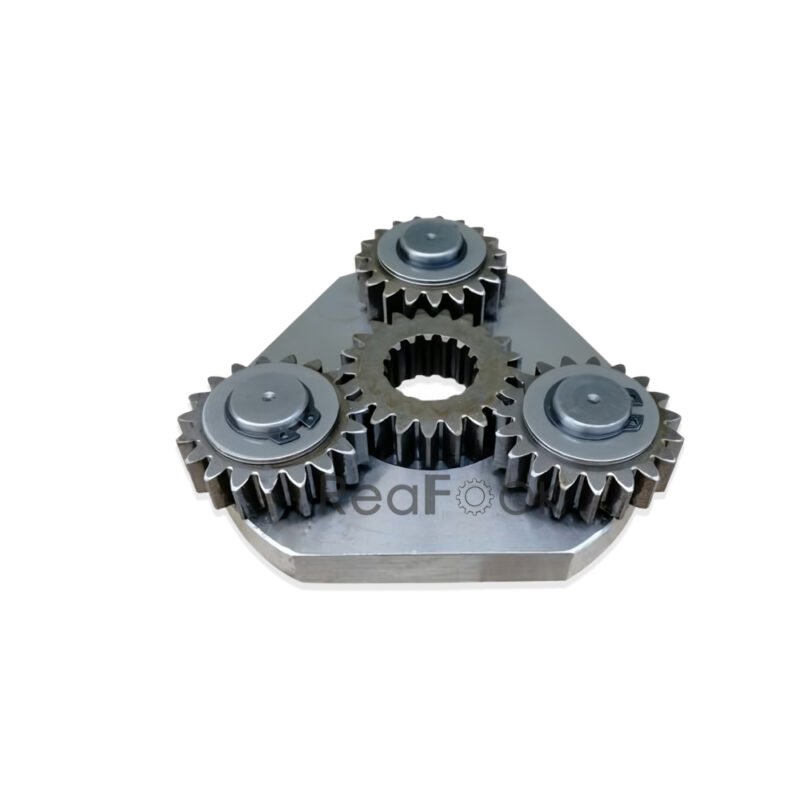

Swing Planet Carrier Spider Assembly 2413N459F1 Fit Excavator Kobelco SK60 SK60-3 SK60 Mark III Mark IV

Product Name: Spider Assembly with Sun Gear, Planet Ca
Reference Part Number: 2413N459F1
Compatible Machine: Excavator Kobelco SK60 SK60-3 SK60 Mark III Mark IV

Description:
The Swing Drive Planetary Carrier is responsible for controlling the rotational movement of the machinery’s swing system.
It is a mechanical assembly designed to control and facilitate the rotational movement of the upper structure of heavy machinery, particularly in construction and excavation equipment. This component is a vital part of the swing drive system, which is responsible for the pivotal swing or rotation of the upper structure, including the cab, boom, and other attachments. The primary function of a swing drive planetary carrier is to distribute and transmit power from the swing motor to the machine’s upper structure. This rotation allows the operator to position the heavy equipment accurately, enabling tasks such as digging, lifting, and maneuvering. The planetary carrier contains a set of gears that distribute the torque evenly, ensuring smooth and efficient rotation.

Pos. Part No Qty Parts name Comments
. . 24100J11943F1 [1] HYDRAULIC MOTOR KOB Superseded by part number: 24100J11943F2
. . 24100J11943F2 [1] MOTOR KOB SWING
1. 2401N559 [1] FINGER ASSY. KOB
3. 2418N1914 [1] RETAINER KOB
2. 2418T8471 [1] SLEEVE KOB
4. 2414J1304 [1] HOUSING KOB
5. R25P0046D1 [1] ROLLER BEARING KOB
6. 25Z627D9 [1] BEARING KOB
7. 2413N460 [1] DIFF. SPIDER KOB
8. 2413N459F1 [1] SPIDER KOB
9. 2401N476 [1] RING GEAR KOB
10. 2425Z543 [3] NEEDLE BEARING KOB
11. ZS23C10110 [8] SCREW,Hex Socket Head, M10 x 110mm KOB M10x1.50x110mm
12. 2401P1319 [1] SUN GEAR KOB
13. 2425Z544 [4] NEEDLE BEARING KOB
14. 2401P1320 [3] PINION KOB
15. 2401P1322 [4] PINION KOB
16. ZD11G07000 [1] O-RING,69.40mm ID x 75.60mm OD x 3.10mm KOB ID 69.40 ± 0.61 x OD 75mm
17. ZS23C08025 [8] SCREW,Hex Socket Head, M8 x 25mm KOB M08x1.25x25mm
18. ZD21T10500 [1] OIL SEAL KOB Superseded by part number: 2418R7D6
19. 2418T8472 [1] SPACER KOB
20. 2418T8473 [2] SPACER KOB
21. 2401P1321 [1] SUN GEAR KOB
22. 2418T20860 [3] LOCKING RING KOB
23. 2418T20857 [6] THRUST WASHER KOB
24. ZR16X05500 [1] RING KOB
25. ZP26D08016 [4] ROLL PIN KOB
26. ZS83C16018 [2] SCREW KOB M16x2.0x18mm
27. 2418T20856 [8] THRUST WASHER KOB
28. 2410T359 [4] SHAFT KOB
29. 2441U834F1 [1] MOTOR ASSY, SWING MOTOR, APPLICABLE: LE14101-15264, Remarks: (34) MOTOR ASSY, SWING MOTOR
29-1. 2436U1431F1 [1] CONTROL VALVE KOB VALVE, CONTROL, Remarks: SEE(C.P.M)
29-2. 2441U814F1 [1] HYDRAULIC MOTOR KOB MOTOR, Remarks: SEE(C.P.M)
29-3. 2436U1283F1 [1] VALVE PRESSURE RELIE KOB REDUCTION VALVE, Remarks: SEE(C.P.M)
29-4. ZS23C12135 [6] SCREW,Hex Socket Head, M12 x 135mm KOB M12x1.75x135mm
29-5. ZD12G03500 [2] O-RING,34.40mm ID x 40.60mm OD x 3.10mm KOB ID 34.40 ± 0.33 x OD 40mm
30. 2420T6698D6 [1] PIPE KOB
31. ZE82T12000 [1] PLUG KOB 3/4″ PT
32. ZR16X03000 [1] SNAP RING KOB
33. ZG31U12000 [1] ELBOW KOB
34. 2441U834F2 [1] MOTOR, APPLICABLE: LE15265-
34-2. 2441U814F1 [1] HYDRAULIC MOTOR KOB SEE(C.P.M)
34-3. 2436U1283F1 [1] VALVE PRESSURE RELIE KOB SEE(C.P.M)
34-4. ZS23C12135 [6] SCREW,Hex Socket Head, M12 x 135mm KOB M12x1.75x135mm
34-5. ZD12G03500 [2] O-RING,34.40mm ID x 40.60mm OD x 3.10mm KOB ID 34.40 ± 0.33 x OD 40mm
34-6. 2436U1431F2 [1] VALVE, CONTROL SEE(C.P.M) VALVE, CONTROL SEE(C.P.M)
. . 24010P3F16 [1] KIT, SHAFT CONSISTS OF ITEM 28 KIT, SHAFT CONSISTS OF ITEM 28
. . 24100J14170F1 [1] HYDRAULIC MOTOR KOB CONSISTS OF ITEM 1~28, 31, 40, & 41
40. 2418T23617 [1] SPACER
41. 2414T5113 [1] COVER
