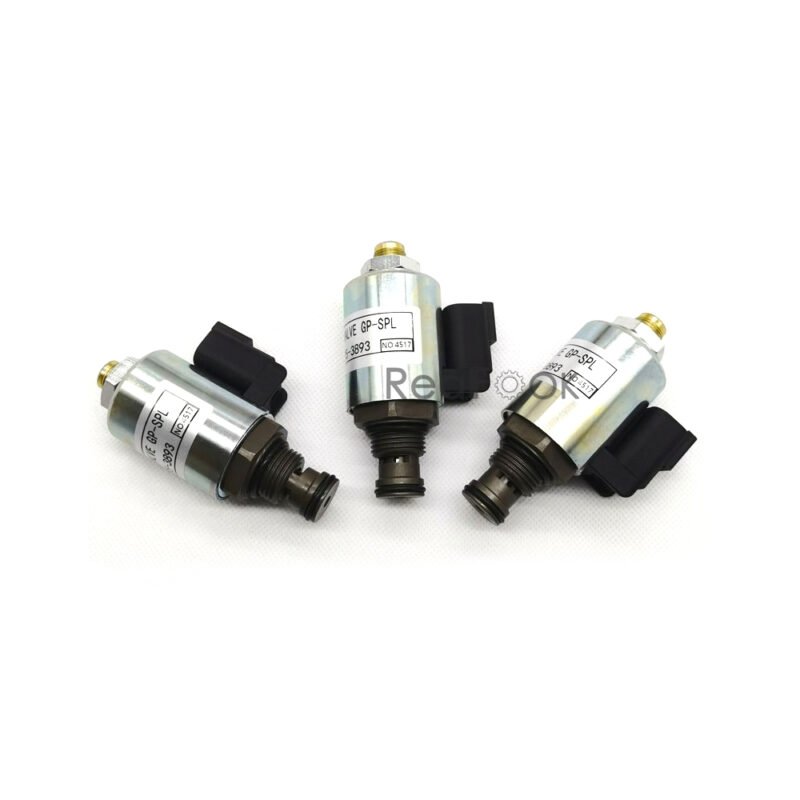

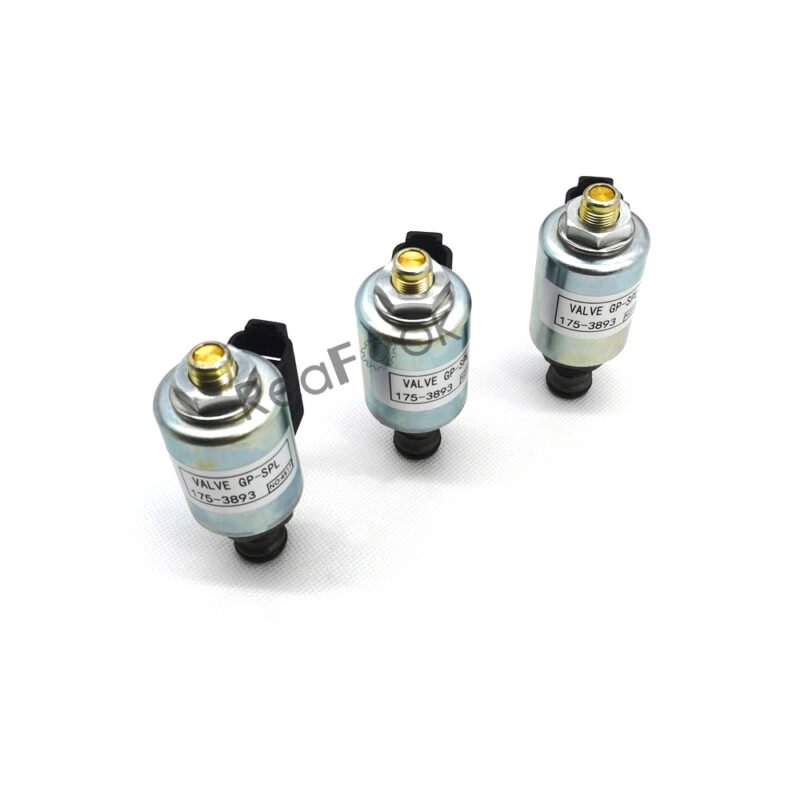

Solenoid Valve 175-3893 Fit Caterpillar Motor Grader 120H 120K 12H 12K 135H 140H 140K 143H 160H 160K 163H

Description:
The solenoid valve assemblies are electromechanical devices designed to open or close the valve used in fluid systems of heavy-duty equipment.

Attributes:
• Voltage: 24 VDC
• Connector Type: 2-pin DT
• Rated Oil: SAE 30, 5 to 5000 mm2/s (cSt) ISO 4406 (18/15) or cleaner
• Thread Size: 3/4-16

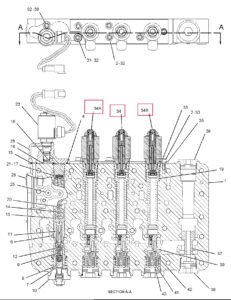

Pos. Part No Qty Parts name Comments
1. 154-6309 [1] BODY
2. 6V-5683 M [5] BOLT (M6X1X16-MM)
4. 3D-4245 [1] SEAL-O-RING
6. 8E-9894 [1] SPOOL
7. 9U-8068 [1] SLUG
8. 9U-9282 [1] SPRING (OUTER)
9. 9U-9316 [1] SPRING (INNER)
10. 108-6523 [1] ADJUSTER AS
4K-2039 [1] SEAL-O-RING
7M-8485 [1] SEAL-O-RING
8T-4223 [1] WASHER-HARD (13.5X25.5X3-MM THK)
9U-8069 [1] PLUG
095-1207 M [1] NUT (M12X1.75-THD)
101-9754 [1] SCREW-ADJUSTMENT (M12X1.75X18-MM)
11. 309-1877 [1] ORIFICE AS
5F-9144 [1] SEAL-O-RING
9U-8620 [1] ORIFICE
12. 9U-8067 [1] RETAINER
13. 8E-9895 [1] PISTON-LOAD
14. 9W-7412 [1] SPRING (OUTER)
15. 4J-2506 [1] SEAL-O-RING
16. 6F-4855 [1] SEAL-O-RING
17. 5J-1036 B [4] SHIM (0.8-MM THK)
18. 8E-9896 [1] PISTON-SELECTOR
19. 179-1298 [3] SPACER
20. 7T-0570 [1] SPRING (INNER)
21. 4M-1751 B [2] SPACER (15.09X0.4-MM THK)
23. 186-1526 Y [1] VALVE GP-SOLENOID (24-VOLT)(SELECTOR & PRESSURE RANGE)
25. 309-2995 [1] PLUG AS
4J-7533 [1] SEAL-O-RING
9G-7132 [1] PLUG-ORIFICE
26. 162-0177 [1] PLUG A
3J-1907 [1] SEAL-O-RING
9S-8004 [1] PLUG (9/16-18-THD)
28. 180-9327 [1] MANIFOLD
30. 3K-6116 [1] WASHER (0.266X0.47X0.031-IN THK)
31. 8T-8442 M [1] BOLT-SOCKET HEAD (M6X1X30-MM)
32. 5P-0537 [6] WASHER-HARD (7.2X14.5X2-MM THK)
33. 9X-7384 [3] SEAL-O-RING
34. 175-3893 [1] VALVE GP-SOLENOID
34A. 175-3893 [1] VALVE GP-SOLENOID
34B. 175-3893 [1] VALVE GP-SOLENOID
(EACH VALVE GP INCLUDES)
323-9531 [1] COIL AS (24-VOLT)
164-2108 [1] WASHER (13.03X25.4X2.38-MM THK)
218-2373 [1] NUT (1/2-28-THD)
238-5080 [1] SEAL-O-RING
317-0810 [1] SEAL-O-RING
35. 183-6774 [1] PLATE
36. 8C-6965 M [1] BOLT-SOCKET HEAD (M6X1X45-MM)
37. 154-7172 [1] SPOOL
38. 309-2996 [5] PLUG AS
(EACH INCLUDES)
6Y-4638 [1] PLUG-HEX SOCKET (1-5/16-12-THD)
7M-8485 [1] SEAL-O-RING
39. 183-6775 [3] SPOOL AS
(EACH INCLUDES)
167-0566 [1] CARTRIDGE
40. 154-7175 [3] SLUG
41. 154-7176 [3] SPRING (INNER)
42. 154-7177 [3] SPRING (OUTER)
B USE AS REQUIRED
M METRIC PART
Y SEPARATE ILLUSTRATION
