Sleeve YN32W01082P1 Oil Seal YN32W01060P1 YN32W01081P1 Fit Kobelco Excavator SK200-8 SK210DLC-8 SK215SRLC SK210-8 SK210LC-8 SK210D-8 SK170-8 SK215SR

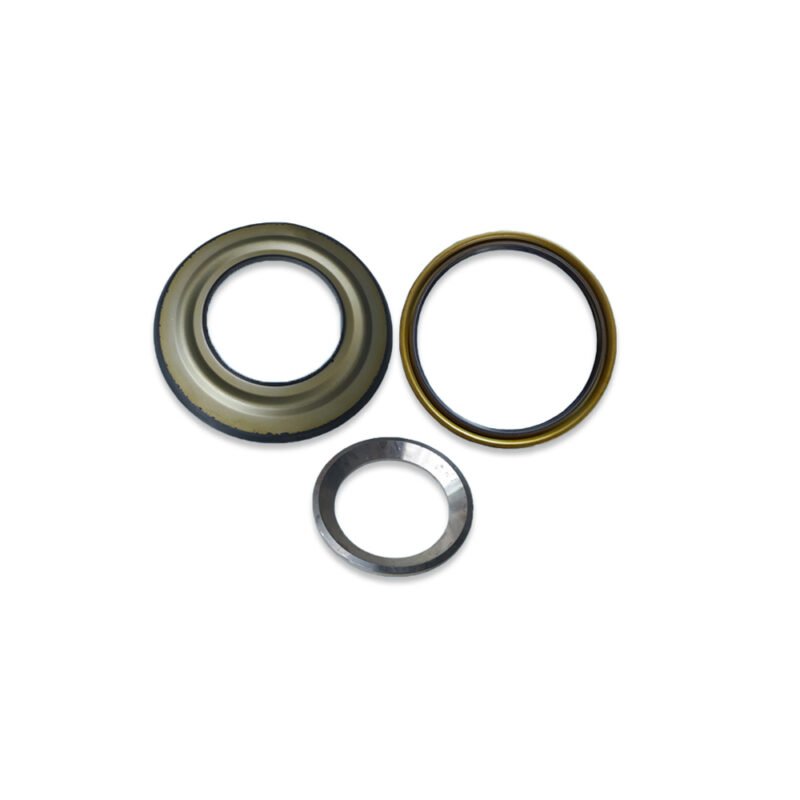

Product Name: Sleeve, Oil Seal
Reference Part Number: YN32W01082P1, YN32W01060P1, YN32W01081P1
Compatible Machine: Kobelco Excavator SK215SR SK200-8 SK210DLC-8 SK215SRLC SK210-8 SK210LC-8 SK210D-8 SK170-8 ED195-8 , New Holland E175B E215B…

Description:
An Oil Seal is used to provide a leakproof seal for the pinion of the swing drive. It is made from an elastic material such as rubber, which is used to prevent leakage of fluids, contaminants, or lubricants and maintain proper operation and performance.

Pos. Part No Qty Parts name Comments
. . YN32W00019F1 [1] GEAR REDUCTION UNIT SM Reduction Assy (Swing) Superseded by part number: YN32W00022F2
1. YN32W01051P1 [1] SHAFT SM
2. YN32W01052P1 [1] GEAR SM Sun
3. YN32W01053P1 [3] GEAR SM Pinion
4. YN32W01054P1 [1] GEAR SM Sun
5. YN32W01055P1 [4] GEAR SM Pinion
6. YN32W01056P1 [1] RING GEAR SM
7. YN32W01057F1 [1] CARRIER SM SpiderAssy
7-1. YN32W01009P1 [1]
7-2. YN32W01066P1 [3] SHAFT KOB
8. YN32W01058P1 [1] CARRIER,Housing, Spider SM Spider
9. YN32W01067P1 [4] SHAFT SM
10. YN32W01030P1 [1] SPHERICAL BEARING KOB Spherical Superseded by part number: 25Z804D18
11. YN32W01029P1 [1] SPHERICAL BEARING KOB Spherical Superseded by part number: R25P0047D9

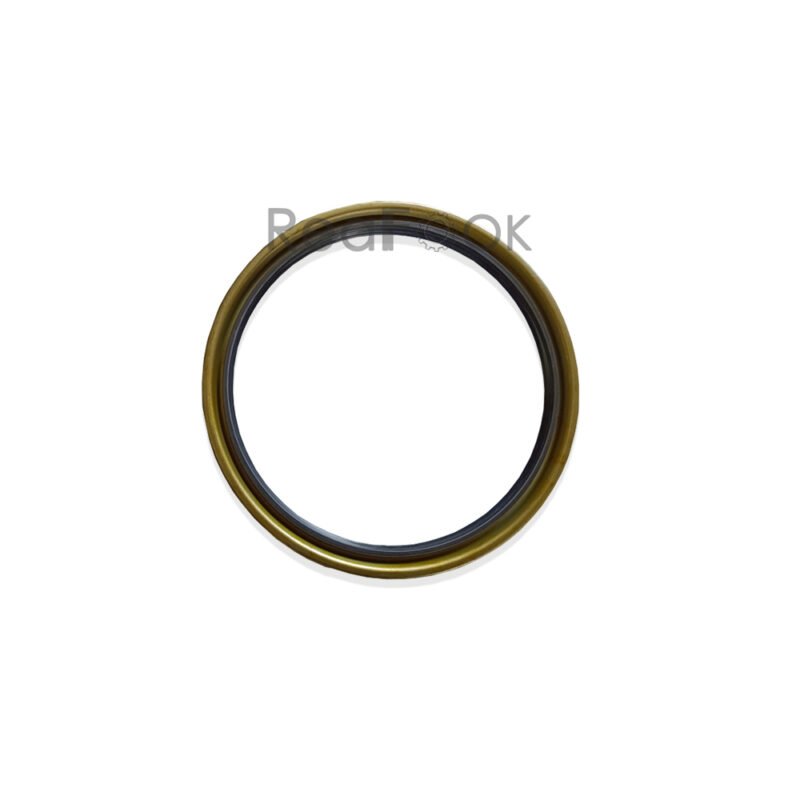

12. YN32W01060P1 [1] OIL SEAL SM Oil Seal
13. YN32W01104P1 [1] BOX SM Housing Superseded by part number: YN32W00022F2
15. YN32W01071P1 [6] WASHER SM Washer, Thrust
16. YN32W01073P1 [3] NEEDLE BEARING SM Needle
17. YN32W01072P1 [4] NEEDLE BEARING SM Needle
18. YN32W01063P1 [8] WASHER SM Thrust
19. ZR16X03500 [1] RING KOB Retaining
20. ZR16X09000 [1] RING KOB Retaining

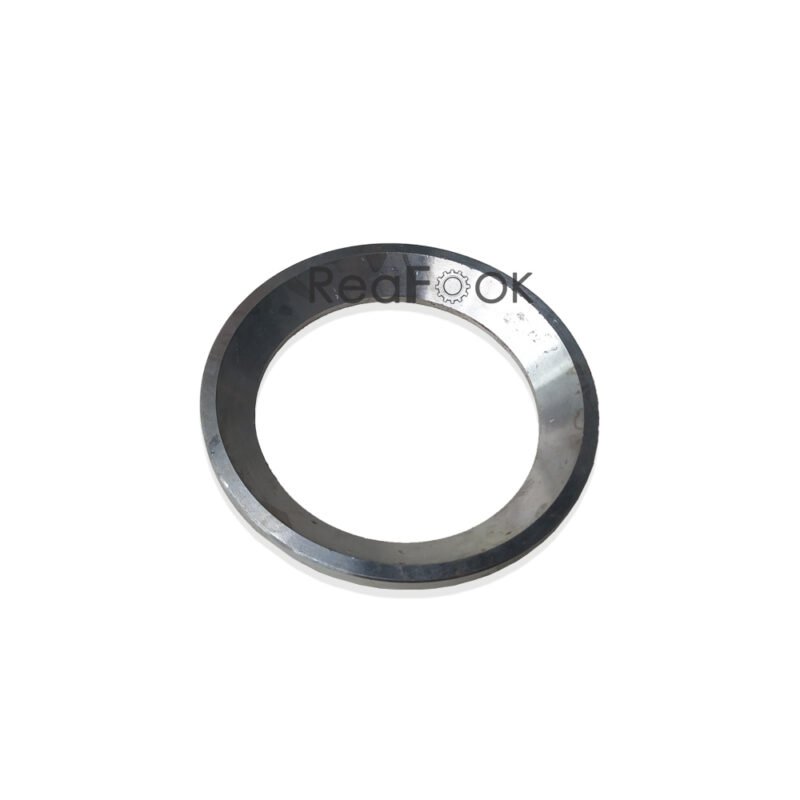

21. YN32W01082P1 [1] SLEEVE SM
22. ZP26D08025 [4] PIN KOB Spring
23. HS23C14135G1 [11] SCREW,M14 x 135mm SM Cap
24. PV02B01073D8 [2] CAP KOB
25. YN32W01080D1 [1] RIGID TUBE SM
26. ZG31U08000 [1] HYD CONNECTOR SM Elbow
27. ZE82T08000 [1] PLUG KOB
28. ZR16X04000 [3] RING KOB Retaining

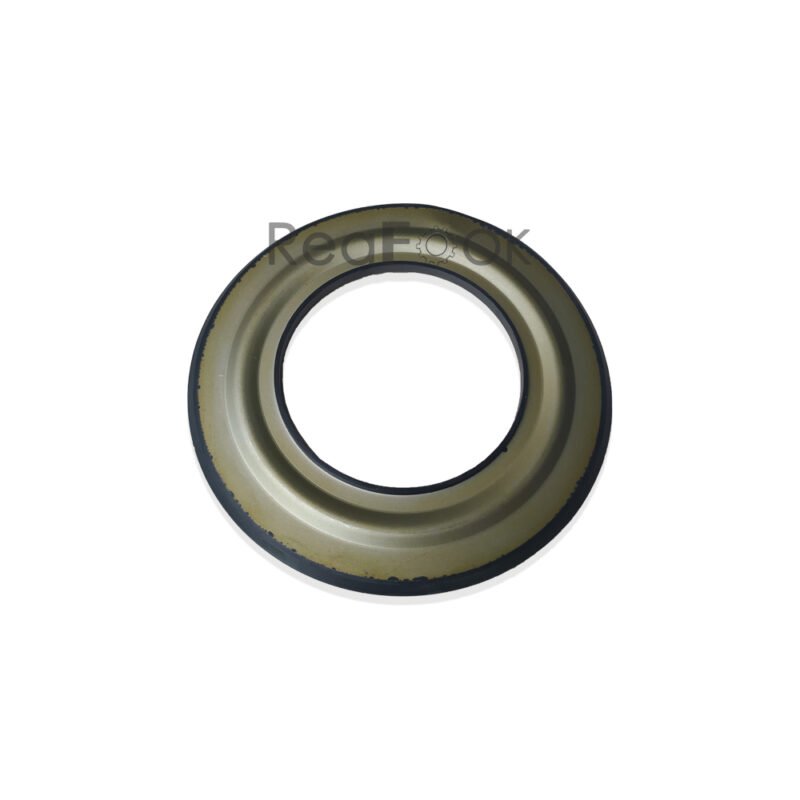

30. YN32W01081P1 [1] OIL SEAL SM Oil Seal
31. ZG91V02000 [1] LUBE NIPPLE,67 Degree x 1/8″ PT KOB 67° x 1/8″ PT Superseded by part number: 72283072
32. 2444Z3305 [1] BREATHER KOB Valve, Relief
