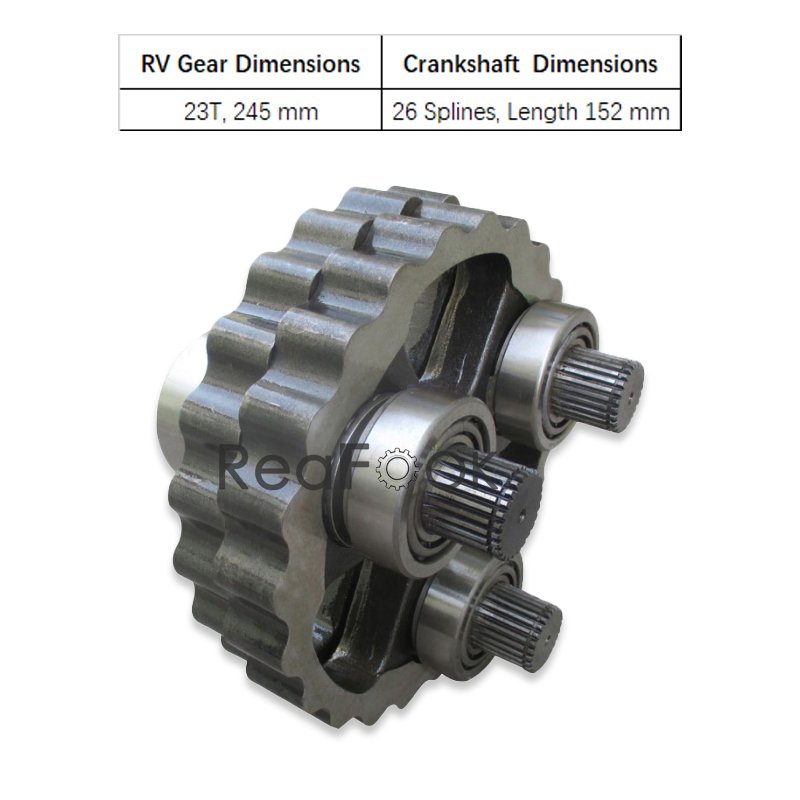

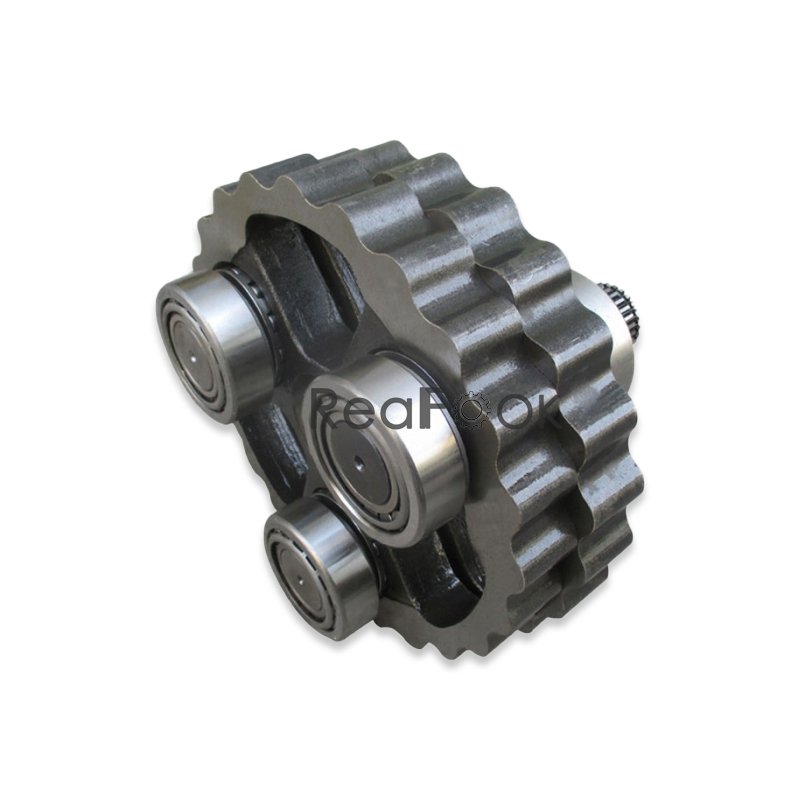

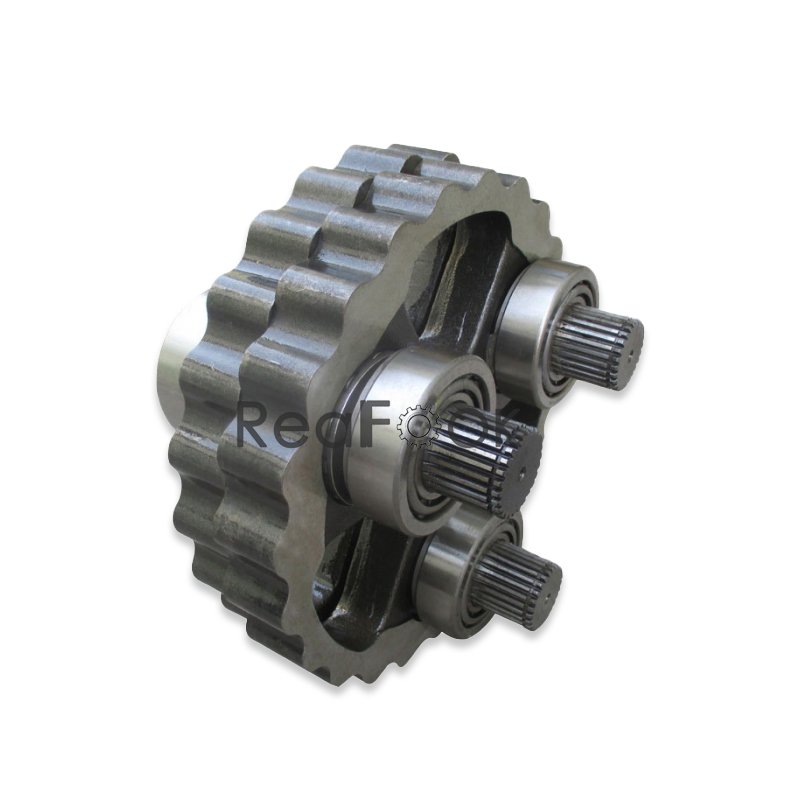

Travel RV Gear Assy TZ263B1104-00 TZ263B1204-00 with Shaft and Bearings Fit Excavator Komatsu PC100-6 PC120-6 PC128US PC130-6 PC130-7

Product Name: RV Gear Assy
Reference Part Number: TZ263B1104-00, TZ263B1204-00
Compatible Machine: Excavator Komatsu PC100-6 PC100-6E PC100-6S PC120-6 PC120-6Z PC128US-1 PC128US-2 PC130-6 PC130-7 PC130-6K PC130-7K…

Pos. Part No Qty Parts name Comments
1. TZ266B1001-00 [1] HUB,MOTOR TZ263B1102-01 [1] SPINDLE KIT 49.5 kg.
TZ263B1132-05 [1] SPINDLE ASS’Y 49.5 kg.
4. TZ200B1019-03 [3] BOLT 0.344 kg. analogs: [“TZ200B101902”]
TZ263B1104-00 [1] RV GEAR ASS’Y19 kg.
TZ263B1204-00 [1] RV GEAR KIT 10 kg.
7. TZ200B1009-01 [3] SHAFT 1.397 kg.
8. TZ200B1022-00 [6] BEARING 0.56 kg.
9. TZ200B1023-00 [6] BEARING 0.26 kg.
10. TZ270B1006-00 [1] GEAR 0.381 kg.
TZ264B1107-00 [1] SPUR GEAR KIT
12. TZ266B1008-00 [1] COVER 9.16 kg.
13. TZ200B1014-01 [3] PIECE 0.04 kg.
14. TZ269B1015-00 [1] COUPLING 0.25 kg.
15. TZ225B1017-00 [24] PIN 0.141 kg.
16. TZ150A1020-00 [3] SNAP RING KIT 0.925 kg.
17. TZ200B1021-01 [2] BEARING 3.41 kg. analogs: [“TZ200B102100”]
18. 04064-03515 [3] RING,BACK-UP
19. 07000-11007 [2] O-RING
20. TZARP568-378-7 [1] O-RING
21. TZJW1516-G37-7 [1] O-RING
22. TZES100-250-A [2] SEAL (K1)
23. TZGM1-2 [2] PLUG
24. TZJB1176M12-32 [10] BOLT
25. 04260-00952 [1] BALL
K1. TZ276B9000-00 [1] SERVICE
TZ15Z-25-42-10 [1] SEAL
TZ266B2035-00 [1] O-RING
TZJB2401-P26-9 [2] O-RING
07000-12016 [4] O-RING
07000-12018 [3] O-RING
TZ266B2039-00 [1] O-RING
07000-12010 [2] O-RING
07002-02034 [1] O-RING
07000-12011 [4] O-RING
07000-12014 [2] O-RING
07000-12020 [4] O-RING
TZJB2407T2-P14 [4] RING
TZJB2407T3-P20 [4] RING
