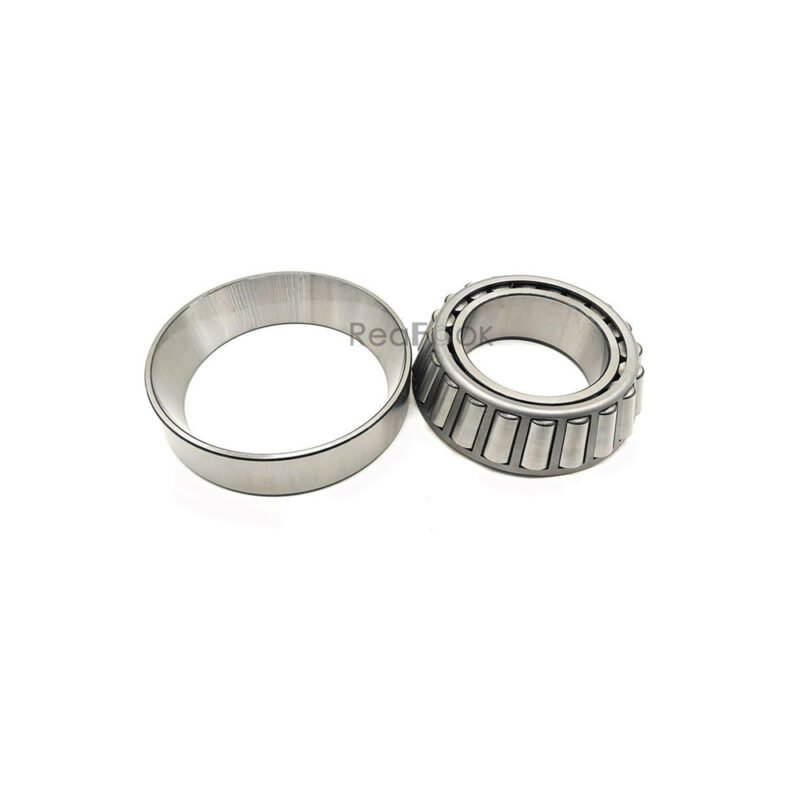

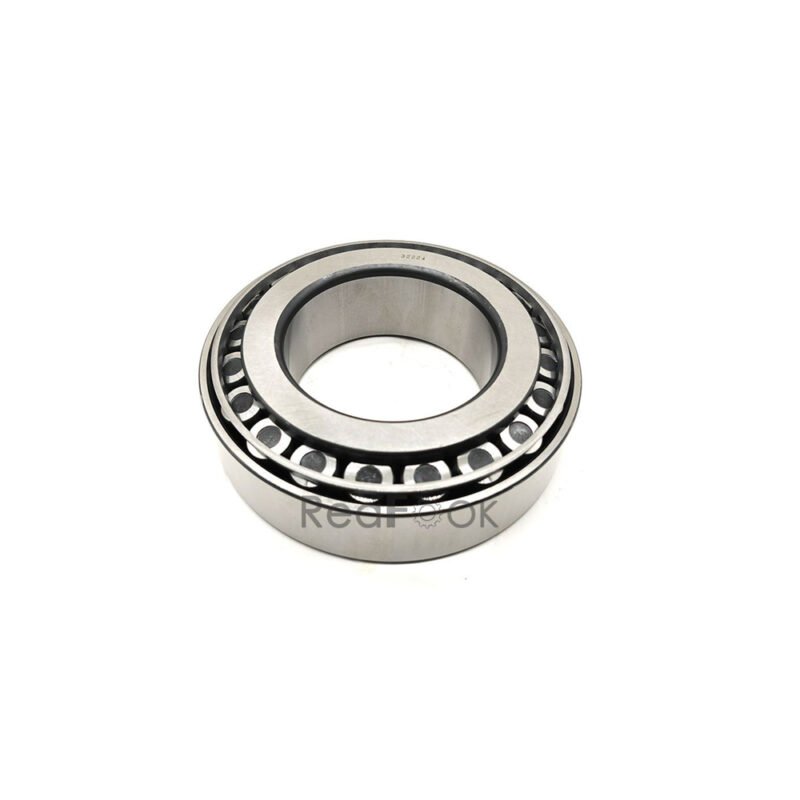

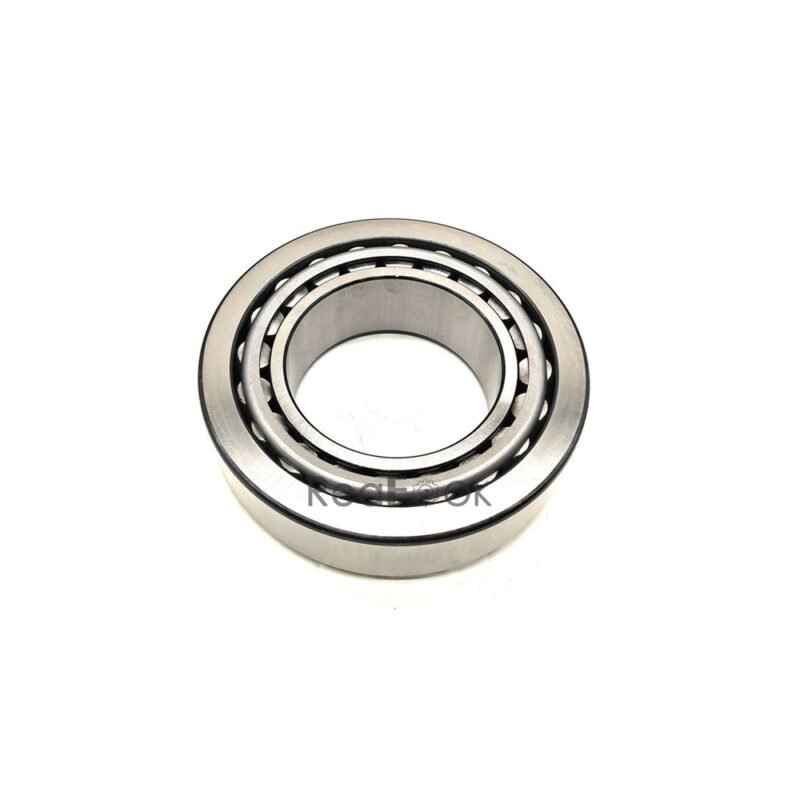

Swing Reduction Roller Bearing 4402481 Fit Excavator Hitachi ZX160 ZX200 ZX200-3G ZX200-5 ZX210H ZX225US ZX240 ZX330 ZX350 ZX360 ZX500 ZX520LC-3

Product Name: Swing Bearing, Roller Bearing
Reference Part Number: 4402481
Compatible Machine: Excavator Hitachi IZX200 ZX160 ZX180LC ZX200 ZX200-3 ZX200-3G ZX200-5 ZX210H ZX210-3 ZX210H-5G ZX225US ZX240 ZX330 ZX330-3G ZX330LC-5G ZX350 ZX360 ZX370 ZX450 ZX470 ZX500LC ZX520 ZX600…

Description:
A Tapered Roller Bearing takes both axial loads sideways or thrust forces, as well as radial loads downward force. It consists of both tapered raceways (inner and outer rings), and tapered rollers. The construction is intended for combination loads, such as dual-acting axial and radial loads.

Parts on group SWING DEVICE:
Pos. Part No Qty Parts name Comments
01. 2044634 [1] SHAFT;PROP.
02. 3083742 [1] SLEEVE
03. A811120 [1] O-RING
04. 4402481 [1] BRG.;ROL.
05. 1027617 [1] HOUSING Y 1032876
05. 1032876 [1] HOUSING
06. 4411535 [1] SEAL;OIL
07. 4402637 [1] BRG.;ROL.
08. 3086064 [1] NUT
09. 4411122 [1] PLATE;LOCK
10. J901020 [2] BOLT
11. 1026662 [1] CARRIER
12. 4187590 [1] PLATE;THRUST
13. 3084729 [3] GEAR;PLANETARY
14. 4336929 [6] PLATE;THRUST
15. 4336925 [3] PIN I 4488904
15. 4488904 [3] PIN
16. 4027427 [3] PIN;SPRING
17. 4427630 [6] BRG.;NEEDLE I 4461644
17. 4461644 [6] BRG.;NEEDLE
17. 4631475 [6] BRG.;NEEDLE I 4461644
18. 3080912 [1] GEAR;SUN
20. 1025957 [1] GEAR;RING
21. M341645 [12] BOLT;SOCKET
23. 1025912 [1] CARRIER
24. 4403371 [1] PLATE;THRUST
25. 3082517 [3] GEAR;PLANETARY
26. 4404506 [3] BRG.;NEEDLE
27. 4403082 [3] PLATE;THRUST
28. 4336923 [3] PIN
29. 4051262 [3] PIN;SPRING
30. 3084056 [1] GEAR;SUN
33. 3089362 [1] PIPE
35. 4445352 [2] PLUG
36. 94-2012 [1] PLUG
61. 3090308 [1] COVER (for transportation)
62. J011230 [4] BOLT;SEMS
62. J271230 [4] BOLT;SEMS T J901230 J222012 (for transportation)
63. 3053093 [1] NAME-PLATE (for transportation)
64. M492564 [2] SCREW;DRIVE (for transportation)
100. 4398514 [1] MOTOR;OIL
101. 991342 [1] RING;RETAINING
103. M341228 [8] BOLT;SOCKET I 4614096
103. 4614096 [8] BOLT;SOCKET
104. 4264452 [1] PIPE
105. 3074223 [1] GAUGE;LEVEL
106. 4332658 [1] PIPE
107. 4343365 [1] CAP
109. 3053093 [1] NAME-PLATE
110. M492564 [2] SCREW;DRIVE
200. 9196963 [1] SWING DEVICE (WITHOUT MOTOR)
