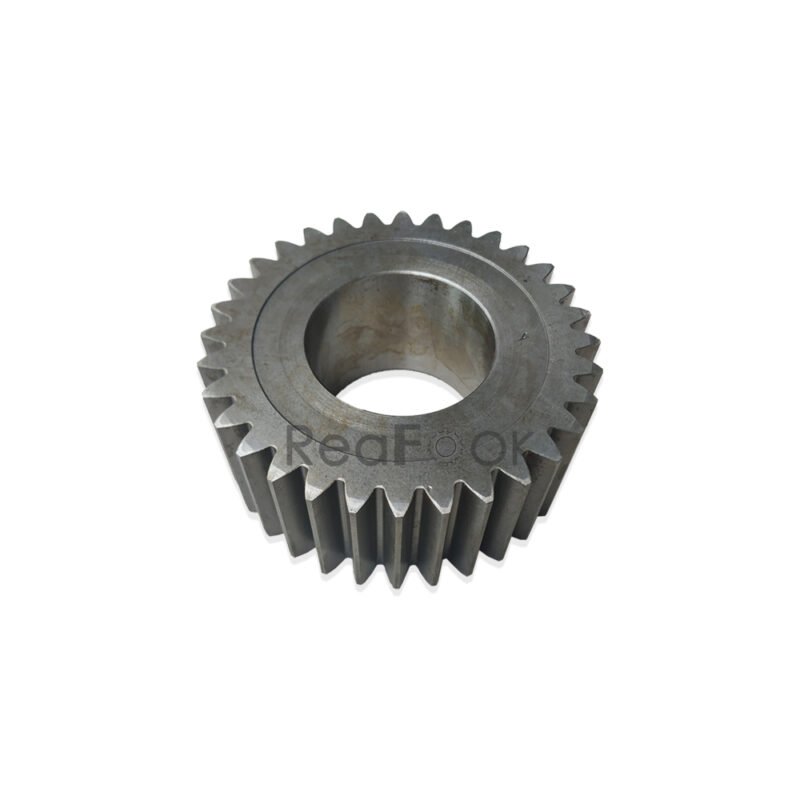

Travel Reduction Planetary Gear YN53D00008S014 Fit Excavator Kobelco SK200-6 SK200-6ES SK200LC-6 SK200LC-6ES SK210LC SK210LC-6E SK200SR

Product Name: Planetary Gear
Reference Part Number: YN53D00008S014
Compatible Machine: Excavator Kobelco SK200-6 SK200-6ES SK200LC-6 SK200LC-6ES SK210LC SK210LC-6E SK200SR SK200SRLC ED150 ED150-1E…

Description:
Gear for use in planetary gear sets of final drives. Final Drive Planetary Gear transfers power from the drive motor to the wheels while regulating torque and rotational speed for smooth movement.

Pos. Part No Qty Parts name Comments
. . YN53D00008F1 [1] HYDRAULIC MOTOR KOB REDUCTION ASSY (PROPELLING) 9811.1- Superseded by part number: YN53D00008F3
1. YN53D00008S001 [1] COVER KOB 9811.1-
2. YN53D00008S002 [1] ROTOR DISTRIBUTOR KOB CARRIER 9811.1-
3. YN53D00008S003 [3] PIN KOB 9811.1-
4. LQ15V00005S004 [3] BEARING KOB 9811.1-
5. YN53D00008S005 [6] WASHER KOB 9811.1-
6. YN53D00008S006 [3] GEAR KOB 9811.1-
7. ZP26D04022 [3] PIN KOB SPRING, 9811.1-
8. LQ15V00005S008 [1] PLATE KOB THRUST 9811.1-
9. YN53D00008S009 [1] GEAR KOB SUN 9811.1-
10. YN53D00008S010 [1] GEAR KOB SUN 9811.1-
11. YN53D00008S011 [1] SHAFT, PLANETARY CAR KOB CARRIER 9811.1-
12. YN53D00008S012 [3] PIN KOB 9811.1-
13. YN53D00004S013 [3] BEARING KOB 9811.1-
14. YN53D00008S014 [3] GEAR KOB PLANETARY 9811.1-
15. ZP26D06036 [3] PIN KOB Roll — OD 06 x 36mm Long, 9811.1-
16. YN53D00008S016 [6] THRUST WASHER KOB 9811.1-
17. YN53D00008S017 [1] GEAR KOB RING 9811.1-
18. YN53D00008S018 [1] HOUSING KOB 9811.1-
19. YN53D00008S019 [2] BEARING KOB 9811.1-
20. YN53D00008S020 [1] SHIM KOB 9811.1-
21. YN53D00008S021 [2] WASHER KOB LOCK WASHER 9811.1-
22. YN53D00004S022 [1] RING KOB 9811.1-
23. YN53D00008S023 [1] SEAL KOB SEAL,FLOATING 9811.1-
24. ZS23C10025 [15] SCREW,Hex Socket Head, M10 x 25mm, KOB M10x1.50x25mm, 9811.1- Superseded by part number: ZS28C10025
25. ZS23C16080 [19] CAPSCREW,Hex Socket Head, M16 x 80mm, KOB SCREW M16x2.0x80mm, 9811.1-
26. ZE82T12000 [2] PLUG KOB 3/4″ PT
