Travel Planetary Carrier Diff Spider 2413J380 Assembly Fit Excavator Kobelco SK200-3 SK200-5 SK200LC Mark III Mark IV Mark V

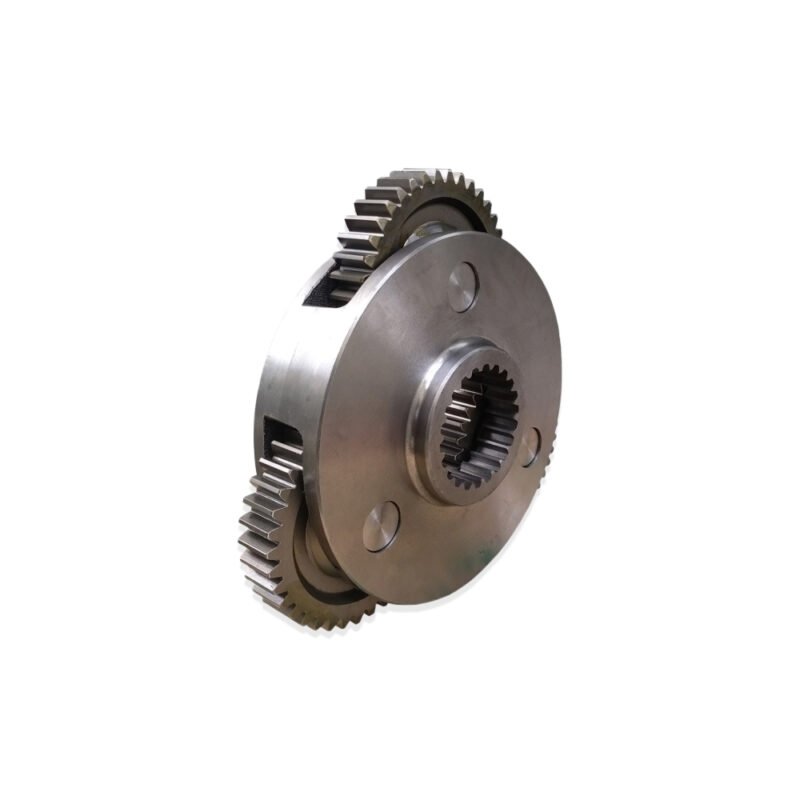

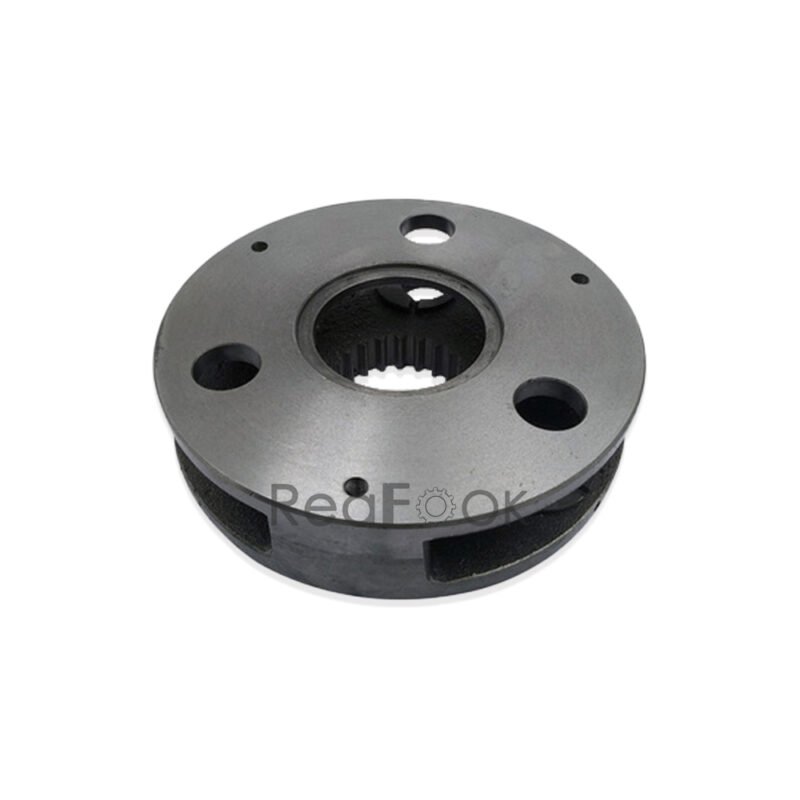

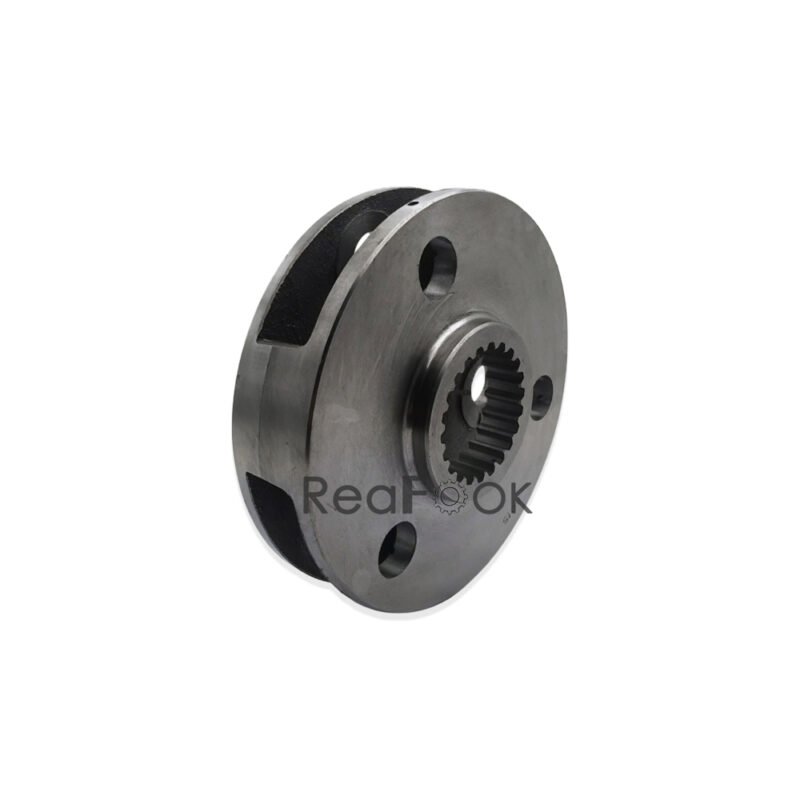

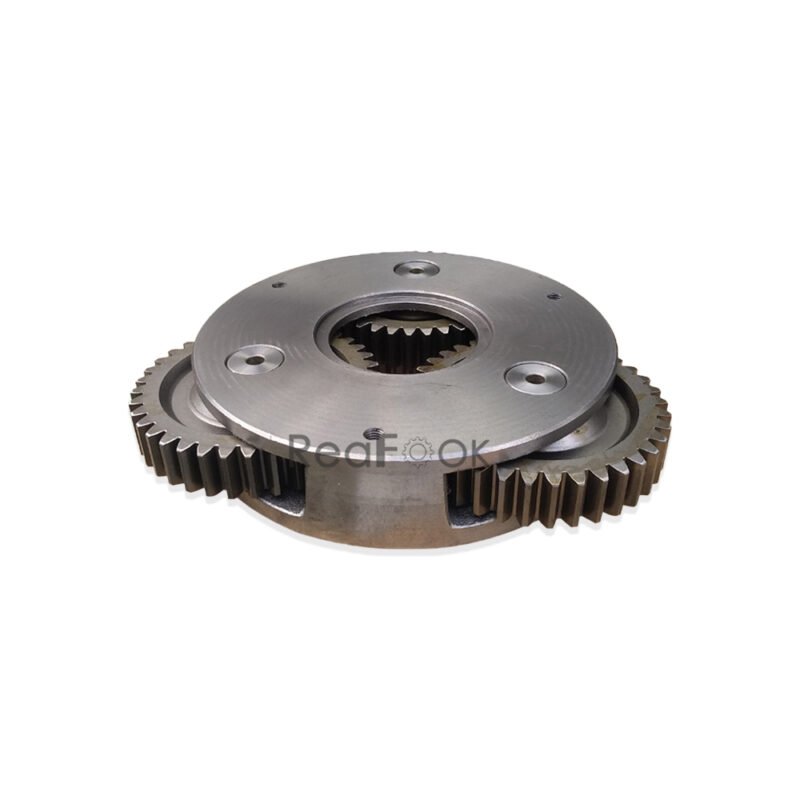

Product Name: Diff Spider Assembly, Planet Carrier Assembly
Reference Part Number: 2413J380
Compatible Machine: Excavator Kobelco SK200-3 SK200-5 SK200 Mark III Mark IV Mark V

Description:
The Planetary Carrier is responsible for holding the planet gear in place and allowing it to rotate around the sun gear. It is made of ductile iron and withstands the high torque and impact loads that are generated in the final drive. It is bolted to the final drive housing and has a splined bore that allows it to be driven by the sun gear.

Attributes:
• Reduces speed and increases torque
• Provides a mounting point for the ring gear and supports the planetary gears

Applications:
The Planetary Carrier is used to transmit torque to the output shaft of the final drive through a series of gears.

Pos. Part No Qty Parts name Comments
. . 24100J11090F3 [1] HYDRAULIC MOTOR KOB REDUCTION UNIT
2. ZD57F30040 [1] SEAL KOB FLOATING Superseded by part number: ZD58F30040
3. 2425R217 [2] BEARING KOB
4. 2418N4714 [1] RETAINER KOB
5. ZS23C010025 [34] CAPSCREW
8. ZS23C10014 [2] BOLT,Hex Socket Head, M10 x 14mm KOB M10x1.50x14mm Superseded by part number: ZS28C10014
9. ZE82T12000 [2] PLUG KOB 3/4″ PT
11. 2418T19791 [1] SPACER KOB
12. 2401P1272 [1] SUN GEAR KOB GEAR, SUN
16. 2425Z531 [3] NEEDLE BEARING KOB BEARING, NEEDLE
18. 2413J372 [1] DIFF. SPIDER KOB SPIDER
19. 2418P20198D4 [1] SPACER KOB
20. 2401P1273 [1] SUN GEAR KOB GEAR, SUN
21. 2401P1272 [3] SUN GEAR KOB PINION, PLANETARY
22. 2410T342 [3] ROLLER SHAFT KOB SHAFT
23. ZP26D06032 [6] ROLL PIN KOB
24. 2425Z2529 [3] BEARING, NEEDLE
25. 2418T19790 [6] THRUST WASHER KOB WASHER, THRUST
26. 2420P1534D1 [1] SHIM KOB (1.1)
27. 2420P1534D2 [1] SHIM KOB (1.2)
28. 2420P1534D3 [1] SHIM KOB (1.3) Superseded by part number: 2420P1534D4
29. 2420P1534D4 [1] SHIM KOB (1.4)
30. 2420P1534D5 [1] SHIM KOB (1.5)
31. 2420P1534D6 [1] SHIM KOB (1.6)
32. 2420P1534D7 [1] SHIM KOB (1.7)
33. 2420P1534D8 [1] SHIM KOB (1.8)
34. 2420P1534D9 [1] SHIM KOB (1.9)
35. 2420P1534D10 [1] SHIM KOB (2.0)
36. 2420P1534D11 [1] SHIM KOB (2.1)
37. 2420P1534D12 [1] SHIM KOB (2.2)
38. 2420P1534D13 [1] SHIM KOB (2.3)
39. 2420P1534D14 [1] SHIM KOB (2.4)
40. 2420P1534D15 [1] PIN KOB SHIM (2.5)
41. 2420P1534D16 [1] SHIM KOB (2.6)
42. 2420P1534D17 [1] SHIM KOB (2.7)
43. 2420P1534D18 [1] SHIM KOB (2.8)
44. 2420P1534D19 [1] SHIM KOB (2.9)
45. 2420P1534D20 [1] SHIM KOB (3.0)
46. 2418N4716 [1] HUB KOB
47. 2401N469 [1] RING GEAR KOB GEAR, RING
48. ZS23C16075 [18] SCREW,Hex Socket Head, M16 x 75mm KOB M16x2.0x75mm
49. 2441U820F1 [1] MOTOR KOB Remarks: SEE(C.P.M)
50. 2414N4376 [1] COVER KOB
51. 2413J380 [1] DIFF. SPIDER KOB SPIDER
52. 2401P1323 [3] PINION KOB PLANETARY
53. 2410T363 [3] ROLLER SHAFT KOB SHAFT
54. 2418T20981 [6] THRUST WASHER KOB WASHER, THRUST
