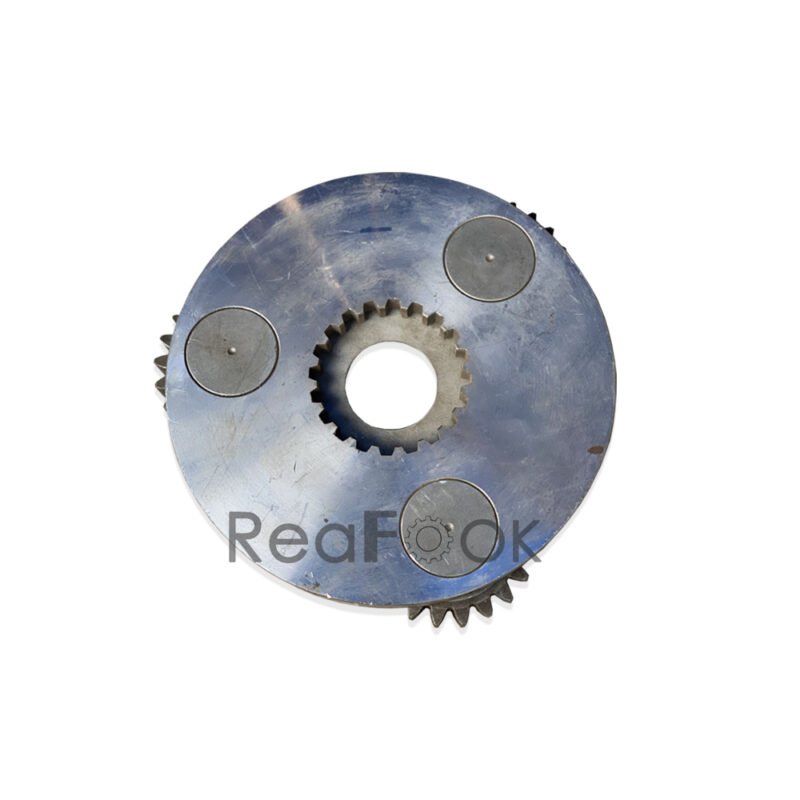

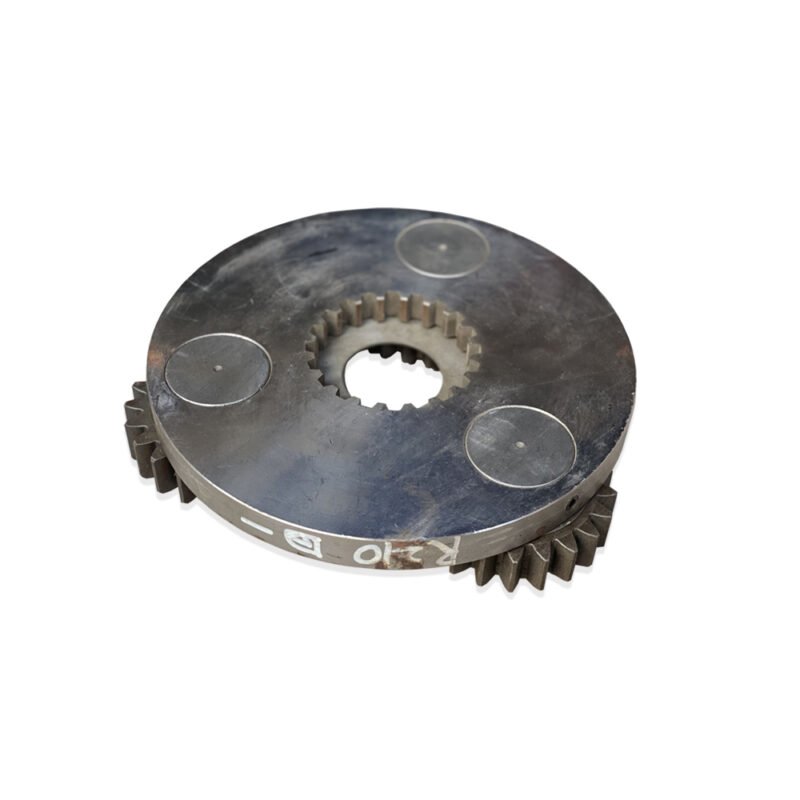

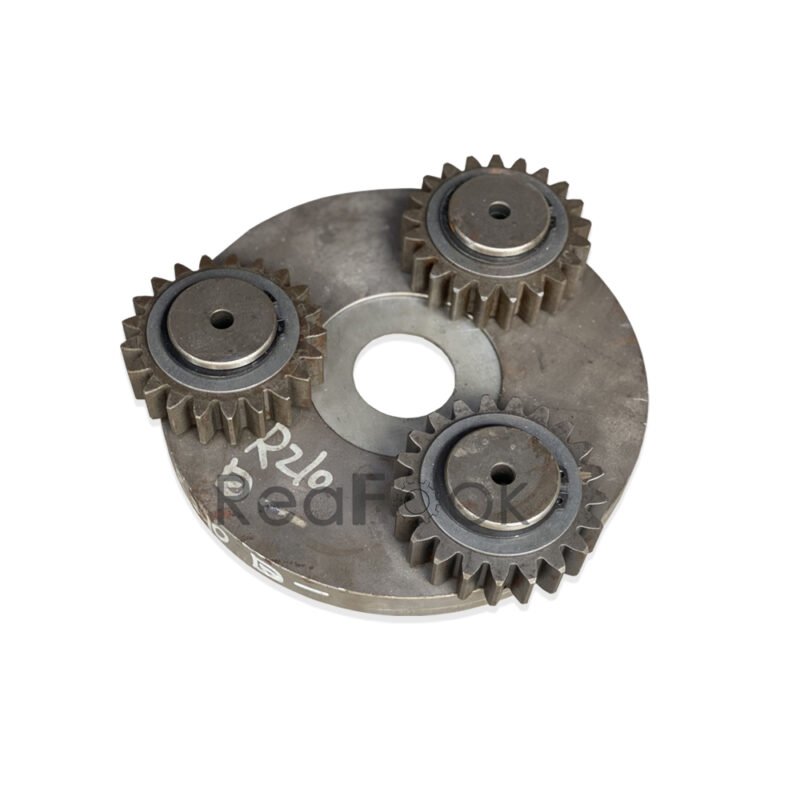

Swing Planet Carrier Assembly XKAQ-00015 Fit Excavator Hyundai R160LC-7 R170W-7A R200W-7 R210LC-7 R210NLC-7

Product Name: Planet Carrier Assy
Reference Part Number: XKAQ-00015
Compatible Machine: Excavator Hyundai R160LC-7 R170W-7A R180LC-7A R200W-7 R210LC-7 R210NLC-7, R220LC-7(INDIA ONLY)

Description:
The Swing Drive Planetary Carrier is responsible for controlling the rotational movement of the machinery’s swing system.
It is a mechanical assembly designed to control and facilitate the rotational movement of the upper structure of heavy machinery, particularly in construction and excavation equipment. This component is a vital part of the swing drive system, which is responsible for the pivotal swing or rotation of the upper structure, including the cab, boom, and other attachments. The primary function of a swing drive planetary carrier is to distribute and transmit power from the swing motor to the machine’s upper structure. This rotation allows the operator to position the heavy equipment accurately, enabling tasks such as digging, lifting, and maneuvering. The planetary carrier contains a set of gears that distribute the torque evenly, ensuring smooth and efficient rotation.

Parts on group SWING REDUCTION GEAR(-#1937):
Pos. Part No Qty Parts name Comments
*-2. 31N6-10150 [1] REDUCTION GEAR
1. XKAQ-00002 [1] CASING ASSY
2. XKAQ-00005 [1] SHAFT-DRIVE
3. XKAQ-00018 [1] SPACER
5. XKAQ-00026 [1] BEARING-ROLLER
6. XKAQ-00032 [1] SEAL-OIL
7. XKAQ-00029 [1] BEARING-ROLLER
8. XKAQ-00076 [1] PLATE-THRUST
9. XKAQ-00075 [1] CARRIER 2
10. XKAQ-00074 [1] RING-STOP
11. XKAQ-00073 [1] GEAR-RING
12. XKAQ-00072 [4] PIN-KNOCK
13. XKAQ-00014 [1] GEAR-PINION
14. XKAQ-00071 [6] WASHER-THRUST
15. XKAQ-00023 [3] GEAR-PLANET 2
16. XKAQ-00070 [3] PIN 2 INCL 23
17. XKAQ-00048 [6] PIN-SPRING
18. XKAQ-00011 [1] GEAR-SUN 2
19. XKAQ-00015 [1] CARRIER 1
20. XKAQ-00057 [3] PLATE-SIDE 1
21. XKAQ-00019 [3] PIN 1
22. XKAQ-00030 [3] CAGE-NEEDLE
N23. [3] BUSHING 2
24. XKAQ-00025 [3] GEAR-PLANET 1
25. XKAQ-00044 [2] WASHER-LOCK
26. XKAQ-00068 [1] PLATE-SIDE 3
27. XKAQ-00067 [1] GEAR-SUN 1
29. XKAQ-00049 [1] PLUG
30. XKAQ-00066 [2] PLUG
31. XKAQ-00065 [2] BOLT-SOCKET
32. XKAQ-00035 [1] PIPE-GAUGE
33. XKAQ-00034 [1] BAR-GAUGE
34. XKAQ-00031 [1] PLATE-COVER
35. XKAQ-00064 [8] BOLT-HEX
36. XKAQ-00043 [1] PLATE-LOCK
37. XKAQ-00042 [4] BOLT-HEX
38. XKAQ-00041 [3] RING-STOP
39. XKAQ-00040 [3] PLATE-SIDE 2
40. XKAQ-00143 [1] POST-AIR BREATHER
40- 1. [1] POST
40-2.HHI22-WP41 [1] CAP-BREATHER
