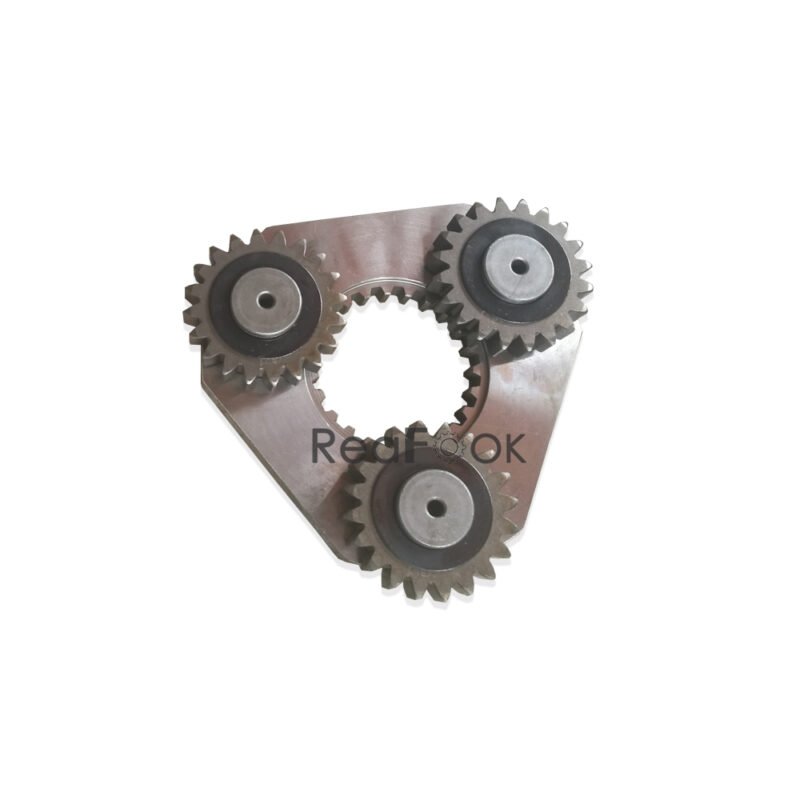

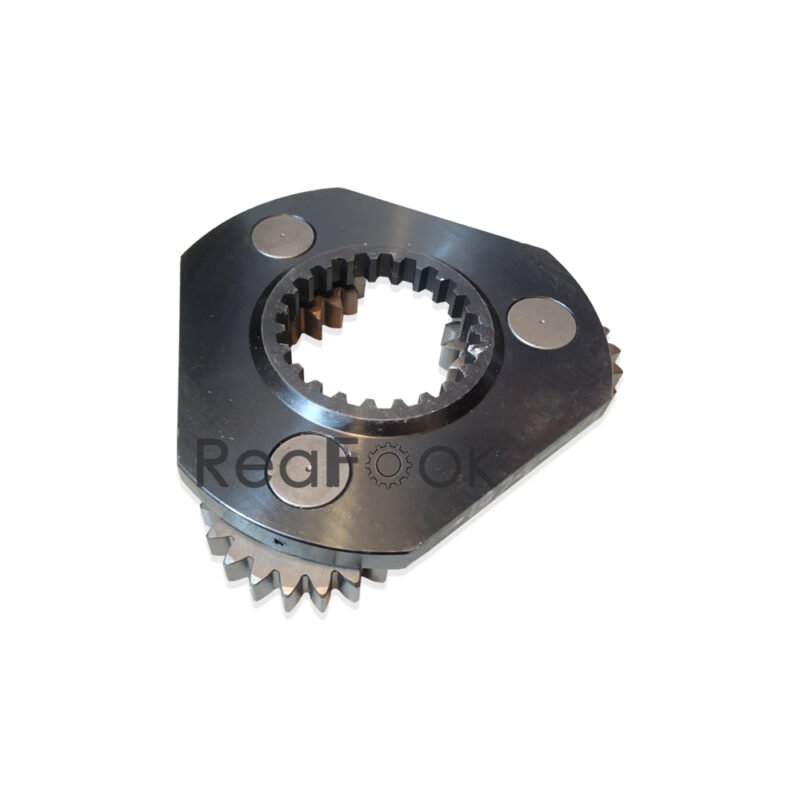

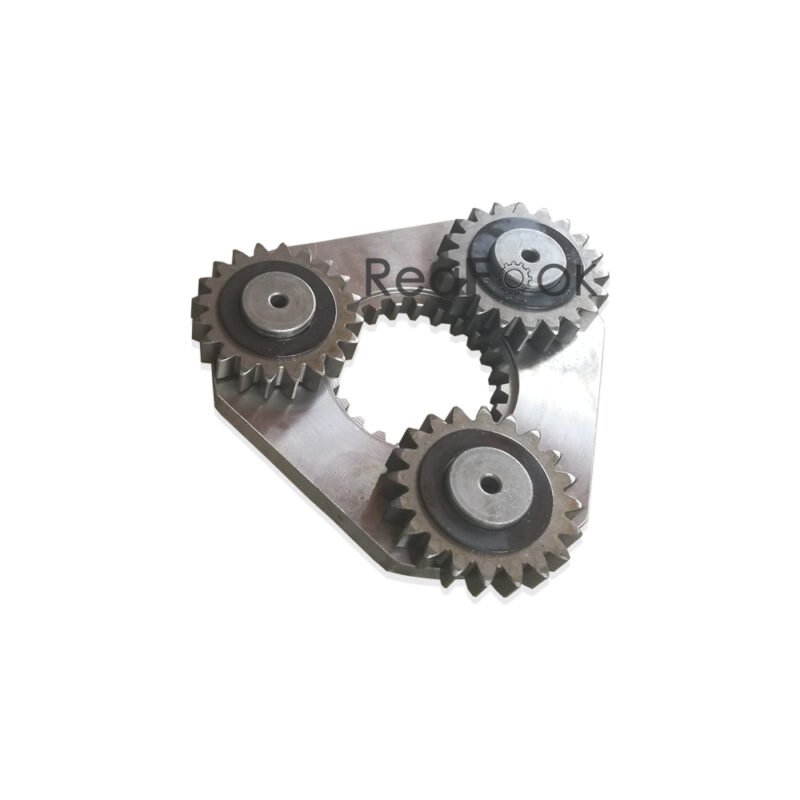

Swing Planet Carrier Spider YN32W01019F1 Fit Excavator Kobelco SK160LC-6E SK200-5 SK200-6 SK200-6E SK210LC-6E SK200SR SK235SR

Product Name: Spider, Planet Carrier Assembly
Reference Part Number: YN32W01019F1
Compatible Machine: Excavator Kobelco SK160LC SK160LC-6E SK200 SK200-6 SK200-6ES SK200LC-6 SK200LC-6ES SK210 SK210LC-6E SK200-5 SK200SR SK200SRLC SK235SR SK235SRLC…

Description:
The Swing Drive Planetary Carrier is responsible for controlling the rotational movement of the machinery’s swing system.
It is a mechanical assembly designed to control and facilitate the rotational movement of the upper structure of heavy machinery, particularly in construction and excavation equipment. This component is a vital part of the swing drive system, which is responsible for the pivotal swing or rotation of the upper structure, including the cab, boom, and other attachments. The primary function of a swing drive planetary carrier is to distribute and transmit power from the swing motor to the machine’s upper structure. This rotation allows the operator to position the heavy equipment accurately, enabling tasks such as digging, lifting, and maneuvering. The planetary carrier contains a set of gears that distribute the torque evenly, ensuring smooth and efficient rotation.

Pos. Part No Qty Parts name Comments
. . YN32W00004F1 [1] MOTO-REDUCTION GEAR KOB SWING
. . YN32W00004F1R [1] REMAN-MOTO REDUCTION KOB SK200LC-6 – DYNAMIC ACERA, ASN YQ03501,
. . YN32W00004F1C [1] CORE-MOTO-REDUCTION UNIT KOB Return Number
1. YN32W01003P1 [1] PINION SHAFT KOB
2. YN32W01004P1 [1] SLEEVE KOB
4. ZE82T08000 [1] PLUG KOB 1/2″ PT
5. ZD11G10000 [1] O-RING,99.40mm ID x 105.60mm OD x 3.10mm
6. YN32W01034P1 [1] OIL SEAL KOB
7. YN32W01005P1 [1] RETAINER KOB
8. ZS23C08025 [12] SCREW,Hex Socket Head, M8 x 25mm KOB M08x1.25x25mm
9. YN32W01029P1 [1] SPHERICAL BEARING KOB Superseded by part number: R25P0047D9
10. YN32W01033P1 [1] HOUSING KOB HOUSING
11. YN32W01015P1 [1] SPACER KOB
12. YN32W01030P1 [1] SPHERICAL BEARING KOB Superseded by part number: 25Z804D18
13. ZR16X09000 [1] RING KOB Retaining — ID 84.50 x OD 108 x 3.0mm
14. YN32W01011P1 [1] SPIDER KOB
15. YN32W01006P1 [1] SUN GEAR KOB
16. YN32W01012P1 [1] RING GEAR KOB
17. YN32W01019F1 [1] SPIDER ASSY. KOB
18. ZS23C14130 [10] CAPSCREW,Hex Socket Head, M14 x 130mm KOB SCREW M14x2.0x130mm
19. YN32W01007P1 [1] SUN GEAR KOB
20. ZP26D08025 [4] PIN KOB Roll — OD 08 x 25mm Long
21. YN32W01001P1 [4] SHAFT KOB SHAFT
22. YN32W01027P1 [8] THRUST WASHER KOB
23. YN32W01008P1 [4] PINION KOB
24. YN32W01021P1 [4] BEARING KOB
25. YN32W01026P1 [3] THRUST WASHER KOB
26. YN32W01002P1 [3] PINION KOB
27. YN32W01022P1 [102] ROLLER KOB
28. YN32W01028P1 [3] THRUST WASHER KOB
29. 2418R2D25 [3] RING KOB RETAINING Superseded by part number: ZR16X04000
30. 2420T6698D2 [1] PIPE KOB
31. ZG31U12000 [1] ELBOW KOB
32. ZE82T12000 [2] PLUG KOB 3/4″ PT
33. 2418R2D22 [1] RING KOB RETAINING Superseded by part number: ZR16X03500
34. ZS83C20020 [2] SCREW KOB Set — M20x2.50x20mm
