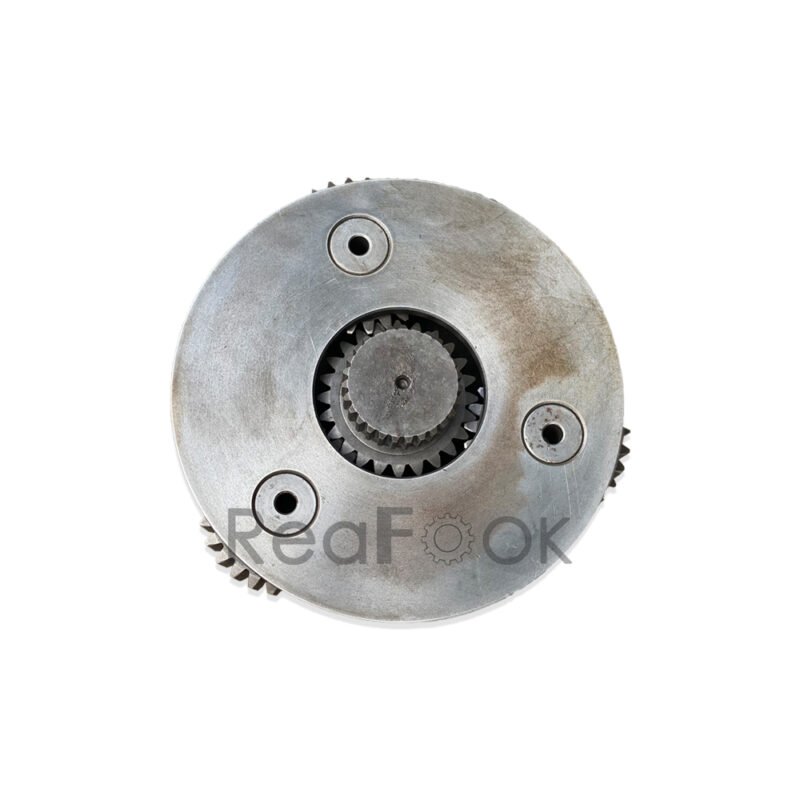

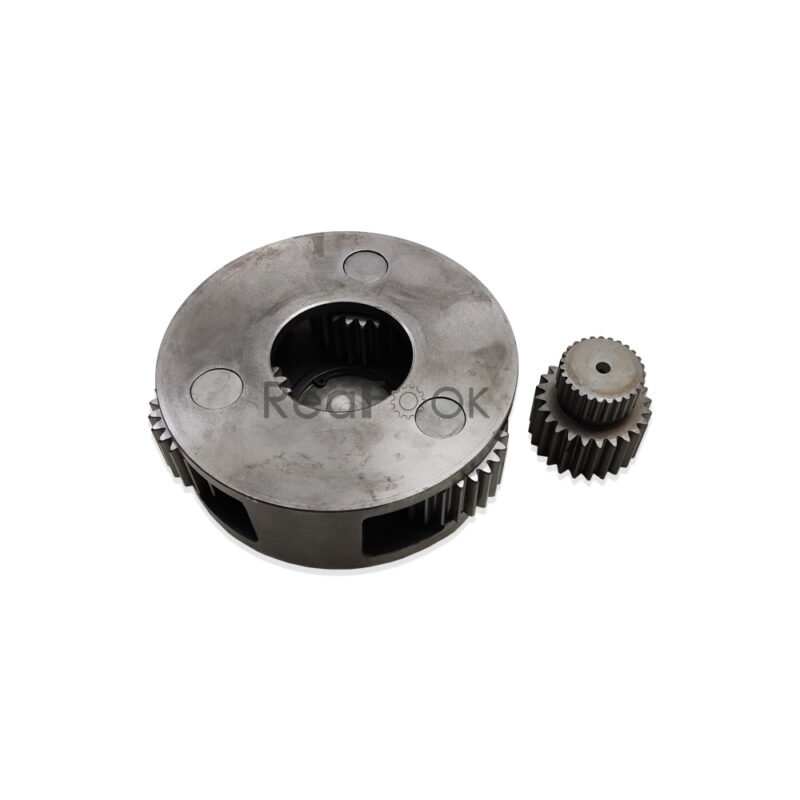

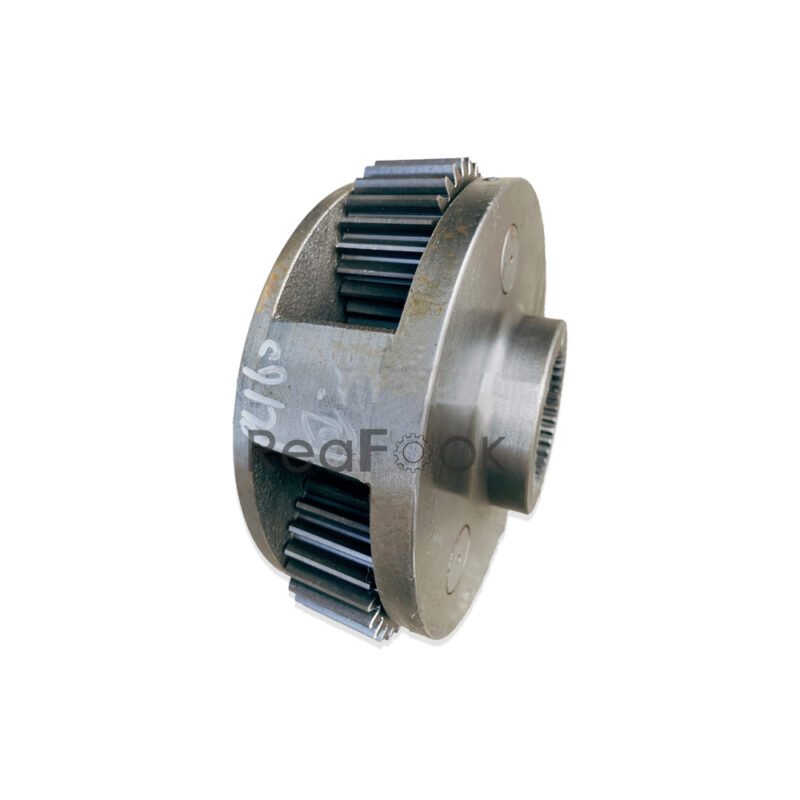

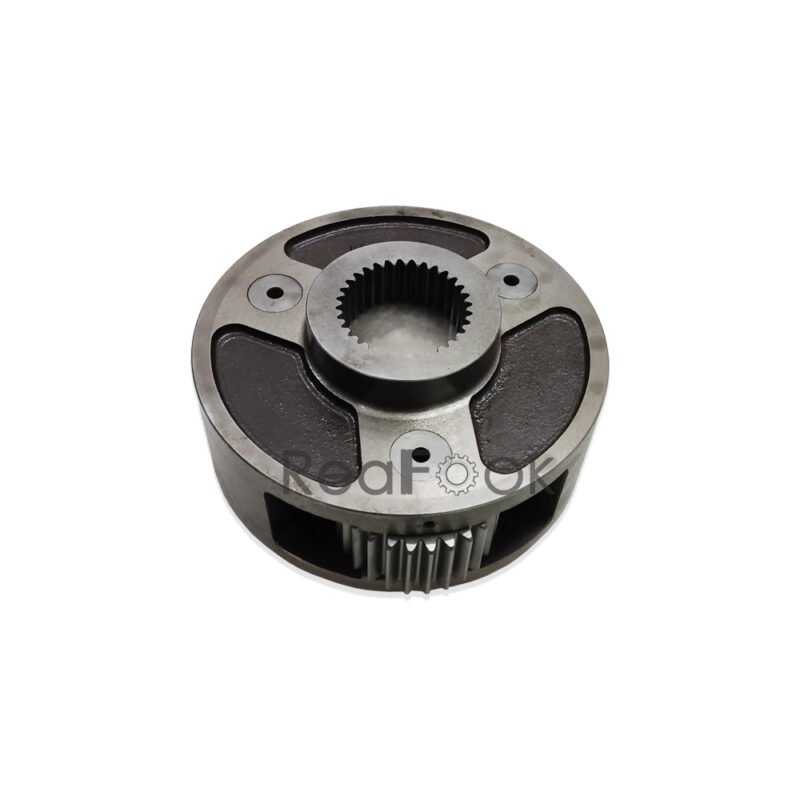

Swing Reduction Planet Carrier Assy No.2 with Sun Gear Fit PC PC150-6 PC150-6K PC160-6K

Product Name: Planet Carrier
Reference Part Number:
Compatible Machine: Excavator Komatsu PC150-6K PC150LC-6K PC180LC-6K PC160-6K…

Description:
The Swing Drive Planetary Carrier is responsible for controlling the rotational movement of the machinery’s swing system.
It is a mechanical assembly designed to control and facilitate the rotational movement of the upper structure of heavy machinery, particularly in construction and excavation equipment. This component is a vital part of the swing drive system, which is responsible for the pivotal swing or rotation of the upper structure, including the cab, boom, and other attachments. The primary function of a swing drive planetary carrier is to distribute and transmit power from the swing motor to the machine’s upper structure. This rotation allows the operator to position the heavy equipment accurately, enabling tasks such as digging, lifting, and maneuvering. The planetary carrier contains a set of gears that distribute the torque evenly, ensuring smooth and efficient rotation.

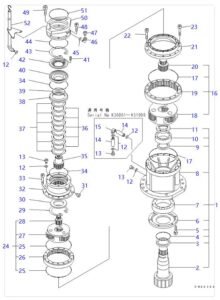

Pos. Part No Qty Parts name Comments
1. [1] HOUSING ASS’Y 78.91 kg.
2. [1] SHAFT
4. [1] SEAL 0.15 kg.
7. [1] BEARING 6.31 kg.
9. [1] SEAL
10. [1] BEARING 1.72 kg.
11. [1] RETAINER
12. [6] WASHER
13. [4] PLUG
14. [2] TUBE
15. [1] ELBOW
16. [1] GEAR ASS’Y 22.85 kg.
17. [2] O-RING
21. [1] FLANGE
22. [4] SCREW
23. [12] SCREW
24. [1] GEAR ASS’Y
25. [2] O-RING
29. [1] RING
30. [1] SPACER
31. [1] PLUG
32. [1] HOUSING
33. [11] SCREW
34. [2] O-RING
35. [1] SHAFT
36. [5] DISC
37. [6] DISC
38. [1] SPACER
39. [1] O-RING
40. [1] CARRIER
41. [18] SPRING
42. [1] DISC
43. [1] RING
44. [1] O-RING
45. [1] WASHER
46. [1] ELBOW
47. [1] PLUG
48. [8] SCREW
49. [2] SCREW
50. [1] FLANGE
51. [1] O-RING
52. [1] FILLER
