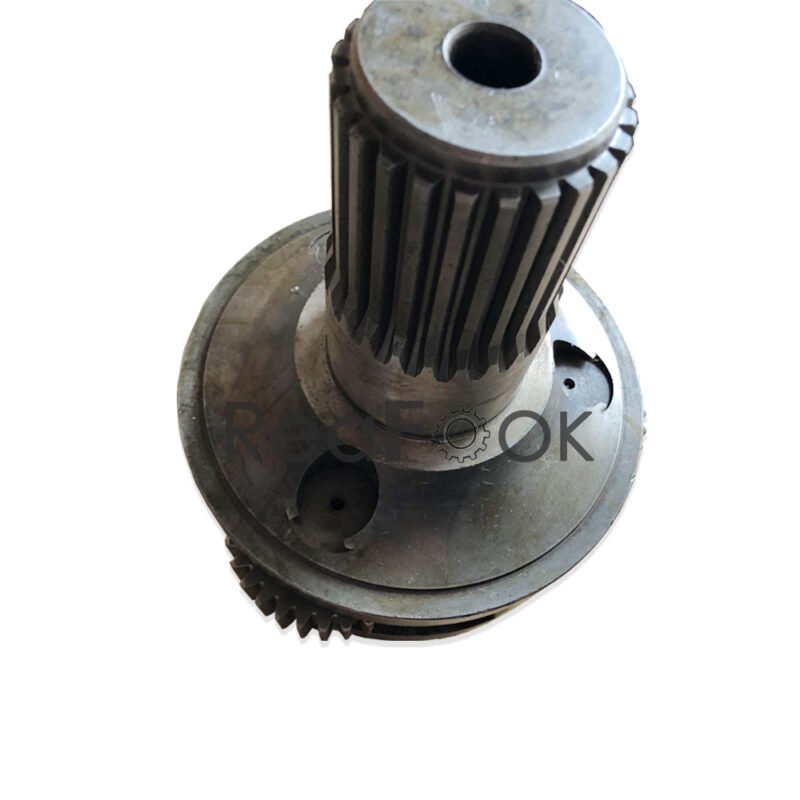

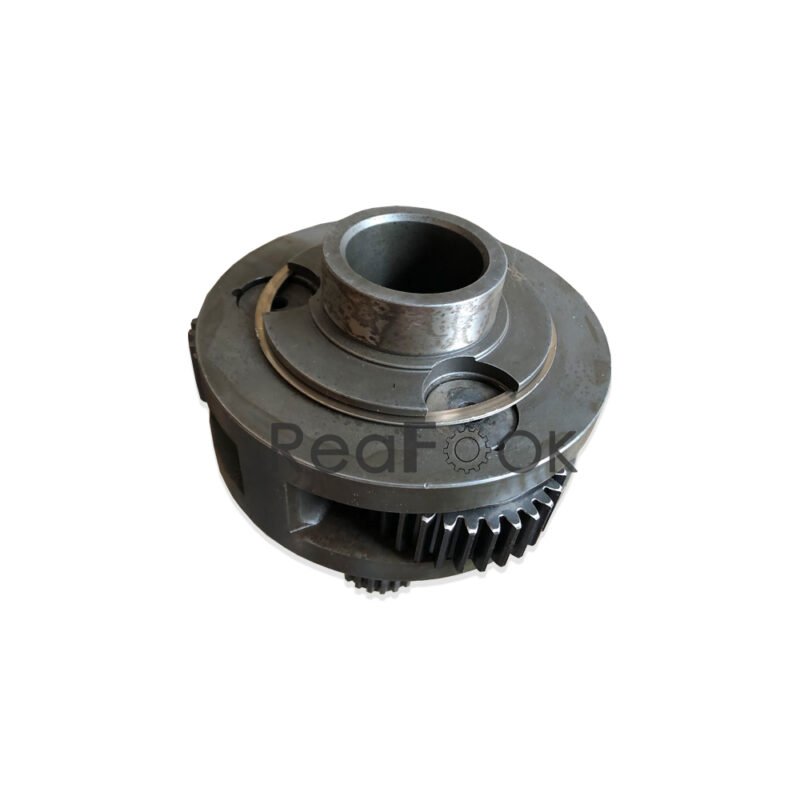

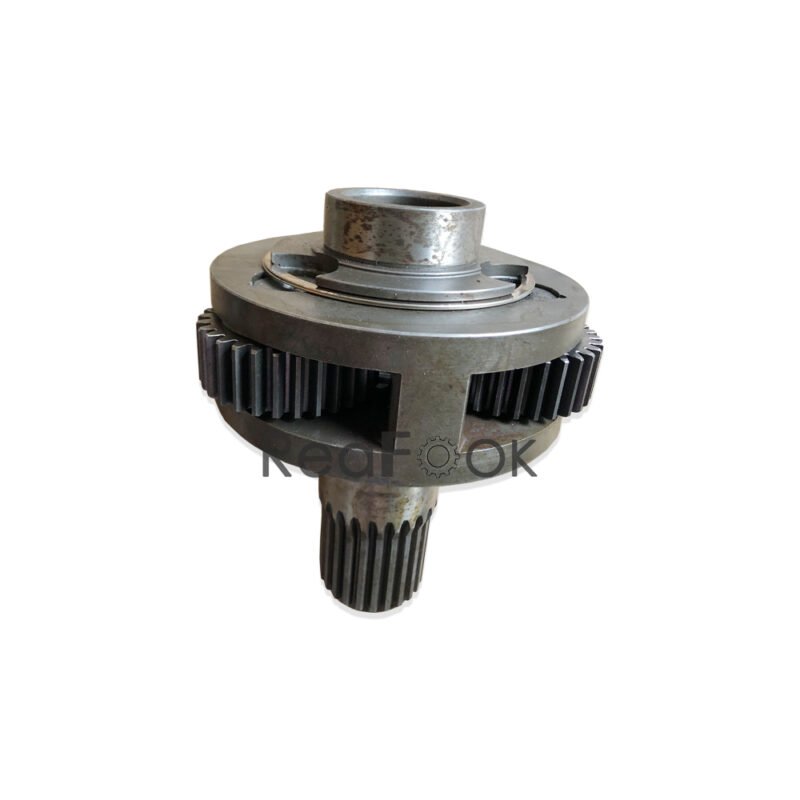

Swing Reduction Planet Carrier Assy 201-26-61211 Fit Excavator Komatsu PC60-6 PC70-6

Product Name: Planet Carrier Assy
Reference Part Number: 201-26-61211
Compatible Machine: Excavator Komatsu PC60-6 PC70-6…

Description:
The Swing Drive Planetary Carrier is responsible for controlling the rotational movement of the machinery’s swing system.
It is a mechanical assembly designed to control and facilitate the rotational movement of the upper structure of heavy machinery, particularly in construction and excavation equipment. This component is a vital part of the swing drive system, which is responsible for the pivotal swing or rotation of the upper structure, including the cab, boom, and other attachments. The primary function of a swing drive planetary carrier is to distribute and transmit power from the swing motor to the machine’s upper structure. This rotation allows the operator to position the heavy equipment accurately, enabling tasks such as digging, lifting, and maneuvering. The planetary carrier contains a set of gears that distribute the torque evenly, ensuring smooth and efficient rotation.

Pos. Part No Qty Parts name Comments
201-26-00031 [1] SWING MACHINERY
1. 201-26-61112 [1] CAGE
2. 07323-30600 [1] ELBOW
3. 07042-30617 [1] PLUG
4. 06030-22314 [1] BEARING
5. 04071-00150 [1] RING,SNAP
6. 201-26-61211 [1] CARRIER
7. 07043-00312 [1] PLUG analogs: [“YMR000378”, “YM23871030000”]
8. 201-26-61220 [3] GEAR
9. 569-15-39410 [3] BEARING
10. 20X-26-21250 [6] WASHER
11. 201-26-61231 [3] SHAFT
12. 04260-00635 [3] BALL [“SN: 28001-UP”] analogs: [“805750022”, “YM24190080001”, “21D0986810”]
13. 07012-00085 [1] SEAL,OIL analogs:[“4232211750”]
14. 20X-26-21360 [1] GEAR [“20X2621350”]
15. 07000-05055 [1] O-RING] analogs: [“0700015055”]
16. 20X-26-21280 [1] HOLDER
17. 01011-51600 [1] BOLT [“SN: 28001-UP”] analogs: [“0101161600”, “801014198”, “0101131600”, “0101181600”]
18. 203-26-41350 [1] RING,SNAP
19. 201-26-61181 [1] GEAR
20. 04020-01434 [1] PIN,DOWEL
21. 201-26-61122 [1] CASE
22. 131-21-41520 [1] PLUG
23. 06043-00215 [1] BEARING
24. 01011-51210 [1] BOLT [“SN: 28001-UP”] analogs: [“0101181210”, “801015584”]
25. 01643-31232 [1] WASHER [“SN: 28001-UP”] analogs: [“0164371232”, “0164381232”, “802170003”, “R0164331232”, “0614331232”]
26. 201-26-61320 [1] GEAR
27. 06040-06006 [1] BEARING
28. 06040-06306 [1] BEARING
29. 201-26-61330 [1] GEAR
30. 06040-06207 [2] BEARING
31. 201-26-61311 [1] COVER
32. 07042-30108 [1] PLUG [“SN: 28001-UP”] analogs: [“0704220108”]
33. 07049-01215 [2] PLUG
34. 04020-01024 [1] PIN,DOWEL [“SN: 28001-UP”] analogs: [“PZF890001197”]
35. 01010-51265 [1] BOLT [“SN: 28001-UP”] analogs: [“0101081265”]
36. 01011-51250 [9] BOLT
38. 203-26-56160 [1] FILLER
39. 20X-26-21322 [1] GAUGE
40. 07049-01620 [2] PLUG
41. 04020-01638 [2] PIN,DOWEL [“SN: 28001-UP”]
42. 01010-51655 [10] BOLT [“SN: 28001-UP”] analogs: [“0101061655”, “801015613”, “0101031655”, “0101081655”]
43. 01643-31645 [10] WASHER analogs:[“802170005”, “0164301645”]
