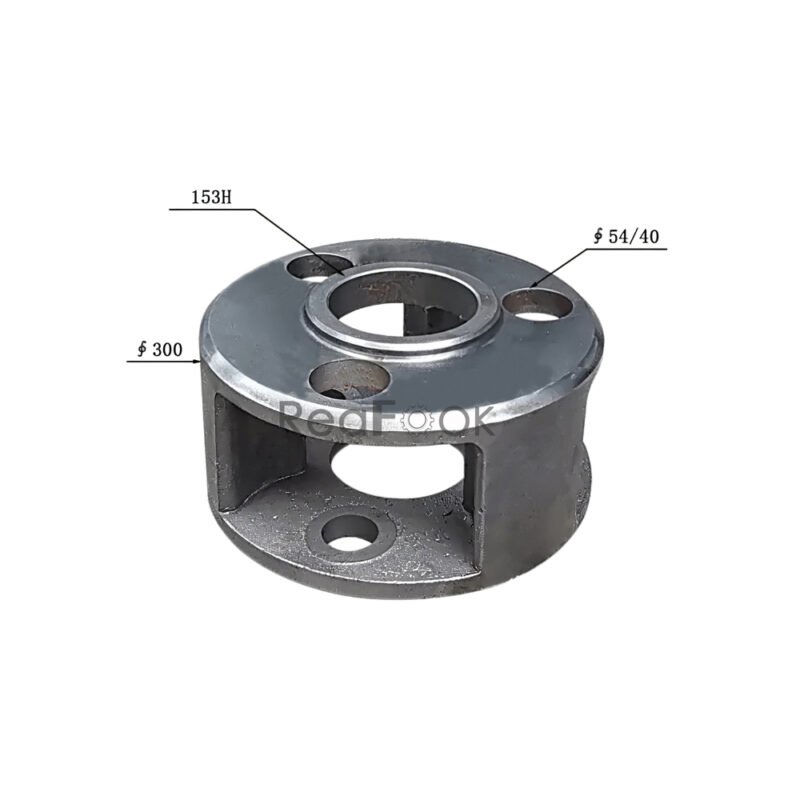

Travel Planet Carrier Assembly 205-27-71510 Fit Excavator Komatsu PC200-3 PC200LC-3 PC220-3 PC220LC-3

Product Name: Planet Carrier Assembly
Reference Part Number: 205-27-71510
Compatible Machine: Excavator Komatsu PC200-3 PC200LC-3 PC220-3 PC220LC-3 BP500-3 CS360-1 CS360-2 PF5-1…

Description:
The Planetary Carrier is responsible for holding the planet gear in place and allowing it to rotate around the sun gear. It is made of ductile iron and withstands the high torque and impact loads that are generated in the final drive. It is bolted to the final drive housing and has a splined bore that allows it to be driven by the sun gear.

Attributes:
• Reduces speed and increases torque
• Provides a mounting point for the ring gear and supports the planetary gears

Applications:
The Planetary Carrier is used to transmit torque to the output shaft of the final drive through a series of gears.

Pos. Part No Qty Parts name Comments
1. 01010-51670 [36] BOLT 0.142 kg. :[“0101061670”, “0101031670”, “0101081670”]
2. 01643-31645 [36] WASHER 0.072 kg.[“802170005”, “0164301645”]
205-27-00081 [2] FINAL DRIVE ASS’Y 633 kg. [05-27-00082, 05-27-00083, 05-27-00084, 05-27-00085, 05-27-00086, 05-27-00087]
205-27-00080 [2] FINAL Drive Assy 633 kg..
3. 205-27-71481 [1] SHAFT 41 kg.
3. 205-27-71480 [1] SHAFT
[1] (205-27-71481, 205- 27-71471)
150-27-00027 [1] FLOATING SEAL ASS’Y 2.4 kg. [“1502724130”, “1502700026”, “1502700025”, “1502700028”]
4. 150-27-00262 [1] SEAL RING ASS’Y 2.2 kg.
5. 150-27-00270 [1] O-RING ASS’Y 0.29 kg.
6. 205-27-71430 [2] BEARING 5.2 kg.
7. 205-27-71471 [1] HUB 92.05 kg.
7. 205-27-71470 [1] HUB
8. 07044-12412 [1] PLUG 0.09 kg. ][“0704402412”, “R0704412412”]
9. 07002-02434 [1] O-RING 0.01 kg.:[“0700212434”, “0700213434”]
10. 205-27-71281 [1] SPROCKET 38.6 kg.
11. 205-27-71670 [20] BOLT .1 kg.
11. 01010-51640 [20] BOLT 0.264 kg. :[“0101061640”, “801015186”, “0101031640”, “0101081640”]
12. 20Y-27-11310 [1] SPACER, 4.85MM
12. 205-27-00060 [1] SHIM ASS’Y 0.01 kg. :[“2052771660”, “2052771650”]
13. 205-27-71531 [1] GEAR 14.625 kg.
13. 205-27-71530 [1] GEAR 14.625 kg.:[“2052771531”]
14. 205-27-71610 [6] PLATE
15. 01010-50820 [12] BOL 0.013 kg. :[“0101080820”, “801014067”, “801015086”]
16. 01643-50823 [12] WASHER 0.01 kg.
17. 205-27-71630 [1] GEAR 10.8 kg.
18. 04020-01842 [2] PIN,DOWEL0.09 kg.
19. 205-27-71680 [18] BOLT
20. 205-27-71550 [1] GEAR 1.2 kg.
21. 205-27-71510 [1] CARRIER 30 kg.
22. 205-27-00070 [1] PLANETARY GEAR A. 19.5 kg. [“2052771540”]
23. 205-27-71560 [3] BEARING 2.373 kg.
24. 205-27-71582 [3] PIN
24. 205-27-71580 [3] PIN
25. 205-27-71592 [3] COLLAR 0.22 kg.
25. 205-27-71591 [3] COLLAR [“2052771590”]
26. 04020-00616 [3] PIN,DOWEL 0.004 kg.
26. 01658-03618 [3] WASHER 0.017 kg. [“0165823618”]
27. 01010-51465 [3] BOLT 0.103 kg. [“0101031465”, “0101081465”, “0101061465”]
27. 01530-03610 [3] NUT,LOCK 0.083 kg. [“SN: 20001-21521”]
28. 205-27-71570 [2] SPACER 0.044 kg. [“20Y2711250”]
29. 205-27-71520 [1] GEAR 15 kg.
30. 205-27-71360 [1] BUTTON 0.125 kg.
31. 205-27-71492 [1] COVER 36.2 kg.
31. 205-27-71491 [1] COVER
31A. 07043-70312 [1] PLUG 0.016 kg.
32. 07040-12414 [1] PLUG 0.092 kg.: [“0704002412”, “0704012412”]
32. 07040-13618 [1] PLUG 0.245 kg. :[“0704113612”]
33. 07002-03634 [1] O-RING: [“0700213634”]
34. 01010-51685 [24] BOLT 0.165 kg.
36. 205-27-71131 [2] COUPLING 0.665 kg.
37. 07000-05190 [2] O-RING 0.022 kg.
12. 20Y-27-11320 [2] SPACER, 4.90MM
12. 20Y-27-11330 [2] SPACER, 4.95MM
12. 20Y-27-11340 [2] SPACER, 5.00MM 0.42 kg.
12. 20Y-27-11350 [2] SPACER, 5.05MM
12. 20Y-27-11360 [2] SPACER, 5.10MM
