Final Drive Planet Carrier 20Y-27-13230 Assembly with Sun Gear Fit Excavator Komatsu PC200-5 PC200LC-5 PC220-5 PC220LC-5 PC240-5K

Product Name: Planet Carrier Assembly with Sun Gear
Reference Part Number: 20Y-27-13230
Compatible Machine: Excavator Komatsu PC200-5S PC200-5 PC200LC-5 PC210LC-5 PC220-5 PC220LC-5 PC240-5K PC240NLC-5K…

Description:
The Planetary Carrier is responsible for holding the planet gear in place and allowing it to rotate around the sun gear. It is made of ductile iron and withstands the high torque and impact loads that are generated in the final drive. It is bolted to the final drive housing and has a splined bore that allows it to be driven by the sun gear.

Attributes:
• Reduces speed and increases torque
• Provides a mounting point for the ring gear and supports the planetary gears

Applications:
The Planetary Carrier is used to transmit torque to the output shaft of the final drive through a series of gears.

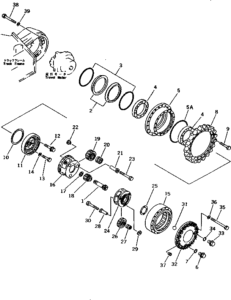

Pos. Part No Qty Parts name Comments
20Y-27-00011 [1] FINAL DRIVE ASS’Y [“SN: 45001-45006”] analogs:[“20Y2700015 “20Y2700014”, “20Y2700013”, “20Y270001”, “20Y2700018”]
1. 20Y-27-13130 [1] SHAFT 2.7 kg.
150-27-00028 [1] FLOATING SEAL ASS’Y 2.4 kg. analogs:[“1502724130”, “1502700027”, “1502700026”, “1502700025.
150-27-00027 [1] FLOATING SEAL ASS’Y 2.4 kg.analogs:[“1502724130 “1502700026”, “1502700025”, “1502700028
4. 20Y-27-11570 [2] BEARING 5.2 kg. analogs:[“2052771430”]
5. 20Y-27-13120 [1] HUB 101 kg.
5A. 20Y-27-13290 [1] O-RING 0.02 kg.
6. 07044-12412 [1] PLUG 0.09 kg.analogs:[“0704402412”, “R0704412412”]
7. 07002-02434 [1] O-RING 0.01 kg.analogs:[“0700212434”, “0700213434”]
8. 20Y-27-11581 [1] SPROCKET 36.2 kg. analogs:[“20Y2711582”, “20Y27K1110”, “20Y2777110”]
9. 20Y-27-11560 [20] BOLT 0.14 kg.analogs:[“20Y27K1120”]
10. 20Y-27-00031 [1] SPACER KIT 4.143 kganalogs:[“20Y2700030”]
10. 20Y-27-00030 [1] SPACER KIT 4.143 kganalogs:[“20Y2700031
11. 20Y-27-13270 [1] RETAINER 17.9 kg.
12. 20Y-27-11180 [20] BOLT 0.15 kg.
13. 01010-51645 [4] BOLT 0.104 kg analogs:[“0101061645”, “801015187”, “0101031645”, “0101081645”, “37A0911184”, “801014184”]
13. 01010-51235 [4] BOLT 0.048 kg analogs:[“0101081235 “01010E1235”, “801015136”]
14. 01643-31645 [4] WASHER 0.072 kg analogs:[“802170005”, “0164301645”]
14. 01643-31232 [4] WASHER 0.027 kg analogs:[“0164371232 “0164381232”, “802170003”, “R0164331232 “0614331232”]
15. 20Y-27-13190 [1] GEAR 61 kg.
16. 20Y-27-13230 [1] CARRIER 22.75 kg
17. 205-26-71541 [1] WASHER,THRUST 0.08 kg. analogs:[“20Y2713310
18. 20Y-27-13210 [1] GEAR 3.023 kg
19. 20Y-27-13220 [3] GEAR 4.52 kg.
20. 20Y-27-13260 [3] BEARING 1.65 kg.
21. 20Y-27-13240 [3] PIN 1 kg.
22. 20Y-27-11240 [3] HOLDER
23. 01011-51200 [3] BOLT 0.104 kg analogs:[“0101181200”, “801015583”]
24. 20Y-27-13150 [1] CARRIER 9.85 kg.
25. 205-27-71570 [1] SPACER 0.044 kg[“20Y2711250
26. 20Y-27-13140 [3] GEAR 3.069 kg
27. 20Y-27-13180 [3] BEARING 0.24 kg.
28. 20Y-27-13160 [3] PIN 0.194 kg
29. 20Y-27-13170 [3] HOLDER 0.04 kg.
30. 01010-51055 [3] BOLT 0.078 kg analogs:[“0101081055”]
31. 04260-01905 [1] BALL 0.029 kg
32. 20Y-27-13110 [1] COVER 23.4 kg.
35. 20Y-27-13280 [16] BOLT 0.31 kg.analogs:[“20Y2713281”]
37. 07049-01215 [2] PLUG 0.001 kg
38. 01010-51670 [36] BOLT
