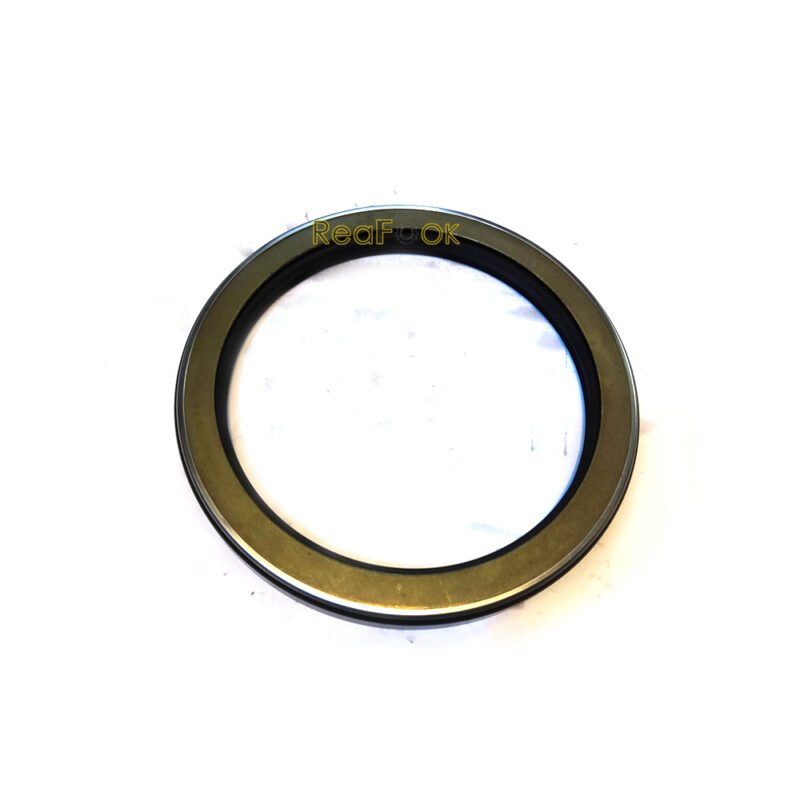

Oil Seal VOE14596611 for Swing Gearbox Fit Volvo Excavator EC380D EC360B EC330B EC330C EC700B

Reference Part Number: VOE14596611
Compatible Machine: Volvo EC380D EC360B EC330B EC330C EC700B

An Oil Seal is used to provide a leakproof seal for the pinion of the swing drive. It is made from an elastic material such as rubber, which is used to prevent leakage of fluids, contaminants, or lubricants and maintain proper operation and performance.

Attributes:
• Prevent the entry of external elements between the components
• Absorb the vibration and stresses generated during the operation

Applications:
An Oil Seal is used to reduce the friction and heat generation between the pinion during operation and maintain constant contact with the rotating shaft, forming a dynamic seal that adapts to the shaft’s movement.

Parts on group Swing gearbox:
Nos. Part No. Qty Parts name
VOE14622901 [1] Swing gearbox
VOE14680015Swing gearbox
1. VOE14622865 [1] Shaft
2. VOE14622869 [1] Collar
3. VOE14622894 [1] Roller bearing
4. VOE14622895 [1] Plate
5. VOE14622896 [1] Collar
6. VOE14622897 [1] Case
7. VOE14622898 [1] Retainin ring
8. VOE14622899 [1] Retainin ring
9. VOE14596611 [1] Seal
10. VOE14640028 [1] Bearing
11. SA9324-21317 [4] Pin
12. VOE14622914 [1] Gear
13. VOE14622908 [1] Planet carrier
13A. VOE14622910 [4] Gear
13B. VOE14622911 [4] Bushing
13C. VOE14622912 [4] Pin
14. VOE14596618 [4] Washer
15. VOE952004 [4] Spring pin
16. VOE14622913 [1] Gear
17. VOE14596621 [1] Thrust washer
18. VOE14622902 [1] Planet carrier
18A. [0003] Gear VOE14622904
18B. VOE14622905 [3] Bushing
18C. VOE14622906 [3] Pin
18D. VOE14596625 [0006] Washer
19. VOE14622907 [1] Gear
VOE14680062 Gear
20. VOE14596630 [1] Cover
VOE14633289 Cover
21. VOE995261 [16] Hex. socket screw
22. SA9415-43052 [2] Plug
23. SA9415-43012 [1] Plug
24. VOE914167 [1] Lubricating nipple
25. SA9411-92830 [2] Elbow nipple
26. VOE14529015 [1] Valve
27. VOE914472 Snap ring
28. VOE984138 [4] Hex. socket screw
VOE984139 Hex. socket screw
