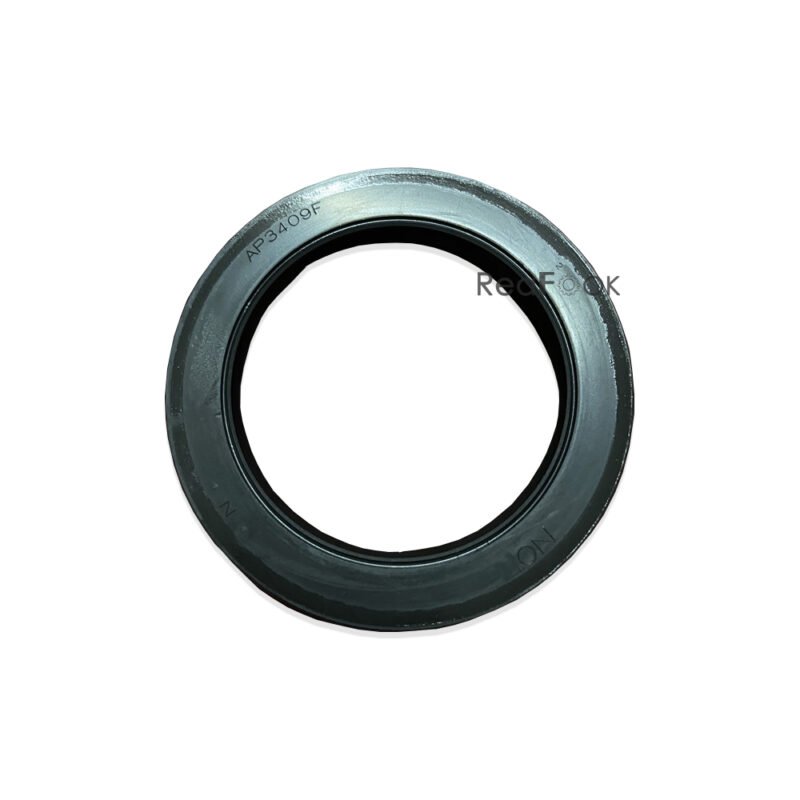

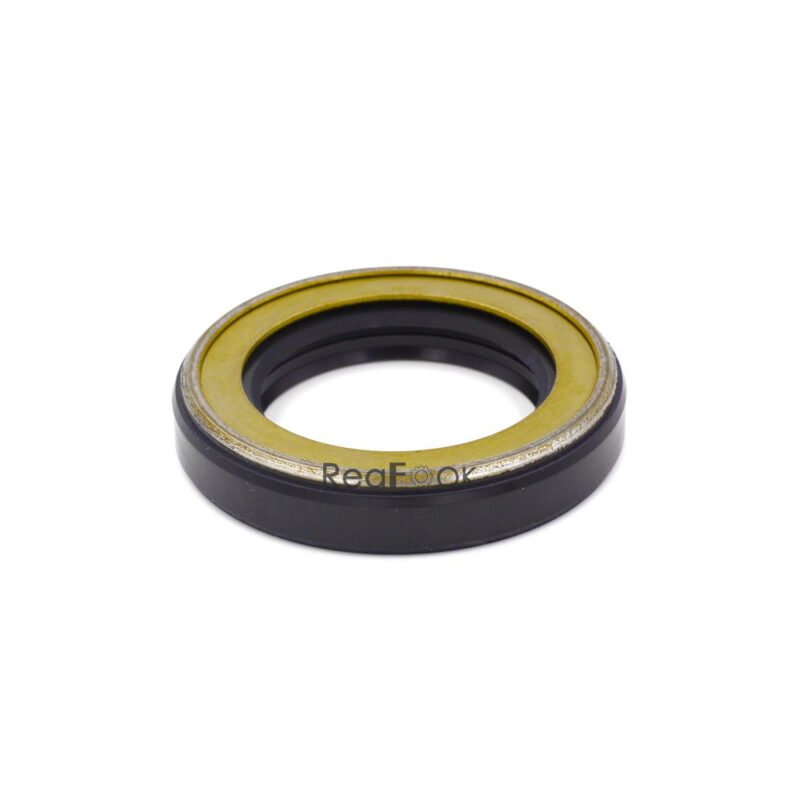

Swing Shaft Oil Seal 4395197 Fit Hitachi Excavator EX60-5 EX60BUN-5 EX70LCK-5 EX75UR-5 EX75US-5 EX80U

Product Name: Oil Seal
Reference Part Number: 4395197
Compatible Machine: Hitachi Excavator EX60-5 EX60BUN-5 EX70LCK-5 EX75UR-5 EX75US-5EX80U…

Description:
An Oil Seal is used to provide a leakproof seal for the pinion of the swing drive and reduce the friction and heat generation between the pinion during operation and maintain constant contact with the rotating shaft, forming a dynamic seal that adapts to the shaft’s movement. It is made from an elastic material such as rubber, which is used to prevent leakage of fluids, contaminants, or lubricants and maintain proper operation and performance.

Parts on group TRANSMISSION:
Pos. Part No Qty Parts name Comments
4398053 [1] T.MISSION 4398053
01. M341403 [8] BOLT;SOCKET
02. 4397235 [1] PLATE
03. 4397236 [1] GEAR;SUN
04. 4397246 [1] CARRIER
05. 4397237 [1] GEAR;SUN
06. 4397238 [1] PLATE;THRUST
07. 4397239 [1] CARRIER
09. 4397240 [1] NUT
10. 4397241 [1] BRG.;ROL.
11. 4395197 [1] SEAL;OIL
14. 4397242 [1] BRG.;ROL.
18. 4397244 [3] GEAR;PLANETARY
19. 4397245 [3] BRG.;NEEDLE
22. 4397247 [1] GEAR;RING
23. 4397248 [3] GEAR;PLANETARY
24. 4267081 [3] PLATE;THRUST
25. 4134502 [3] PIN;SPRING
26. 4397249 [3] PIN
27. 4397250 [1] PIPE;DRAIN
28. 94-2012 [1] PLUG
29. 94-2010 [2] PLUG
30. 4397251 [1] HOUSING
31. 4397252 [1] SEAL;DUST
32. 4397253 [1] GUIDE
33. 4397254 [1] SHAFT;PROP.
34. 942517 [3] RING;RETAINING
35. 4397255 [1] COVER
115. 4397243 [1] CAP
116. 4255227 [1] PIPE
300. 4397256 [1] SWING DEVICE(WITHOUT MOTER)
