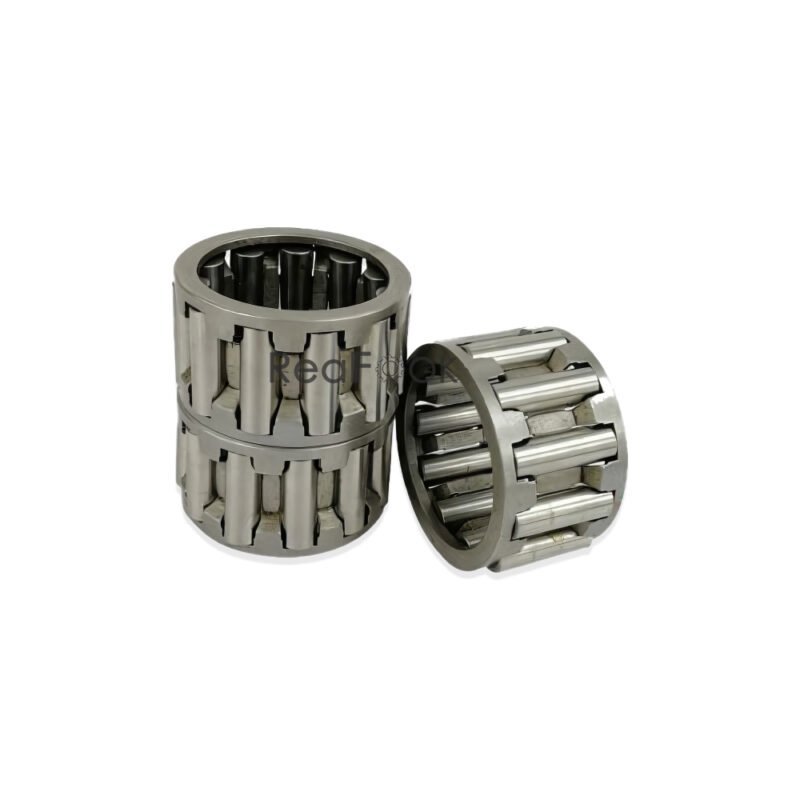

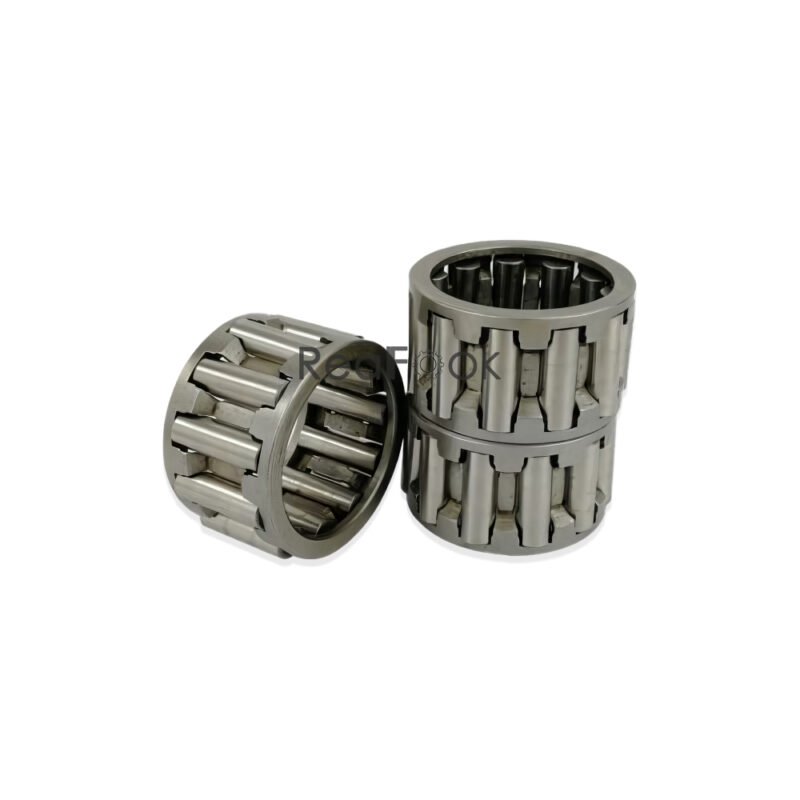

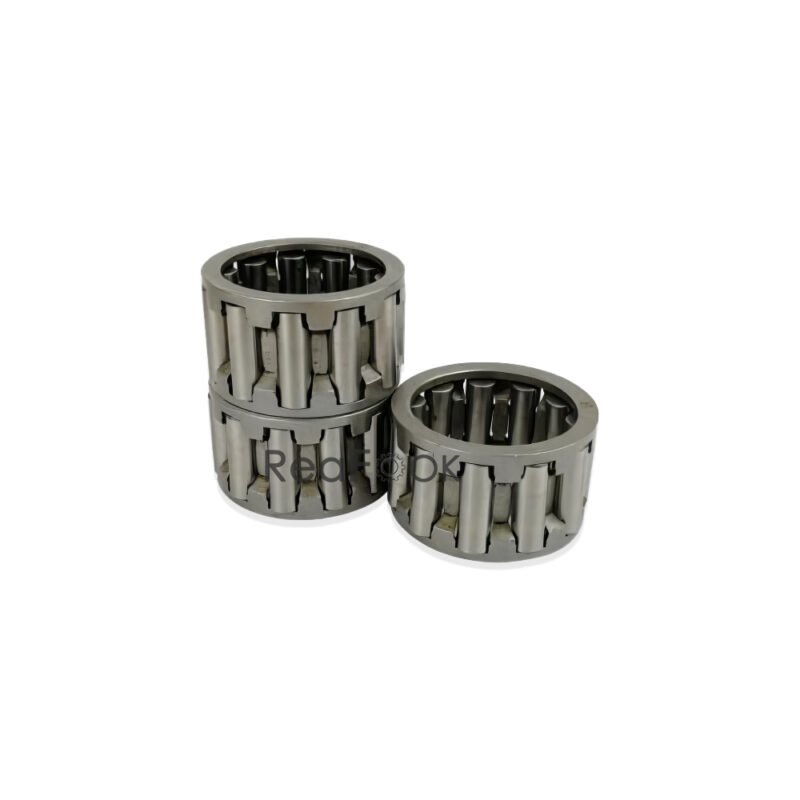

Travel Reduction Needle Roller Bearing 4438592 3PCS Fit Excavator Hitachi ZX180LC ZX200 ZX200-3 ZX200-5G ZX210H-3 ZX210 ZX225US-3 ZX230 ZX240

Product Name: Needle Roller Bearing (3PCS)
Reference Part Number: 4438592
Compatible Machine: Excavator Hitachi ZX180LC ZX180LC-3 ZX200 ZX200-3 ZX200-3G ZX200-5G ZX210 ZX210-3 ZX210H-3 ZX210H-3G ZX210K-3 ZX210LC-3G ZX210N-3 ZX225US-3 ZX225USR-3 ZX240 ZX240-3 ZX240N-3…

Description:
The radial needle roller and cage assemblies are self-contained, ready to mount bearings designed to be used where the housing bore and shaft can act as raceways. They are designed to carry large loads and function smoothly and dependably through high rotational speeds. The typical applications for radial needle roller and cage assemblies are planetary gears, constant-mesh gears, idler gears and connecting rods.

Pos. Part No Qty Parts name Comments
9170996 [2] TRAVEL DEVICE I 9195447
9233687 [2] TRAVEL DEVICE I 9233688 (for assembly of machine)
9195447 [2] TRAVEL DEVICE
9233688 [2] TRAVEL DEVICE (for transportation)
00. 9168003 [1] MOTOR;OIL I 9195451
00. 9234034 [1] MOTOR;OIL I 9237802 (for assembly of machine)
00. 9195451 [1] MOTOR;OIL
00. 9237802 [1] MOTOR;OIL (for transportation)
02. 4114753 [1] SEAL;GROUP I 4634693
02. 4634693 [1] SEAL;GROUP
03. 4246793 [2] BRG.;ROL.
04. 1025833 [1] DRUM
05. 1018740 [1] SPROCKET
06. J932055 [16] BOLT
07. A590920 [16] WASHER;SPRING
08. 3086531 [1] NUT
10. 4436242 [1] PIN;KNOCK
12. 1025875 [1] CARRIER
14. 4438593 [6] BRG.;NEEDLE
15. 4284521 [6] PLATE;THRUST
16. 4315838 [3] PIN
17. 4116309 [3] PIN;SPRING
18. 3082156 [1] GEAR;SUN
19. 3084353 [3] GEAR;PLANETARY
20. 1025787 [1] GEAR;RING
21. J931640 [24] BOLT
23. 2042432 [1] CARRIER
24. 4401293 [2] SPACER
25. 3082155 [3] GEAR;PLANETARY
26. 4438592 [3] BRG.;NEEDLE
27. 4192982 [6] PLATE;THRUST
28. 4402086 [3] PIN
29. 4192020 [3] PIN;SPRING
30. 3082149 [1] GEAR;SUN
32. 1025826 [1] CARRIER
33. 3082148 [3] GEAR;PLANETARY
34. 4387383 [3] BRG.;NEEDLE
35. 4192910 [6] PLATE;THRUST
36. 4210853 [3] PIN
37. 4173093 [3] PIN;SPRING
38. 2042351 [1] SHAFT;PROP.
38. 2049585 [1] SHAFT;PROP.
40. 2034833 [1] COVER
41. 4285323 [1] PIN;STOPPER Y 4478346
41. 4478346 [1] PIN;STOPPER
42. J011230 [12] BOLT;SEMS I 4609016
42. 4609016 [12] BOLT;SEMS
43. 4245797 [3] PLUG
46. 3053559 [1] NAME-PLATE
47. M492564 [2] SCREW;DRIVE
