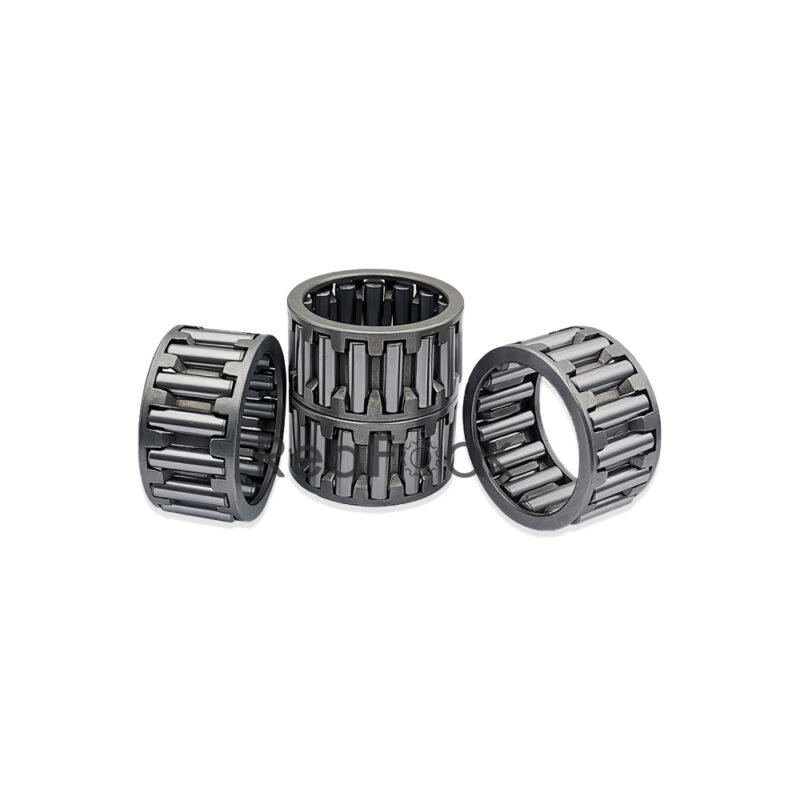

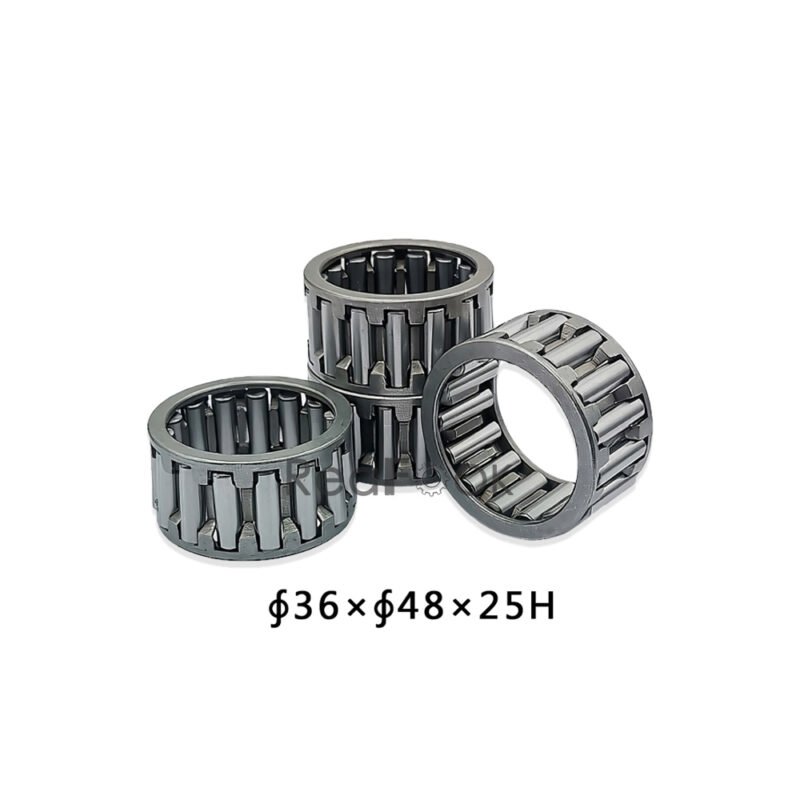

Needle Roller Bearing 4354289 36*48*25 Fit Hitachi Excavator EX120-2 EX120-3 EX120-5 EX130H-5 EX135UR

Product Name: Needle Roller Bearing
Reference Part Number: 4354289
Compatible Machine: Hitachi Excavator EX120-2 EX120-3 EX120-5 EX130H-5 EX135UR…

Description:
The needle roller and cage assemblies are self-contained, ready to mount bearings designed to be used where the housing bore and shaft can act as raceways. They are designed to carry large loads and function smoothly and dependably through high rotational speeds.

Parts on group TRAVEL DEVICE:
Pos. Part No Qty Parts name Comments
00-42. 9091652 [2] TRAVEL DEVICE ASS’Y
00-42. 9116399 [2] TRAVEL DEVICE ASS’Y
00-42. 9116400 [2] TRAVEL DEVICE ASS’Y
00-42. 9116401 [2] TRAVEL DEVICE ASS’Y
00. 9096731 [1] MOTOR;OIL
00. 9116375 [1] MOTOR;OIL
00. 9116379 [1] MOTOR;OIL
00. 9116383 [1] MOTOR;OIL
02. 4110369 [1] SEAL;GROUP
03. 4228851 [2] BRG.;ROL. Y 4321887
03. 4321887 [2] BRG.;ROL.
05. 1010325 [1] SPROCKET
06. J931640 [16] BOLT
09. 4148012 [1] PIN;KNOCK
11. 1014516 [1] CARRIER
12. 3049926 [3] GEAR;PLANETARY
13. 4354289 [6] BRG.;NEEDLE
14. 4245966 [3] PIN
15. 4144020 [3] PIN;SPRING
16. 3043237 [1] GEAR;SUN
17. 4192982 [12] PLATE;THRUST
18. 2028797 [1] CARRIER
19. 4252721 [1] SPACER
20. 3049925 [3] GEAR;PLANETARY
21. 4252658 [3] BRG.;NEEDLE
22. 4178203 [3] PIN
23. 4192020 [3] PIN;SPRING
24. 2028798 [1] SHAFT;PROP.
25. 4258916 [1] PIN;STOPPER
26. 2028800 [1] COVER
27. 4354278 [3] BRG.;NEEDLE
28. J011230 [12] BOLT;SEMS
30. 1016124 [1] GEAR;RING
31. 1016125 [1] DRUM
32. 4269322 [1] O-RING
33. J931660 [16] BOLT
34. 4245797 [3] PLUG
35. 3053559 [1] NAME-PLATE
36. M492564 [2] SCREW;DRIVE
39. 3057124 [1] NUT
42. 3059034 [1] HUB
132. 4272305 [28] BOLT
134. J222016 [28] WASHER
