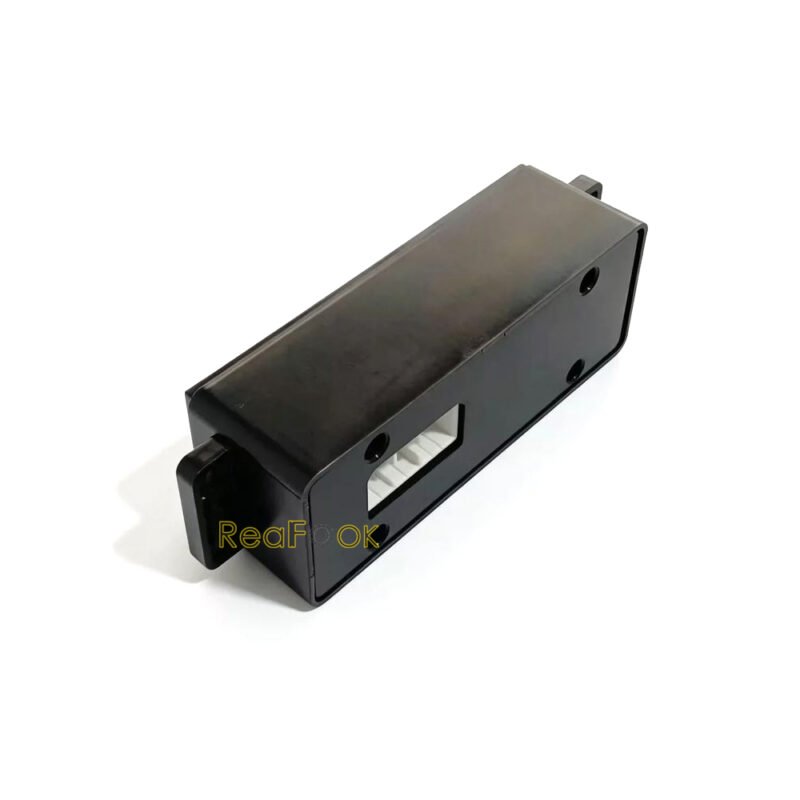

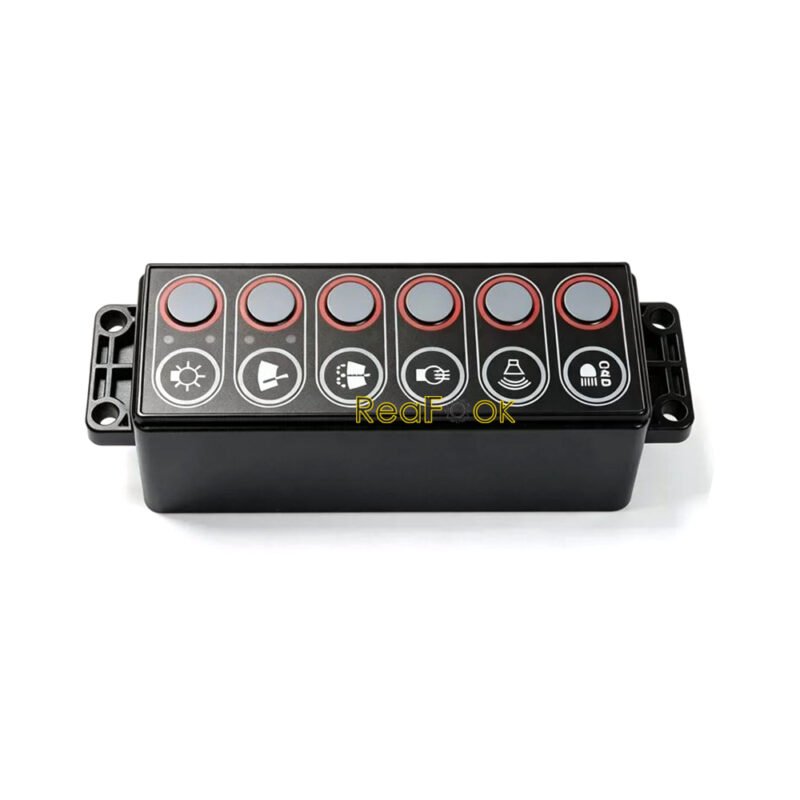

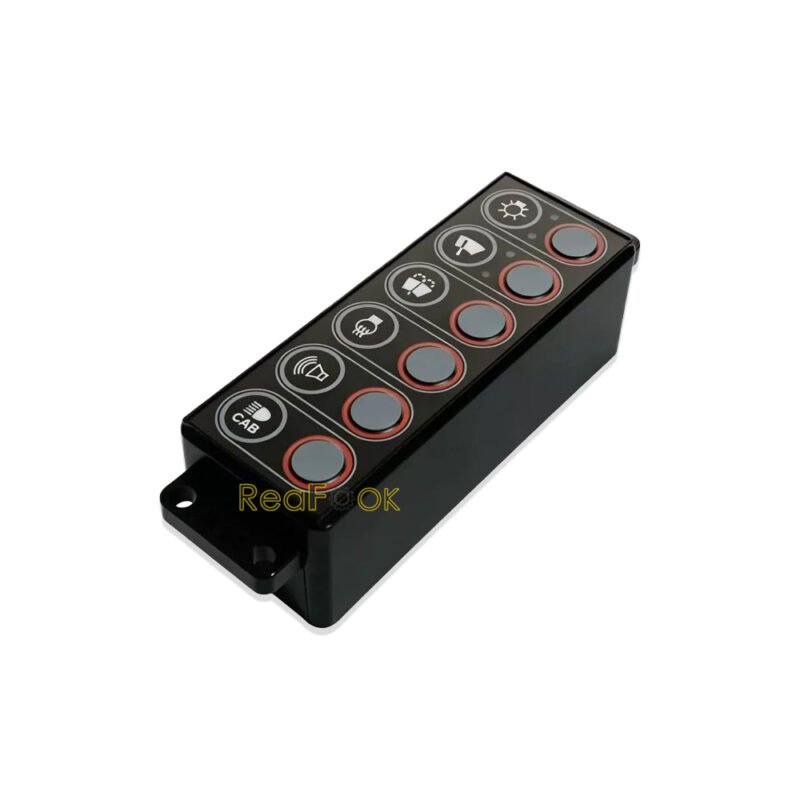

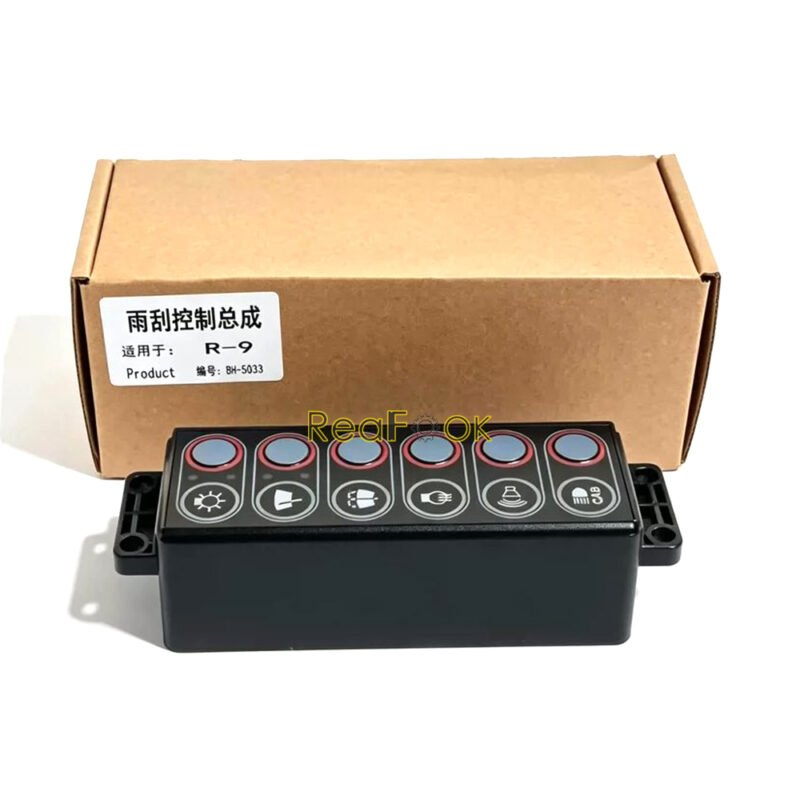

Membrane Switch Assy 21Q6-30601 Control Switch Fit Excavator Hyundai R140LC-9 R160LC9A R210LC-9 R220LC-9A R235LCR9 R250LC-9 R300LC-9 R320LC-9 R360LC-9

Product Name: Membrane Switch Assy, Control Panel Switch
Reference Part Number: 21Q6-30601
Compatible Machine: Excavator Hyundai R140LC-9 R160LC9A R210LC-9 R220LC-9A R235LCR9 R250LC-9 R300LC-9 R320LC-9 R360LC-9…

Description:
Control panels control the air and temperature and air flow rate inside the operator compartment of heavy-duty equipment.

Pos. Part No Qty Parts name Comments
1. 21Q6-10402 [1] HARNESS SIDE,RH
1. 21Q6-10403 [1] HARNESS SIDE,RH
1. 21Q6-10404 [1] HARNESS SIDE,RH
1. 21Q6-10405 [1] HARNESS SIDE,RH
1. 21Q6-10406 [1] HARNESS SIDE,RH
1. 21Q6-10407 [1] HARNESS SIDE,RH
2. 21Q6-30910 [1] USB & SOCKET ASSY
2-1. 21Q6-30910 [1] CASE-PCB GUIDE
2-2. 21Q6-30920 [1] PCB ASSY
2-3. 21Q6-30930 [1] CASE ILLUMINATION
2-4. 21Q6-30940 [1] BASE-CASE
2-5. 21Q6-30950 [2] HINGE
2-6. 21Q6-30960 [1] COVER-DUST
2-7. 21Q6-30970 [1] CABLE-CURL
3. 21Q6-30601 [1] MEMBRANE SWITCH ASSY
4. 21Q6-30801 [1] CONTROLLER REMOTE
4-1. 21Q6-30860 [1] KNOB
5. 21E6-10470 [1] FRAME MOUNTING
6. 21E6-10460 [3] COVER
7. 21E4-0008 [1] LIGHTER CIGAR
7. 21LM-07110 [1] LIGHTER CIGAR
8. 71Q6-01271 [1] BRACKET CLUSTER
8. 71Q6-01272 [1] BRACKET CLUSTER
8. 71Q6-01273 [1] BRACKET CLUSTER
9. 21N4-01130 [1] PLATE-CLIP
10. 21M8-01420 [1] SOCKET POWER
11. 25D1-10640 [1] CLIP ASSY
12. 21E9-00170 [5] CLIP-HARNESS
13. 31L7-10200 [1] CLAMP-TUBE 2
14. S035- 081526 [8] BOLT W/WASHER
15. S035-082036 [5] BOLT W/WASHER
16. 71Q6- 01271 [1] BRACKETCLUSTER
