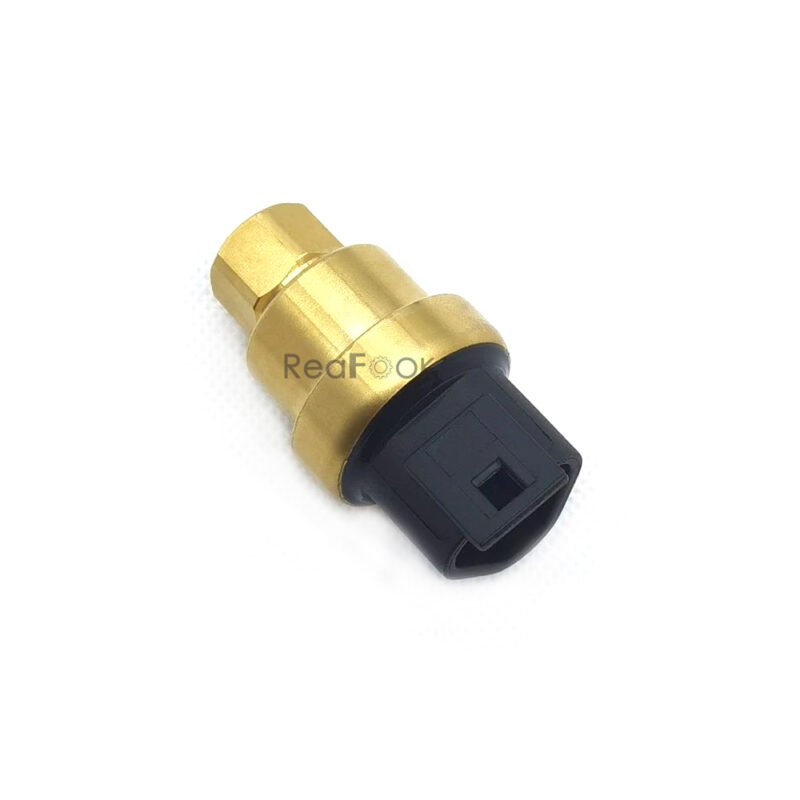

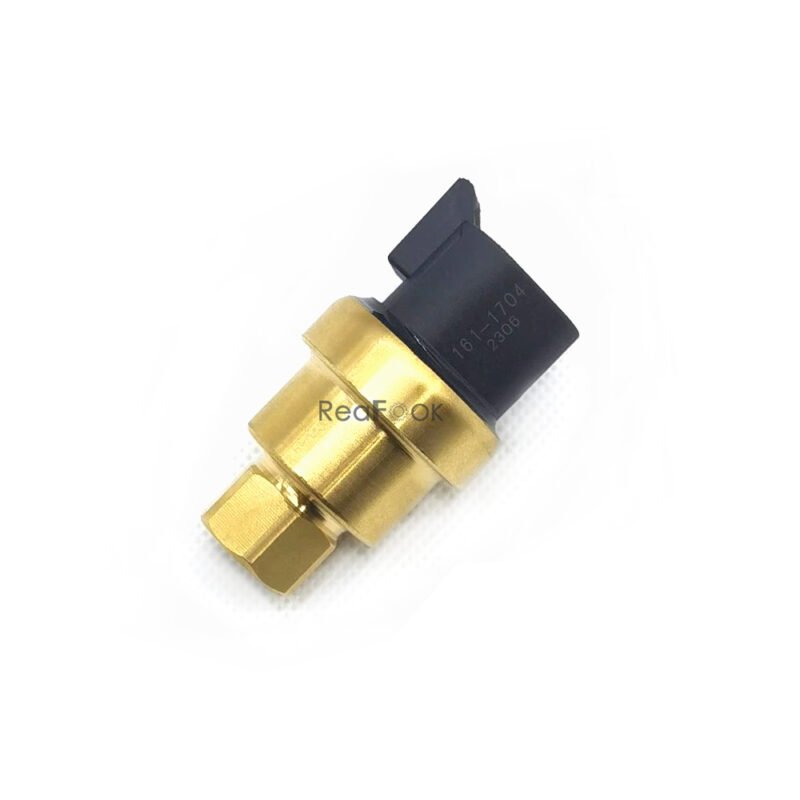

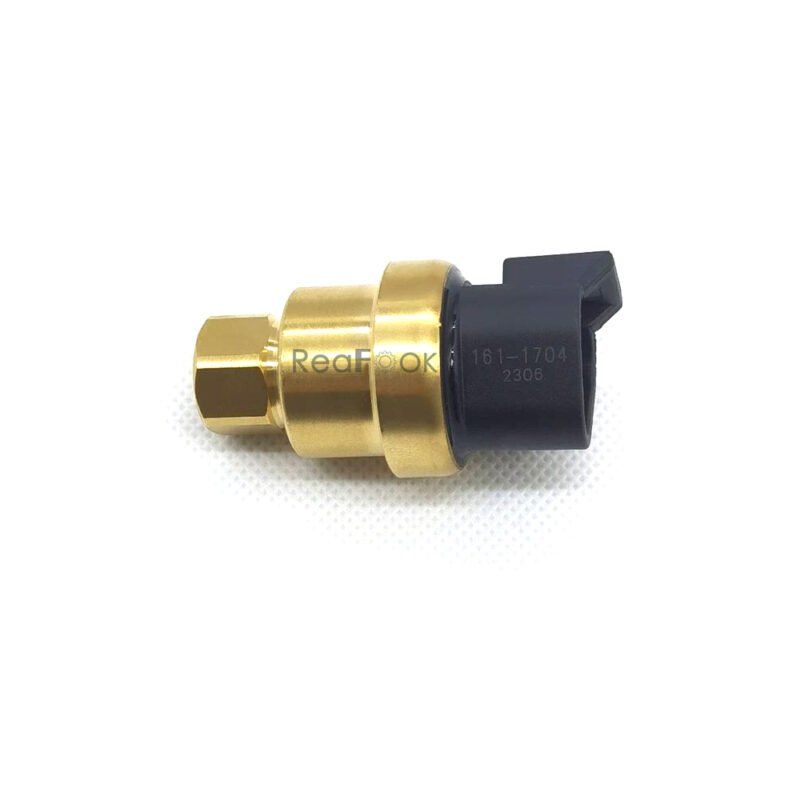

Low Pressure Sensor 161-1704 Fit Excavator CAT 311D 312D 313D 315D 318D 320D 325D 330C 330D 336D, Wheel Loader 966K 966M 972K 972M 980K 980M 982M

Product Name: Low Pressure Sensor
Reference Part Number: 161-1704, 1611704
Compatible Machine: Caterpillar Excavator CAT 324D 325D 328D 329D 330C 330D 336D M325D, Asphalt Paver AP-1055D AP-755 BG2455D BG-260D, Wheel Loader 950H 962H 994F…

Description:
Low pressure sensors use capacitance or strain gage based technology that generates an output signal (Analog or PWM) that is proportional to the applied pressure. The sensors are available with a variety of electrical connectors and process connection types. Low pressure sensors are primarily used on engine related applications such as air systems, exhaust after treatment systems, fuel systems, engine oil systems, etc

.

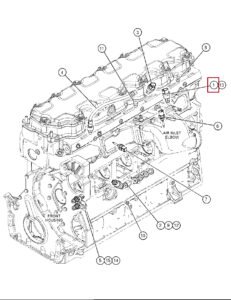

Pos. Part No Qty Parts name Comments
1. 161-1704 [1] SENSOR GPPRESSURE (BOOST)
2. 161-1705 [1] SENSOR ASPRESSURE (OIL)
3. 197-8393 Y [1] SENSOR GPPRESSURE (ATMOSPHERIC)
4. 236-6220 Y [1] SENSOR GPPRESSURE (RAIL)
5. 236-6221 Y [1] SENSOR GPSPEED
6. 274-7395 Y [1] SENSOR GPTEMPERATURE (AIR INLET)
7. 274-7396 Y [1] SENSOR GPTEMPERATURE (ENGINE COOLANT)
8. 371-7186 [1] PLUG AS
214-7567 [1] SEAL-O-RING
360-3678 [1] PLUG-O-RING
9. 392-0773 [1] ELBOW AS
9X-8403 [1] ELBOW
214-7566 [1] SEAL-O-RING
214-7568 [1] SEAL-O-RING
10. 396-0393 [1] PLUG AS
214-7566 [1] SEAL-O-RING
360-3677 [1] PLUG (7/16-20-THD)
11. 398-5597 [1] PLUG AS
214-7568 [1] SEAL-O-RING
360-3692 [1] PLUG
12. 329-5518 [1] ADAPTER AS
8T-2353 [1] ADAPTER
214-7566 [1] SEAL-O-RING
13. 353-5112 [1] ADAPTER AS
9X-0262 [1] ADAPTER
214-7566[ 2] SEAL-O-RING
14. 3E-4352 [1] WASHER-HARD (8.8X20.5X2.5-MM THK)
15. 6V-3940 M [1] BOLT (M8X1.25X25-MM)
M METRIC PART
Y SEPARATE ILLUSTRATION
