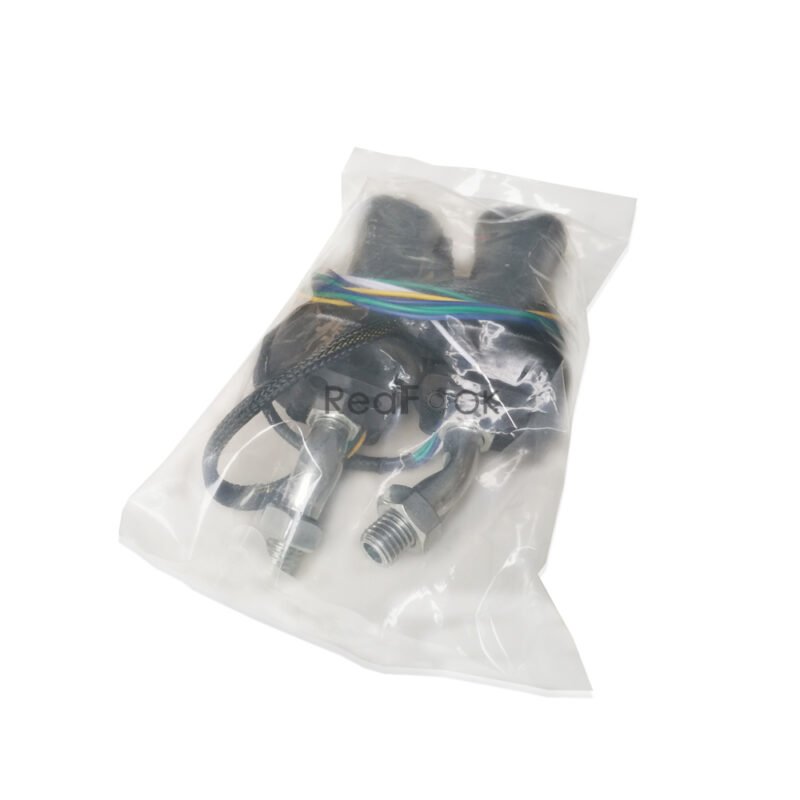

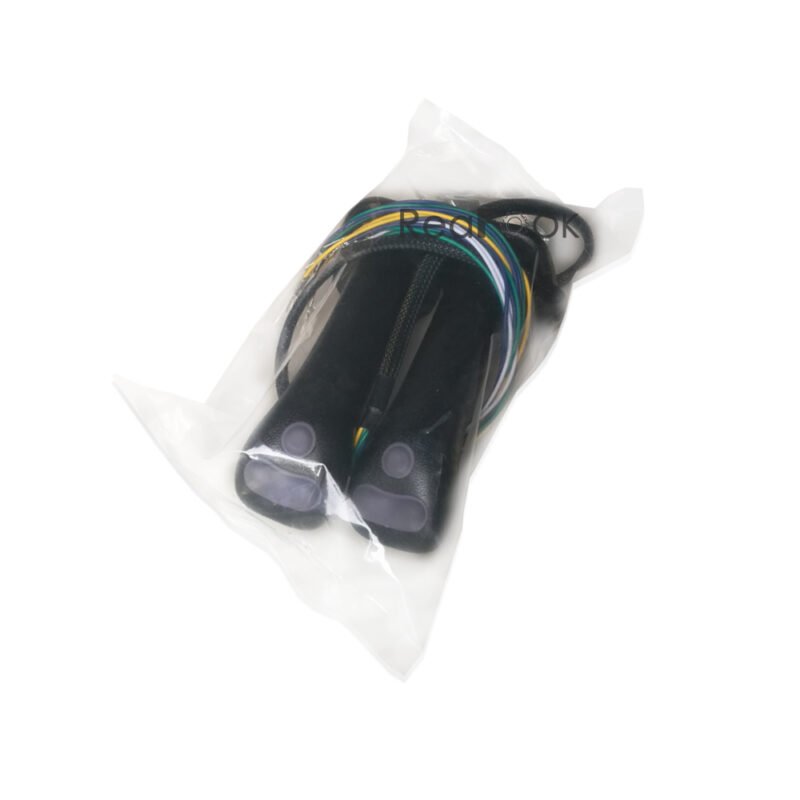

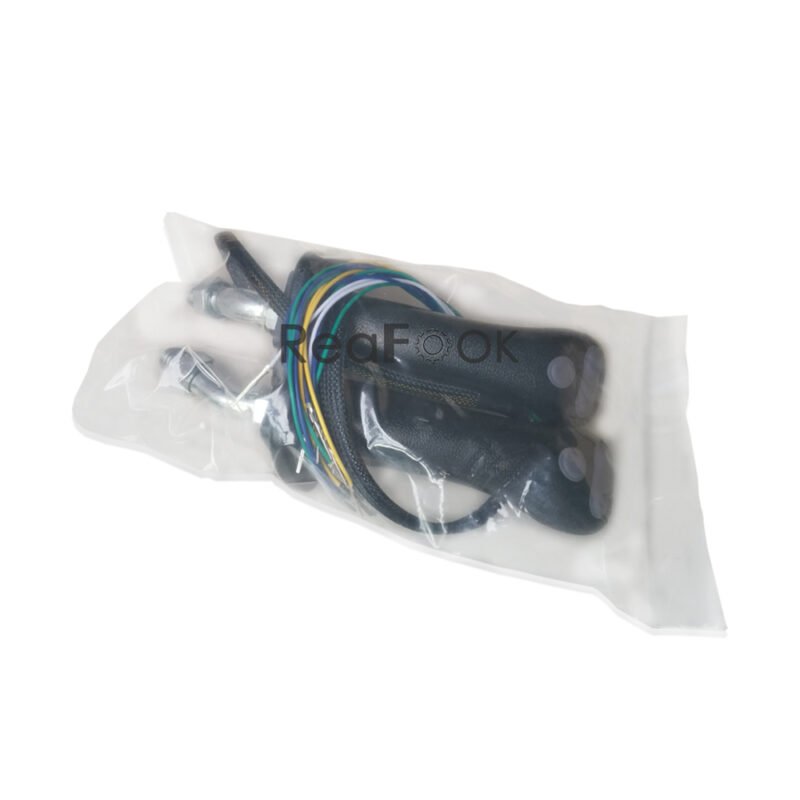

Joystick Valve Handle Assy K9001130 K9001131 L.H & R.H Fit Excavator Doosan Solar 340LC-7 DX55 DX60R DX80R E55W DX170W DX225LC DX255LC DX300LC DX420LC DX520LC

Product Name: Handle Assy
Reference Part Number: K9001130, K9001131…
Compatible Machine: Excavator Doosan DX140LC DX140W DX160LC DX170W DX180LC DX190W DX210W DX220 DX225LC DX225LCA DX235LCR DX255LC DX300LC DX240LC DX350LC DX380LC DX420LC DX480LC DX520LC DX55 DX55W DX60R DX80R E55W E60 E80, Solar 340LC-7…

Description:
The Plastic Joystick Handle Control with Connector Pin and Receptacle used in Hydraulic Control Valve in Operator Cabin. It is used in heavy equipment operator station to control speed, direction and gear.

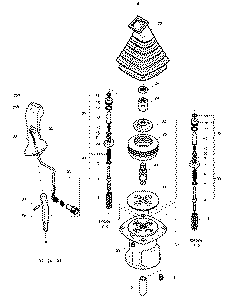

Pos. Part No Qty Parts name Comments
-. K1000556E [1] VALVE;REMOCON(L.H)
-. K1000555E [1] VALVE;REMOCON(R.H)
Pos. Part No Qty Parts name Comments
1. K9001114 [1] CASE
10. 1.416-00017 [2] STOPPER
11. K9001121 [4] SPRING
12. K9001766 [4] ROD;PUSH
13. K9001123 [2] SPRING
14. K9001767 [2] SEAT;SPRING
15. 1.416-00018 [2] STOPPER
16. K9001768 [4] PLUG
17. S8000205 [4] O-RING
18. 180-00198 [4] SEAL;ROD
19. 1.412-00017 [1] PLATE
2. 2181-1116D2 [4] PLUG
20. K9001128 [1] BOOT
21. 1.138-00004 [1] JOINT ASSY
22. K9001129 [1] PLATE;SWASH
23. 1.121-00028 [1] NUT
24. S4012833 [1] NUT
25. K9001130 [1] HANDLE ASS’Y(L.H)
25. K9001131 [1] HANDLE ASS’Y(R.H)
25A. 1.161-00021 [1] CAP;PEANUT
25A. 1.161-00021 [1] CAP;PEANUT
25B. 1.161-00017 [1] CAP;ROUND
25B. 1.161-00017 [1] CAP;ROUND
26. 1.178-00004 [1] BAR;HANDLE
27. S5740800 [1] PIN;SPRING
28. K9001132 [1] BELLOWS
29. 1.110-00169 [1] BUSHING
3. K9001115 [1] BUSHING
30. K9001133 [1] CONNECTOR ASS’Y
32. K9001001 [1] SWITCH ASS’Y
33. K9001769 [1] KIT;SPOOL(1,3)
34. K9001770 [1] KIT;SPOOL(2,4)
35. K9001764 [1] KIT;PLUG(1,3)
36. K9001765 [1] KIT;PLUG(2,4)
37. K9001139 [1] KIT;HANDLE(R.H)
37. K9001140 [1] KIT;HANDLE(L.H)
4. K9001116 [4] SPOOL
5. 1.114-00012 [1] SHIM
6. K9001117 [2] SPRING
7. K9001762 [2] SEAT;SPRING
8. K9001763 [4] STOPPER
9. K9001119 [4] SPRING
