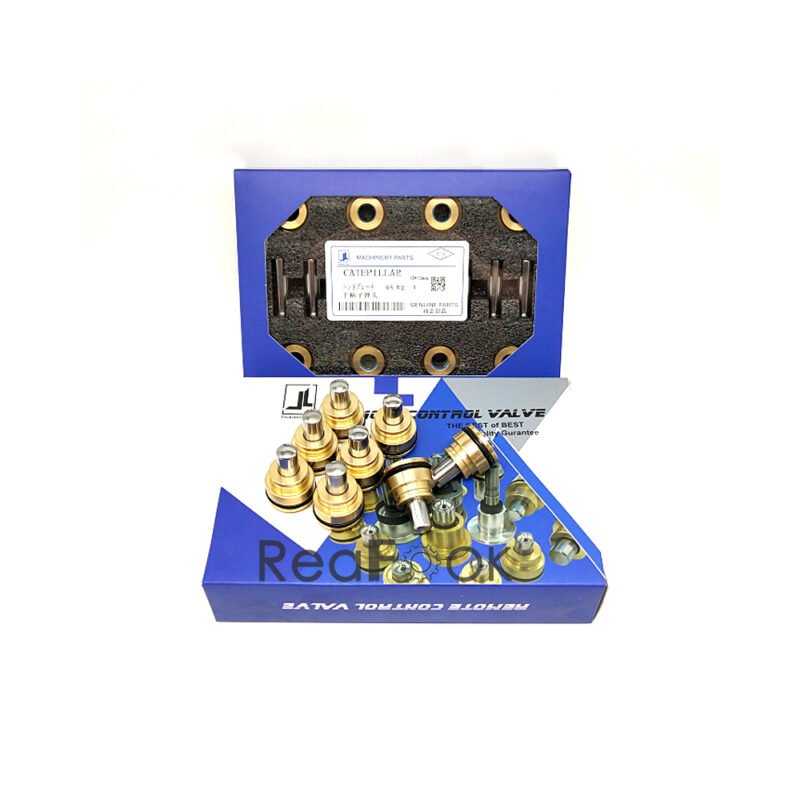

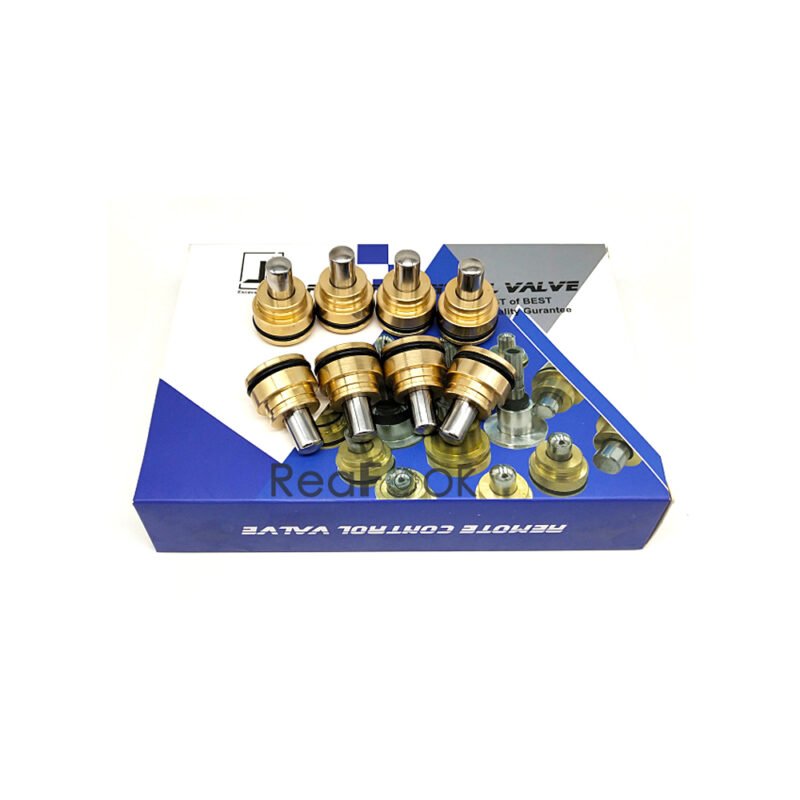

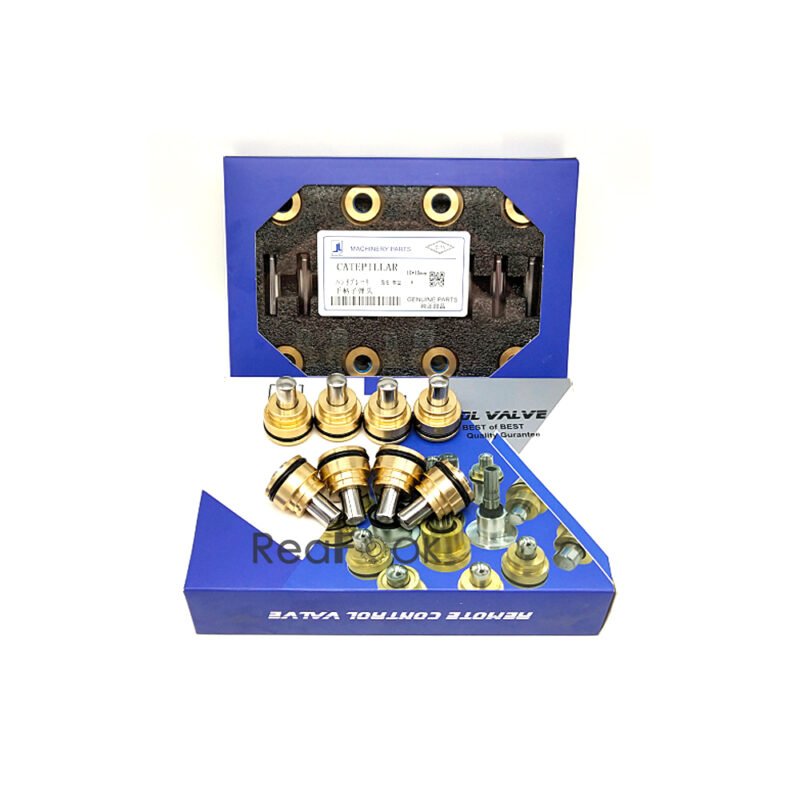

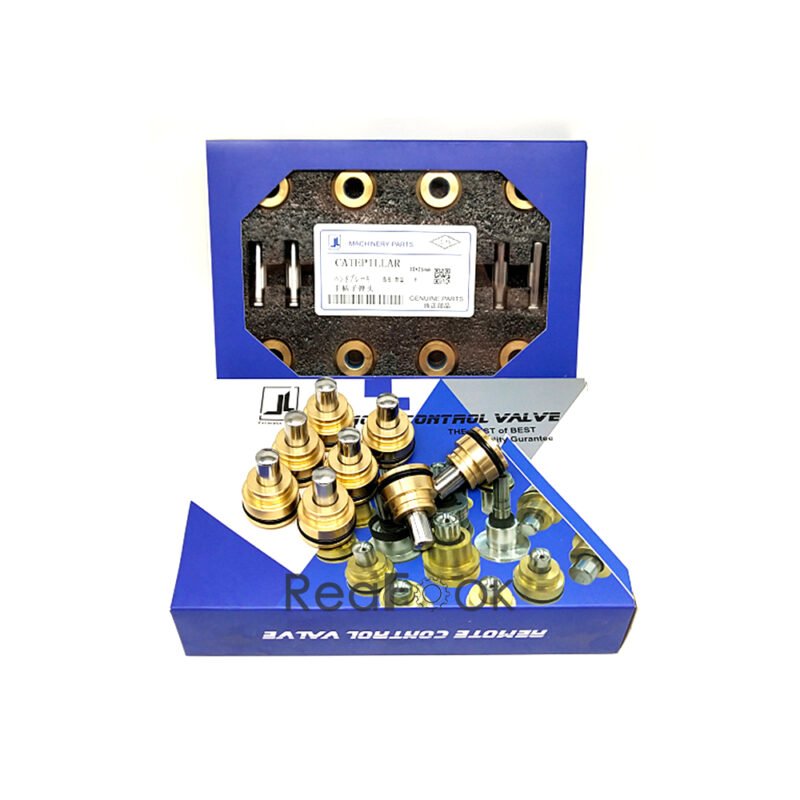

8PCS Joystick Pilot Valve Pusher 096-1628 118-4086 Fit Excavator Caterpillar CAT312 320 330 B C D

Product Name: Pusher Assy
Reference Part Number: 096-1628, 118-4086…
Compatible Machine: Excavator Caterpillar CAT307 311 311B 311C 312 312B 312C 312D 312D2 313D 313D2 315 315D 318 318C 318D 319D 320B 320C 320D 320D2 320E 321C 321D 322B 322C 323D 323D2 323E 324D 324E 325 325B 325C 325D 326D 328D 329D 329E 330 330B 330C 330D 336D 336D2 336E 345B 345C 345D 349D 350 375 E110B E120 E180 E200B E70B…

Description:
A valve plug for hydraulic systems is a component that is used to control the flow of hydraulic fluid within a hydraulic system. The valve plug consists of a cylindrical shape with one or more internal ports or passages that allow hydraulic fluid to flow through it.

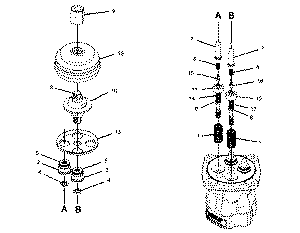

Pos. Part No Qty Parts name Comments
1. 270-5953 [4] SPRING
2. 095-1586 [4] SEAL-O-RING
3. 4I-6365 [1] JOINT
4. 094-0876 [4] SEAL
5. 096-1628 [4] PLUG
6. 099-6137 B [4] WASHER (6.1X9X0.2-MM THK)
7. 118-4086 [4] ROD
8. 118-4087 [4] SPRING
9. 131-5915 M [1] NUT-SPECIAL
10. 165-9431 [1] PLATE
11. 165-9435 [2] SEAT
12. 165-9436 [2] SEAT
13. 165-9438 [1] PLATE
14. 165-9442 [2] SPRING
15. 165-9443 [2] SEAT-SPRING
16. 165-9444 [2] SEAT-SPRING
17. 165-9460 [2] SPRING
18. 171-0087 [1] BELLOWS
