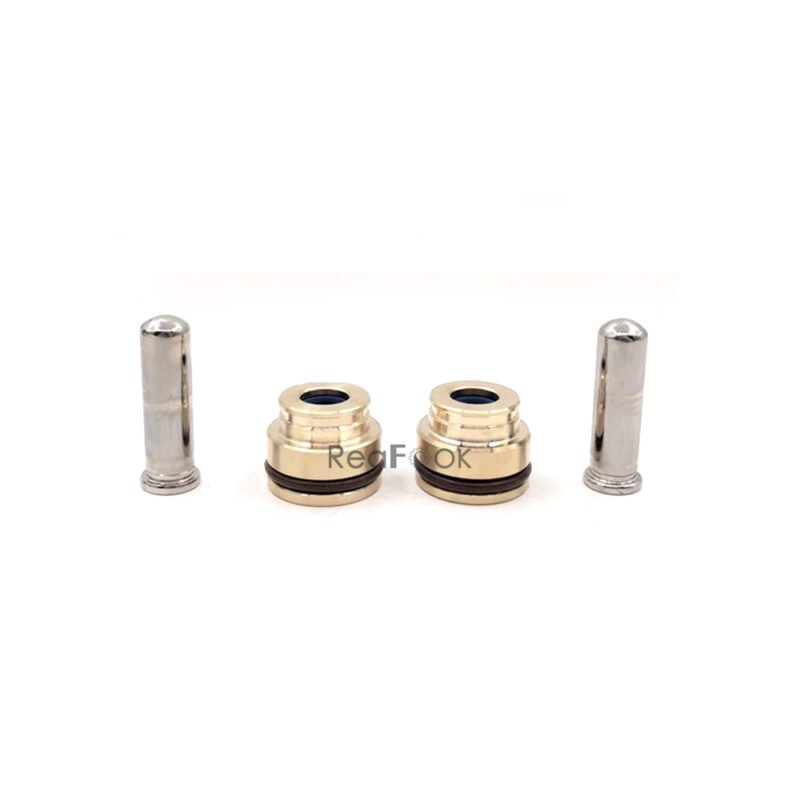

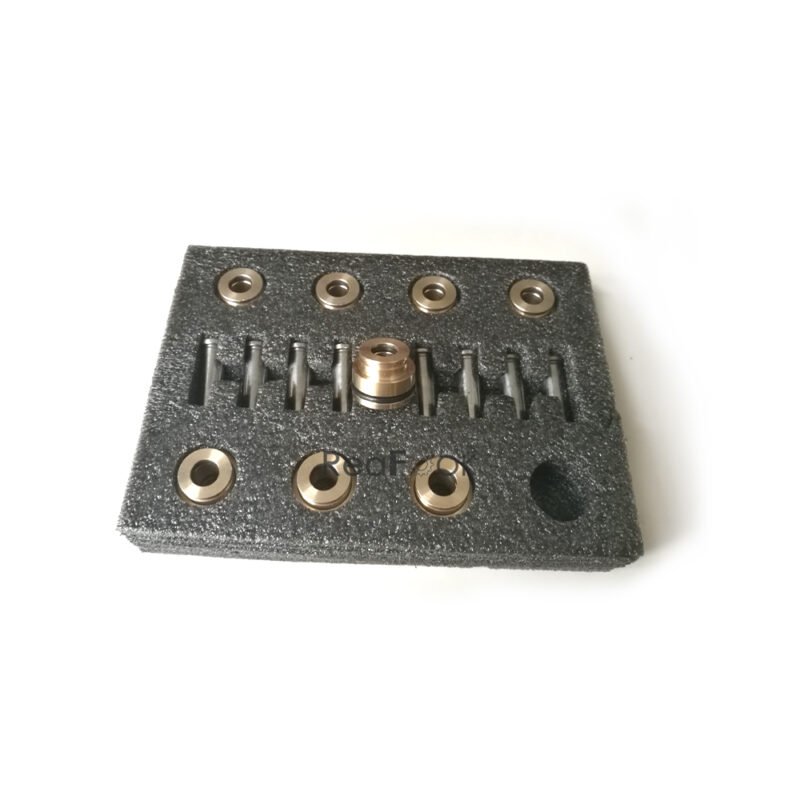

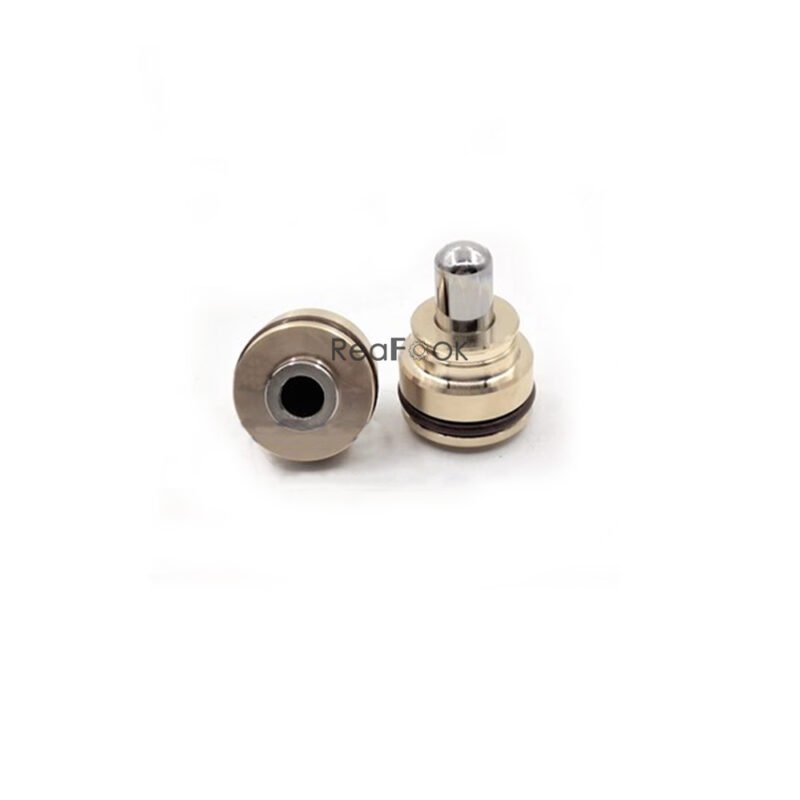

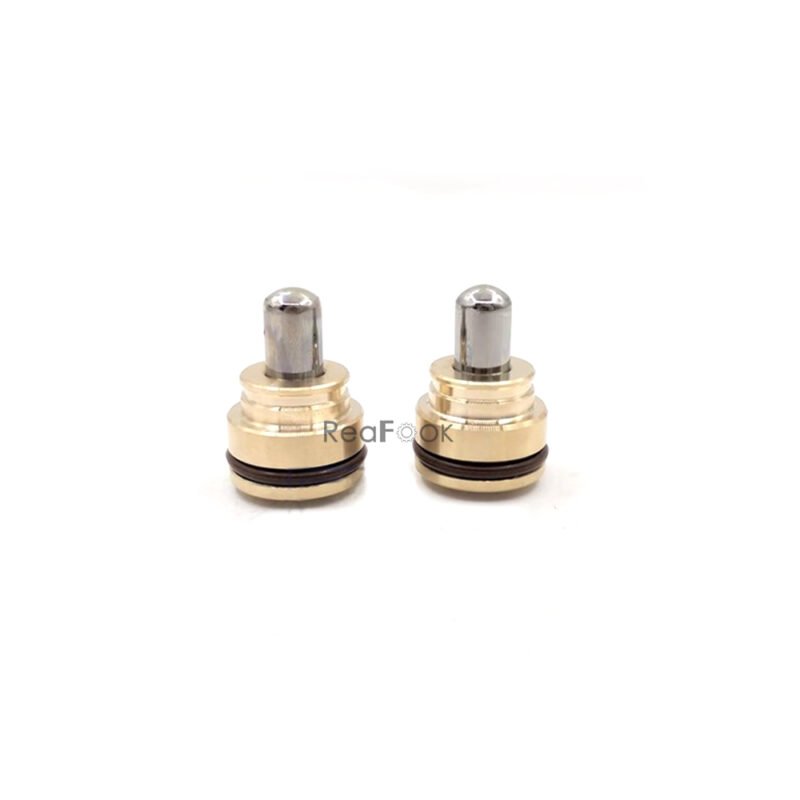

8PCS Joystick Pilot Valve Pusher Assy 2436U1277S211 2436U1277S212 Rod Plug Fit Excavator Kobelco SK120 SK200 SK235SR SK250 SK300 SK330

Product Name: Pusher Assy; Joystick Pilot Valve
Reference Part Number: 2436U1277S211, 2436U1277S212
Compatible Machine: Excavator Kobelco K905LC K907LC SK130LC SK100 SK120LC SK130 SK135SR SK200LC SK200LC-6 SK210LC-6E SK235SR-1ES SK250LC SK290LC SK300 SK330LC SK60…

Description:
Pilot Valve in a joystick is a small control mechanism that regulates the flow of hydraulic fluid to enable precise and responsive movement of the joystick. It consists of a smaller valve designed to control the flow of a fluid or gas, usually at a lower pressure, which operates a more prominent main valve at a higher pressure. The operation of the pilot valve generates a force or signal that is used to actuate the main valve, allowing it to open, close, or modulate the flow according to the desired setpoint or control signal.

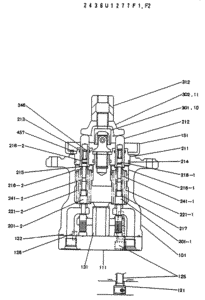

Pos. Part No Qty Parts name Comments
. . 2436U1277F1 [1] VALVE, PILOT ASSY VALVE, PILOT ASSY
. . 2436U1277F2 [1] PILOT VALVE HIT ASSY
10. 2436U2581S301 [1] FLEXIBLE JOINT KOB (F2 ONLY)
11. 2436U2581S302 [1] PLATE KOB (F2 ONLY)
101. 2436U1277S101 [1] BLOCK ASSY. KOB CASING
111. 2436U1277S111 [1] PLATE
121. 2436U1277S121 [2] WASHER KOB
122. 2436U1277S122 [1] O-RING KOB
125. ZS23C08030 [2] SCREW,Hex Socket Head, M8 x 30mm KOB M08x1.25x30mm Superseded by part number:ZS28C08030
126. ZP26D05010 [1] PIN KOB Roll — OD 05 x 10mm Long
131. 2436U1277S131 [1] BUSHING KOB
151. 2436U944S151 [1] PLATE KOB
201-1. 2436U1277S2011 [2] SPOOL KOB
201-2. 2436U1277S2012 [2] SPOOL KOB Superseded by part number: 2436U1277S2011
211. 2436U1277S211 [4] PLUG KOB
212. 2436U1277S212 [4] ROD KOB
213. 2436U1277S213 [4] SEAL KOB
214. ZD12P02000 [4] O-RING,2.4mm Thk x 19.8mm ID, 90 Duro
215. 2436U1277S215 [8] WASHER KOB WASHER
216-1. 2436U1277S2161 [2] SPRING SEAT KOB
216-2. 2436U1277S2162 [2] SPRING SEAT KOB
217. 2436U1277S217 [4] WASHER KOB
218-1. 2436U1277S2181 [2] PIN KOB
218-2. 2436U1277S2182 [2] SPRING SEAT KOB
221-1. 2436U1277S2211 [2] SPRING KOB
221-2. 2436U1277S2212 [2] SPRING KOB
241-1. 2436U1277S2411 [2] SPRING KOB
241-2. 2436U1277S2412 [2] SPRING KOB
246. 2436U1277S246 [4] SPRING KOB
301. 2436U944S301 [1] KNUCKLE JOINT KOB (F1 ONLY)
302. 2436U1277S302 [1] BOOT KOB (F1 ONLY)
312. 2436U1242S312 [1] NUT KOB Superseded by part number: PH30V00002S312
457. 2436U1242S457 [1] GROMMET
