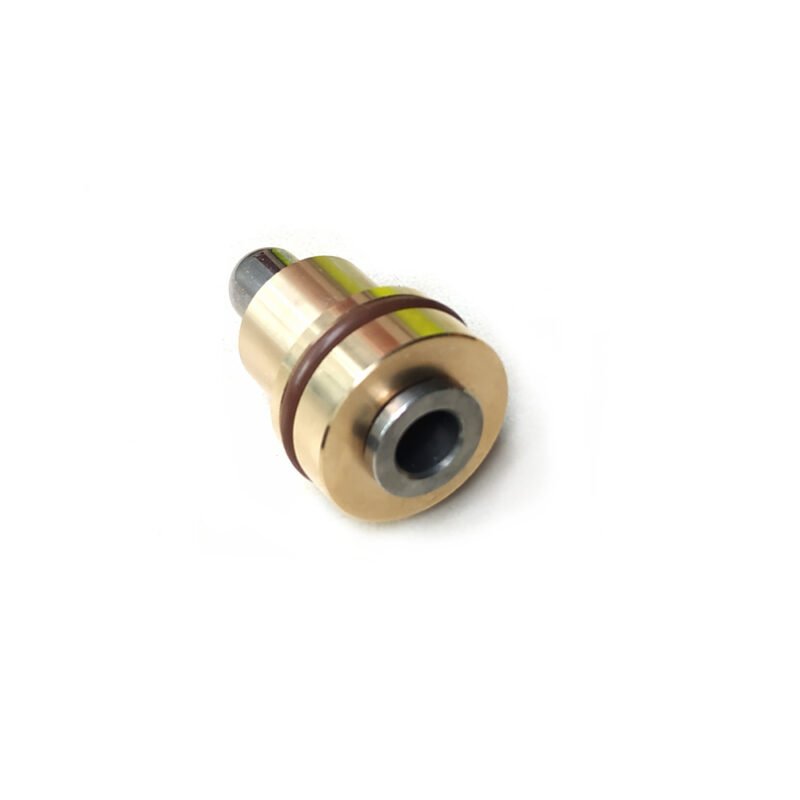

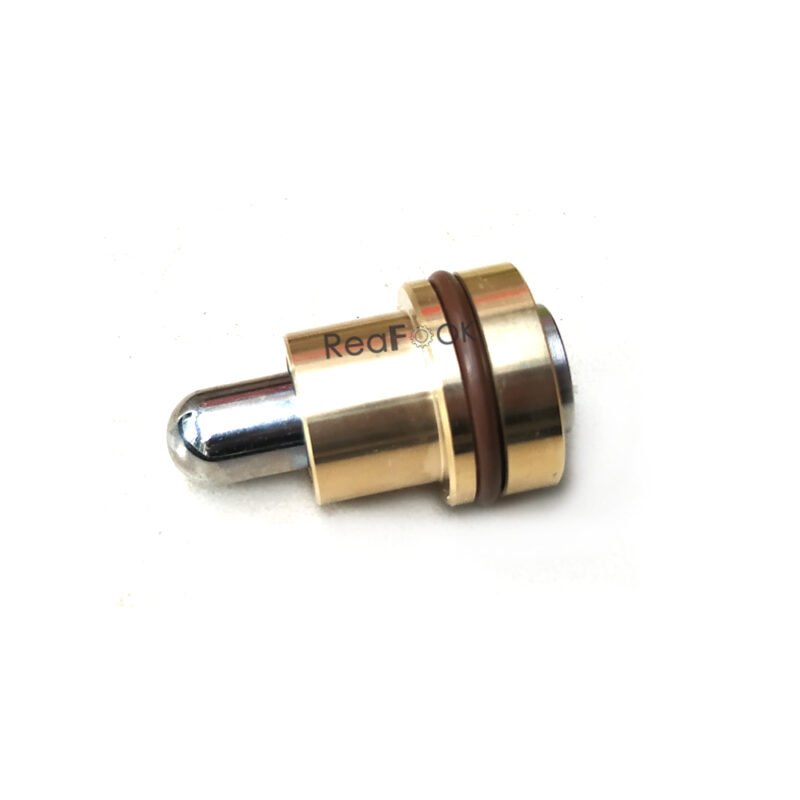

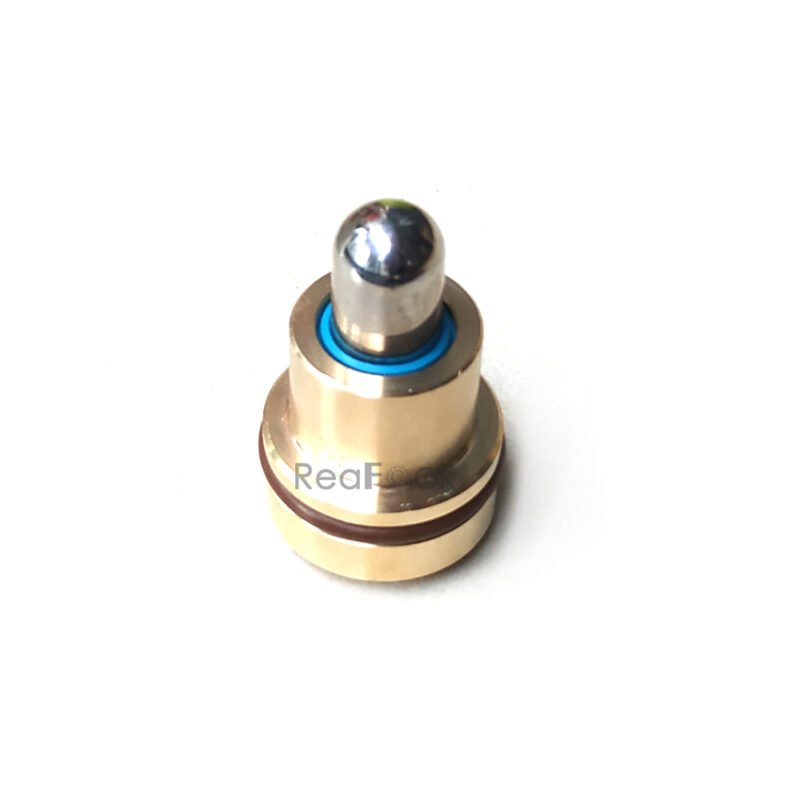

8PCS Joystick Pilot Valve Plug Pusher Assy 9107447 9108066 Fit Hitachi Excavator EX100-2 EX100-3 EX200-2 EX200-3 EX200-5

Part Name: Pusher Assy ( 8 PCS)
Reference Part Number: 9108066 9107447 3058790 4276152 A810025 3051298 3058791
Compatible Machine: Hitachi Excavator EX100 EX100M EX120 EX200-2 -3 -5, EX135UR

Description:
A valve plug for hydraulic systems is a component that is used to control the flow of hydraulic fluid within a hydraulic system. The valve plug consists of a cylindrical shape with one or more internal ports or passages that allow hydraulic fluid to flow through it. And the rods offer simple repair and replacement of system components for the pilot valve assemblies

Attributes:
• Ports can be adjusted to control the flow of fluid within the hydraulic system
• Designed to minimize or eliminate fluid leakage from the valve body or manifold.

Pos. Part No Qty Parts name Comments
9101511
[1] VALVE;PILOT 9101511A
00. 7024552 [1] CASING ASS’Y
00. 7025204 [1] CASING ASS’Y T 4286874
00. 7025204 [1] CASING ASS’Y T 7024552
00A. +++++++ [1] CASING
00B. +++++++ [4] SPOOL
01. 4201915 [2] SPRING;COMPRES.
02. 4166686 [2] SPRING;COMPRES.
03. 4195421 [2] SPRING;COMPRES.
04. 4186544 [2] SPRING;COMPRES.
05. 4286796 [4] SPACER
06. 4173208 [20] SHIM
07. 4177896 [2] GUIDE;SPRING
08. 4286797 [2] GUIDE;SPRING
11. 9107447 [2] PUSHER ASS’Y
11A. 3058790 [1] BUSHING
11B. 4276152 [1] SEAL;OIL
11C. A810025 [1] O-RING
11D. 3058791 [1] PUSHER
12. 9108066 [2] PUSHER ASS’Y
12A. 3058790 [1] BUSHING
12B. 4276152 [1] SEAL;OIL
12C. A810025 [1] O-RING
12D. 3051298 [1] PUSHER
13. 4269475 [1] PLATE
15. 4184929 [4] PISTON
16. 4286874 [1] SEAL;WASHER
16. 4287626 [1] O-RING
17. A810060 [1] O-RING
18. 4184954 [1] PLATE
19. M341225 [1] BOLT;SOCKET
24. 4183035 [1] JOINT;UNIVERSAL Y 4285209
24. 4285209 [1] JOINT;UNIVERSAL
25. 4253746 [1] CAM
26. 4182067 [1] JOINT;SCREW
40. +++++++ [1] CLIP;BAND
