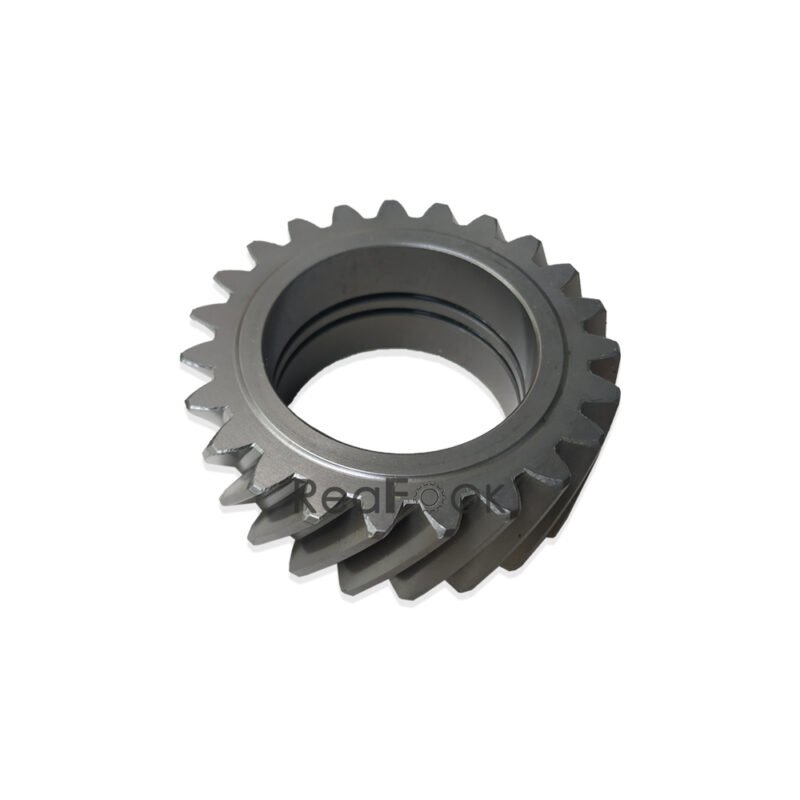

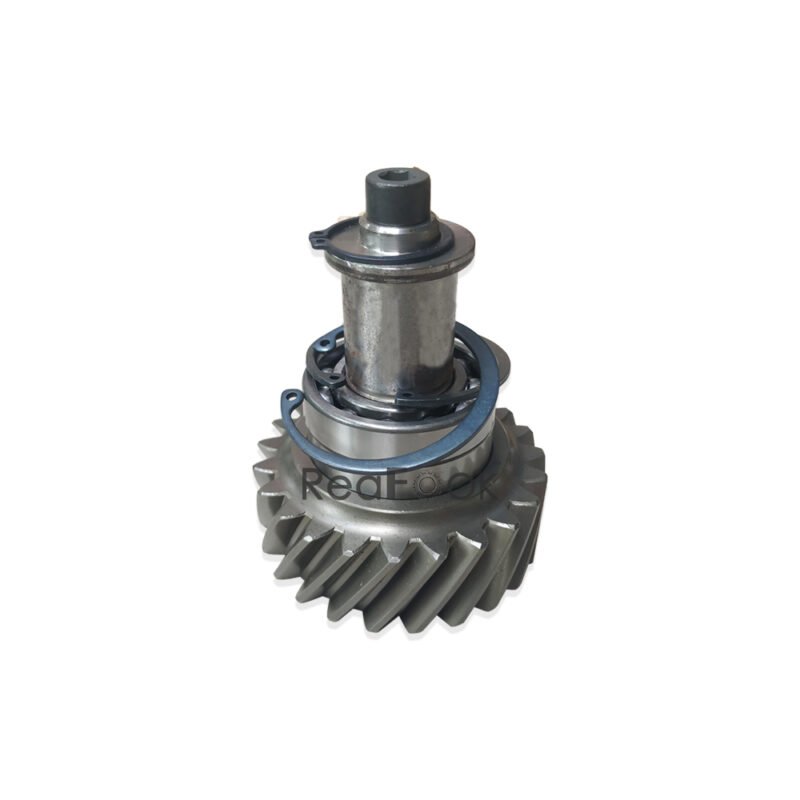

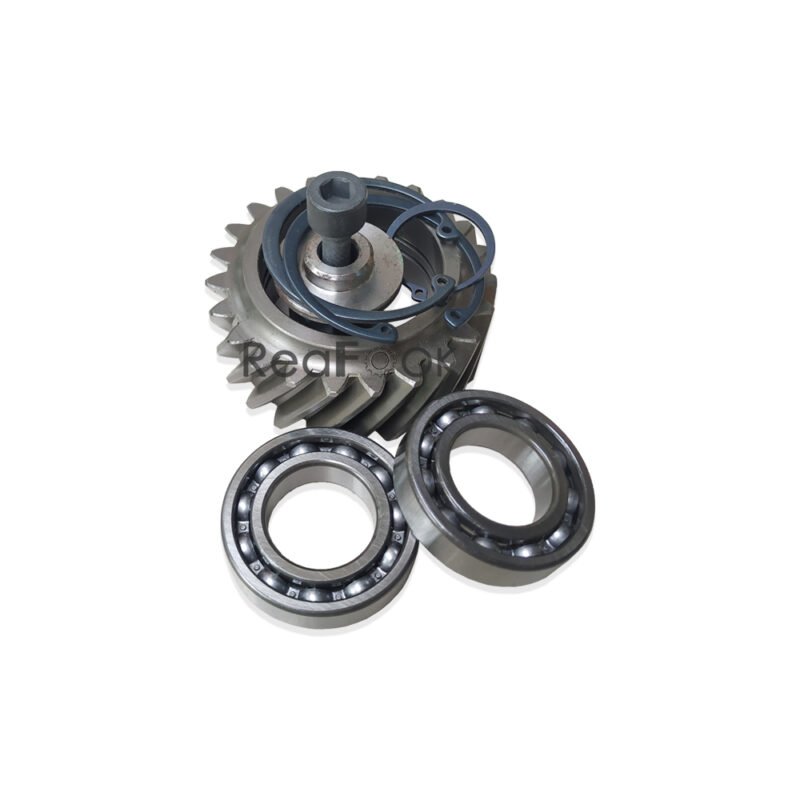

Intermediate Idle Gear Assy 65.05200-6034 DE08T Fit Excavator Doosan Solar 220LC-3 220 LC-V 250LC-V 290LC-V 300LC-V DX300LCA DX300-6

Product Name: Idle Gear Assy; Intermaediate
Reference Part Number: 65.05200-6034
Compatible Machine: Excavator Doosan Solar 170W-3 200W-3 220LC-3 220LC-V 250LC-V 290LC-V 290LL 300LC-V 300LL, DL300A DX300LCA DX300-6, Mega 250-V 300-V…

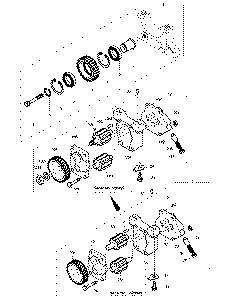

Pos. Part No Qty Parts name Comments
1. 65.05204-0036 [1] GEAR;IDLE
10. 65.05100-6022 [1] OIL PUMP ASS’Y
10A. 65.05102-0014 [1] HOUSING;OIL PUMP
10B. 65.05103-5015 [1] OIL PUMP COVER(FRONT)
10C. 65.05103-5012 [1] OIL PUMP COVER(REAR)
10D. 65.05410-0025 [1] PLUNGER;VALVE
10E. 65.97601-0110 [1] SPRING;COMPRESSION
10F. 65.90310-0104 [1] SCREW;PLUG
10G. 65.05104-5004 [1] GEAR;PUMP
10H. 65.05104-5003 [1] GEAR
10I. 06.01013-9118 [4] .. BOLT;HEX. M8X65
10J. 65.90510-0012 [4] NUT
10K. 65.05201-0037 [1] GEAR;OIL PUMP DRIVE
10L. 06.29141-0207 [1] KEY;WOODRUFF
10M. 06.22022-0909 [4] PIN;DOWEL 6M6X14
10N. 06.11053-9217 [1] NUT;HEX.
10O. 06.16050-0311 [1] WASHER;LOCK
2. 06.31420-0314 [2] BEARING;BALL
22. 06.22022-0907 [2] . PIN;DOWEL
23. 06.01013-9215 [2] BOLT;HEX. M10X50
24. 65.90801-0038 [2] WASHER;LOCK 65.90801-0018
24. 65.90801-0018 [2] WASHER;LOCK
3. 06.29020-0132 [2] . SNAP RING
4. 65.05205-0018 [1] PIN;IDLE GEAR
5. 06.29010-0125 [1] RING;SNAP 30X2
6. 65.90030-0009 [1] BOLT;SOCKET HEAD M10X60
7. 65.05100-6048 [1] OIL PUMP ASS’Y 65.05100-6022
7A. 65.05102-0014 [1] HOUSING;OIL PUMP
7B. 65.05103-0028 [1] OIL PUMP COVER(FRONT)
7C. 65.05103-0029 [1] OIL PUMP COVER(REAR)
7D. 65.05410-0007 [1] PLUNGER;VALVE
7E. 65.97601-0105 [1] SPRING;COMP.
7F. 65.90310-0104 [1] SCREW;PLUG
7G. 65.05104-5008 [2] GEAR
7H. 06.01013-9118 [4] .. BOLT;HEX. M8X65
7I. 06.22022-0909 [4] PIN;DOWEL 6M6X14
7J. 65.90510-0012 [4] NUT
7K. 65.05201-0037 [1] GEAR;OIL PUMP DRIVE
A. 65.05200-6034 [1] IDLE GEAR ASS’Y
