Travel Reduction Input Gear TZ502D1006-00 TZ500D1015-00 Shaft 14S Fit Excavator Komatsu PC60-7 PC70-7 PC75UU-3
Original price was: US$139.00.US$109.00Current price is: US$109.00.

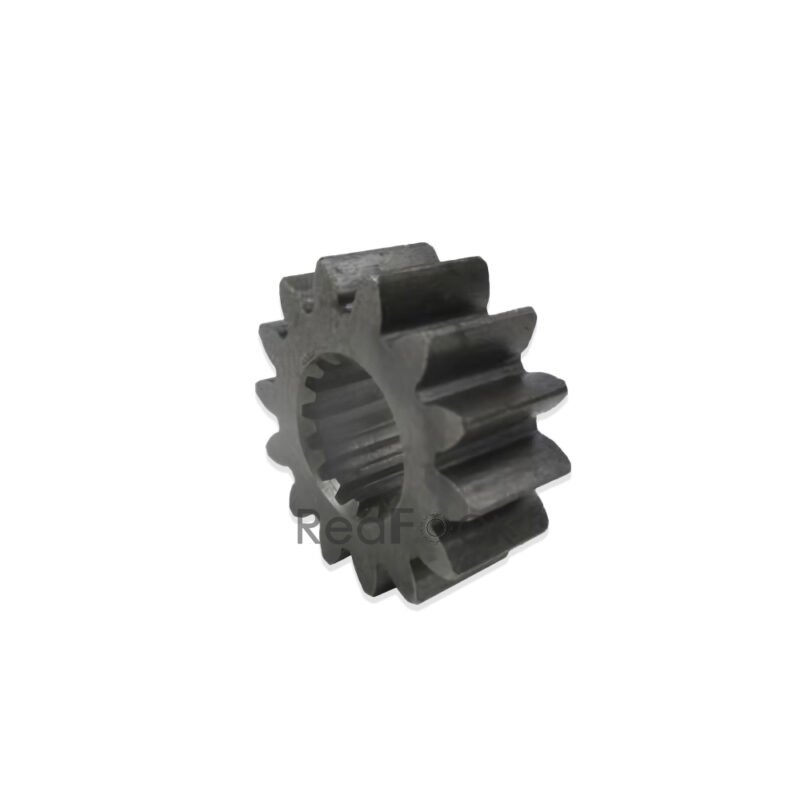

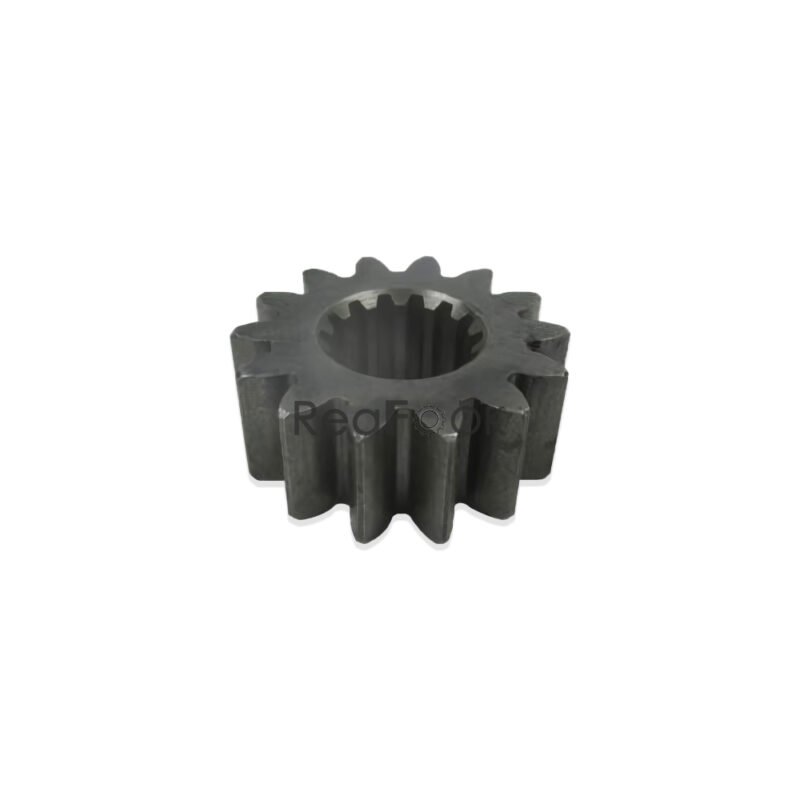

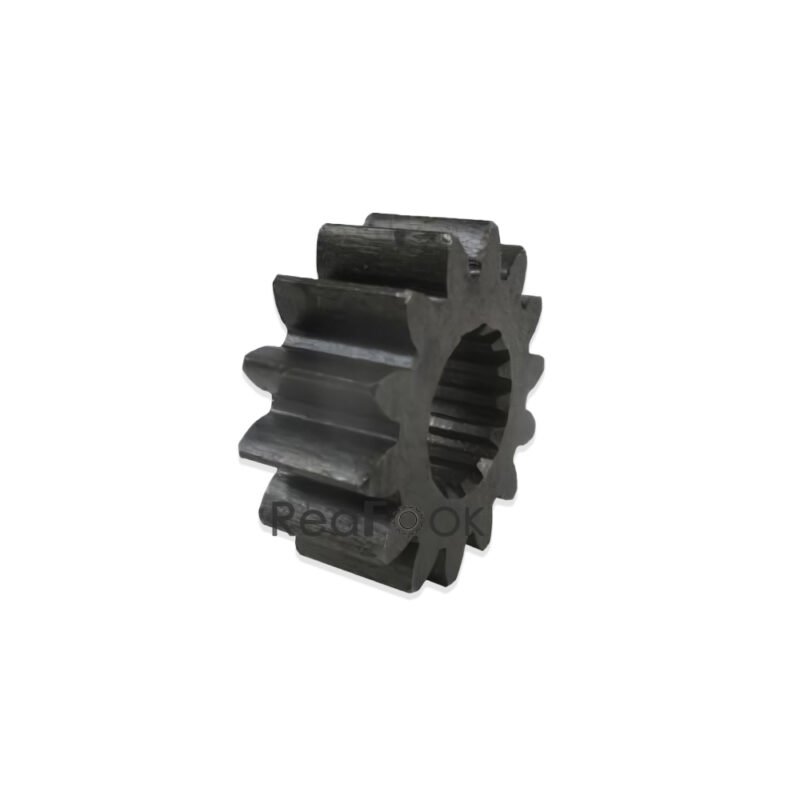

Input Gear TZ502D1006-00, Shaft TZ500D1015-00

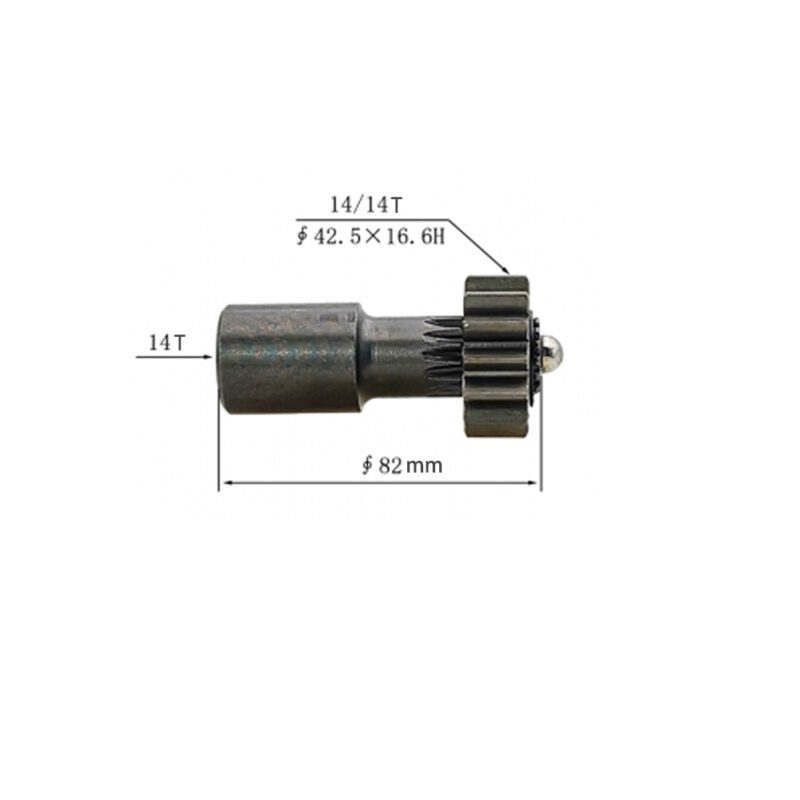

Gear: Outer 14S, Inner 14S, OD 42.5mm, Thickness 16.5mm;

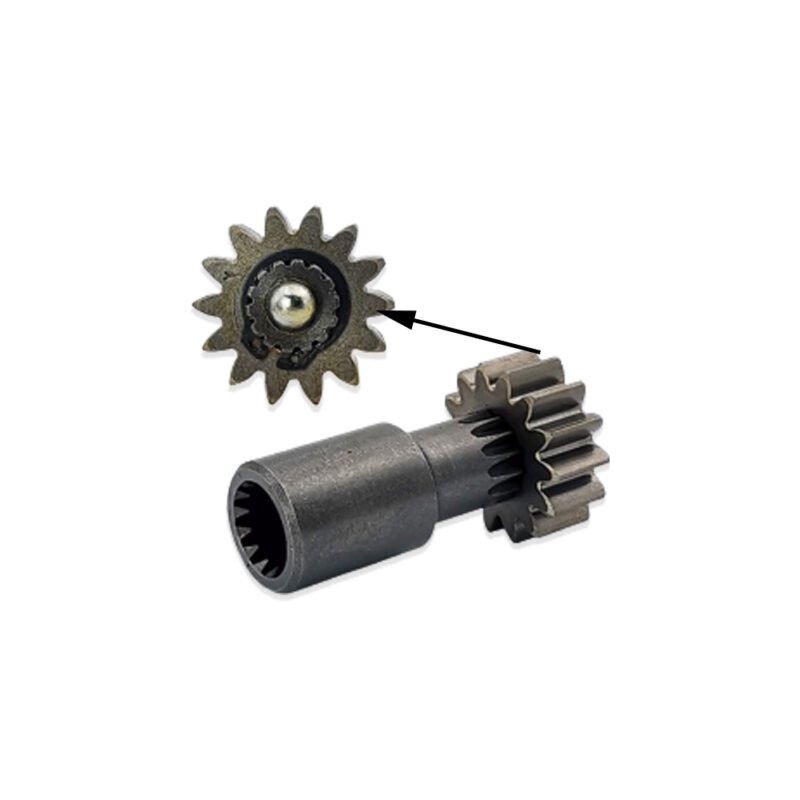

Shaft with Coupling: 14S/14S
Used in Final Drive Gearbox;
Free Shipping and High Quality Standards!!
Product Name: Input Gear and Shaft
Reference Part Number: TZ502D1006, TZ500D1015-00
Compatible Machine: Excavator Komatsu PC60-7 PC70-7 PC75UU-3…
Description:
A Sun Gear acts as a central Gear that meshes with the planetary Gears to transfer power and control the speed and torque output.
Pos. Part No Qty Parts name Comments
201-60-73500 [2] TRAVEL MOTOR ASS’Y
TZ502D1000-00 [1] FINAL ASS’Y
TZ500D1102-00 [1] SPINDLE KIT.
TZ500D1132-00 [1] SPINDLE ASS’Y
3. TZ500D1019-00 [3] BOLT,REAMER
TZ500D1104-00 [1] RV GEAR ASS’Y
TZ500D1204-00 [1] RV GEAR KIT
TZ502D1107-00 [1] SPUR GEAR KIT (3 PIECES)
TZES20423232-B [1] FLOATING SEAL ASS’Y (KIT)
12. TZ500D1001-00 [1] HUB
13. TZ502D1006-00 [1] GEAR,INPUT
14. TZ500D1008-00 [1] COVER
15. TZ500D1015-00 [1] SHAFT
16. TZ500D1017-00 [28] PIN
17. TZ810B1018-00 [1] RING
18. TZ860A1013-00 [3] SNAP RING SET (15 KINDS)
19. TZ500D1021-00 [2] BEARING
20. TZJB2804-S19 [1] RING,SNAP
21. 04064-02512 [6] RING,SNAP
22. 07000-11008 [2] O-RING (KIT) analogs: [“0700001008”, “2016018950”]
23. 07000-15230 [1] O-RING (KIT) analogs: [“0700005230”]
24. TZJW1516-G35-5 [1] O-RING (KIT)
25. TZ410D1033-00 [1] PLUG
26. TZ810B2021-00 [2] PLUG
27. 07000-12014 [3] O-RING(KIT) analogs: [“0700002014”]
28. 04260-00952 [1] BALL
29. TZJB1354-8-22 [2] PIN Komatsu
K. TZ505D9000-00 [2] SEAL KIT
| Weight | 1 kg |
|---|
