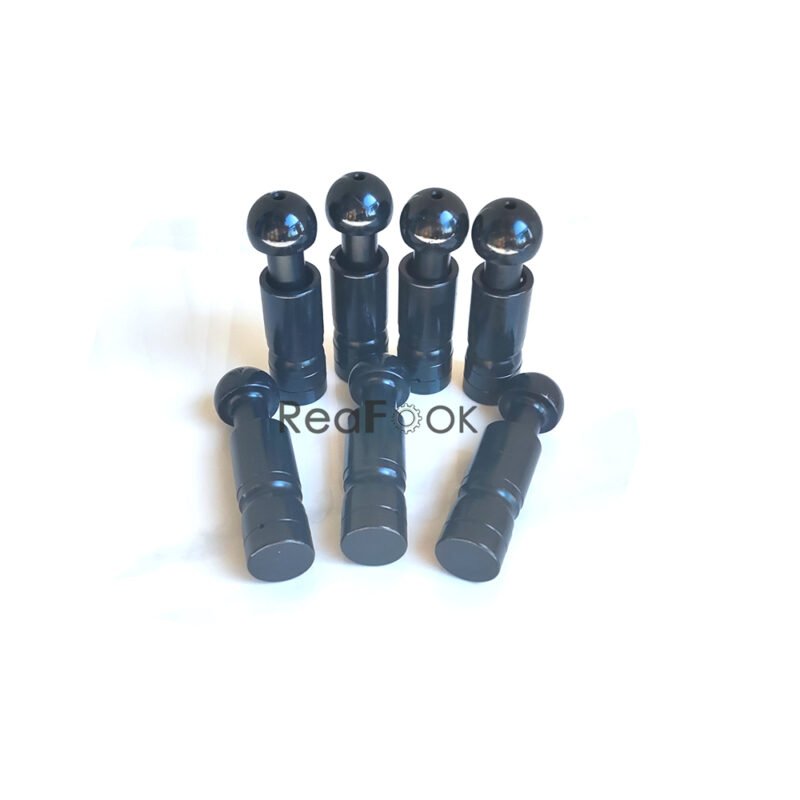

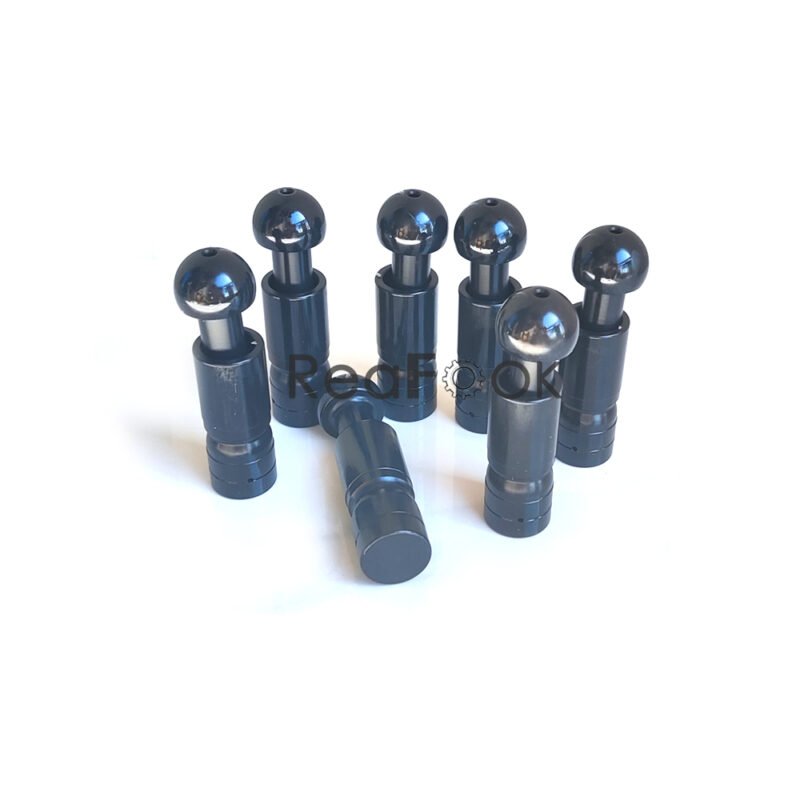

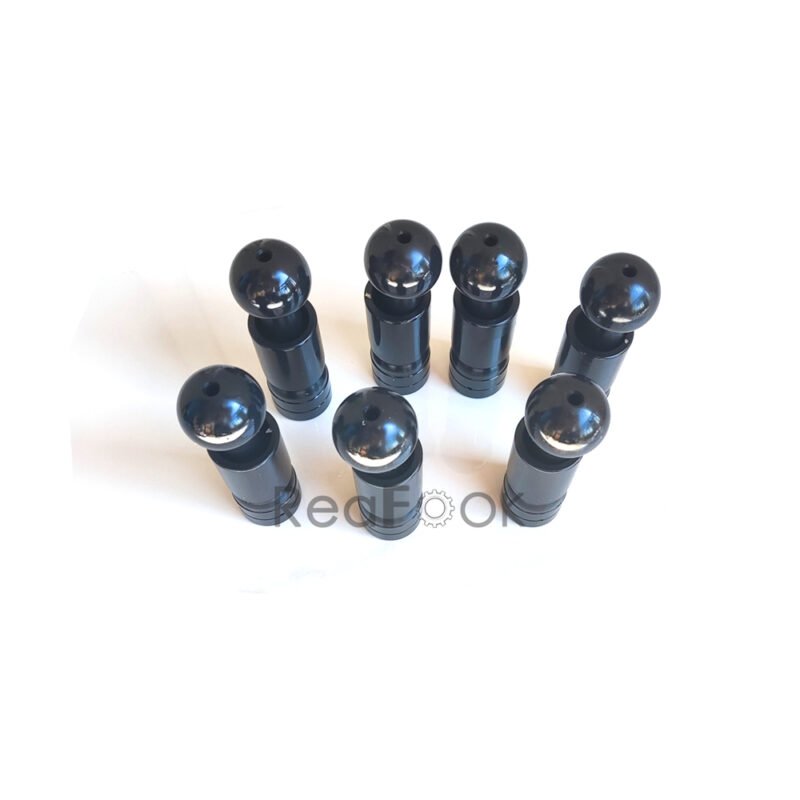

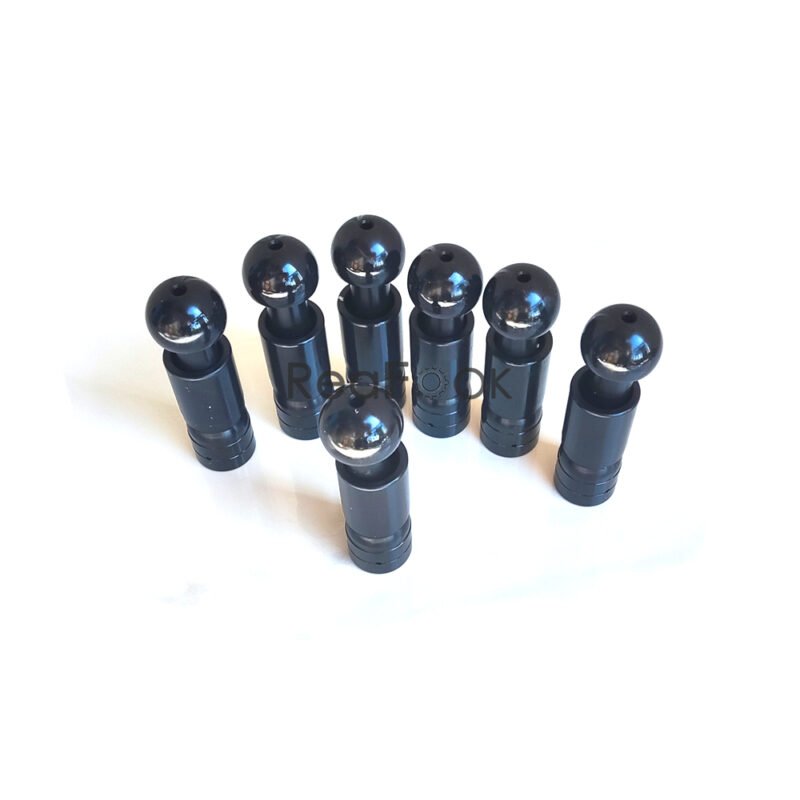

Hydraulic Pump Piston 8059452 AT214351 7PCS HPV102 Fit Excavator Hitachi EX200-5 EX220-5 John Deere 200LC 225CLC 230LC

Product Name: Piston (7PCS)
Reference Part Number: 8059452 AT214351, HPV102
Compatible Machine: Excavator Hitachi EX200-5 EX220-5, John Deere 200LC 225CLC 230LC…

Description:
A Piston assembly is a device used in hydraulic systems to convert fluid power into mechanical force. It usually consists of a piston, piston rod, cylinder, and a seal. The piston is a cylindrical component that fits tightly within the cylinder bore and is moved by the hydraulic pressure of the fluid. The piston rod is connected to the piston and extends from the cylinder to transfer the force generated by the piston to the external load. The cylinder is a hollow tube that contains the piston and allows it to move back and forth within it.

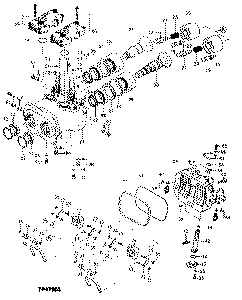

Pos. Part No Qty Parts name Comments
1. …….. [1] Housing SUB AT183691 PUMP ASSEMBLY
1. 1032319 [1] Housing
3. 2036807 [1] Disk SUB FOR AT213734
3. 2043207 [1] Drive Disk
4. 2036808 [1] Disk SUB FOR AT213735
4. 2043211 [1] Drive Disk
6. 4337419 [2] Cylindrical Roller Bearing SUB FOR AT213873
6. 4410050 [2] Spherical Roller Bearing
7. 4348182 [2] Ring SUB FOR AT213920
7. 4339171 [2] Ring
8. 4337483 [2] Cylindrical Roller Bearing SUB FOR AT213874
8. 4622945 [2] Spherical Roller Bearing
9. 4178173 [2] Nut M60 SUB FOR T107755
10. 4330054 [1] Thrust Washer 115 X 130 X 3 MM (4.528″ X 5.118″ X 0.118″) SUB FOR AT202466 OR AT170630
12. T225266 [2] Seal SUB FOR AT213847 OR 4333170
13. 4116290 [2] Snap Ring SUB FOR TH111929
15. 4233165 [2] Fitting SUB FOR AT154164
16. M800650 [2] Packing
19. 8059452 [14] Piston SUB FOR AT214351
21. 4337035 [2] Shaft SUB FOR AT213871
22. 4198956 [2] Pin Fastener 5 X 10 MM (0.197″ X 0.394″) SUB FOR T107766
23. 4179181 [2] Compression Spring SUB FOR T107767
25. 2036744 [2] Rotor SUB FOR AT213730
27. 2036795 [1] Flow Control Hyd. Valve SUB FOR AT213733
28. 2036786 [1] Flow Control Hyd. Valve SUB FOR AT213732
29. 4179179 [4] Dowel Pin SUB FOR TH109874
31. 3075674 [2] Link SUB FOR AT213793
32. 9724756 [4] Lever SUB FOR TH109873
33. 4179177 [4] Dowel Pin 6 X 9.500 MM (0.236″ X 0.374″) SUB FOR TH109875
34. 4179176 [2] Dowel Pin 6 X 44 MM (0.236″ X 1.732″) SUB FOR TH109876
35. CH17951 [12] Ring
36. 4200227 [2] Dowel Pin SUB FOR TH109878
41. 1020623 [1] Cylinder Head SUB FOR AT213721
42. 3069541 [2] Piston SUB FOR AT213762
43. 4338053 [2] Pin SUB FOR AT213876
44. 4337812 [2] Set Screw SUB FOR AT213875
46. 4355085 [2] O-Ring SUB FOR AT213975
47. 4338060 [2] Stop SUB FOR AT213877
50. 4355083 [2] O-Ring SUB FOR AT213974 OR 0444001
51. 4338061 [2] Cover SUB FOR AT213878
54. CH11560 [20] Packing
55. 19M8439 [16] Screw M8 X 25
56. 4514388 [16] Spring Washer SUB FOR TH101835
57. 3070581 [1] Packing SUB FOR AT213767
58. 34M7061 [2] Spring Pin 8 X 20 MM
59. 4342840 [1] O-Ring SUB FOR AT213890
60. 19M8341 [12] Screw M12 X 45
64. 4436271 [2] Sensor SUB FOR AT175981 OR 4355012 PUMP PRESSURE
64A. TH102560 [1] O-Ring 15.800 X 2.400 MM (0.622″ X 3/32″) SUB FOR AT175984
67. 9134110 [2] Fitting SUB FOR AT203649
67A. M800650 [1] Packing
69. 9152669 [2] Regulator SUB FOR AT214395
72. 34M3845 [4] Spring Pin 4 X 10 MM
73. 4343074 [4] O-Ring SUB FOR AT213894
74. 4348665 [2] O-Ring SUB FOR AT213922
80. 9134111 [2] Fitting SUB FOR AT203648
80A. CH11570 [1] O-Ring 13.800 X 2.400 MM (0.543″ X 3/32″)
82. 4252767 [1] Bracket SUB FOR AT154206
83. 0209423 [1] Bolt SUB FOR TH100738
84. 12M7133 [1] Lock Washer 6 MM SUB FOR 12M7129
