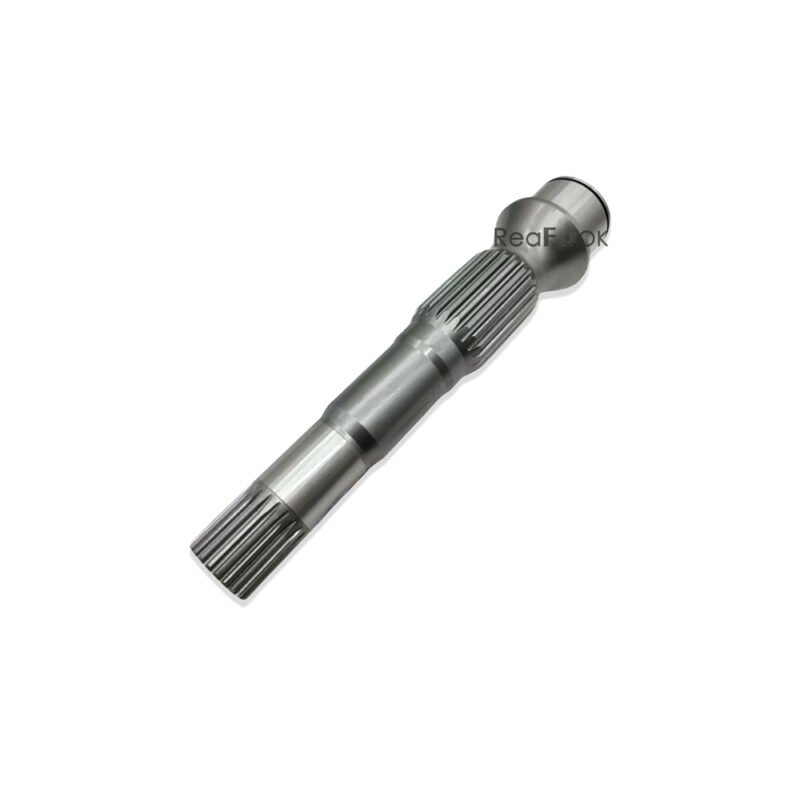

Hydraulic Piston Pump Rear Shaft 708-2L-32170 Drive Shaft Fit Excavator Komatsu PC200-8 PC200-8MO PC200LC-8 PC220-8 PC220LC-8 PC228US-8

Product Name: Rear Drive Shaft
Reference Part Number: 708-2L-32170
Compatible Machine: Excavator Komatsu PC200-8 PC200-8MO PC200LC-8 PC220-8 PC220LC-8 PC228US-8…

Description:
Hydraulic Piston Pump Drive Shaft transfers rotational motion to drive the hydraulic piston pump’s pistons for fluid flow.

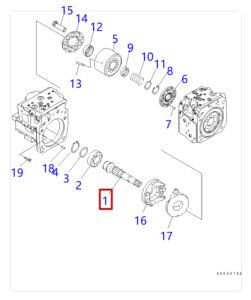

Pos. Part No Qty Parts name Comments
708-2L-00500 [1] PUMP ASS’Y 145kg
708-2L-01500 [1] PUMP SUB ASS’Y
1. 708-2L-32170 [1] SHAFT,REAR 2.1 kg. [“SN: 310001-UP”]
2. 708-2L-32150 [1] BEARING 0.6 kg. [“SN: 310001-UP”] analogs: [“7082E12152”, “7082L22150”, “7082512731”]
3. 708-2E-05040 [1] WASHER KIT 0.101 kg. [“SN: 310001-UP”] analogs: [“7082E12190”]
4. 708-25-12790 [1] RING,SNAP 0.006 kg.
5-6. 708-2L-06480 [1] BLOCK ASS’Y,REAR (Cylinder Block with Valve Plate) 5.26 kg.
5-6. 708-2L-06470 [1] BLOCK ASS’Y, FRONT (Cylinder Block with Valve Plate) 5.26 kg.
7. 720-68-19610 [1] PIN 0.002 kg.
8. 04065-04818 [1] RING,SNAP
9. 708-2L-23131 [1] SEAT 0.073 kg.
10. 708-2L-33160 [1] SPRING 0.12 kg.
11. 708-7L-13140 [1] SEAT 0.02 kg.
12. 708-2L-23351 [1] GUIDE,RETAINER 0.14 kg.
13. 708-2L-23360 [3] PIN 0.003 kg.
14. 708-2L-33350 [1] RETAINER,SHOE 0.3 kg.
15. 708-2L-33430 [9] PISTON SUB ASS’Y 0.209 kg.
708-2L-06630 [1] CRADLE ASS’Y 4.3 kg.
18. 04020-01228 [1] PIN,DOWEL 0.026 kg [“SN: 310001-UP”] analogs: [“21T3016190”]
19. 01252-61230 [4] BOLT 0.044 kg
