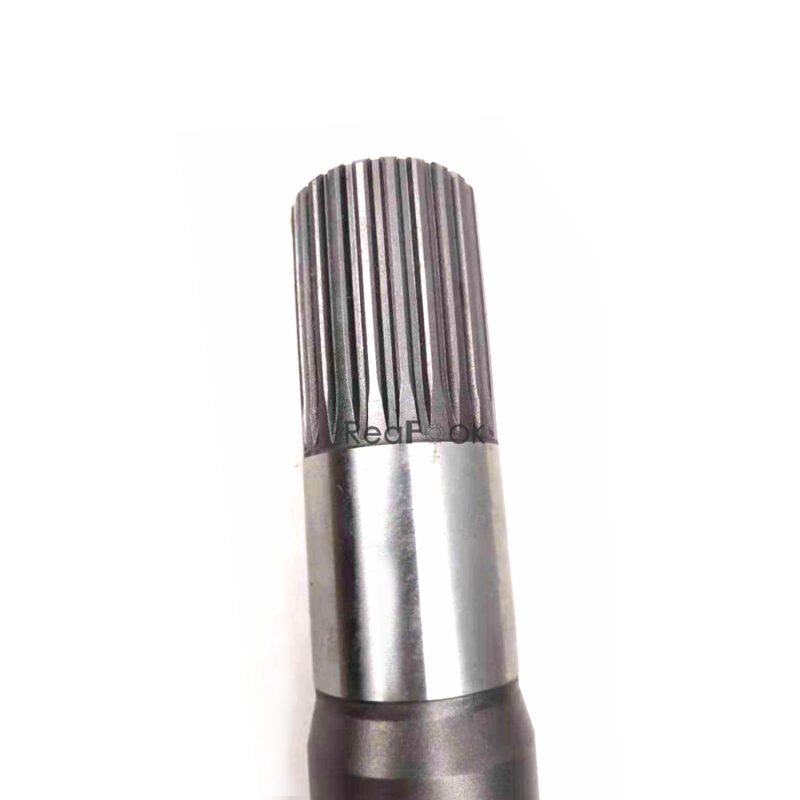

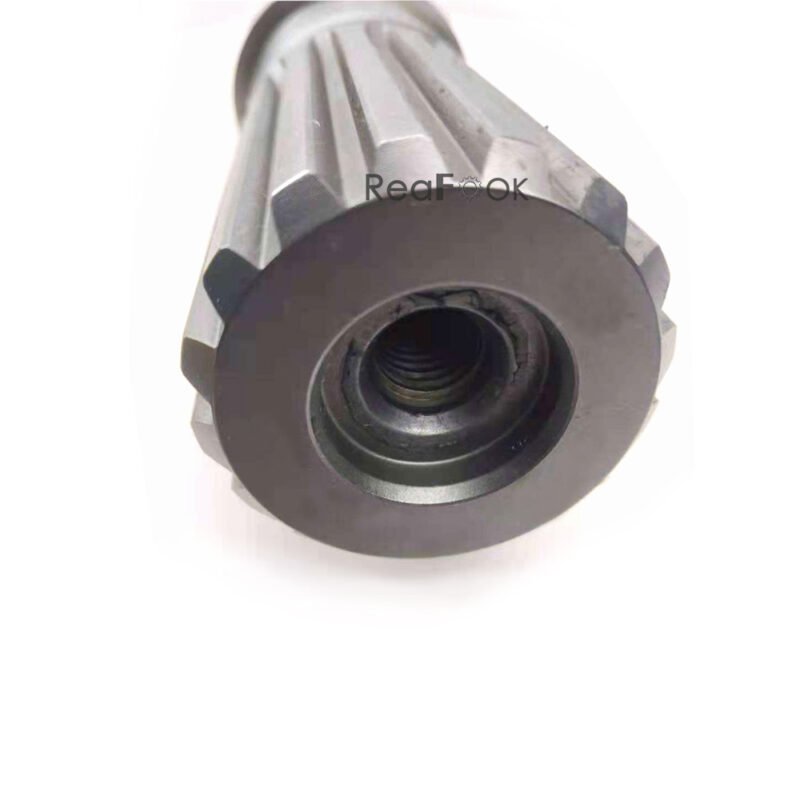

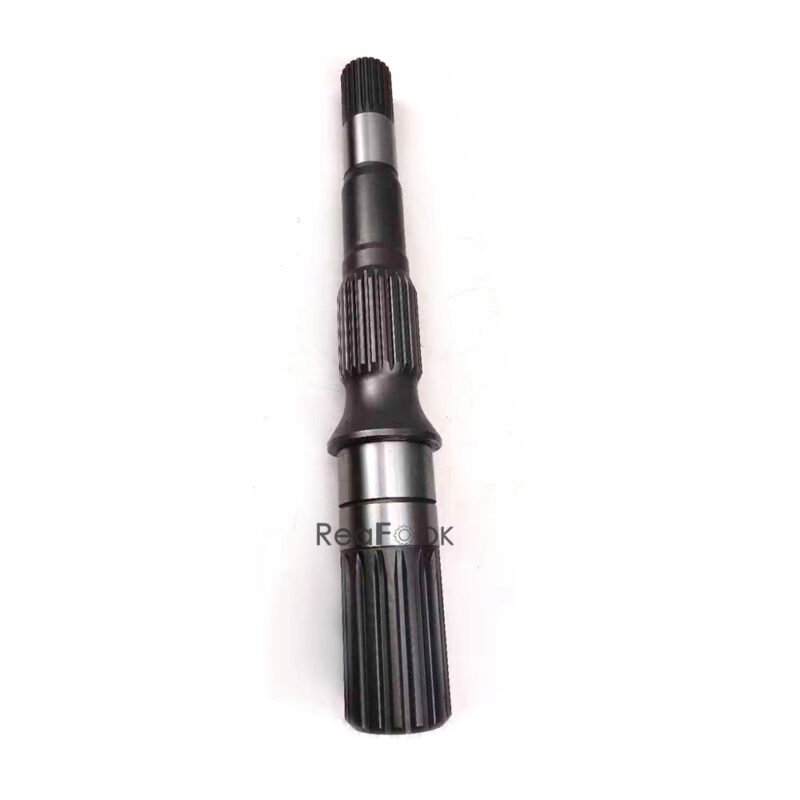

Hydraulic Piston Pump Front Shaft 708-2L-32160 Drive Shaft Fit Excavator Komatsu PC200-8 PC200-8MO PC200LC-8 PC220-8 PC220LC-8 PC228US-8

Product Name: Front Drive Shaft
Reference Part Number: 708-2L-32160
Compatible Machine: Excavator Komatsu PC200-8 PC200-8MO PC200LC-8 PC220-8 PC220LC-8 PC228US-8…

Description:
Hydraulic Piston Pump Drive Shaft transfers rotational motion to drive the hydraulic piston pump’s pistons for fluid flow.

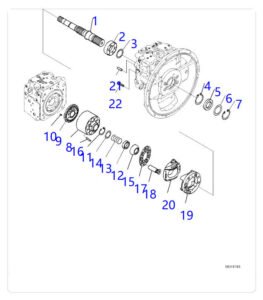

Pos. Part No Qty Parts name Comments
708-2L-00500 [1] PUMP ASS’Y 145kg
708-2L-01500 [1] PUMP SUB ASS’Y
1. 708-2L-32160 [1] SHAFT,Front 2.1 kg. [“SN: 310001-UP”]
2. 708-2L-32150 [1] BEARING 0.6 kg. [“SN: 310001-UP”] analogs: [“7082E12152”, “7082L22150”, “7082512731”]
3. 708-2E-05040 [1] WASHER KIT 0.101 kg. [“SN: 310001-UP”] analogs: [“7082E12190”]
4. 708-25-12790 [1] RING,SNAP 0.006 kg.
5. 708-2L-32460 [1] Seal, Oil
6. 708-2L-22160 [1] Spacer 0.047 kg.
7. 04065-06825 [1] Ring, Snap 0.018 kg.
708-2L-06470 [1] Block Assembly,Front 5.26 kg.
10. 720-68-19610 [1] Pin 0.002 kg.
11. 04065-04818 [1] Ring, Snap 0.007 kg.
12. 708-2L-23131 [1] Seat Komatsu 0.073 kg.
13. 708-2L-33160 [1] Spring 0.12 kg. analogs:[“7082L23151”]
14. 708-7L-13140 [1] Seat Komatsu 0.02 kg.
15. 708-2L-23351 [1] Guide, Retainer0.14 kg.
16. 708-2L-23360 [3] Pin
17. 708-2L-33350 [1] Retainer, Shoe 0.3 kg.
18. 708-2L-33430 [9] Piston Sub assembly 0.209 kg.
708-2L-06630 [1] Cradle Assembly 4.3 kg.
21. 04020-01228 [1] Pin, Dowelm0.026 kg. analogs:[“21T3016190”]
22. 01252-61230 [4] Bolt, Hexagon Socket Head 0.044 kg.
