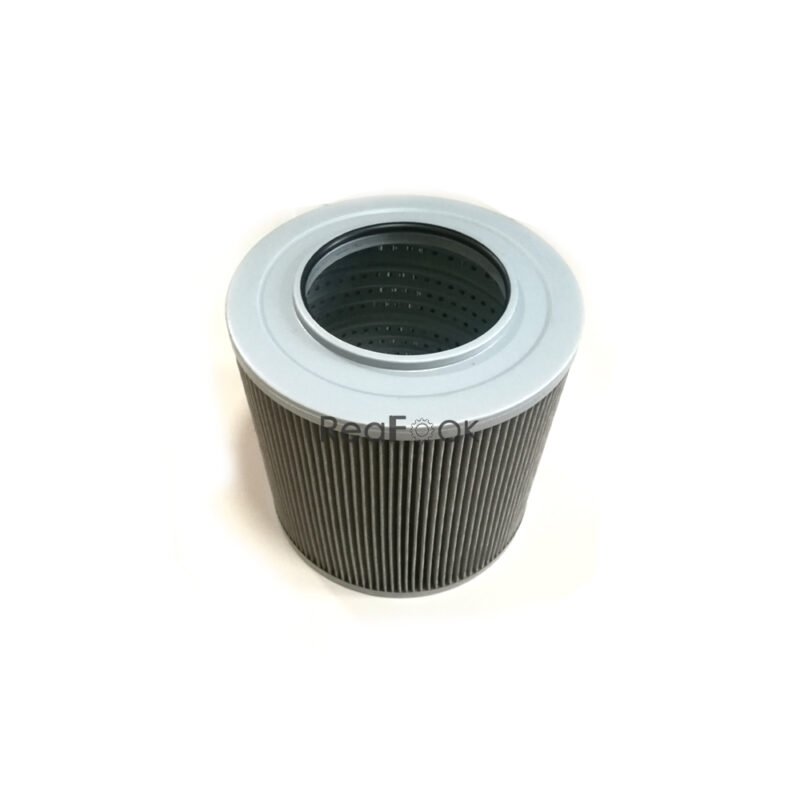

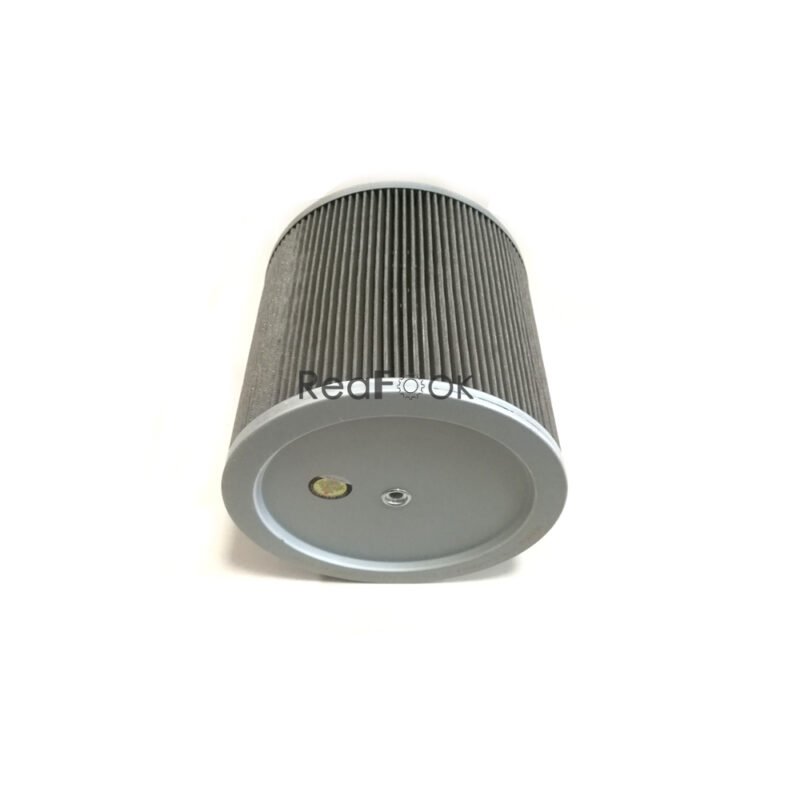

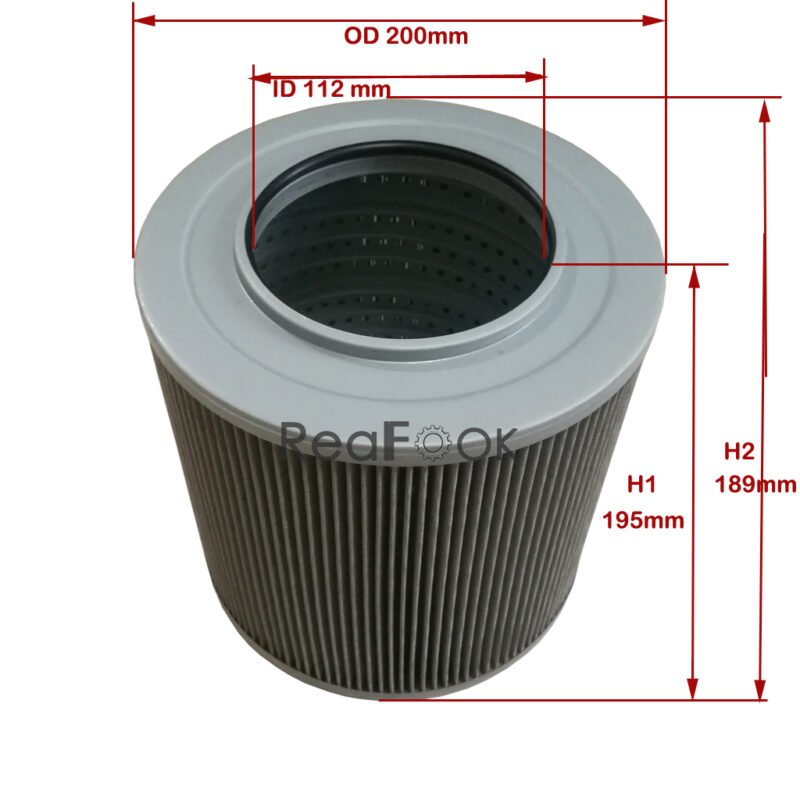

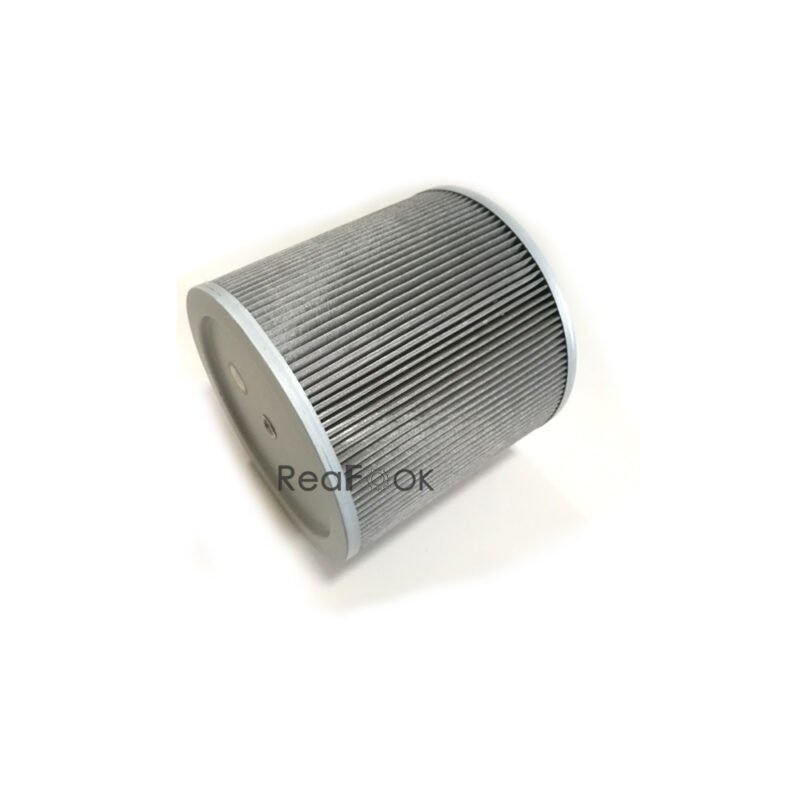

Hydraulic Oil Tank Suction Filter 2471-9401A Fit Excavator Doosan Solar 300LC 450LC 500LC-5 DX300LC DX340LC DX420LC DX520LC
US$69.00
Suction Filter 2471-9401A 400408-00048;
It’s used for Hydraulic Oil Tank;
Free Shipping and High Quality Standards!!
| Quantity | Discount (%) | Price |
|---|---|---|
| 1 - 9 | — | US$69.00 |
| 10 - 19 | 24.64 % | US$52.00 |
| 20+ | 42.03 % | US$40.00 |
Product Name: Suction Filter
Reference Part Number: 2471-9401A, 400408-00048
Compatible Machine: Excavator Doosan Solar 300LC 330LC 400LC 450 LC 500LC-5, DX300LC DX340LC DX350LC DX380LC DX420LC DX520LC…
Description:
Hydraulic Oil Filter Suction Screen efficiently removes debris and contaminants from hydraulic oil, ensuring smooth operation and prolonging the lifespan.
Pos. Part No Qty Parts name Comments
-. 470-00183G [-]
1. 470-00179B [1] TANK;OIL
10. S0512066 [6] . BOLT
11. S5102603 [6] . WASHER
12. 473-00046 [1] COVER
13. S8012200 [1] O-RING
14. 2136-1433 [1] ROD
15. 2129-1008 [1] SPRING,COMPRESS
16. 140-01559A [1] PIPE
17. 2471-9401A [1] FILTER;SUCTION
18. 2181-1950D7 [1] . PLUG
19. S8000181 [1] O-RING
2. S0565466 [6] BOLT
20. 119-00025B [1] GAUGE,LEVEL
21. K1012685A [1] BREATHER;AIR
21A. K9005662 [1] . GASKET
21B. K1029257 [1] ELEMENT;AIR BREATHER
22. S8011650 [1] O-RING
23. 114-00425 [6] SPACER
24. 2120-2166D41 [6] BOLT
25. K1003296 [1] SENSOR,HYD OIL TEMP
26. 471-00127 [1] STRAINER;BY-PASS
27. K1007957 [12] . BOLT;SET
3. 114-00522 [3] SHIM
4. 114-00523 [3] SHIM
5. 473-00047A [1] COVER
6. S8012300 [1] O-RING
7. 2129-1393 [1] SPRING
8. 2426-1175 [1] VALVE;BY-PASS
9. 474-00056 [1] ELEMENT;FILTER
| Weight | 1.5 kg |
|---|
You must be logged in to post a review.
Recently Viewed
Hydraulic Oil Tank Air Breather 400811-00087 422-00027A K1012685A Fit Doosan Daewoo Excavator
Price range: US$55.00 through US$65.00Select options This product has multiple variants. The options may be chosen on the product page
Related products

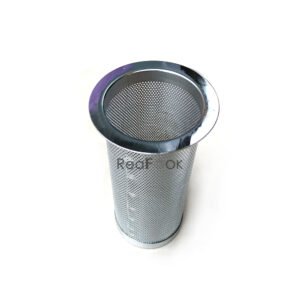

Filter Strainer 2446R326 Fit Excavator Kobelco SK60 SK100 SK120 SK150 SK200 SK220 SK300 SK330LC Mark III
