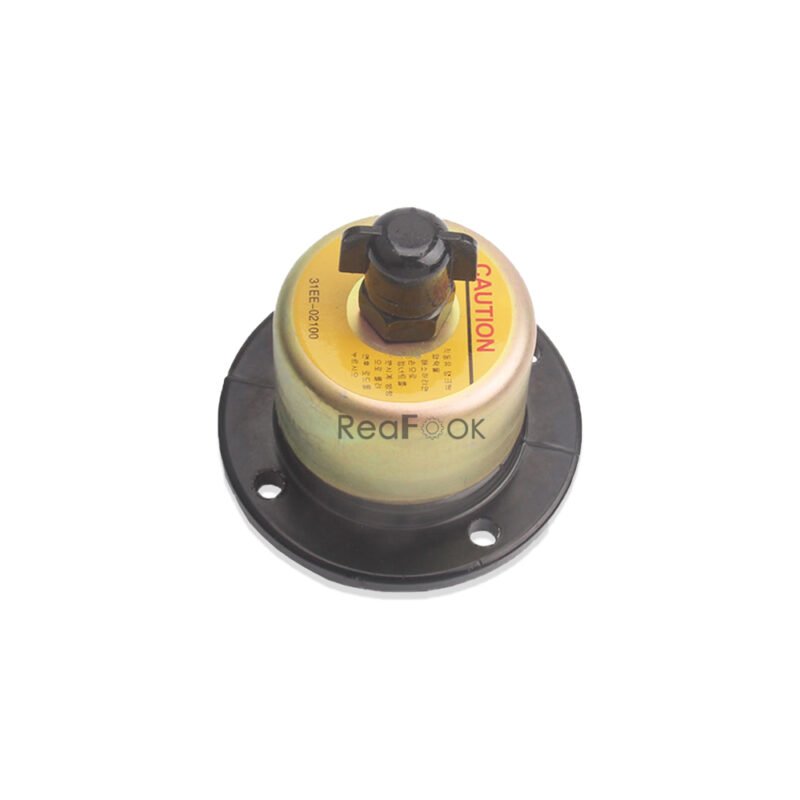

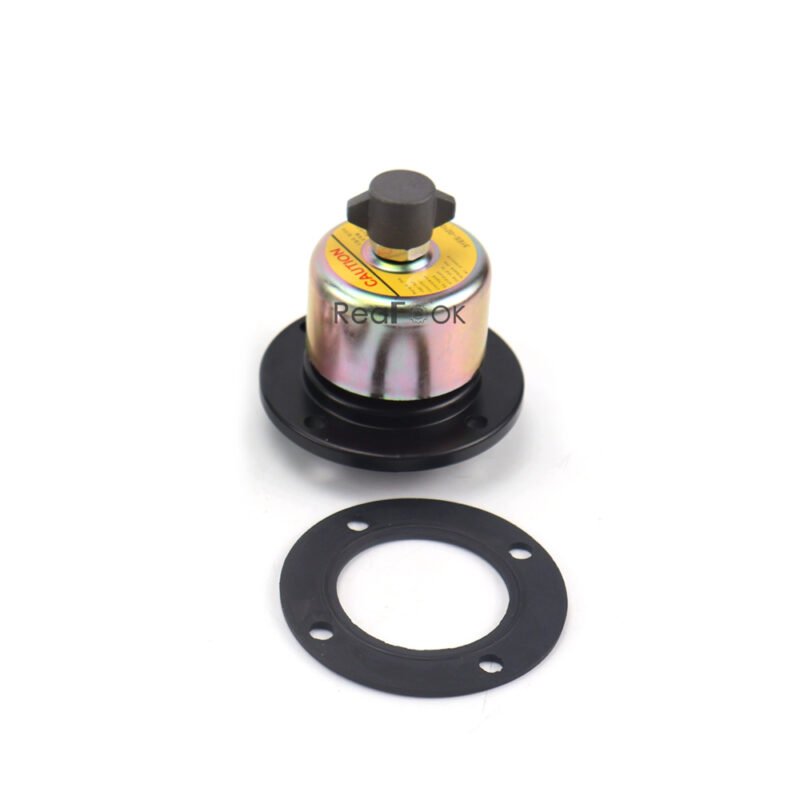

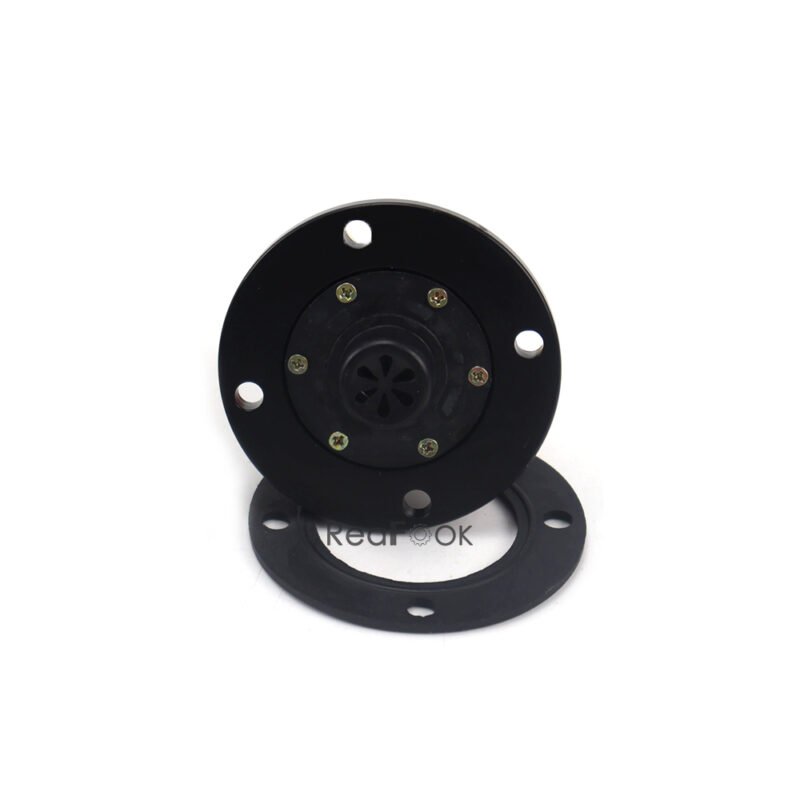

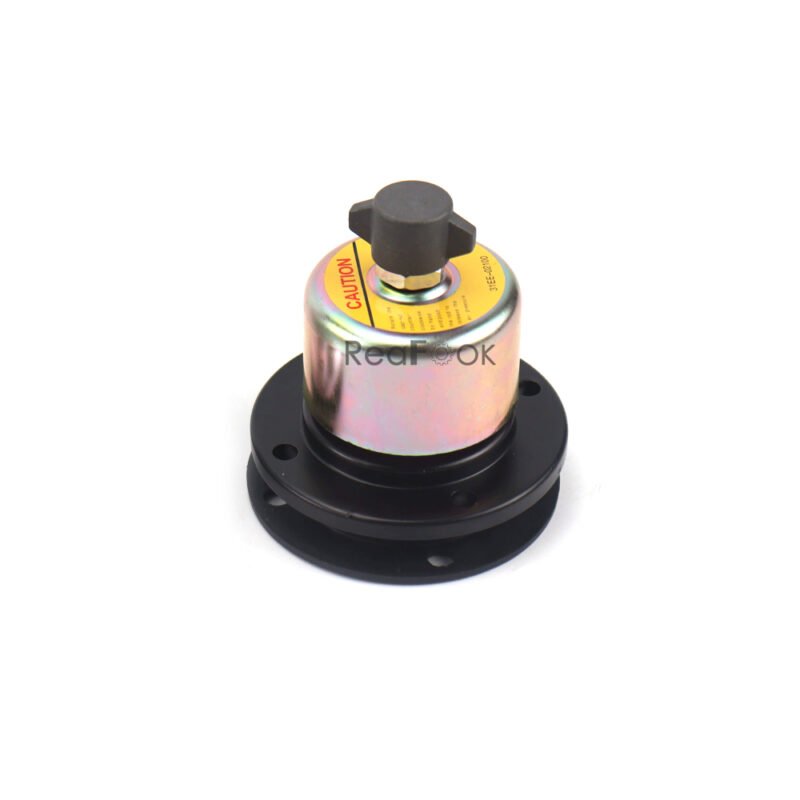

Hydraulic Oil Tank Air Breather 31EE-02100 Fit Excavator Case CX57C CX60C Hyundai R210LC-7
US$55.00
Air Breather 31EE-02100;
It’s used for Hydraulic Oil Tank Assy;
Free Shipping and High Quality Standards!!
| Quantity | Discount (%) | Price |
|---|---|---|
| 1 | — | US$55.00 |
| 2 - 4 | 18.18 % | US$45.00 |
| 5 - 9 | 36.36 % | US$35.00 |
| 10 - 49 | 45.45 % | US$30.00 |
| 50+ | 63.64 % | US$20.00 |
Product Name: Breather
Reference Part Number: 31EE-02100
Compatible Machine: Excavator Case CX57C CX60C, Hyundai R210LC-7…

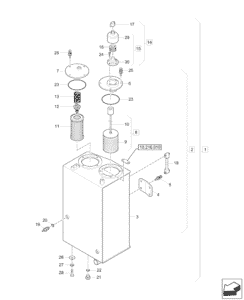

Pos. Part No Qty Parts name Comments
1. 3KML-03100 [1] TANK SM ASSY, Incl 2, 8, 11 – 14, 18 – 25
2. 3LML-03100 [1] TANK SM ASSY, Incl 3 – 7
3. 31ML-01017CG [1] TANK SM
4. 31ML-01141CG [1] PLATE SM
5. S037-122526 [4] BOLT FAR
6. 31ML-01230CG [1] COVER SM
7. 31ML-01240CG [1] COVER SM
8. 31ML-01210 [1] FILTER STRAINER SM ASSY, Incl 9, 10
9. 31M5-70020 [1] VALVE SECTION SM
10. 014279 [1] BOLT SM
11. 31RF-10500 [1] ELEMENT SM
12. 31M5-00240 [1] HYDRAULIC VALVE SM
13. 31M9-01300 [1] SPRING SM
14. 31EE-02100 [1] BREATHER SM ASSY, Incl 15 – 17
15. PM102-0001R [1] BREATHER SM ASSY, Incl 29, 30
16. 31EE-02110 [1] FILTER SM
17. XKCT-00001 [1] NUT SM
18. 33Q6-02700 [1] GAUGE SM
19. 21EN-40100 [1] TEMPERATURE SENDER FAR
20. 21EA-50260 [1] PACKING FAR
21. P220-110104 [1] PLUG FAR
22. S631-018004 [1] O-RING FAR
23. S632-135001 [2] O-RING SM
24. S109-060156 [4] BOLT SM
25. S037-102526 [8] BOLT,M10 x 1.5 x 25mm FAR
26. 31N8-01300 [4] SHIM SM
27. S441-160006 [4] WASHER FAR
28. S017-16035D [4] BOLT SM
29. NSS [1] NOT SOLD SEPARAT CON Cover, Incl in 15
30. NSS [1] NOT SOLD SEPARAT CON Flange, Incl in 15
| Weight | 0.6 kg |
|---|
