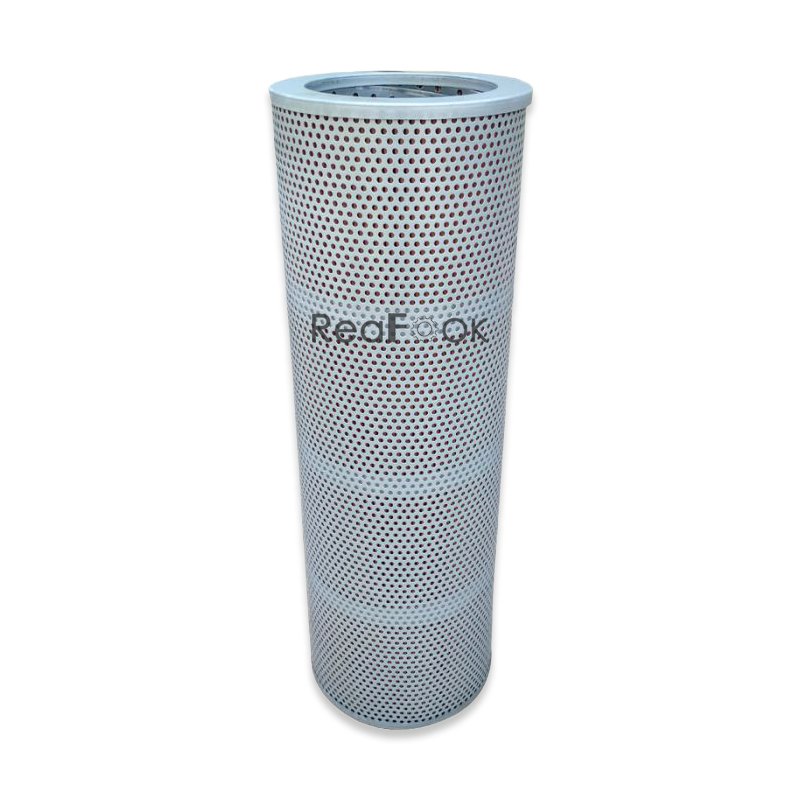

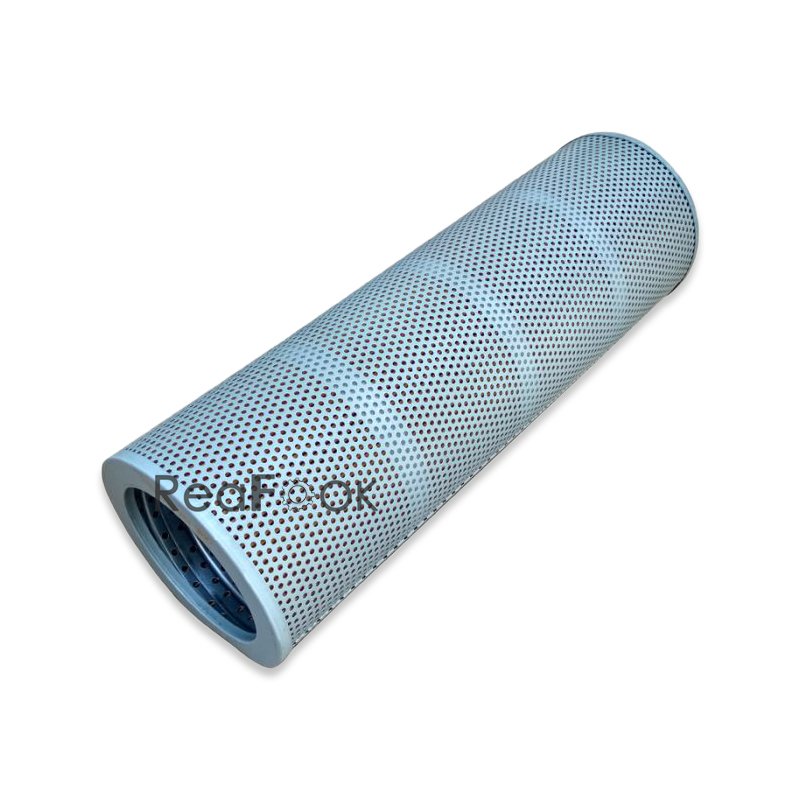

Hydraulic Oil Filter Element 4261569 Fit Excavator Hitachi EX200-2 EX200-3 EX200-3C EX200-3E EX220-2 EX220-3
US$89.00
Hydraulic Oil Filter Element 4261569;
ID 110mm, OD150mm, Height 450mm;
It’s used for Hydraulic Oil Tank;
Free Shipping and High Quality Standards!!
Product Name: Hydraulic Oil Filter
Reference Part Number: 4261569
Compatible Machine: Excavator Hitachi EX200-2 EX200-3 EX200-3C EX200-3E EX220-2 EX220-3…
Description:
The Return Hydraulic Oil Filter Element is used in the Hydraulic Tank to provide effective filtration to remove contaminants from the hydraulic fluid as it returns to the Tank.

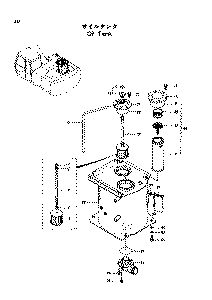

Pos. Part No Qty Parts name Comments
00. 5003117 [1] TANK;OIL
01. J901640 [4] BOLT
02. A590916 [4] WASHER;SPRING
04. J222016 [4] WASHER
06. 4287061 [1] ELEMENT;FILTER
06A. 4261569 [1] ELEMENT;FILTER
06B. A810190 [1] O-RING
07. 4180414 [1] VALVE
08. 4226549 [1] SPRING
10. 4204057 [1] COVER
12. J011018 [6] BOLT
15-01. 4121125 [1] CAP
15-02. 4294701 [1] CAP
15A. 4292827 [1] NAME-PLATE
19. 8049319 [1] COVER
20. A810160 [1] O-RING
21. J011022 [6] BOLT
22. 4199012 [1] FILTER;SUCTION
22A. 4210224 [1] STRAINER
22B. 4299663 [1] ROD
22C. J950010 [3] NUT
23. 934333 [1] O-RING
24. 2028427 [1] PIPE;SUCTION
25. 94-2011 [1] PLUG
26. J011025 [5] BOLT
28. 8053499 [1] GAUGE;LEVEL
28A. 4100967 [2] BOLT
29. 449558 [4] WASHER;SEAL
31. 4149677 [1] HOSE;VINYL
| Weight | 2 kg |
|---|
