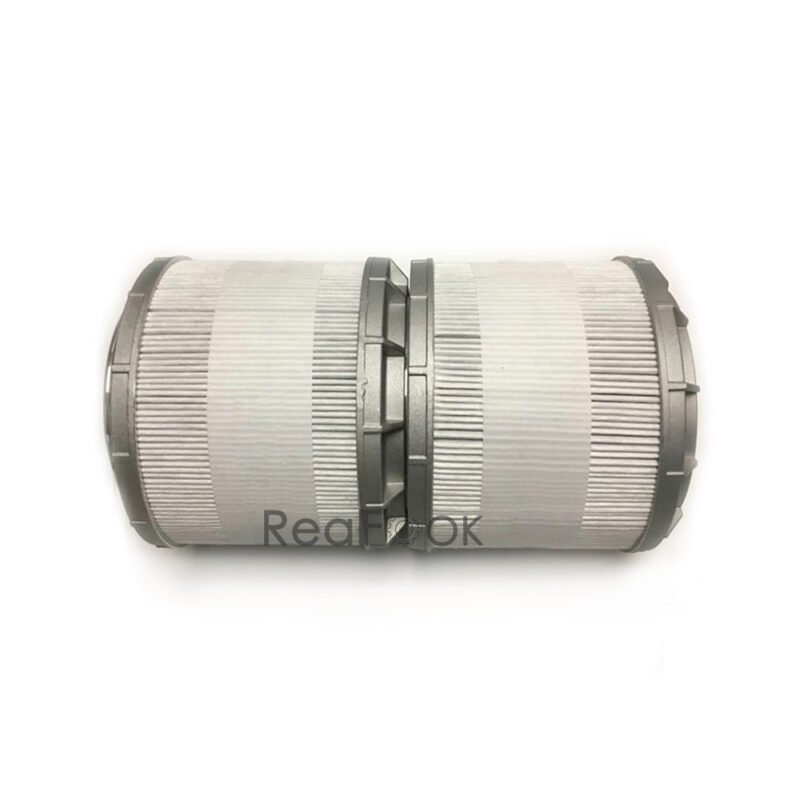

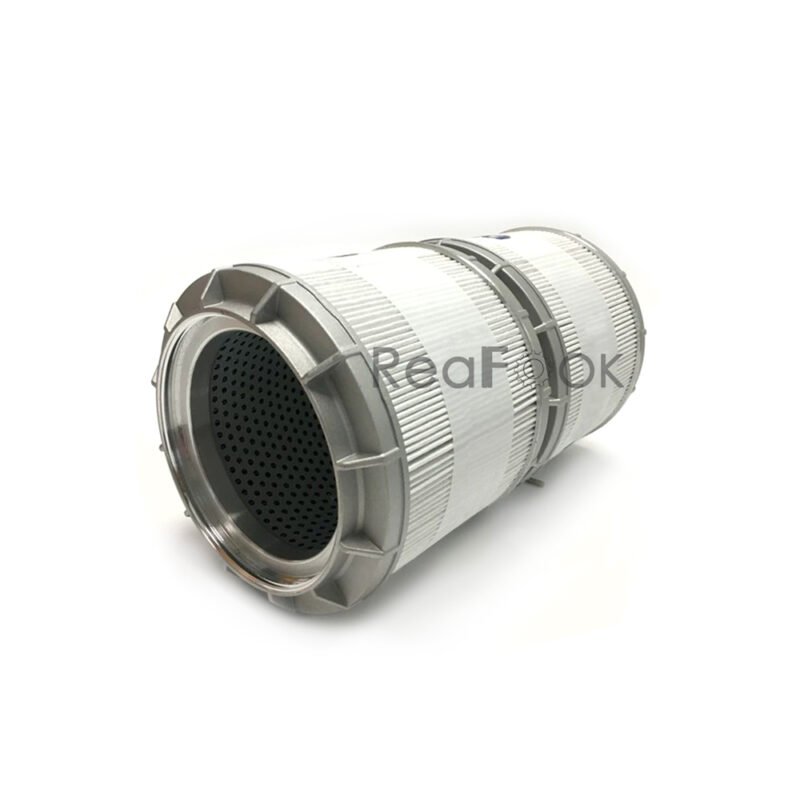

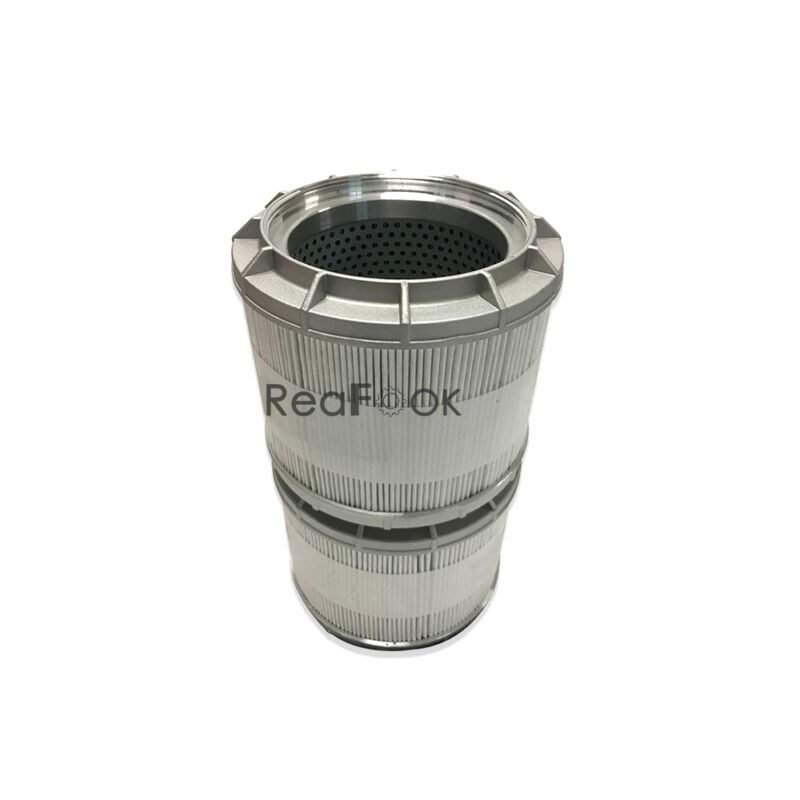

Hydraulic Filter Element YN50V00001P1 YN52V01021P1 Fit Excavator Kobelco SK200 SK200-6 SK200SR SK210LC-6 SK235SR SK250LC-6E SK290LC-6E SK330LC-6E
US$99.00
Hydraulic Filter Element YN50V00001P1 YN52V01021P1;
With Aluminum Cover Plate;
It’s used for Hydraulic Oil Tank;
Free Shipping and High Quality Standards!!
| Quantity | Discount (%) | Price |
|---|---|---|
| 1 - 9 | — | US$99.00 |
| 10+ | 27.27 % | US$72.00 |
Product Name: Hydraulic Filter Element
Reference Part Number: YN50V00001P1, YN52V01021P1
Compatible Machine: Excavator Kobelco SK200 SK200-6 SK200LC-6 SK200SR SK210LC SK210LC-6E SK235SR SK235SR-1E SK250LC SK250LC-6E SK290LC SK290LC-6E SK300 SK300LC SK330LC SK330LC-6E…

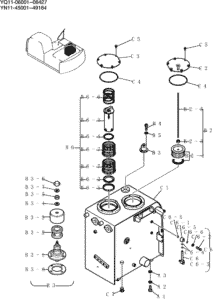

Pos. Part No Qty Parts name Comments
. . YN33H00070F1 [1] TANK KOB Instal, Hyd
. . YN33H00058F1 [1] TANK KOB Instal, Hyd
A1. ZS13C16040 [4] SCREW KOB Cap
A2. ZW13H16000 [4] WASHER KOB
A3. LE33H01017D1 [3] SHIM,1.0mm Thk KOB (1. 0)
. . YN33H00056F1 [1] TANK KOB Hyd
B2. YW50V00004F7 [1] FILTER STRAINER KOB Assy, Suction
B2-1. YN50V00002S001 [1] STRAINER ASSY. KOB (with O-ring)
B2-3. ZN11C10008 [1] NUT KOB Superseded by part number: ZN18C10008
B2-5. YW50V00004S005 [1] BOLT KOB
B3. YN57V00004F1 [1] BREATHER KOB Assy Superseded by part number: YN57V00010F1
B3-1. NSS [1] NOT SOLD SEPARAT CON Body Assy
B3-2. YN57V00004S002 [1] ELEMENT KOB Filter Superseded by part number: 47640920
B3-3. NSS [1] NOT SOLD SEPARAT CON Cover
B3-4. NSS [1] NOT SOLD SEPARAT CON Seal
B3-5. NSS [1] NOT SOLD SEPARAT CON Nut
B3-6. 2446U260S10 [1] NUT KOB B3-
7. NSS [1] NOT SOLD SEPARAT CON Seal B3-
8. 2446U260S8 [1] PACKING KOB
B4. ZS28C06016 [4] SCREW,Hex Socket Head, M6 x 16mm KOB Cap
B5. ZW26K06000 [4] LOCK WASHER KOB
B6. YN52V01008F3 [1] ELEMENT KOB Filter Superseded by part number: YN52V01016F3
B6-2. YN52V01008S002 [1] PLATE KOB
B6-3. YN21V00015P1 [1] CHECK VALVE KOB
B6-4. ZD11G09000 [1] O-RING,89.40mm ID x 95.60mm OD x 3.10mm KOB
B6-5. YN52V01008S005 [1] PACKING KOB
B6-6. LC33H01009P1 [1] SPRING KOB
B6-7. YN52V01011P1 [2] FILTER KOB Element Superseded by part number: YN52V01021P1
. . YN52V01008R600 [1] ELEMENT KOB Kit Consists Of Ref. (b6-4)x1, (b6-5)x1 Superseded by part number: YN52V01016R600
. . YN33H00057F1 [1] TANK KOB Assy
C1. YN33H00072P1 [1] TANK KOB , Serial Range: YQ11-06001-YQ11-06160 Superseded by part number: YN33H00083P1
. . YN33H00078P1 [1] TANK KOB , Serial Range: YQ11-06161-YQ11-06427 Superseded by part number: YN33H00083P1
C2. YN33H01261P1 [1] COVER KOB
C3. YN33H01259P1 [1] COVER KOB Superseded by part number: YN33H01259P2
. . YN33H00083P1 [1] TANK KOB , Start Serial: YQ11-06428
C4. ZD11G19000 [2] O-RING,189.30mm ID x 200.70mm OD x 5.70mm KOB
C5. ZM73C10025 [12] BOLT,M10x25mm – Course Thread KOB Sems
C6. YN58S00009F1 [1] GAUGE KOB Assy, Level
C6-1. NSS [2] NOT SOLD SEPARAT CON Block
C6-2. NSS [2] NOT SOLD SEPARAT CON Capscrew
C6-3. NSS [1] NOT SOLD SEPARAT CON Gauge
C6-4. NSS [4] NOT SOLD SEPARAT CON O-Ring
C6-5. NSS [4] NOT SOLD SEPARAT CON O-Ring
| Weight | 2.5 kg |
|---|
You must be logged in to post a review.
Recently Viewed
Related products
Hydraulic Oil Filter 4630525 Fit Excavator Hitachi ZX70-3 ZX75UR-3 ZX75US-3 ZX120-3 ZX200-3 ZX200-5G ZX330-3 ZX470-3 ZX470-5G
US$69.00Return Hydraulic Oil Filter 8231-1018-04 8231-0444-10 8231-1018-04 8231-0444-10 Fit Atlas Copco Drill Rig Machine
US$99.00Engine Oil Filter Assy 5i-7953 5i-7950 Fit Excavator Caterpillar CAT311 312 320 320L

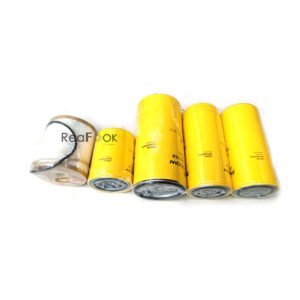

US$115.00Oil Filter Hydraulic Filter Water Separator Fuel Filter Element 20805349 17457469 11110683 Fit Excavator Volvo EC200B EC210B EC210C EC210D EC235C EC240B EC240C EC290B EC290C EC300D EC300E EC360B EC360C EC380D ECR235C
