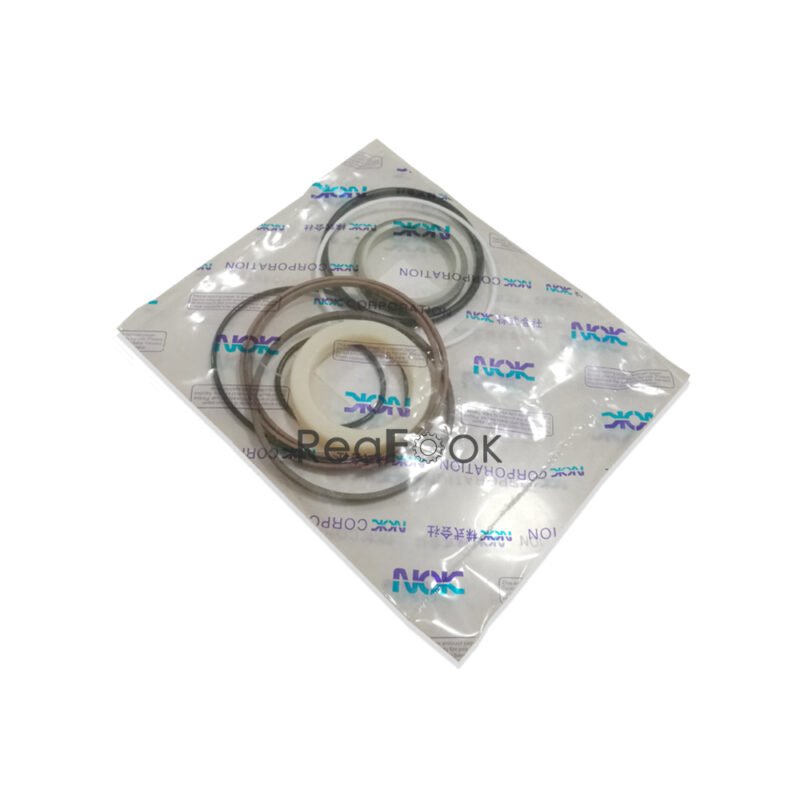

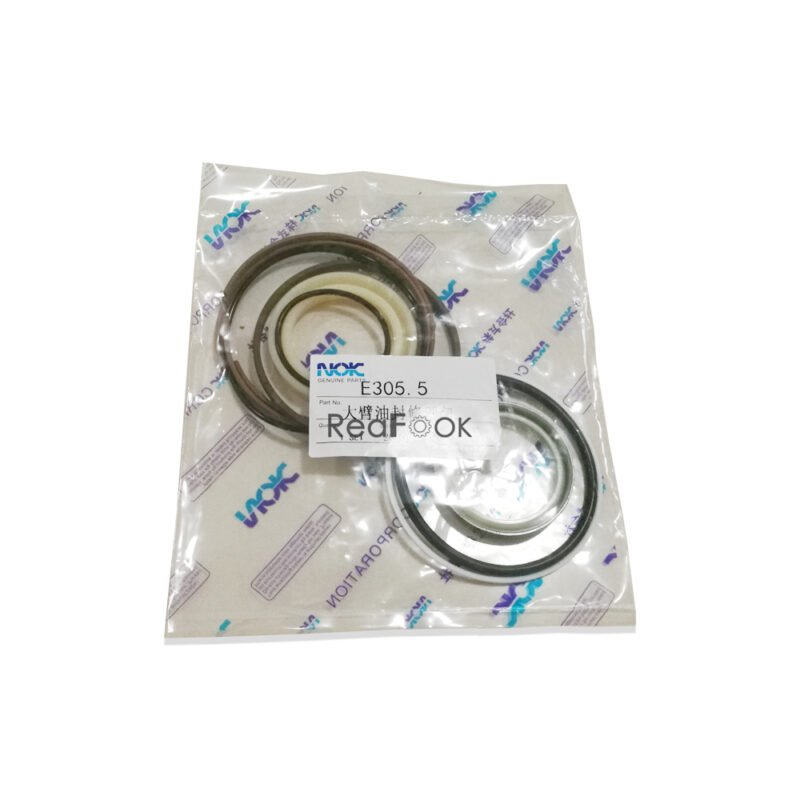

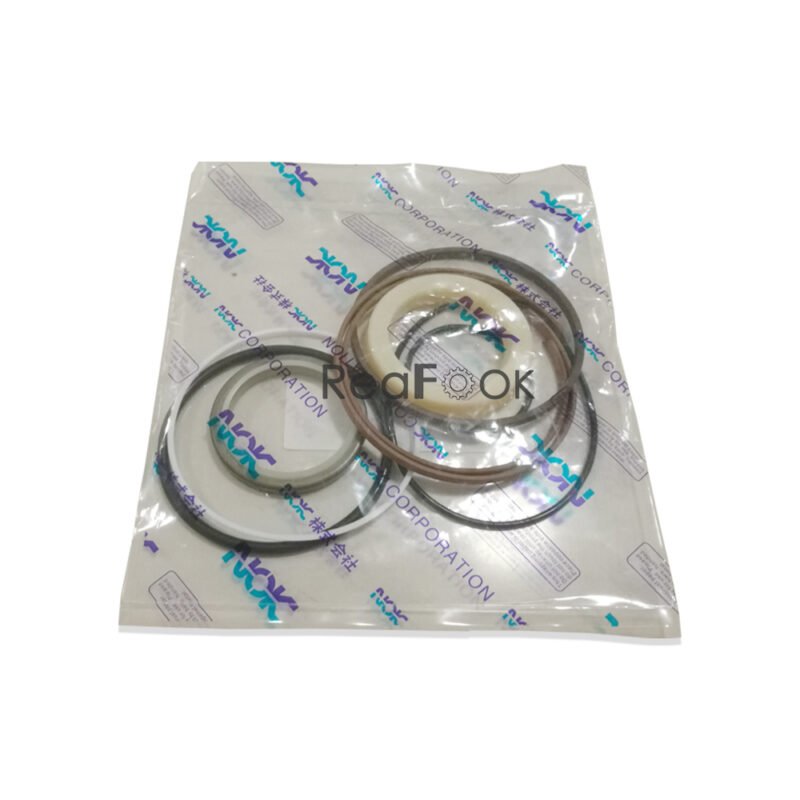

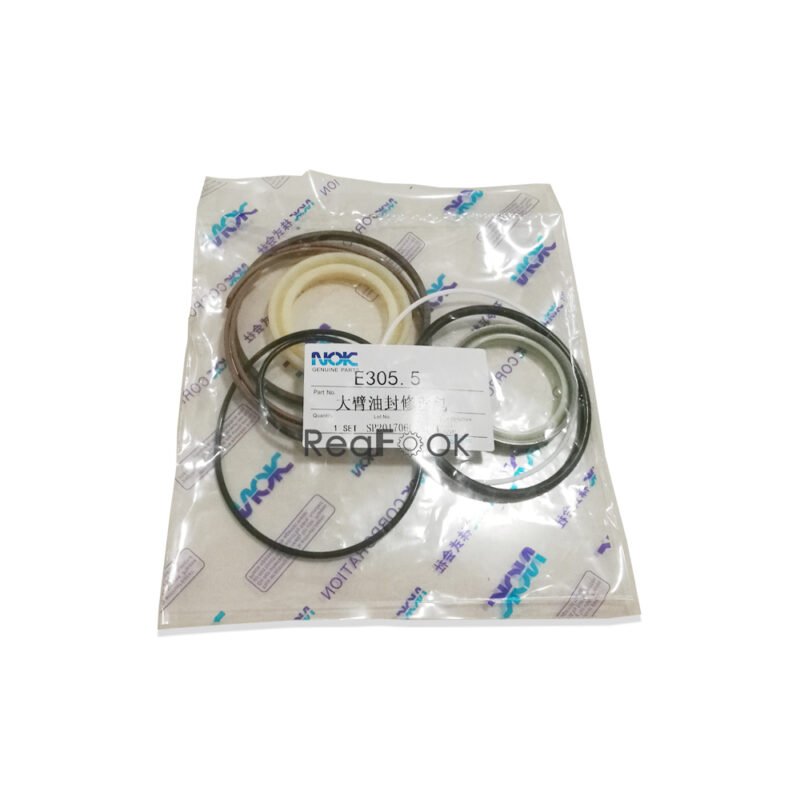

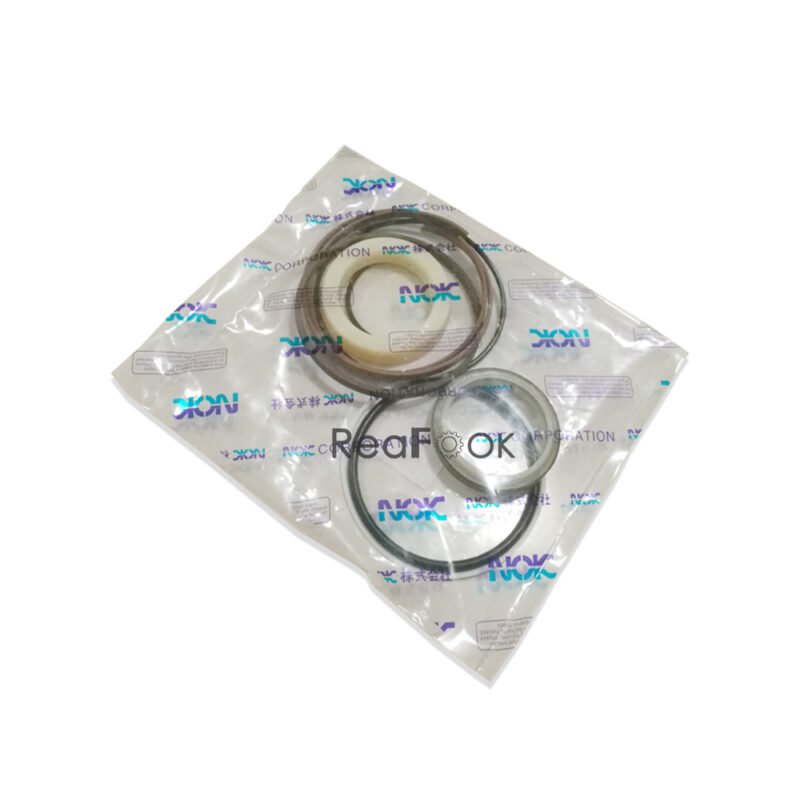

Hydraulic Boom Cylinder Seal Kit 274-7114 Fit Excavator Caterpillar 305.5 306
US$79.00
Boom Cylinder Seal Kit 274-7114 Repair Kit;
Rod 55mm x Bore 100 mm;
It is used for Hydraulic Cylinder System;
Free Shipping and High Quality Standards!!
The external package as shown is just for reference, please let us know if you have any requirement.
| Quantity | Discount (%) | Price |
|---|---|---|
| 1 | — | US$79.00 |
| 2 - 3 | 13.92 % | US$68.00 |
| 4 - 7 | 21.52 % | US$62.00 |
| 8+ | 30.38 % | US$55.00 |
Product Name: Hydraulic Boom Cylinder Seal Kit, Repair Kit
Reference Part Number: 274-7114, 2747114
Compatible Machine: Excavator Caterpillar 305.5 306…
Description:
The Kits provide easy field service, repair, or replacement of seals on boom cylinders of heavy duty equipment. It includes all of the necessary basic oil seals, for example, back up rings, o-ring, seal assembly, rings, U-cup seal, seal ring, buffer seal and lip type seal.

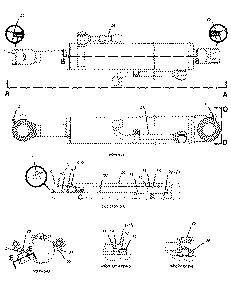

Pos. Part No Qty Parts name Comments
1. 195-5590 [2] BUSHING
2. 3B-8486 [1] FITTING-GREASE (1/8-27 PTF)
3. 3B-8489 [1] FITTING-GREASE (1/8-27 PTF)
4. 198-9416 [1] HEAD
5. 198-9417 [1] BUSHING
6. 170-8773 H [1] RING
7. 170-8774 H [1] RING
8. 170-8775 H [2] RING
9. 198-9418 H [1] RING
10. 170-8778 H [1] RING
11. 198-9419 [1] HOLDER
12. 198-9420 [1] SEAL
13. 200-8508 [1] SPACER
14. 198-9421 [1] COLLAR
15. 170-8776 [1] RING
16. 198-9422 [1] BEARING
17. 198-9423 [1] PISTON
18. 170-8781 H [1] SEAL AS
19. 198-9424 [2] RING
20. 171-0666 [1] SCREW (M10X1.5-MM)
21. 170-8858 [1] BALL
22. 170-8860 [4] RING
23. 332-1319 [1] TUBE AS
24. 274-7112 [1] TUBE AS
25. 198-9427 [2] PLUG
26. 198-9428 H [4] SEAL
27. 217-7970 [2] BOLT AS
28. 274-7113 [2] HOLDER
29. 332-1317 [1] CYLINDER AS-HYDRAULIC
30. 332-1318 [1] ROD AS
AVAILABLE REPAIR KIT(S):
274-7114 H [1] KIT-SEAL (BOOM CYLINDER)
KIT MARKED H SERVICES PART(S) MARKED H
| Weight | 0.6 kg |
|---|
