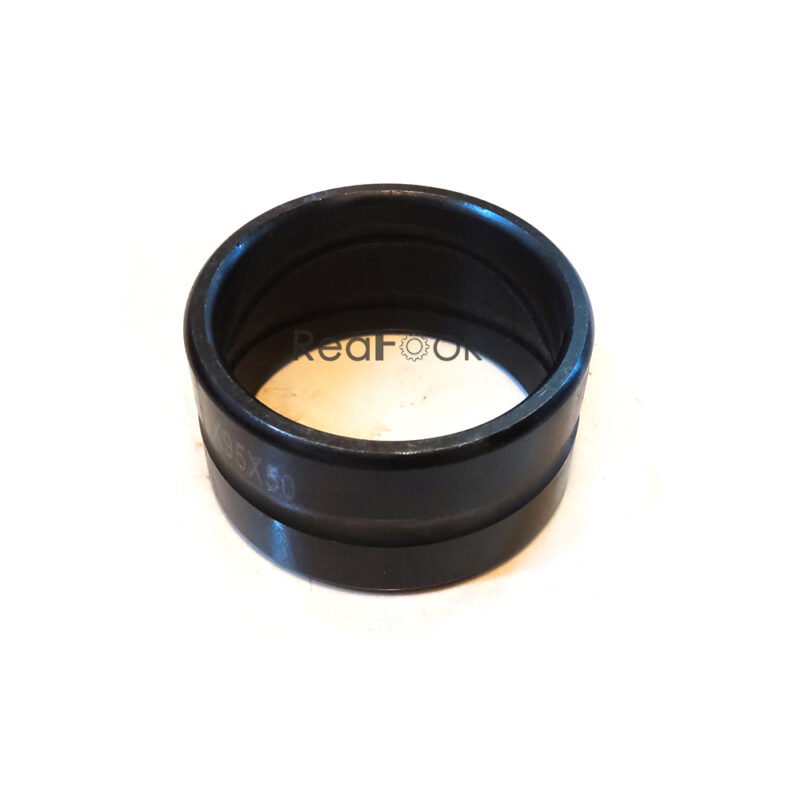

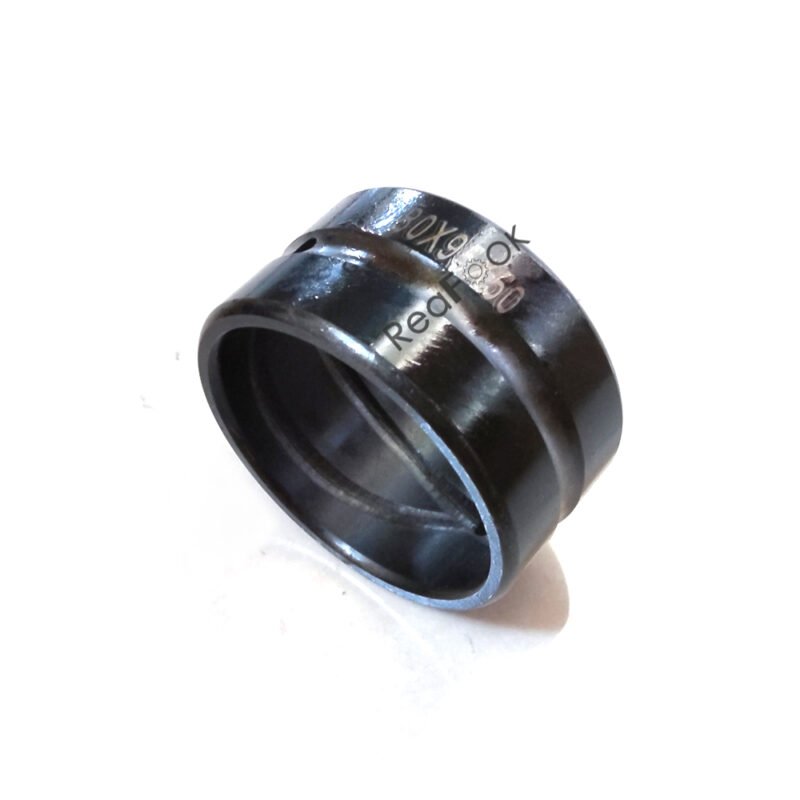

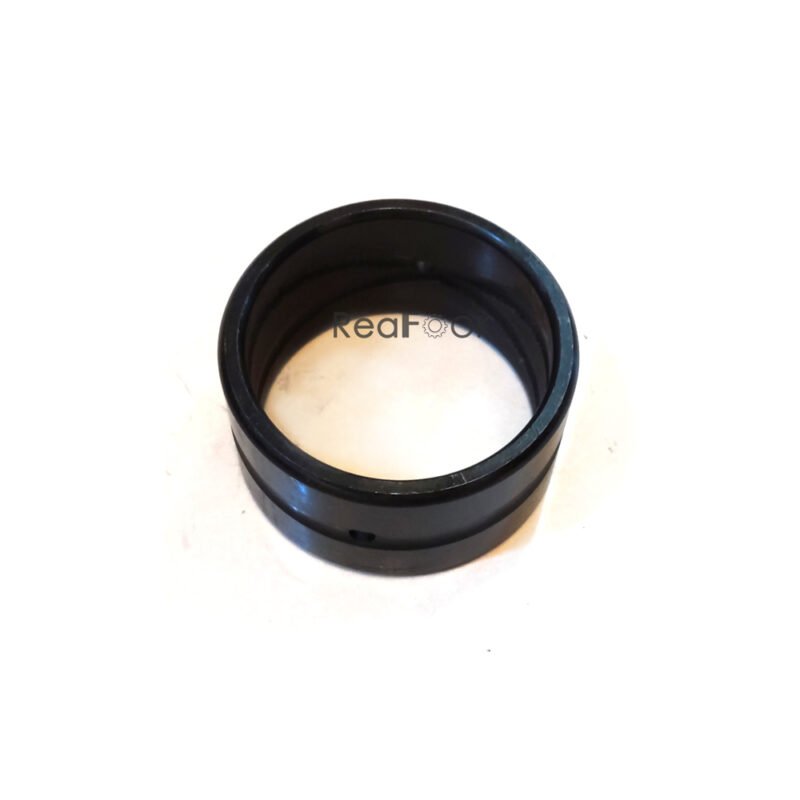

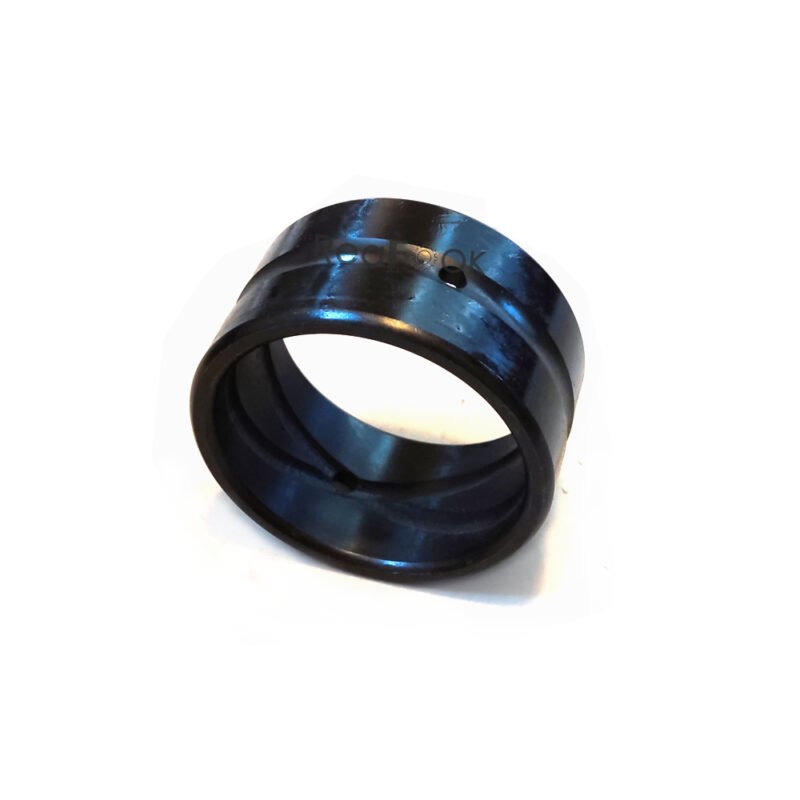

Hydraulic Arm Bushing YN12B02221P1 Fit Excavator Kobelco SK200-8 SK210-8 SK210-9 SK210D-8 SK210DLC-8 SK210LC-8 SK295-8 SK295-9 SK350-8 SK350-9 SK215SRLC SK235SR-1E SK235SRLC-2 SK350-9SK230SR-3

Product Name: Arm Bushing
Reference Part Number: YN12B02221P1
Compatible Machine: Excavator Kobelco SK200-8 SK210-8 SK210-9 SK210D-8 SK210DLC-8 SK210LC-8 SK295-8 SK295-9 SK350-8 SK350-9 SK215SRLC SK235SR-1E SK235SRLC-2 SK350-9SK230SR-3…

Description:
Bucket Bushing reduces wear between the bucket cylinder and mounting points, allowing smooth pivoting and supporting consistent bucket movement.

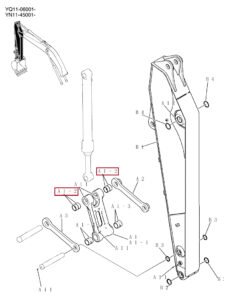

Pos. Part No Qty Parts name Comments
. . YN12B00655F1 [1] Arm Group
A1. YN12B01939F1 [1] LINK KOB Assy, Incl
A1-1 – A1-3 Superseded by part number: YN12B11101F1
A1-1. NSS [1] NOT SOLD SEPARAT CON Link, Bucket
A1-2. YN12B02221P1 [4] BUSHING,80mm ID x 95mm OD x 47mm L KOB
A1-3. LC12B01499P1 [2] BUSHING,80mm ID x 95mm OD x 89mm L KOB
A2. YN12B01227P1 [1] LINK KOB Superseded by part number: YN12B11269P1
A3. YN12B01228P1 [1] LINK KOB
A4. YN12B02215P1 [2] PIN,80mm OD x 561mm L KOB Superseded by part number: YN12B11170P1
A5. YN12B02216P1 [1] PIN KOB Superseded by part number: YN12B11271P1
A6. YN12B02217P1 [1] PIN,80mm OD x 478mm L KOB
A7. HS18C16130G2 [1] BOLT,Hex, M16 x 130mm, Cl 10.9 KOB Cap
A8. HS18C16140G2 [1] SCREW,M16 x 140mm, Cl 10.9 KOB Cap
A9. ZN18C16013 [4] NUT KOB
A10. 2445R220D4 [6] SEAL,78.7mm ID x 95mm OD x 5mm Thk KOB Superseded by part number: 84499640
A11. ZG91S02000 [5] LUBE NIPPLE,1/8″ NPT x 1/8″ NPT KOB 1/8″ PT — Straight
A12. ZG91S04000 [1] LUBE NIPPLE KOB
A13. B16T0442D57 [1] SHIM,72mm ID x 130mm OD x0.5mm Thk KOB (0. 5)
A14. B16T0442D44 [1] SHIM,72mm IDx 130mm OD x 0.9mm Thk KOB (0. 9)
A15. B16T0442D2 [1] SHIM,130mm OD x 72mm IDx 1.6mm Thk KOB (1. 6)
A16. YN12B01122D1 [2] SHIM,82mm IDx 140mm OD x0.5mm Thk KOB (0. 5)
A17. YN12B01122D2 [2] SHIM,82mm IDx 140mm OD x 0.9mm Thk KOB (0. 9)
A18. YN12B01122D3 [2] SHIM,82mm IDx 140mm OD x1.6mm Thk KOB (1. 6)
A19. YN12B01601D1 [4] SHIM,82mm ID x 140mm OD x 2mm Thk
A20. YN12B01602D1 [2] SHIM,72mm ID x 130mm OD x 2mm Thk KOB (2. 0)
. . YN12B00802F1 [1] Arm Assy
B1. YN12B00803F1 [1] ARM KOB Arm Assy [ See fig No. 585 ]
B2. 2445R220D4 [2] SEAL,78.7mm ID x 95mm ODx 5mm Thk KOB Dust Superseded by part number: 84499640
B3. 2445R220D3 [2] SEAL,70mm ID x 85mm OD x 5mm Thk KOB Dust
B4. 2445R138D8 [2] SEAL,90mm ID x 105mm OD x 4mm Thk KOB Dust
. . YN12B00810F1 [1] Arm Instal, Serial Range: YQ11-06001-YQ11-06123
. . YN12B00968F1 [1] Arm Instal, Start Serial: YQ11-06124
. . YN12B00737F1 [1] Arm Instal (arm Foot Pin), Start Serial: YQ11-06001
. . YN12B00914F1 [1] Instal (Arm Foot Pin), Start Serial: YQ11-06124
C1. YN12B02094P1 [1] PIN KOB , Serial Range: YQ11-06001-YQ11-06123 Superseded by part number:YN12B02415P1
C1. YN12B02415P1 [1] PIN,90mm ODx 519mm L KOB , Start Serial: YQ11-06124
C2. YN02B01414D1 [2] SHIM,92mm ID x 160mm OD x2mm Thk KOB (2.0)
C3. B16T0442D53 [1] SHIM,92mm IDx 160mm OD x0.5mm Thk KOB (0.5)
C4. B16T0442D40 [1] SHIM,92mm IDx 160mm OD x0.9mm Thk KOB (0.9)
. . YN12B00811F1 [1] Instal (Arm Cyl Rod Pin)
D1. YN02B01722P1 [1] PIN,85mm ODx 277mm L KOB
D2. HS18C16150G2 [1] SCREW KOB Cap
D3. ZN18C16013 [2] NUT KOB
D4. YN02B01415D1 [2] SHIM,87mm IDx 150mm OD x 2mm Thk KOB (2.0)
D5. B16T0442D78 [1] SHIM,87mm ID x 140mm OD x 0.5mm Thk KOB (0.5)
D6. B16T0442D77 [1] SHIM,87mm ID x 140mm OD x 0.9mm Thk KOB (0.9)
D7. B16T0442D62 [1] SHIM,87mm ID x 140mm OD x 1.6mm Thk KOB (1.6)
. . YN12B00812F1 [1] ARM KOB Instal (Arm Foot Lock Plate)
E1. YN12B02109P1 [1] PLATE KOB
E2. ZS18C14030 [2] SCREW,Hex,M14 x 30mm KOB Cap
E3. ZW16H14000 [2] WASHER KOB
